Kubota B7200D PARTS MANUAL – PDF DOWNLOAD

Description

Kubota B7200D PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

Kubota B7200D PARTS MANUAL – PDF DOWNLOAD

Language : English
Pages :214
Downloadable : Yes
File Type : PDF
Size:1.65 MB

TABLE OF CONTENTS:

Kubota B7200D PARTS MANUAL – PDF DOWNLOAD

Instructions for Parts Books...............................  1
|ALL PRODUCT INDEX.........................................  2
CRANKCASE..................................................  5
OIL PAN....................................................  7
CYLINDER HEAD..............................................  9
GEAR CASE.................................................. 11
MAIN BEARING CASE.......................................... 13
CYLINDER HEAD COVER........................................ 15
MANIFOLD................................................... 17
VALVE/ROCKER ARM........................................... 19
CAMSHAFT................................................... 21
PISTON/CRANKSHAFT.......................................... 23
FLYWHEEL................................................... 25
INJECTION PUMP............................................. 27
NOZZLE HOLDER.............................................. 29
ENGINE STOP LEVER.......................................... 31
SPEED CONTROL PLATE........................................ 33
GOVERNOR................................................... 35
HYDRAULIC PUMP............................................. 37
DYNAMO..................................................... 39
WATER FLANGE............................................... 41
WATER PUMP................................................. 43
INJECTION PUMP [SECTION PARTS]............................. 45
NOZZLE HOLDER [SECTION PARTS].............................. 47
DYNAMO [SECTION PARTS]..................................... 49
HYDRAULIC PUMP [SECTION PARTS]............................. 51
TRANSMISSION CASE.......................................... 53
PTO COVER.................................................. 55
COVER...................................................... 57
CASE COVER................................................. 59
REAR AXLE CASE............................................. 61
CLUTCH ROD................................................. 63
CLUTCH..................................................... 65
2ND SHAFT.................................................. 67
3RD SHAFT.................................................. 69
4TH SHAFT,5TH SHAFT........................................ 71
SPIRAL BEVEL SHAFT......................................... 73
PTO SHAFT.................................................. 75
REVERSE SHAFT.............................................. 77
REAR DIFFERENTIAL.......................................... 79
REAR AXLE.................................................. 81
REAR WHEEL (9.5-16)........................................ 83
REAR WHEEL (8-16).......................................... 85
REAR WHEEL (29 X 12.00-15)................................. 87
REAR WHEEL (31 X 13.5-15).................................. 89
REAR WHEEL HUB............................................. 91
SPEED CHANGE FORK.......................................... 93
MAIN SPEED CHANGE.......................................... 95
AUX. SPEED CHANGE.......................................... 97
ROTARY SPEED CHANGE FORK................................... 99
BRAKE......................................................101
HYDRAULIC PIPE.............................................103
HYDRAULIC BLOCK............................................105
HYDRAULIC 2................................................107
STEERING...................................................109
SPEED CHANGE LEVER.........................................111
BRAKE ROD..................................................113
PEDAL......................................................115
RELEASE ROD................................................117
SEAT.......................................................119
LABEL......................................................121
CLUTCH HOUSING/STEP/STARTER................................123
FRONT AXLE FRAME...........................................125
RADIATOR...................................................127
FENDER.....................................................129
HOOD.......................................................131
BATTERY....................................................133
MUFFLER AND MUFFLER PIPE [A],[CA]..........................135
FUEL TANK..................................................137
FUEL PIPE..................................................139
FUEL FILTER................................................141
PANEL......................................................143
PANEL SWITCH...............................................145
DECOMPRESS WIRE AND ENGINE STOP WIRE.......................147
FLASHER LIGHT/TAIL LIGHT/HEAD LAMP.........................149
AIR CLEANER................................................151
FRONT AXLE CASE............................................153
FRONT GEAR CASE............................................155
KNUCKLE ARM................................................157
FRONT DIFFERENTIAL.........................................159
FRONT WHEEL HUB............................................161
DRIVE SHAFT................................................163
FRONT AXLE ARM.............................................165
BEVEL GEAR CASE............................................167
FRONT AXLE CASE............................................169
KNUCKLE ARM................................................171
FRONT DIFFERENTIAL.........................................173
BEVEL GEAR.................................................175
DRIVE SHAFT................................................177
FRONT WHEEL (6-12B) B6200D-GP-[A][CA], B7200D-P-[A][AU]....179
FRONT WHEEL (6-12) B7200D-GP...............................181
FRONT WHEEL (20.5 X 8.00-10)...............................183
3-POINT LINKAGE............................................185
DYNAMO 1 [OPTION]..........................................188
DYNAMO 2 [OPTION]..........................................190
HYDRAULIC OUTLET [OPTION]..................................192
HORIZON MUFFLER [OPTION]...................................194
WORKING LIGHT [OPTION].....................................196
FLANGE F.PTO [OPTION]......................................198
POWER STEERING [A] [CA] [OPTION]...........................200
CONTROL VALVE [SECTION PARTS]..............................203
STARTER [SECTION PARTS]....................................205
DYNAMO [SECTION PARTS].....................................207
BOOSTER [A] [CA] [SECTION PARTS]...........................209
HYDRAULIC BLOCK [A] [CA] [SECTION PARTS]...................211
ACCESSORIES AND SERVICE PARTS..............................213

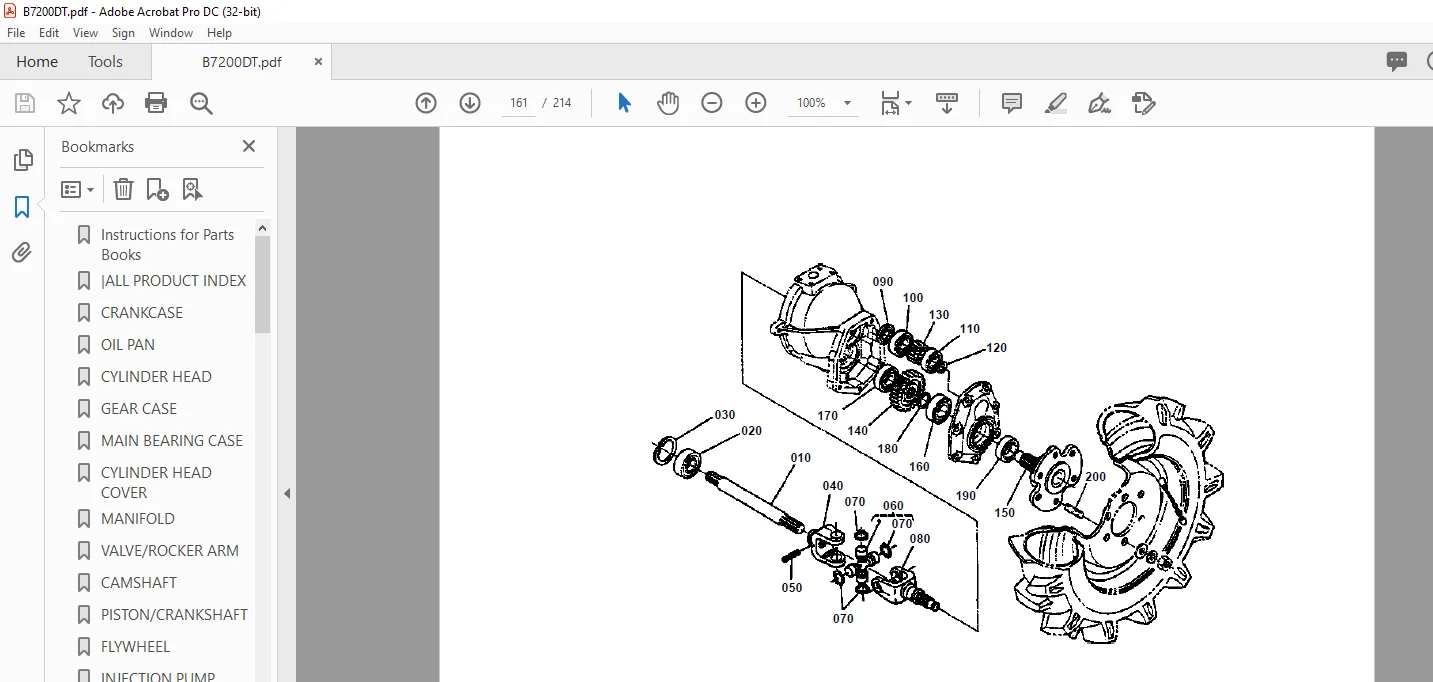

IMAGES PREVIEW OF THE MANUAL:
