Kubota GR2100 Lawn Tractor Parts Manual – PDF DOWNLOAD

Description

Kubota GR2100 Lawn Tractor Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kubota GR2100 Lawn Tractor Parts Manual – PDF DOWNLOAD

Language : English
Pages :143
Downloadable : Yes
File Type : PDF

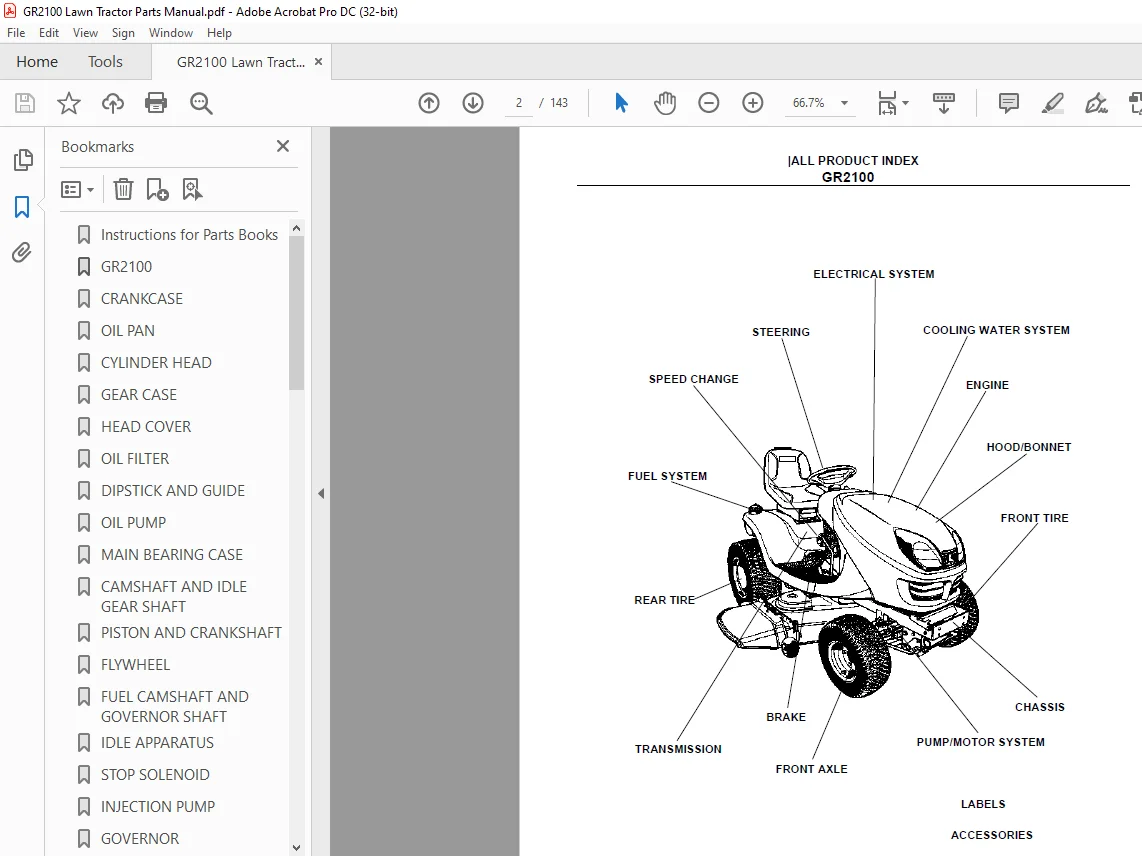

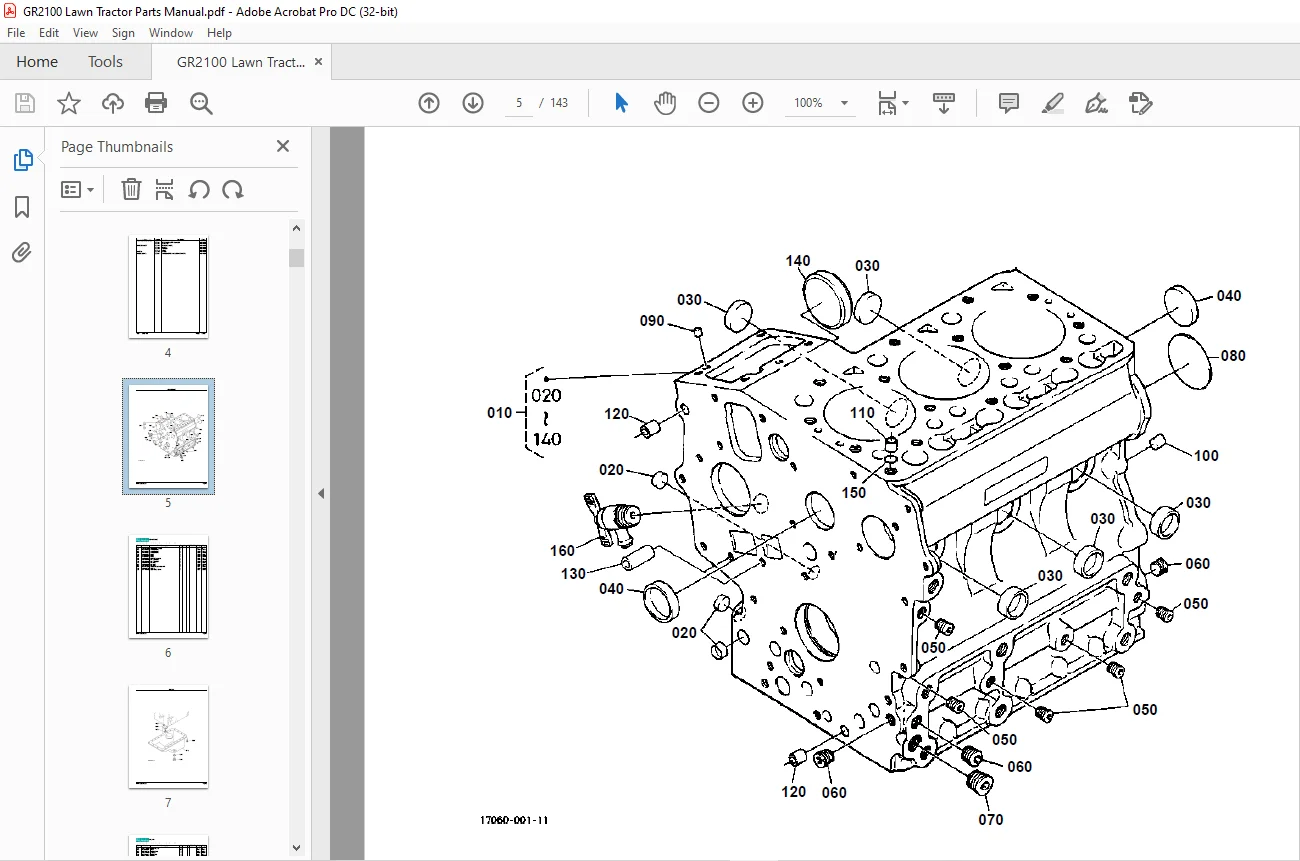

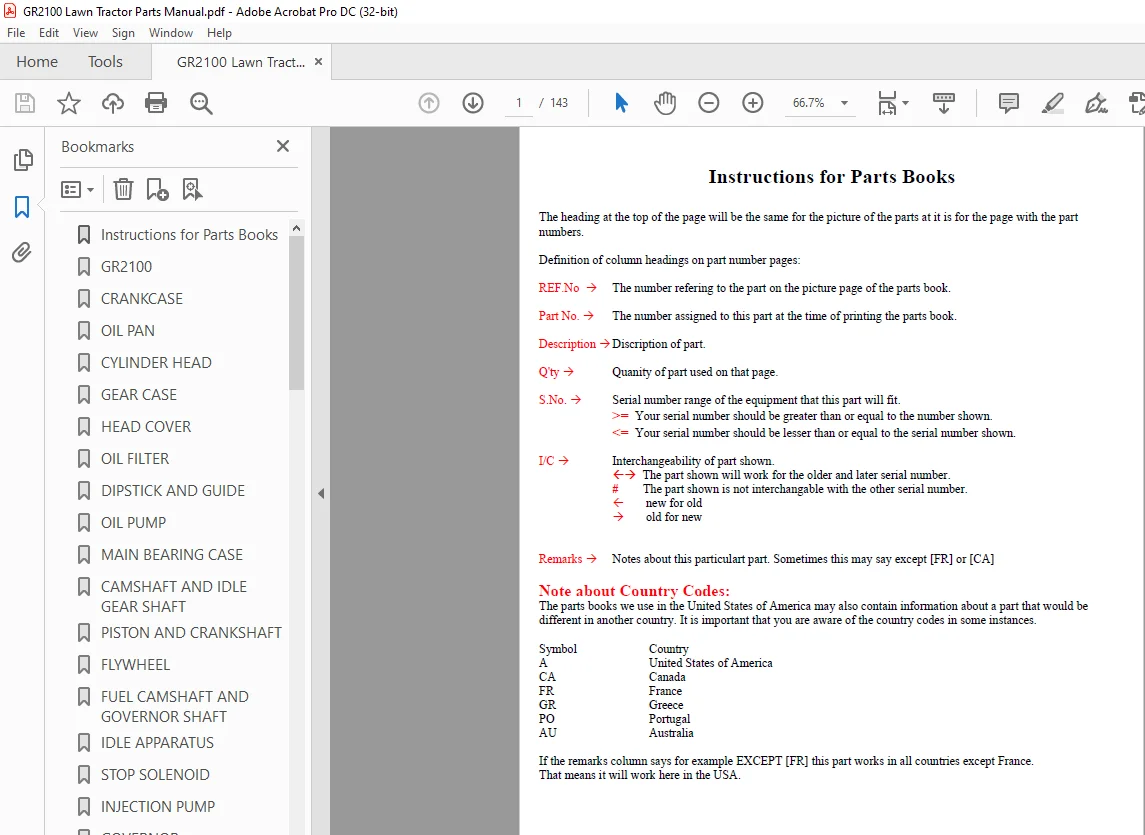

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kubota GR2100 Lawn Tractor Parts Manual – PDF DOWNLOAD

Instructions for Parts Books........  1
GR2100..............................  2
CRANKCASE...........................  5
OIL PAN.............................  7
CYLINDER HEAD.......................  9
GEAR CASE........................... 11
HEAD COVER.......................... 13
OIL FILTER.......................... 15
DIPSTICK AND GUIDE.................. 17
OIL PUMP............................ 19
MAIN BEARING CASE................... 21
CAMSHAFT AND IDLE GEAR SHAFT........ 23
PISTON AND CRANKSHAFT............... 25
FLYWHEEL............................ 27
FUEL CAMSHAFT AND GOVERNOR SHAFT.... 29
IDLE APPARATUS...................... 31
STOP SOLENOID....................... 33
INJECTION PUMP...................... 35
GOVERNOR............................ 37
SPEED CONTROL PLATE................. 39
NOZZLE HOLDER AND GLOW PLUG......... 41
NOZZLE HOLDER [COMPONENT PARTS]..... 43
FUEL PUMP COVER..................... 45
DYNAMO AND PULLEY................... 47
DYNAMO (COMPONENT PARTS)............ 49
STARTER............................. 51
STARTER [COMPONENT PARTS]........... 53
OIL SWITCH AND PLUG................. 55
WATER FLANGE AND THERMOSTAT......... 57
WATER PUMP.......................... 59
WATER PIPE.......................... 61
FAN................................. 63
VALVE AND ROCKER ARM................ 65
INLET MANIFOLD...................... 67
EXHAUST MANIFOLD.................... 69
AIR CLEANER......................... 71
MUFFLER............................. 73
PISTON KIT [OPTION]................. 75
UPPER GASKET KIT [OPTION]........... 77
LOWER GASKET KIT [OPTION]........... 79
ACCELERATOR LEVER................... 81
FUEL TANK........................... 83
WATER PIPE.......................... 85
RADIATOR............................ 87
BATTERY............................. 89
ELECTRICAL PARTS.................... 91
HST................................. 93
HST [COMPONENT PARTS]............... 95
HST [COMPONENT PARTS]............... 98
UNIVERSAL JOINT/HST FAN.............100
REAR WHEEL..........................102
BRAKE...............................104
PARKING BRAKE LEVER.................106
BRAKE ROD...........................108
SPEED CHANGE PEDAL..................110
PTO CLUTCH CONTROL LEVER/WIRE.......112
FRONT AXLE..........................114
FRONT WHEEL.........................117
MAIN FRAME/STEERING SUPPORT.........119
ENGINE SUPPORT......................121
POWER STEERING/STEERING HANDLE......123
CONTROL VALVE.......................125
HYDRAULIC LIFT CYLINDER.............128
LIFT LINK...........................130
HOOD(BONNET)........................132
PANEL...............................134
FENDER..............................136
SEAT................................138
LABEL...............................140
ACCESSORIES AND SERVICE PARTS.......143
