Kubota L3300DT-GST PARTS MANUAL – PDF DOWNLOAD

Description

Kubota L3300DT-GST PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

Kubota L3300DT-GST PARTS MANUAL – PDF DOWNLOAD

Language : English
Pages :350
Downloadable : Yes
File Type : PDF
Size:3.01 MB

TABLE OF CONTENTS:

Kubota L3300DT-GST PARTS MANUAL – PDF DOWNLOAD

Instructions for Parts Books....................................................  1
|ALL PRODUCT INDEX..............................................................  2
CRANKCASE.......................................................................  7
OIL PAN.........................................................................  9
PISTON AND CRANKSHAFT........................................................... 11
MAIN BEARING CASE............................................................... 13
FLYWHEEL [W/O IND-PTO].......................................................... 15
FLYWHEEL [WITH IND-PTO]......................................................... 18
CYLINDER HEAD................................................................... 21
VALVE AND ROCKER ARM............................................................ 23
NOZZLE HOLDER/GLOW PLUG......................................................... 26
NOZZLE HOLDER [COMPONENT PARTS]................................................. 29
CYLINDER HEAD COVER............................................................. 31
INLET MANIFOLD.................................................................. 33
CAMSHAFT........................................................................ 35
GEAR CASE....................................................................... 37
WATER PUMP...................................................................... 39
WATER FLANGE AND THERMOSTAT..................................................... 41
FUEL CAMSHAFT................................................................... 43
INJECTION PUMP.................................................................. 45
INJECTION PUMP [COMPONENT PARTS]................................................ 47
ENGINE STOP LEVER............................................................... 49
SPEED CONTROL PLATE............................................................. 51
GOVERNOR........................................................................ 53
UPPER GASKET KIT................................................................ 55
LOWER GASKET KIT................................................................ 57
AIR CLEANER..................................................................... 59
DOUBLE AIR CLEANER [OPTION]..................................................... 61
EXHAUST MANIFOLD AND MUFFLER.................................................... 63
STOP SOLENOID AND ENGINE STOP WIRE.............................................. 65
ACCELERATOR LEVER............................................................... 68
ACCELERATOR LINKAGE............................................................. 70
ACCELERATOR ROD................................................................. 72
FUEL TANK....................................................................... 74
FUEL PIPE AND FUEL FILTER....................................................... 76
FUEL FILTER [COMPONENT PARTS]................................................... 78
FAN............................................................................. 80
WATER PIPE...................................................................... 82
RADIATOR........................................................................ 84
RESERVE TANK.................................................................... 86
ALTERNATOR...................................................................... 88
ALTERNATOR [COMPONENT PARTS].................................................... 91
STARTER......................................................................... 93
STARTER [COMPONENT PARTS]....................................................... 95
BATTERY......................................................................... 97
SWITCH.......................................................................... 99
PANEL BOARD.....................................................................101
PANEL BOARD [COMPONENT PARTS]...................................................103
LIGHT...........................................................................105
ELECTRICAL WIRING...............................................................107
CLUTCH..........................................................................109
CLUTCH LEVER....................................................................111
CLUTCH PEDAL....................................................................113
CLUTCH HOUSING [GST TYPE].......................................................115
MID CASE [GST TYPE] [W/O IND-PTO]...............................................118
TRANSMISSION CASE...............................................................120
MAIN SHAFT [W/O IND-PTO]........................................................122
COUNTERSHAFT....................................................................124
HYDRAULIC CLUTCH [GST TYPE].....................................................126
SHUTTLE SHAFT [GST TYPE]........................................................128
RANGE GEAR SHAFT [GST TYPE].....................................................130
PTO COUNTERSHAFT [W/O IND-PTO]..................................................132
PTO CLUTCH [W/O IND-PTO]........................................................135
PTO SHAFT [W/O MID-PTO].........................................................138
PTO SHAFT [WITH MID-PTO]........................................................141
MID PTO [WITH MID-PTO]..........................................................144
MAIN GEAR SHIFT LEVER [MANUAL T/M TYPE].........................................146
MAIN GEAR SHIFT LEVER [GST TYPE]................................................149
GST SHIFT COVER [OPTION] [GST TYPE].............................................151
MAIN GEAR SHIFT FORK [GST TYPE].................................................153
SHUTTLE SHIFT LEVER.............................................................155
SHUTTLE SHIFT FORK [GST TYPE]...................................................158
RANGE GEAR SHIFT LEVER [MANUAL T/M TYPE] [W/O CREEP]............................160
RANGE GEAR SHIFT LEVER/CREEP GEAR SHIFT LEVER [MANUAL T/M TYPE] [WITH CREEP]....162
CREEP GEAR SHIFT LEVER [GST TYPE]...............................................165
RANGE GEAR SHIFT FORK AND CREEP GEAR SHIFT FORK [GST TYPE]......................168
MID PTO SHIFT LEVER [WITH MID-PTO]..............................................170
PTO CLUTCH CONTROL LEVER [WITH IND-PTO].........................................172
PTO GEAR SHIFT LEVER [W/O IND-PTO]..............................................175
SPIRAL BEVEL PINION [W/O CREEP].................................................178
SPIRAL BEVEL PINION AND CREEP [WITH CREEP]......................................180
REAR DIFFERENTIAL...............................................................182
DEFFERENTIAL LOCK SHIFT FORK....................................................184
REAR AXLE.......................................................................186
REAR WHEEL (12.4-24)............................................................188
REAR WHEEL (420/70-24)..........................................................190
REAR WHEEL (13.6-16)............................................................192
REAR WHEEL (41X14.00-20)........................................................194
REAR WHEEL (21.5L-16.1).........................................................196
REAR WHEEL (355/80-D20).........................................................198
BRAKE...........................................................................200
BRAKE PEDAL.....................................................................202
BRAKE ROD 1.....................................................................205
BRAKE ROD 2.....................................................................207
FRONT AXLE......................................................................209
FRONT AXLE CASE.................................................................211
DIFFERENTIAL GEAR SHAFT.........................................................214
FRONT DIFFERENTIAL CASE.........................................................216
FRONT DIFFERENTIAL..............................................................219
PROPELLER SHAFT.................................................................221
FRONT WHEEL DRIVE SHAFT.........................................................223
FRONT WHEEL DRIVE LEVER.........................................................225
FRONT WHEEL (7.2-16)............................................................227
FRONT WHEEL (10-16.5)...........................................................229
FRONT WHEEL (25*8.50-14)........................................................231
FRONT WHEEL (27*8.50-15)........................................................233
FRONT WHEEL (27*10.50-15).......................................................235
FRONT WHEEL (29*12.50-15).......................................................237
FRONT AXLE FRAME [4WD]..........................................................239
STEERING LINKAGE [4WD]..........................................................242
STEERING CYLINDER...............................................................244
STEERING CYLINDER [COMPONENT PARTS].............................................247
STEERING CONTROLLER.............................................................250
STEERING HANDLE.................................................................252
HYDRAULIC OIL LINE (PS).........................................................254
GST VALVE.......................................................................257
REGULATOR VALVE.................................................................260
PTO HYDRAULIC OIL LINE [GST TYPE] [W/O IND-PTO].................................262
HYDRAULIC PUMP..................................................................264
HYDRAULIC PUMP [COMPONENT PARTS]................................................266
HYDRAULIC OIL LINE (INLET)......................................................268
HYDRAULIC OIL LINE (DELIVERY)...................................................271
HYDRAULIC OUTLET BLOCK..........................................................273
HYDRAULIC CYLINDER..............................................................275
LIFT ARM........................................................................278
CONTROL VALVE...................................................................280
CONTROL VALVE [COMPONENT PARTS].................................................283
FEED BACK LEVER.................................................................285
POSITION CONTROL LEVER..........................................................287
DRAFT AND POSITION CONTROL LEVER 1 [OPTION].....................................290
DRAFT AND POSITION CONTROL LEVER 2 [OPTION].....................................292
TOP LINK HOLDER [OPTION]........................................................294
DRAWBAR AND PTO PROTECTOR.......................................................296
SWINGING DRAWBAR AND CLEVIS DRAWBAR [OPTION]....................................299
REMOTE CONTROL VALVE LEVER 1 [OPTION]...........................................301
REMOTE CONTROL VALVE LEVER 2 [OPTION]...........................................303
REMOTE CONTROL VALVE LEVER 3 [OPTION]...........................................305
REMOTE CONTROL VALVE COUPLER 1 [OPTION].........................................307
REMOTE CONTROL VALVE COUPLER 2 [OPTION].........................................309
REMOTE CONTROL VALVE COUPLER 3 [OPTION].........................................311
3-POINT LINKAGE 1 (LOWER LINK)..................................................313
3-POINT LINKAGE 2 (LIFT ROD)....................................................315
FRONT GRILLE....................................................................317
FRONT GRILLE SUPPORT............................................................320
HOOD (BONNET)...................................................................322
SIDE COVER......................................................................325
SIDE COVER LOWER................................................................328
SHUTTER PLATE...................................................................330
PANEL FRAME.....................................................................333
FENDER..........................................................................335
FLOOR SEAT......................................................................337
STEP............................................................................342
ROPS............................................................................344
LABEL 1.........................................................................346
LABEL 2.........................................................................348
ACCESSORIES AND SERVICE PARTS...................................................350

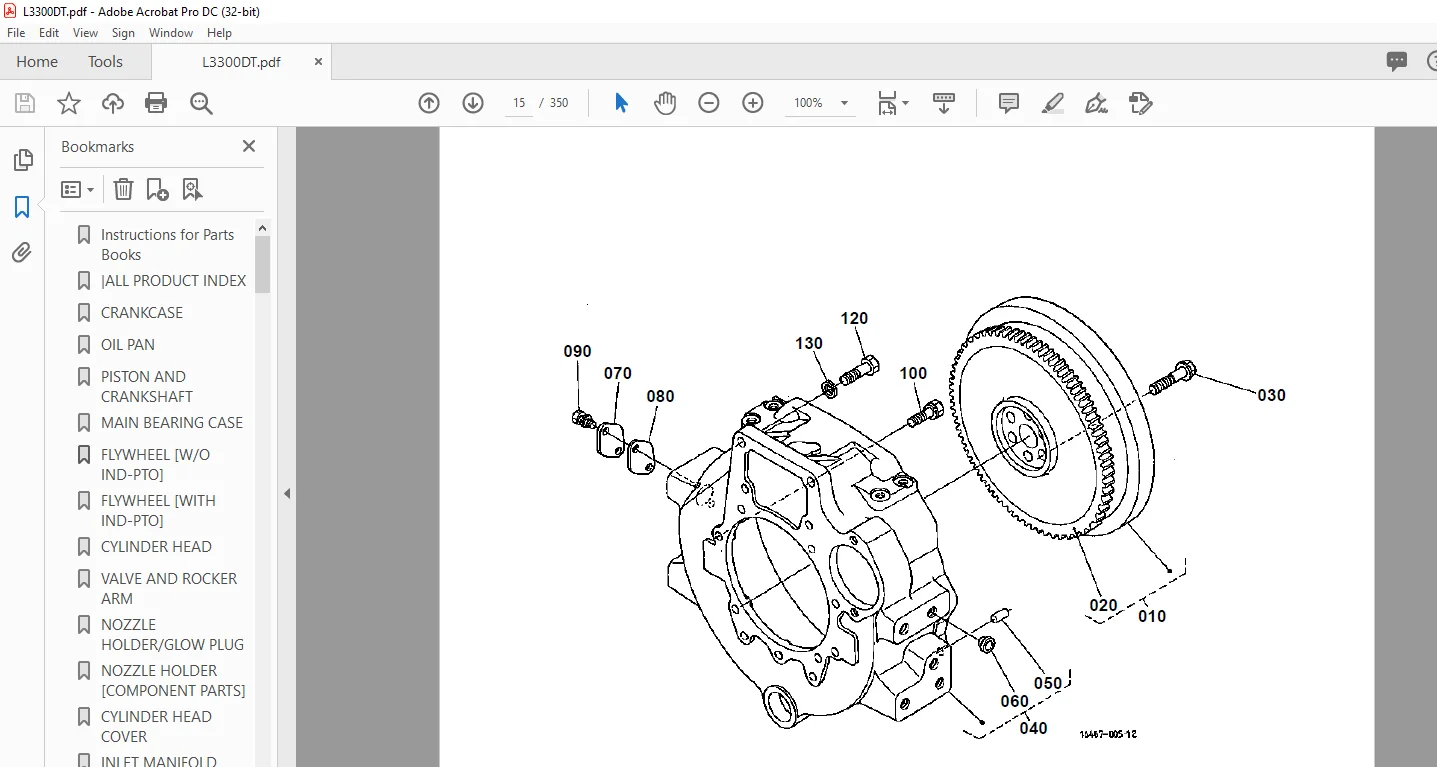

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
