Kubota LT-125 Series Hydro Tractor Snapper Operator’s Manual Model No. 130.288370 – PDF DOWNLOAD

Description

Kubota LT-125 Series Hydro Tractor Snapper Operator’s Manual Model No. 130.288370 – PDF DOWNLOAD

DESCRIPTION:

Kubota LT-125 Series Hydro Tractor Snapper Operator’s Manual Model No. 130.288370 – PDF DOWNLOAD

GENERAL OPERATION :

Read, understand, and follow all instructions in the manual and on the unit before starting. Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times. Only allow responsible adults, who are familiar with the instructions, to operate the unit (local regulations can restrict operator age). = Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade(s).

Be sure the area is clear of other people before mowing. Stop the unit if anyone enters the area. = Never carry passengers. = Do not mow in reverse unless absolutely necessary. Always look down and behind before and while travelling in reverse. = Never direct discharge material toward anyone.

Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blade(s) when crossing gravel surfaces. Do not operate the machine without the entire grass catcher, discharge guard (deflector), or other safety devices in place.

Use extra care when loading or unloading the unit into a trailer or truck. Always wear eye protection when operating this unit. Data indicates that operators, age 60 years and above, are involved in a large percentage of power equipment-related injuries.

These operators should evaluate their ability to operate the equipment safely enough to protect themselves and others from injury. Follow the manufacturer’s recommendations for wheel weights or counterweights. Keep in mind the operator is responsible for accidents occurring to other people or property.

• All drivers should seek and obtain professional and practical instruction. Always wear substantial footwear and trousers. Never operate when barefoot or wearing sandals. Before using, always visually check that the blades and blade hardware are present, intact, and secure. Replace worn or damaged parts. Disengage attachments before: refueling, removing an attachment, making adjustments (unless the adjustment can be made from the operator’s position).
• When the machine is parked, stored, or left unattended, lower the cutting means unless a positive mechanical lock is used. Before leaving the operator’s position for any reason, engage the parking brake (if equipped), disengage the PTO, stop the engine, and remove the key.
• To reduce fire hazard, keep the unit free of grass, leaves, & excess oil. Do not stop or park over dry leaves, grass, or combustible materials. It is a violation of California Public Resource Code Section 4442 to use or operate the engine on or near any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester meeting any applicable local or state laws. Other states or federal areas may have similar laws.

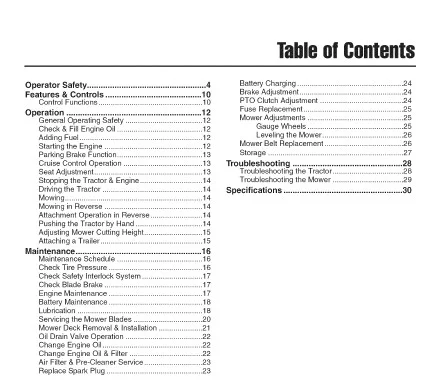

TABLE OF CONTENTS:

Kubota LT-125 Series Hydro Tractor Snapper Operator’s Manual Model No. 130.288370 – PDF DOWNLOAD

Operator Safety ……………………………………………. 4
Features & Controls …………………………………… 10
Control Functions ………………………………………….. 10
Operation ………………………………………………….. 12
General Operating Safety ………………………………. 12
Check & Fill Engine Oil ………………………………….. 12
Adding Fuel ………………………………………………….. 12
Starting the Engine ……………………………………….. 12
Parking Brake Function ………………………………….. 13
Cruise Control Operation ……………………………….. 13
Seat Adjustment ……………………………………………. 13
Stopping the Tractor & Engine ………………………… 14
Driving the Tractor ………………………………………… 14
Mowing ………………………………………………………… 14
Mowing in Reverse ……………………………………….. 14
Attachment Operation in Reverse ……………………. 14
Pushing the Tractor by Hand ………………………….. 14
Adjusting Mower Cutting Height ………………………. 15
Attaching a Trailer …………………………………………. 15
Maintenance ………………………………………………. 16
Maintenance Schedule ………………………………….. 16
Check Tire Pressure ……………………………………… 16
Check Safety Interlock System ……………………….. 17
Check Blade Brake ……………………………………….. 17
Engine Maintenance ……………………………………… 17
Battery Maintenance ……………………………………… 18
Lubrication …………………………………………………… 18
Servicing the Mower Blades …………………………… 20
Mower Deck Removal & Installation ………………… 21
Oil Drain Valve Operation ………………………………. 22
Change Engine Oil ………………………………………… 22
Change Engine Oil & Filter …………………………….. 22
Air Filter & Pre-Cleaner Service ………………………. 23
Replace Spark Plug ………………………………………. 23
Battery Charging …………………………………………… 24
Brake Adjustment ………………………………………….. 24
PTO Clutch Adjustment …………………………………. 24
Fuse Replacement ………………………………………… 25
Mower Adjustments ………………………………………. 25
Gauge Wheels ………………………………………. 25
Leveling the Mower ………………………………… 26
Mower Belt Replacement ……………………………….. 26
Storage ……………………………………………………….. 27
Troubleshooting ………………………………………… 28
Troubleshooting the Tractor ……………………………. 28
Troubleshooting the Mower ……………………………. 29
Specifications ……………………………………………. 30

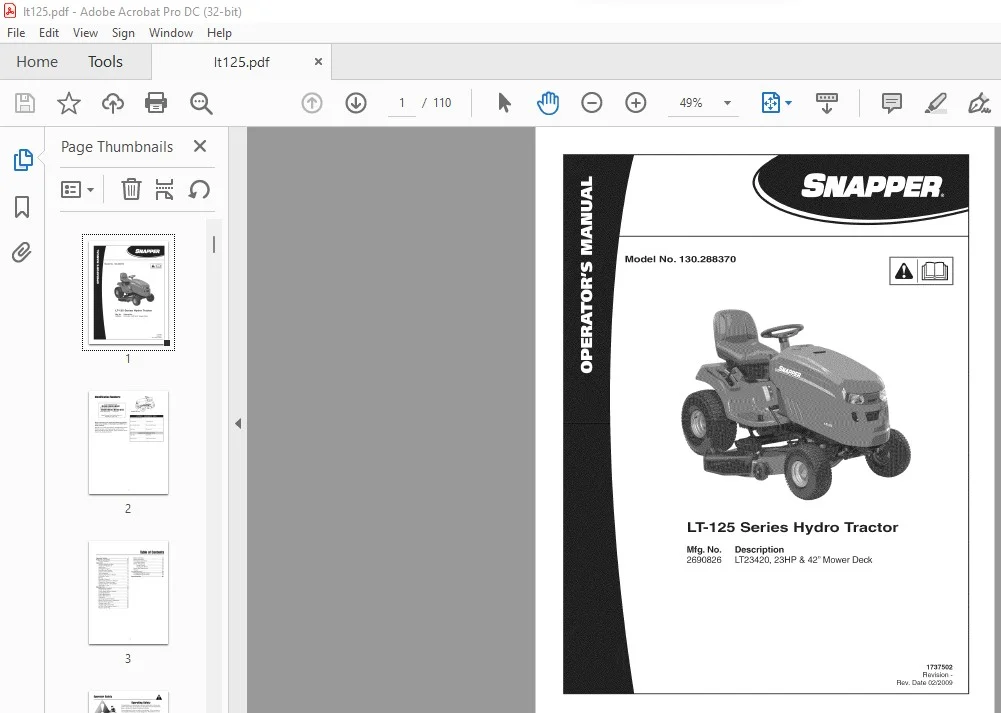

IMAGES PREVIEW OF THE MANUAL:

KUBOTA LT-125 SERIES HYDRO TRACTOR SNAPPER OPERATOR’S MANUAL MODEL NO. 130.288370 – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
