Kubota SM-E2B Series Diesel Engine Service Repair Manual PDF
$27.95
Kubota SM-E2B SERIES Diesel Engine Workshop Manual – PDF DOWNLOAD
Description
Kubota SM-E2B SERIES Diesel Engine Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
Kubota SM-E2B SERIES Diesel Engine Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 140
Downloadable : Yes
File Type : PDF

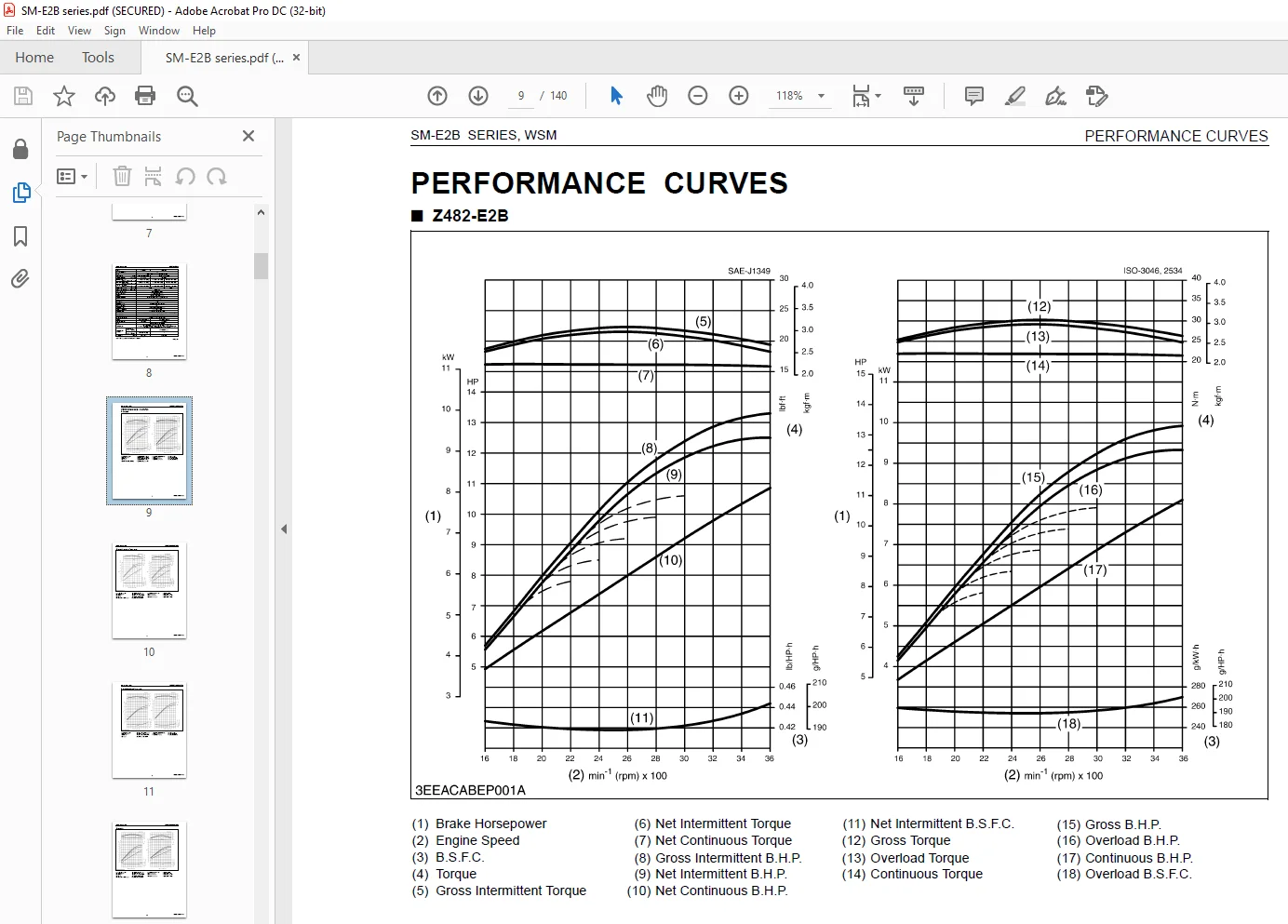

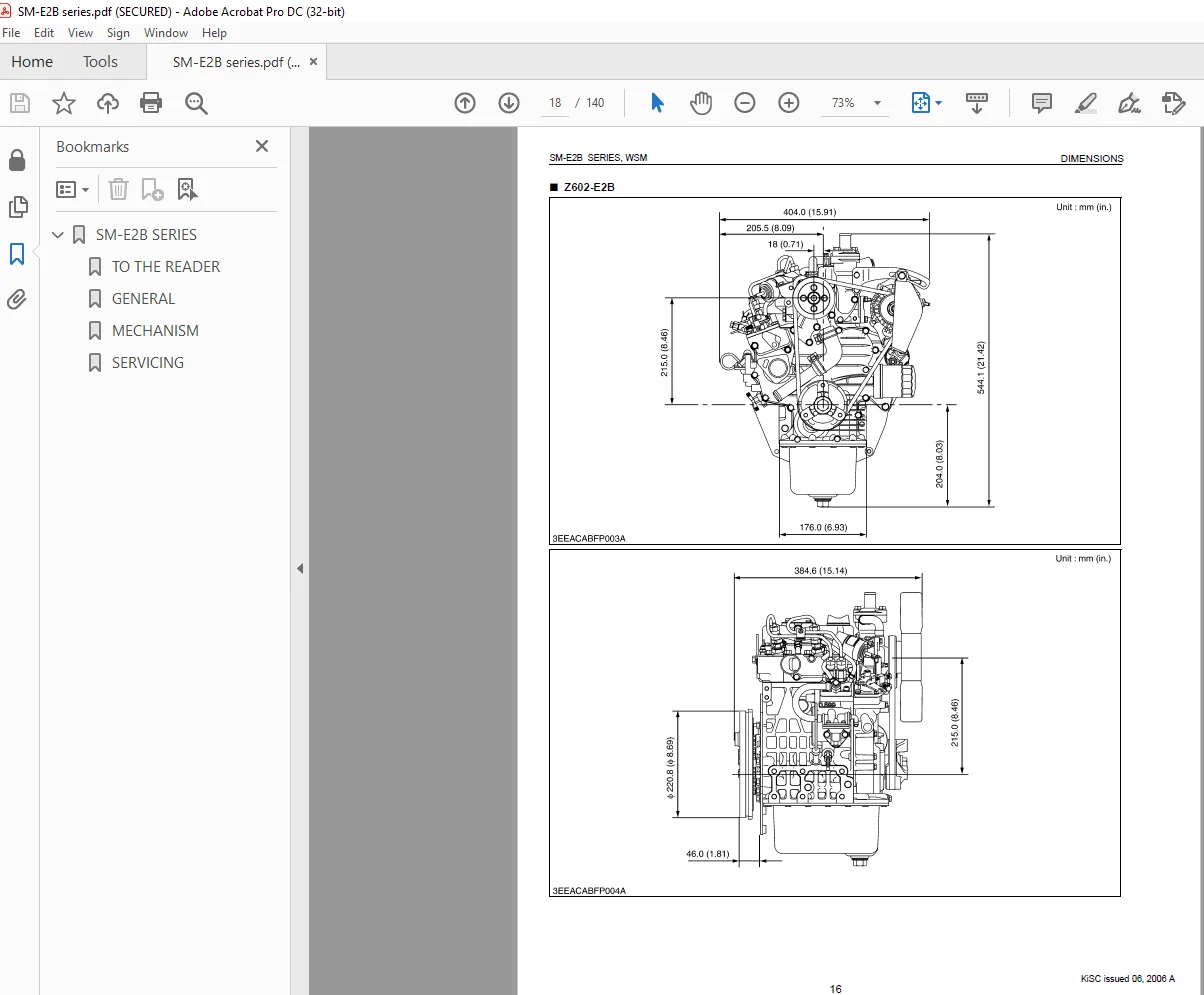

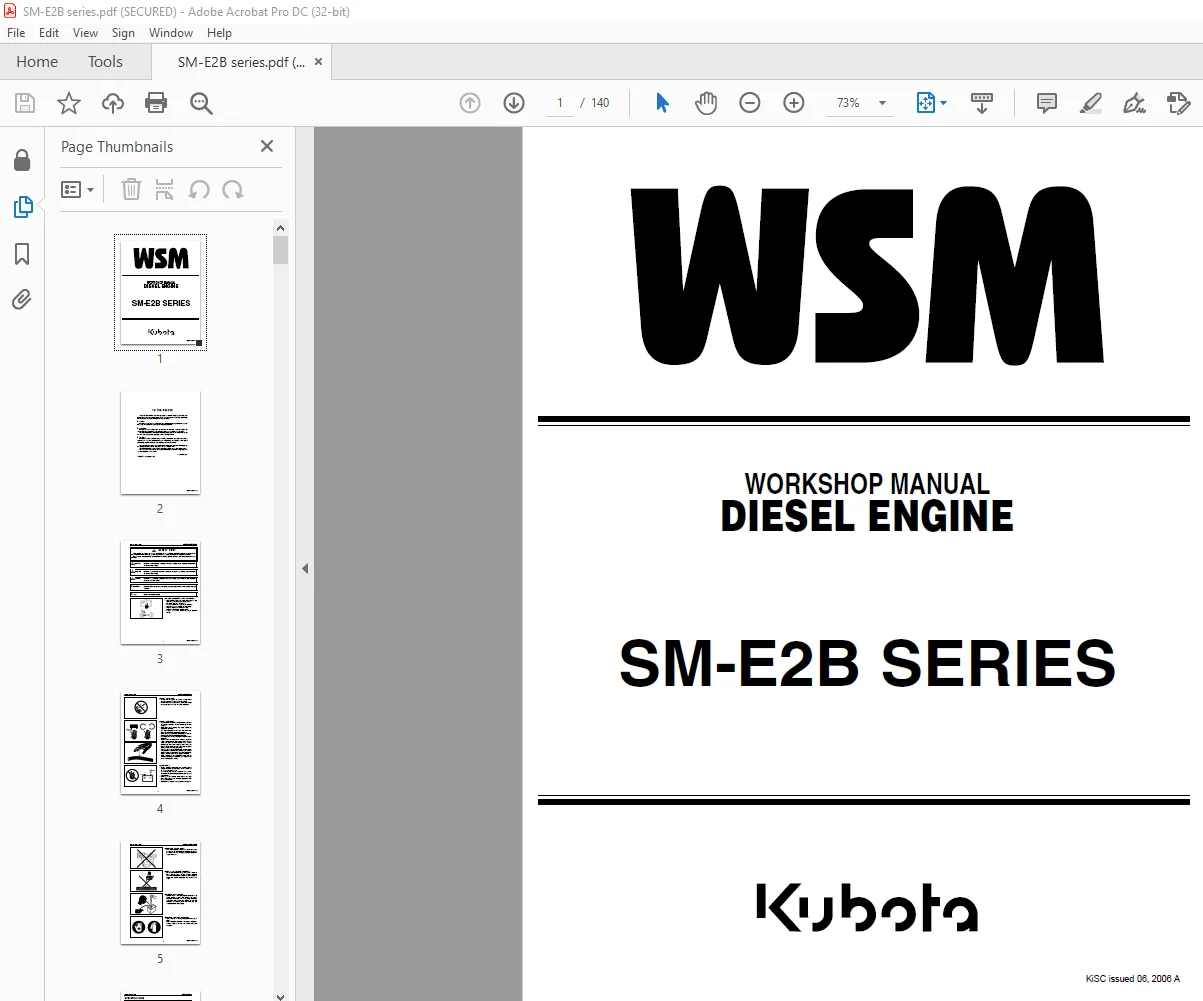

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota SM-E2B SERIES Diesel Engine Workshop Manual – PDF DOWNLOAD
TO THE READER:
This Workshop Manual has been prepared to provide servicing personnel with
information on the mechanism, service and maintenance of SM-E2B series. It is divided
into three parts, “General”, “Mechanism” and “Servicing”.
■ General
Information on the engine identification, the general precautions, maintenance check
list, check and maintenance and special tools are described.
■ Mechanism
Information on the construction and function are included. This part should be
understood before proceeding with troubleshooting, disassembling and servicing.
Refer to Diesel Engine Mechanism Workshop Manual (Code No. 9Y021-01870) for
the one which has not been described to this workshop manual.
■ Servicing
Information on the troubleshooting, servicing specification lists, tightening torque,
checking and adjusting, disassembling and assembling, and servicing which cover
procedures, precautions, factory specifications and allowable limits.
- All information illustrations and specifications contained in this manual are based on
the latest product information available at the time of publication. - The right is reserved to make changes in all information at any time without notice.
Due to covering many models of this manual, information or picture being used have
not been specified as one model.
• Do not start the engine by shorting across starter terminals or bypassing the safety start switch.
• Unauthorized modifications to the engine may impair the function and / or safety and affect engine life.
SAFETY WORKING:
• Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued.
• Wear close fitting clothing and safety equipment appropriate to the job.
• Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended.
• When servicing is performed together by two or more persons, take care to perform all work safely.
• Do not touch the rotating or hot parts while the engine is running.
• Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure.
• Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises.
TABLE OF CONTENTS:
Kubota SM-E2B SERIES Diesel Engine Workshop Manual – PDF DOWNLOAD
GENERAL
1 ENGINE IDENTIFICATION G-1
[1] MODEL NAME AND ENGINE SERIAL NUMBER G-1
[2] E2B ENGINE G-2
[3] CYLINDER NUMBER G-2
2 GENERAL PRECAUTIONS G-3
3 MAINTENANCE CHECK LIST G-4
4 CHECK AND MAINTENANCE G-6
[1] DAILY CHECK POINTS G-6
[2] CHECK POINTS OF INITIAL 50 HOURS G-8
[3] CHECK POINT OF EVERY 50 HOURS G-10
[4] CHECK POINT OF EVERY 75 HOURS G-11
[5] CHECK POINTS OF EVERY 100 HOURS G-12
[6] CHECK POINT OF EVERY 150 HOURS G-15
[7] CHECK POINTS OF EVERY 200 HOURS G-15
[8] CHECK POINTS OF EVERY 400 HOURS G-16
[9] CHECK POINTS OF EVERY 500 HOURS G-17
[10]CHECK POINTS OF EVERY 1 OR 2 MONTHS G-19
[11]CHECK POINT OF EVERY YEAR G-21
[12]CHECK POINT OF EVERY 800 HOURS G-22
[13]CHECK POINTS OF EVERY 1500 HOURS G-23
[14]CHECK POINTS OF EVERY 3000 HOURS G-25
[15]CHECK POINTS OF EVERY 2 YEARS G-28
5 SPECIAL TOOLS G-32
MECHANISM
1 ENGINE BODY M-1
[1] HALF-FLOATING HEAD COVER M-1
[2] CLOSED BREATHER M-1
[3] PISTON (Z602-E2B, D902-E2B) M-2
[4] OIL PAN (Z602-E2B, D902-E2B) M-2
2 COOLING SYSTEM M-2
[1] COOLING FIN (Z602-E2B, D902-E2B) M-3
SERVICING
1 TROUBLESHOOTING S-1
2 SERVICING SPECIFICATIONS S-4
3 TIGHTENING TORQUES S-11
[1] TIGHTENING TORQUES FOR GENERAL USE SCREWS, BOLTS
AND NUTS S-11
[2] TIGHTENING TORQUES FOR SPECIAL USE SCREWS, BOLTS
AND NUTS S-12
4 CHECKING, DISASSEMBLING AND SERVICING S-13
[1] CHECKING AND ADJUSTING S-13
(1) Engine Body S-13
(2) Lubricating System S-15
(3) Cooling System S-15
(4) Fuel System S-17
(5) Electrical System S-21
[2] DISASSEMBLING AND ASSEMBLING S-28
(1) Draining Engine Oil and Coolant S-28
(2) External Components S-29
(3) Cylinder Head, Valves and Oil Pan S-29
(4) Gear Case and Timing Gears S-35
(5) Piston and Connecting Rod S-42
(6) Flywheel and Crankshaft S-45
(7) Starter S-49
(8) Dynamo S-51
(9) Alternator S-52
[3] SERVICING S-53
(1) Cylinder Head and Valves S-53
(2) Timing Gears S-59
(3) Piston and Connecting Rod S-61
(4) Crankshaft S-64
(5) Cylinder S-70
(6) Oil Pump S-71
(7) Starter S-72
(8) Alternator S-75
