Kubota Tractor B20TLB & Engine D950-DT Specification Manual – PDF DOWNLOAD

Description

Kubota Tractor B20TLB & Engine D950-DT Specification Manual – PDF DOWNLOAD

DESCRIPTION:

Kubota Tractor B20TLB & Engine D950-DT Specification Manual – PDF DOWNLOAD

Engine Model: D950-DT Head Bolt Torque: 48
Tractor Model: B20TLB Main Bearing Case Bolt 1 Torque: 18
# of Cylinders: 3 Main Bearing Case Bolt 2 Torque: 26
Displacement (CC): 927 Rod Bolt Torque: 23
Displacement (Cu In): 56.6 Flywheel Bolt Torque: 44
Bore (MM): 75 Rocker Arm Bolt Torque: 15
Bore (In): 2.9 Compression (PSI) Standard: 450
Stroke (MM): 70 Compression Lower Limit: 325
Stroke (In): 2.7
Engine HP (Net): 20
Valve Clearance (Cold): 0.008
Piston Ring End Gap (RV): 0.017
Piston Ring End Gap (AL): 0.035
Main Crank Journal (Front): 1.7297
Main Crank Journal (Center): 1.7297
Main Crank Journal (Rear): 1.7297
Rod Journals (Standard): 1.4553
Crankshaft End Play: 0.012
Front Pulley Nut Torque: 116
Cylinder Liner ID (RV): 2.953
Cylinder Liner ID (AL): 2.959
Piston Diameter: 2.95

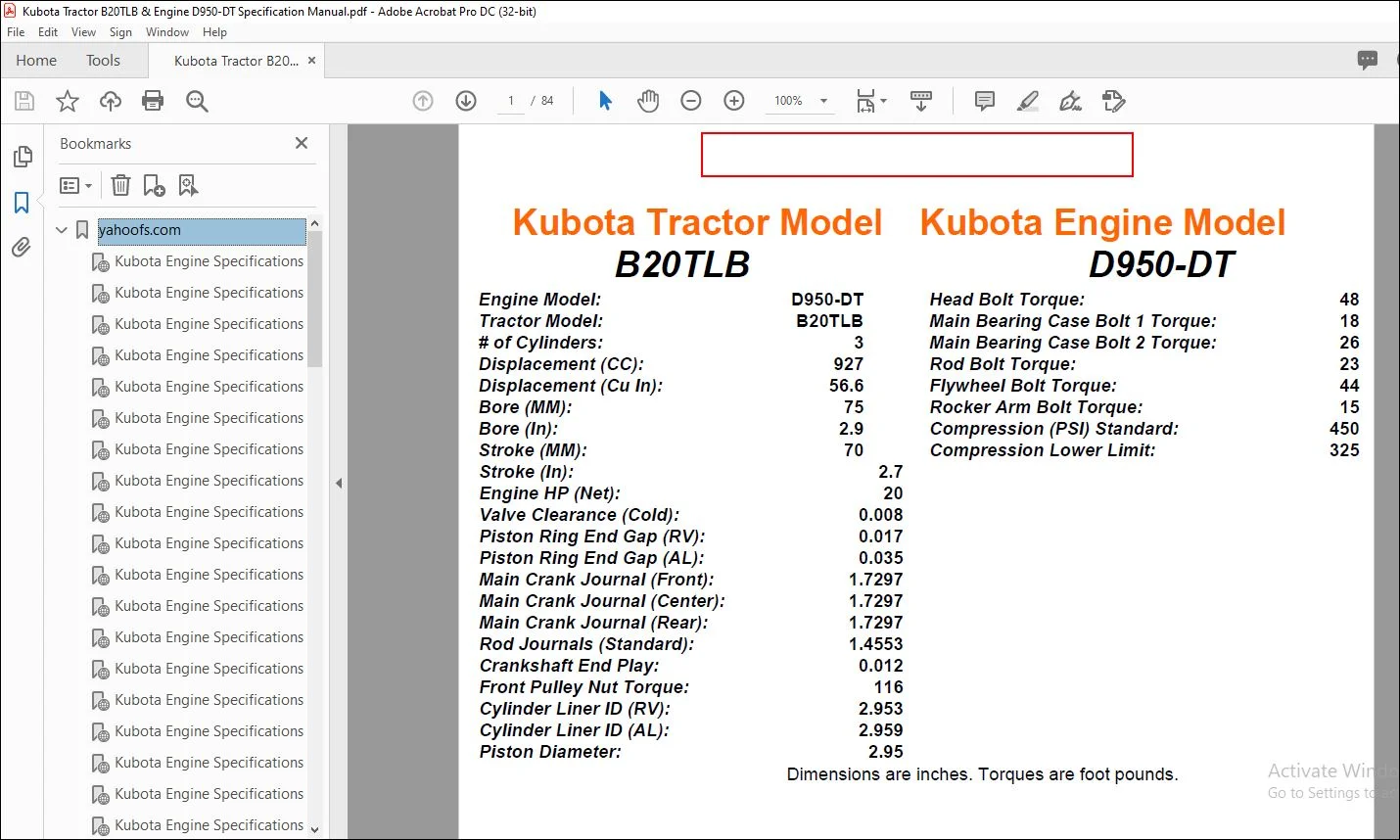

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
