Kubota Tractor B2100D Part Manual – PDF DOWNLOAD

Description

Kubota Tractor B2100D Part Manual – PDF DOWNLOAD

FILE DETAILS:

Kubota Tractor B2100D Part Manual – PDF DOWNLOAD

Language : English
Pages : 293
Downloadable : Yes
File Type : PDF

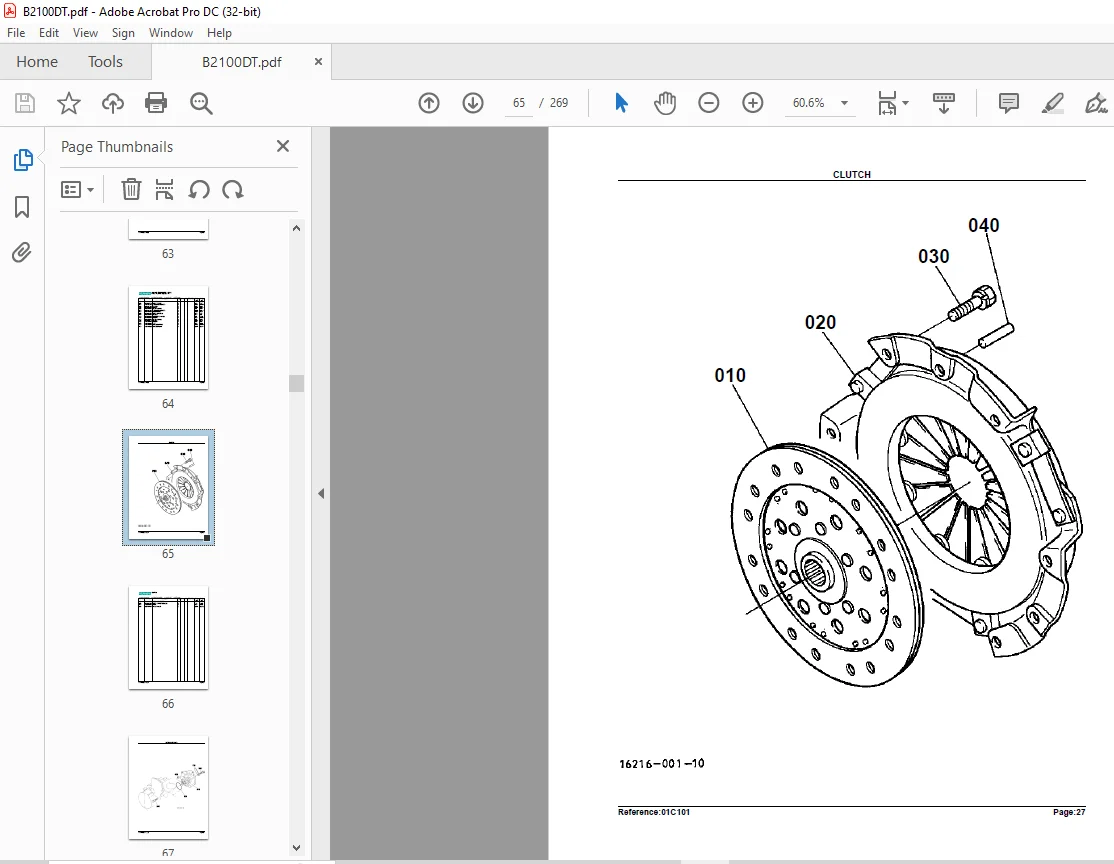

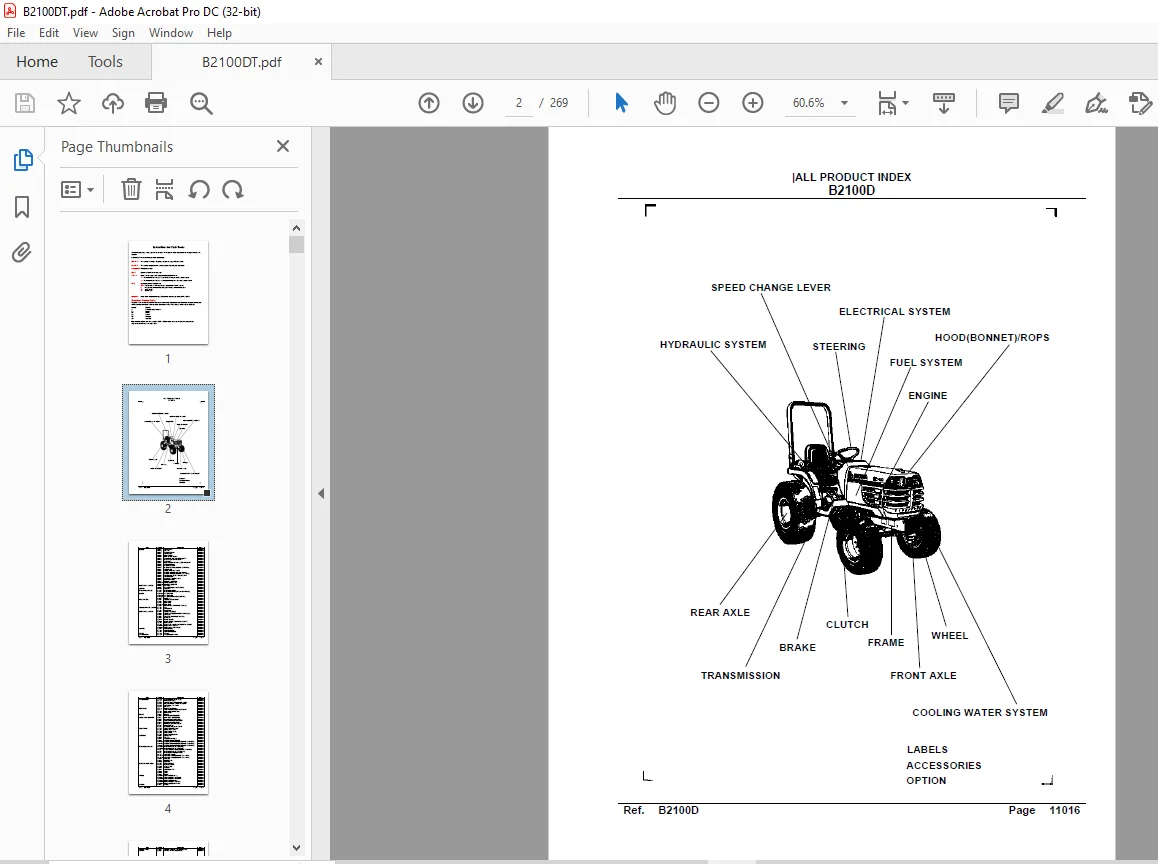

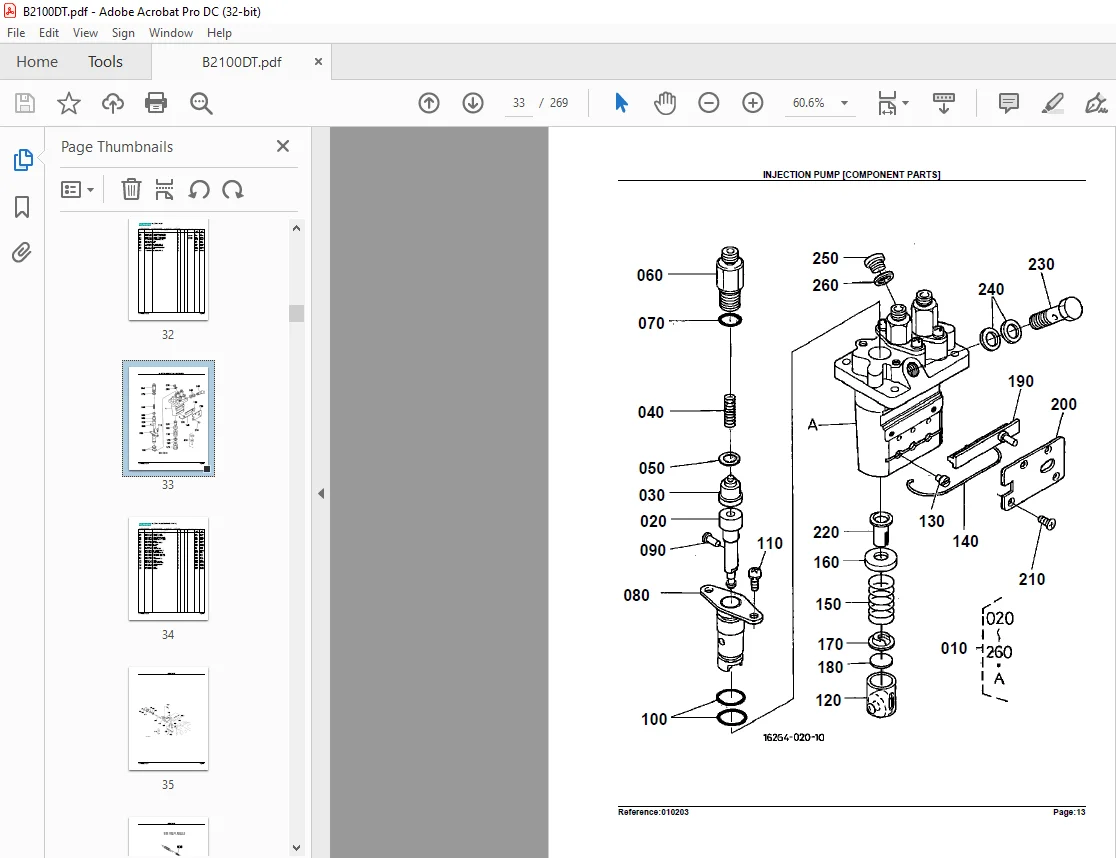

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota Tractor B2100D Part Manual – PDF DOWNLOAD

Instructions for Parts Books
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:

REF.No: The number refering to the part on the picture page of the parts book.

Part No:The number assigned to this part at the time of printing the parts book.
Description àDiscription of part.
Q’ty : Quanity of part used on that page.
S.No.: Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C : Interchangeability of part shown.
ßà The part shown will work for the older and later serial number.
The part shown is not interchangable with the other serial number.
new for old
old for new
Remarks :Notes about this particulart part. Sometimes this may say except [FR] or [CA]

TABLE OF CONTENTS:

Kubota Tractor B2100D Part Manual – PDF DOWNLOAD

Instructions for Parts Books.............  1
|ALL PRODUCT INDEX.......................  2
CRANKCASE................................  6
OIL PAN..................................  9
CYLINDER HEAD............................ 12
GEAR CASE................................ 14
HEAD COVER............................... 16
MAIN BEARING CASE........................ 18
CAMSHAFT AND IDLE GEAR SHAFT............. 20
PISTON AND CRANK SHAFT................... 22
FLYWHEEL................................. 24
FUEL CAMSHAFT AND GOVERNOR SHAFT......... 26
STOP SOLENOID............................ 28
INJECTION PUMP........................... 31
INJECTION PUMP [COMPONENT PARTS]......... 33
GOVERNOR................................. 35
SPEED CONTROL PLATE...................... 38
NOZZLE HOLDER AND GLOW PLUG.............. 40
NOZZLE HOLDER [COMPONENT PARTS].......... 43
WATER FLANGE AND THERMOSTAT.............. 45
WATER PUMP............................... 48
VALVE AND ROCKER ARM..................... 50
INLET MANIFOLD........................... 53
EXHAUST MANIFOLD......................... 55
UPPER GASKET KIT......................... 57
LOWER GASKET KIT......................... 59
DYNAMO................................... 61
DYNAMO [COMPONENT PARTS]................. 63
CLUTCH................................... 65
HYDRAULIC PUMP........................... 67
HYDRAULIC PUMP [COMPONENT PARTS]......... 69
AIR CLEANER.............................. 72
AIR CLEANER.............................. 74
AIR CLEANER(DOUBLE) [OPTION]............. 76
MUFFLER.................................. 78
ACCELERATOR LEVER........................ 80
FUEL TANK................................ 82
FUEL PIPE................................ 85
FUEL PIPE................................ 87
FUEL FILTER [COMPONENT PARTS]............ 89
FAN...................................... 91
WATER PIPE............................... 93
RADIATOR................................. 95
ALTERNATOR [CA].......................... 97
ALTERNATOR [COMPONENT PARTS] [CA]........ 99
STARTER..................................101
STARTER [COMPONENT PARTS]................103
BATTERY..................................105
PANEL BOARD..............................108
PANEL BOARD [COMPONENT PARTS]............111
HEAD LIGHT...............................113
TAIL LIGHT/HAZARD LIGHT/WORKING LIGHT....115
ELECTRICAL WIRING........................117
ELECTRICAL WIRING [CA]...................119
CLUTCH ROD...............................121
CLUTCH PEDAL.............................123
CLUTCH HOUSING...........................126
FRAME....................................129
TRANSMISSION CASE........................131
DIFFERENTIAL GEAR CASE...................134
REAR AXLE CASE...........................136
CLUTCH SHAFT/PROPELLER SHAFT.............139
2ND SHAFT/3RD SHAFT/4TH SHAFT............141
5HT SHAFT/PTO SHAFT......................144
MID PTO..................................147
REAR DIFFERENTIAL........................149
FRONT WHEEL PROPELLER SHAFT..............151
MAIN GEAR SHIFT FORK.....................153
REAR AXLE................................156
BRAKE....................................158
PARKING BRAKE LEVER......................160
MAIN GEAR SHIFT LEVER....................162
RANGE GEAR SHIFT LEVER...................165
FRONT WHEEL DRIVE LEVER..................167
PTO GEAR SHIFT LEVER.....................169
POSITON CONTROL LEVER....................172
BRAKE PEDAL..............................175
DIFFERENTIAL LOCK PEDAL..................177
FRONT DIFFERENTIAL.......................179
BEVEL GEAR CASE..........................182
FRONT AXLE CASE..........................184
FRONT AXLE...............................187
FRONT DRIVE SHAFT........................189
DRAG LINK................................191
TIE ROD..................................193
STEERING HANDLE..........................196
STEERING CONTROLLER......................199
STEERING CONTROLLER [COMPONENT PARTS]....202
STEERING CONTROLLER [COMPONENT PARTS]....206
STEERING CONTROLLER [COMPONENT PARTS]....209
HYDRAULIC OIL LINE(SUCTION)..............211
HYDRAULIC OIL LINE(SUCTION)..............213
FLOW DIVIDER VALVE [COMPONENT PARTS].....215
HYDRAULIC OIL LINE(STEERING).............217
HYDRAULIC CYLINDER CASE..................220
CONTROL VALVE............................223
CONTROL VALVE [COMPONENT PARTS]..........226
CONTROL VALVE [COMPONENT PARTS]..........228
LIFT ROD.................................230
LOWER LINK...............................232
TOP LINK.................................234
FRONT GRILLE.............................236
HOOD(BONNET).............................238
SIDE COVER...............................240
FENDER...................................242
SEAT SUPPORT.............................244
SEAT.....................................246
STEP.....................................248
ROPS.....................................251
FRONT WHEEL (6-12).......................253
FRONT WHEEL (23*8.50-12).................255
FRONT WHEEL (21*8.00-10).................257
REAR WHEEL (9.5-16)......................259
REAR WHEEL (33*12.5-15)..................261
REAR WHEEL (31*15.5-15)..................263
LABEL....................................265
ACCESSORIES AND SERVICE PARTS............267
STATER RELAY KIT [OPTION]................268
