Kubota Tractor B2150E Parts Book Manual – PDF DOWNLOAD

Description

Kubota Tractor B2150E Parts Book Manual – PDF DOWNLOAD

FILE DETAILS:

Kubota Tractor B2150E Parts Book Manual – PDF DOWNLOAD

Language : English
Pages : 272
Downloadable : Yes
File Type : PDF

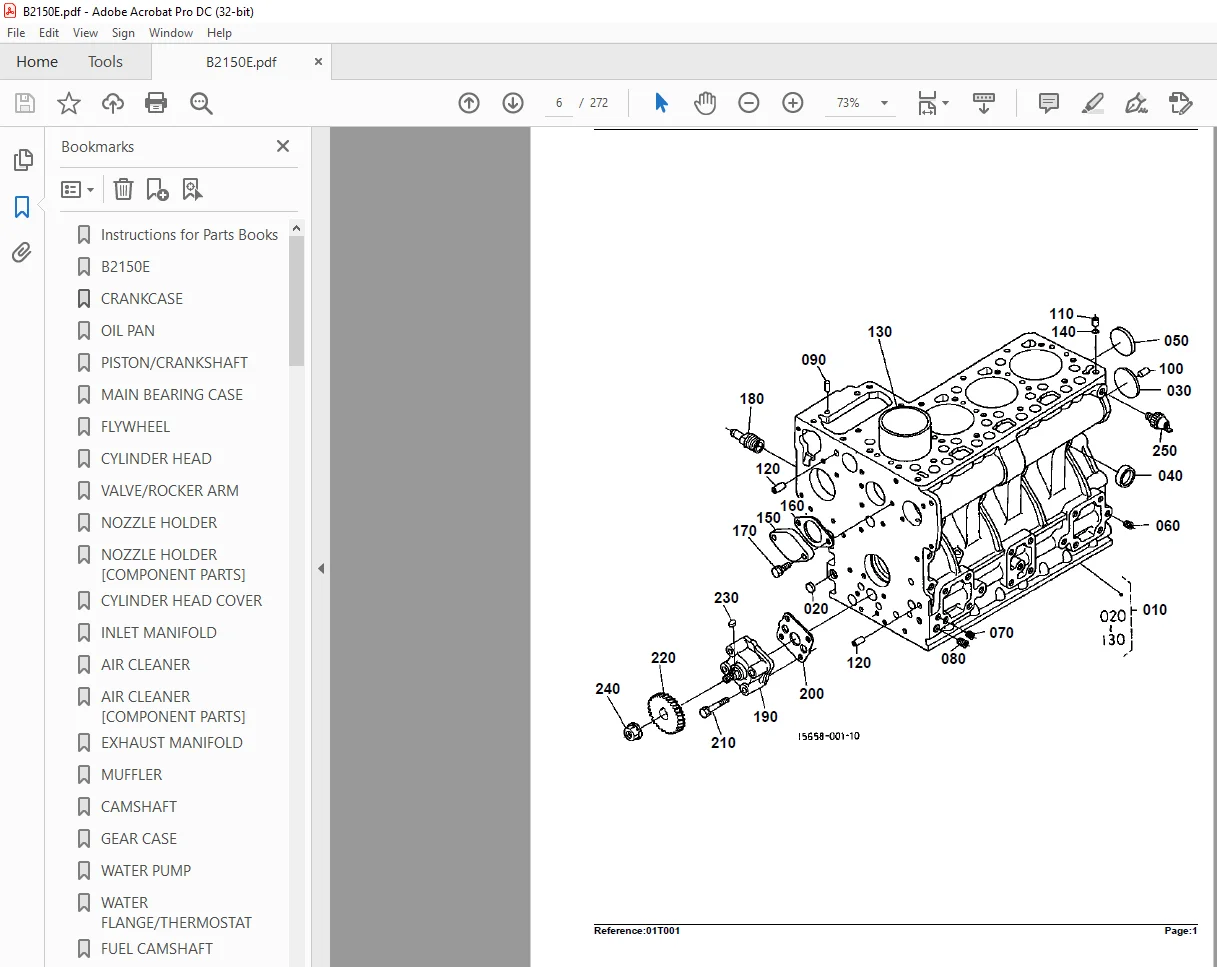

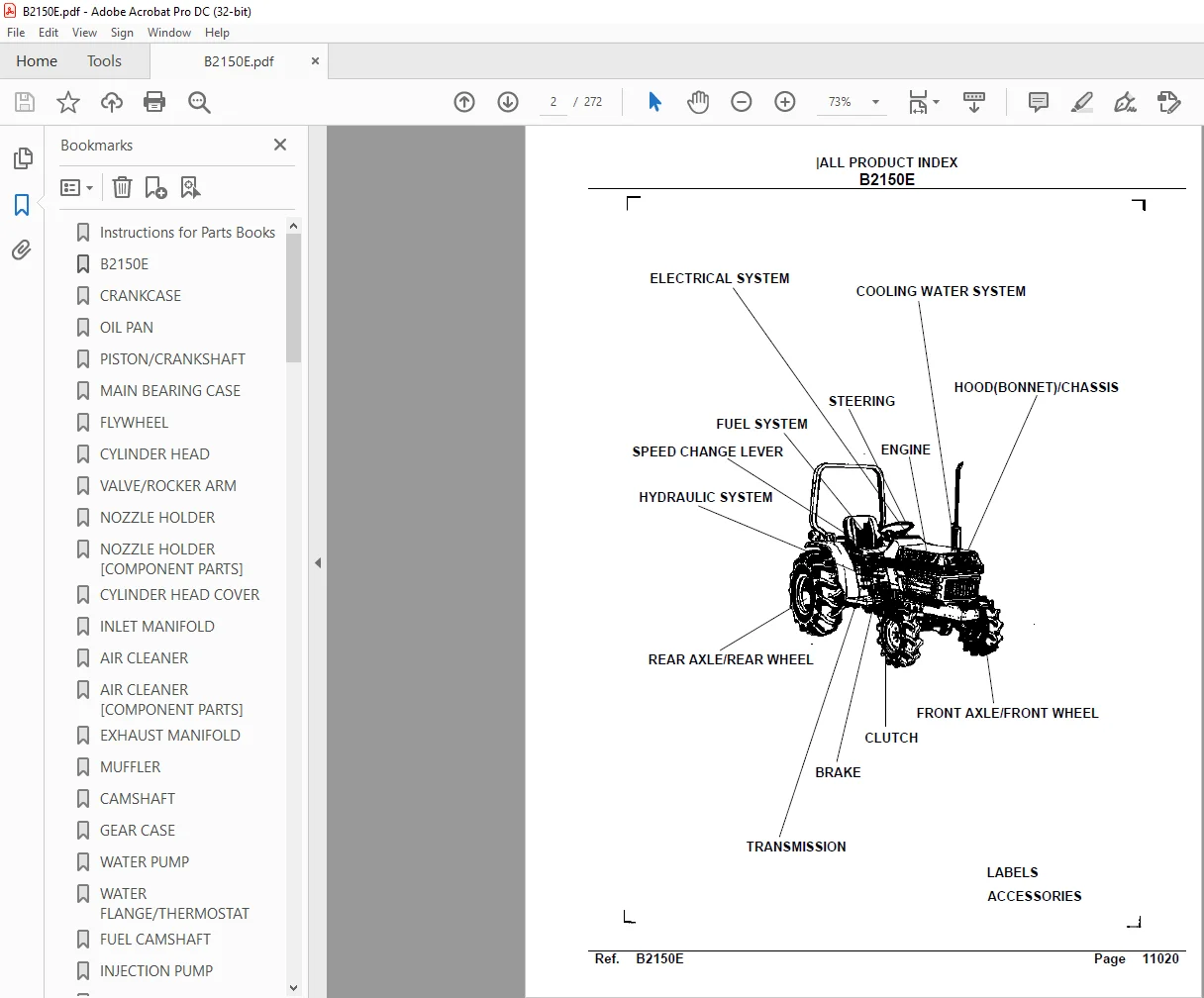

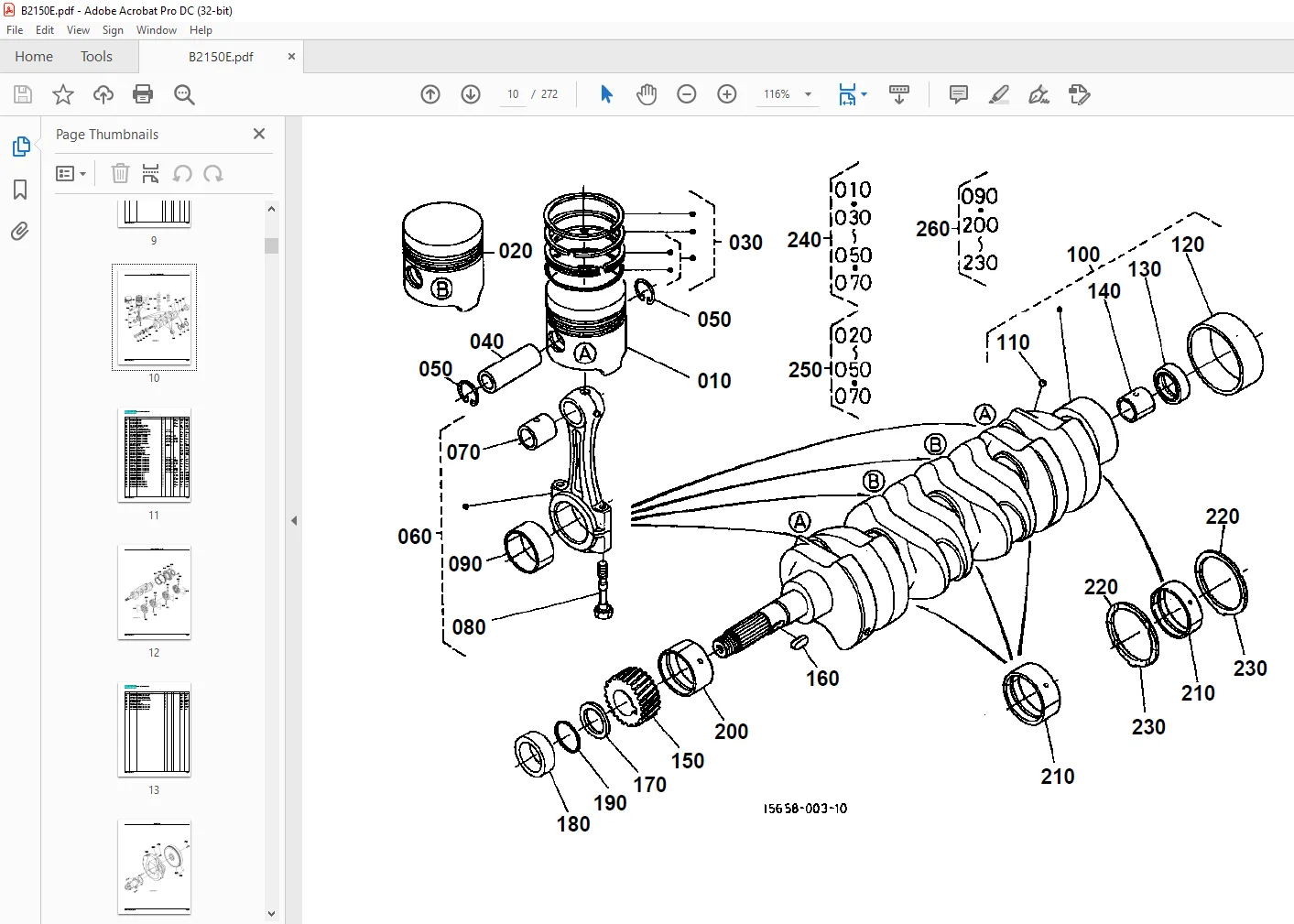

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota Tractor B2150E Parts Book Manual – PDF DOWNLOAD

Instructions for Parts Books:

The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No. -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No.-> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C à Interchangeability of part shown.
<- -> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new

Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]

TABLE OF CONTENTS:

Kubota Tractor B2150E Parts Book Manual – PDF DOWNLOAD

Instructions for Parts Books.............  1
B2150E...................................  2
CRANKCASE................................  6
OIL PAN..................................  8
PISTON/CRANKSHAFT........................ 10
MAIN BEARING CASE........................ 12
FLYWHEEL................................. 14
CYLINDER HEAD............................ 17
VALVE/ROCKER ARM......................... 19
NOZZLE HOLDER............................ 21
NOZZLE HOLDER [COMPONENT PARTS].......... 23
CYLINDER HEAD COVER...................... 25
INLET MANIFOLD........................... 27
AIR CLEANER.............................. 29
AIR CLEANER [COMPONENT PARTS]............ 31
EXHAUST MANIFOLD......................... 34
MUFFLER.................................. 36
CAMSHAFT................................. 38
GEAR CASE................................ 40
WATER PUMP............................... 42
WATER FLANGE/THERMOSTAT.................. 44
FUEL CAMSHAFT............................ 46
INJECTION PUMP........................... 48
INJECTION PUMP [COMPONENT PARTS]......... 50
ENGINE STOP LEVER........................ 52
SPEED CONTROL PLATE...................... 54
GOVERNOR................................. 56
UPPER GASKET KIT......................... 58
LOWER GASKET KIT......................... 60
ENGINE STOP ROD.......................... 62
ACCELERATOR LEVER........................ 65
FUEL TANK................................ 67
FUEL PIPE 1.............................. 69
FUEL FILTER.............................. 72
FUEL PIPE 2.............................. 74
WATER PIPE............................... 76
RADIATOR................................. 78
FAN...................................... 80
TENSION PULLEY [CA]...................... 82
DYNAMO [A][AU][NZ]....................... 84
ALTERNATOR [CA].......................... 86
DYNAMO [A][AU][NZ] [COMPONENT PARTS]..... 88
ALTERNATOR [CA] [COMPONENT PARTS]........ 90
STARTER.................................. 92
STARTER [COMPONENT PARTS]................ 94
BATTERY.................................. 96
LIGHT.................................... 99
WORKING LIGHT [OPTION]...................102
PANEL/SWITCH.............................104
PANEL BOARD [COMPONENT PARTS]............106
WIRE HARNESS [A][AU][NZ].................108
CLUTCH...................................110
CLUTCH ROD...............................112
CLUTCH PEDAL.............................114
CLUTCH HOUSING...........................116
TRANSMISSION CASE........................118
TRANSMISSION CASE COVER..................120
PROPELLER SHAFT..........................122
1ST SHAFT/2ND SHAFT......................124
3RD SHAFT................................126
4TH SHAFT................................129
FRONT DRIVE SHAFT/6TH SHAFT..............131
7TH SHAFT................................133
REVERSE SHAFT............................135
PTO SHAFT................................137
MID PTO..................................139
FRONT PTO [OPTION].......................141
MAIN GEAR SHAFT LEVER....................143
MAIN GEAR SHAFT FORK.....................145
RANGE GEAR SHIFT LEVER...................147
RANGE GEAR SHIFT FORK....................149
FRONT WHEEL DRIVE LEVER/PTO LEVER........151
FRONT DRIVE FORK.........................153
PTO FORK SHAFT...........................155
REAR DIFFERENTIAL........................157
DIFF.LOCK PEDAL..........................160
REAR AXLE................................162
REAR AXLE CASE...........................164
REAR WHEEL (8.3-24)......................166
REAR WHEEL (12.4-16).....................168
REAR WHEEL (12.4-16).....................170
REAR WHEEL (13.6-16).....................172
REAR WHEEL (13.6-16).....................174
BRAKE....................................176
BRAKE ROD................................178
BRAKE PEDAL..............................181
FRONT AXLE/KNUCKLE ARM...................183
FRONT WHEEL HUB..........................185
FRONT WHEEL (4.00-12)....................187
FRONT WHEEL (6.50-12)....................189
FRONT WHEEL (23 X 8.50-12)...............191
FRONT WHEEL (23 X 8.50-12)...............194
FRONT AXEL FRAME.........................196
FRONT WEIGHT BRACKET [OPTION]............199
MANUAL STEERING..........................201
POWER STEERING...........................203
MANUAL STEERING [COMPONENT PARTS]........205
POWER STEERING [COMPONENT PARTS].........207
HYDRAULIC GEAR PUMP......................209
HYDRAULIC GEAR PUMP [COMPONENT PARTS]....211
HYDRAULIC PIPE (PS)......................213
HYDRAULIC PIPE (SUCTION).................215
HYDRAULIC PIPE (DELIVERY/RETURN).........217
HYDRAULIC BLOCK [COMPONENT PARTS]........220
LIFT ARM.................................222
HYD.CYLINDER CAP.........................225
CONTROL VALVE............................227
CONTROL VALVE1 [COMPONENT PARTS].........229
CONTROL VALVE2 [COMPONENT PARTS].........231
CONTROL VALVE3 [COMPONENT PARTS].........233
TOP LINK.................................235
LOWER LINK/LIFT ROD......................237
CHECK CHAIN..............................239
HITCH....................................241
HOOD (BONNET)............................243
LACE.....................................245
HOOD (BONNET) COVER REAR.................247
HOOD (BONNET) FRONT......................249
HOOD (BONNET) SIDE.......................251
DUST COVER...............................254
HOOD (BONNET) SUPPORT....................256
FENDER...................................258
SEAT.....................................261
STEP.....................................263
ROPS [A][CA].............................265
LABEL 1..................................268
LABEL 2..................................270
ACCESSORIES AND SERVICE PARTS............272
