DESCRIPTION:

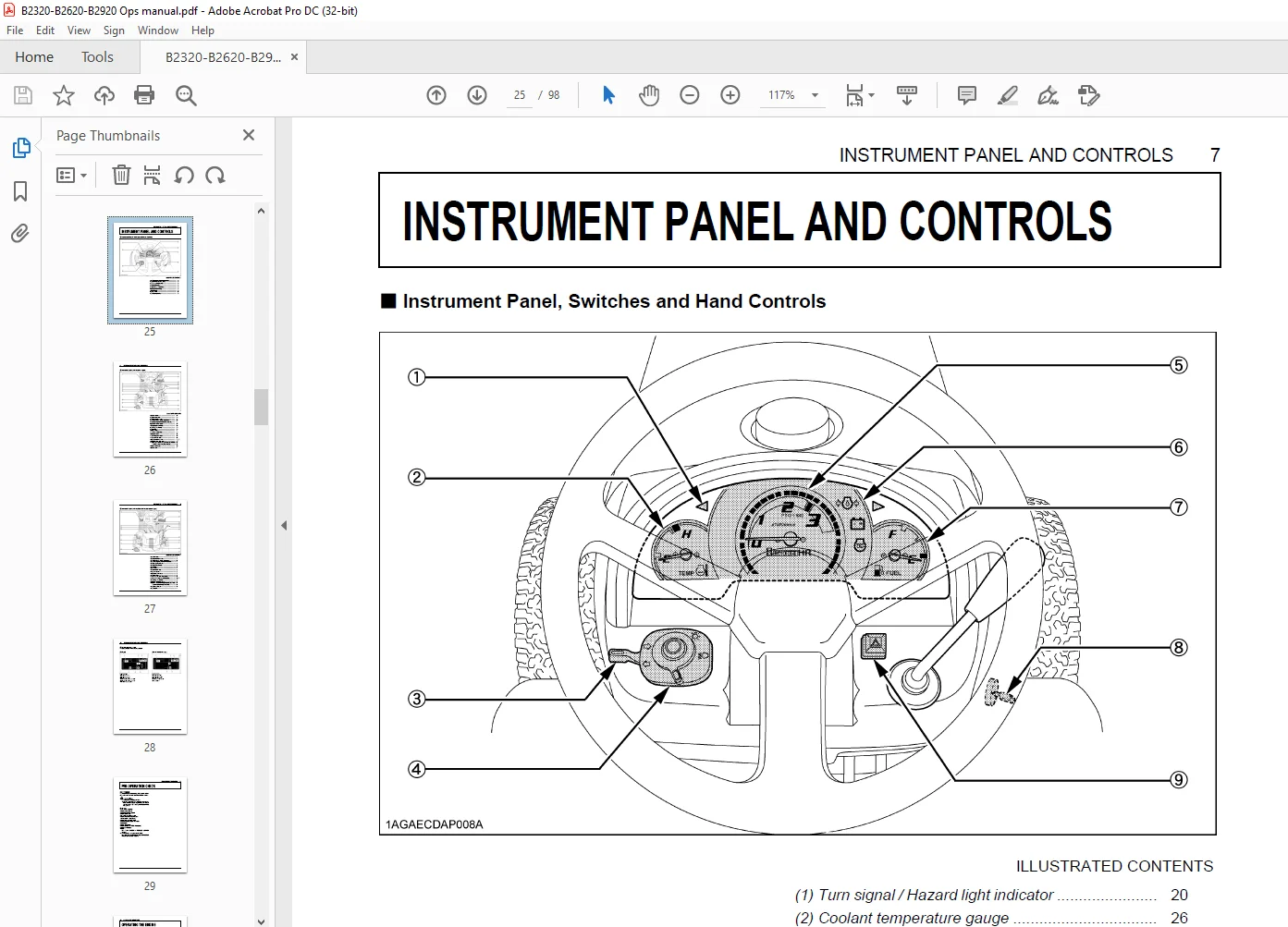

Kubota Tractor B2320 B2620 B2920 B2320 Narrow Operator’s Manual – PDF DOWNLOAD

FOREWORD:

You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service.

• To obtain the best use of your tractor, please read this manual carefully. If your tractor is provided with CAB, also read the CAB operator’s manual, which is a separate manual. It will help you become familiar with the operation of the tractor and contains many helpful hints about tractor maintenance.
• It is KUBOTA’s policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to be outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them.

SAFE OPERATION:

1. BEFORE OPERATING THE TRACTOR
1. Know your equipment and its limitations. Read this entire manual before attempting to
start and operate the tractor.
2. Pay special attention to the danger, warning and caution labels on the tractor.
3. KUBOTA recommends the use of a CAB or Roll Over Protective Structures (ROPS) and seat belt in
almost all applications. This combination will reduce the risk of serious injury or death, should
the tractor be upset. If the tractor is equipped with a foldable ROPS it may be temporarily
folded down only when absolutely necessary for areas with height constraints.
(There is no operator protection provided by the ROPS in the folded position. For operator safety
the ROPS should be placed in the upright and tocked position and the seat belt fastened for
all other operations.)
If the CAB or ROPS is loosened or removed for any reason, make sure that all parts
are reinstalled correctly before operating the tractor.
Never modify or repair a ROPS because welding, bending, drilling, grinding, or cutting may
weaken the structure.
A damaged CAB or ROPS structure must be replaced, not repaired or revised.
If any structural member of the CAB or ROPS is damaged, replace the entire structure
at your local KUBOTA Dealer.
(1) ROPS
(2) Seat belt
4. Always use the seat belt if the tractor has a CAB or ROPS.
Do not use the seat belt if a foldabte ROPS is down or there is no ROPS. Check the seat belt
regularly and replace if frayed or damaged.
5. Do not operate tractor or any implement attached to it white under the influence of
alcohol, medication, controlled substances or while fatigued.
6. Carefully check the vicinity before operating tractor or any implement attached to it.
Check for overhead clearance which may interfere with a CAB or ROPS. Do not allow any
bystanders around or near tractor during operation.
7. Before allowing other people to use your tractor, explain how to operate and have
them read this manual before operation.
8. Never wear loose, torn, or bulky clothing around tractor. It may catch on
moving parts or controls, leading to the risk of an accident. Use additional safety items, e.g.
hard hat, safety boots or shoes, eye and hearing protection, gloves, etc., as appropriate
or required.
9. Do not allow passengers to ride on any part of the tractor at anytime. The
operafor9iiust remain in the tractor seat during operation.
10.Check brakes, clutch, and other mechanical parts for improper adjustment and wear.
Replace worn or damaged parts promptly. Check the tightness of all nuts and bolts
regularly. (For further details, see “MAINTENANCE” section.)
11. Keep your tractor clean. Dirt, grease, and trash build up may contribute to fires and lead to
personal injury.
12. Use only implements meeting the specifications listed under “IMPLEMENT LIMITATIONS” in this
manual or implements approved by KUBOTA.

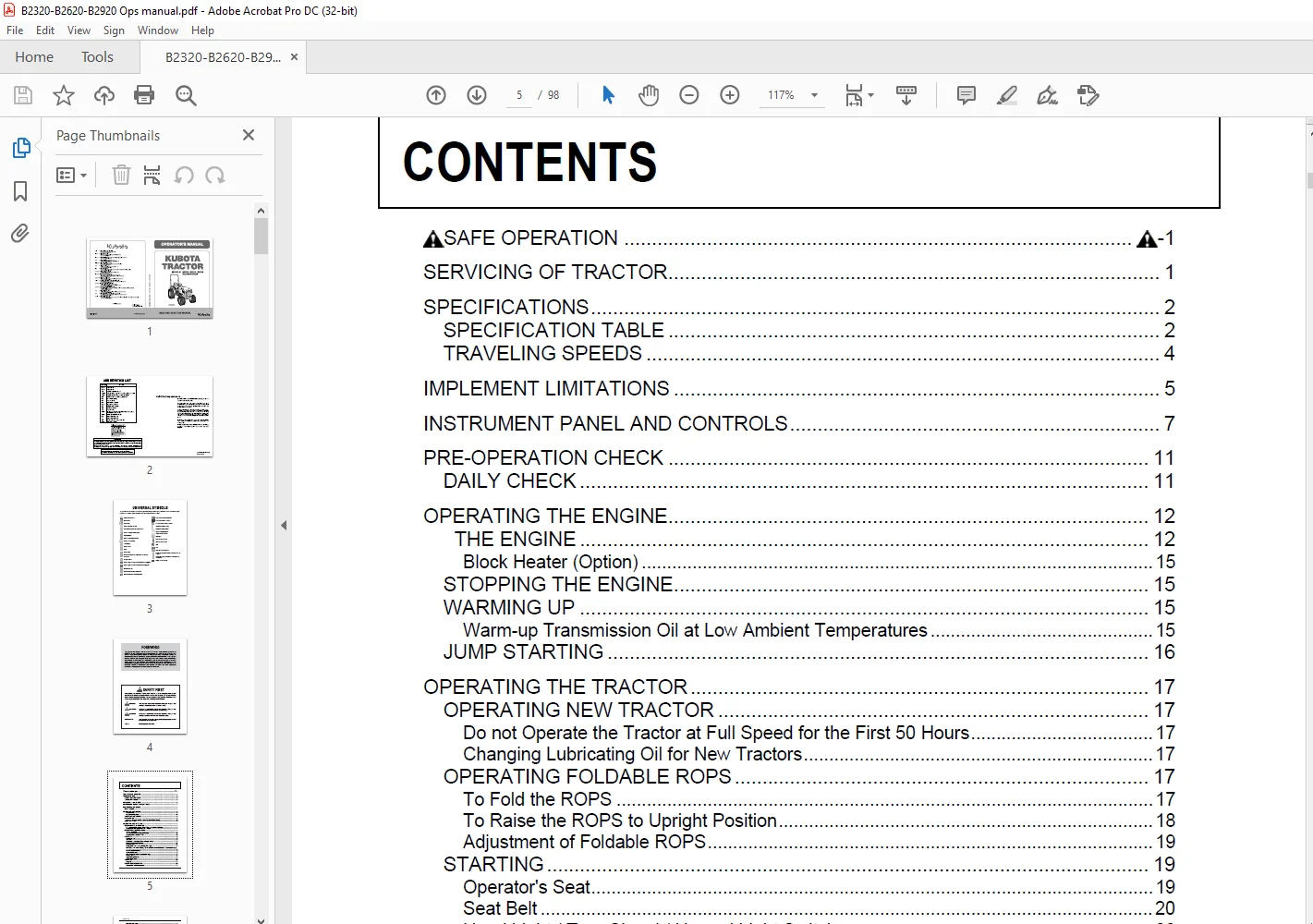

TABLE OF CONTENTS:
