Kubota Tractor B26 Parts Book Manual – PDF DOWNLOAD

Description

Kubota Tractor B26 Parts Book Manual – PDF DOWNLOAD

FILE DETAILS:

Kubota Tractor B26 Parts Book Manual – PDF DOWNLOAD

Language : English
Pages : 299
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota Tractor B26 Parts Book Manual – PDF DOWNLOAD

Instructions for Parts Books:

The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No -> The number refering to the part on the picture page of the parts book.
Part No. -> The number assigned to this part at the time of printing the parts book.
Description -> Discription of part.
Q’ty -> Quanity of part used on that page.
S.No.-> Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C à Interchangeability of part shown.
<- -> The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
<- new for old
-> old for new

Remarks -> Notes about this particulart part. Sometimes this may say except [FR] or [CA]

TABLE OF CONTENTS:

Kubota Tractor B26 Parts Book Manual – PDF DOWNLOAD

Instructions for Parts Books.....................................  1

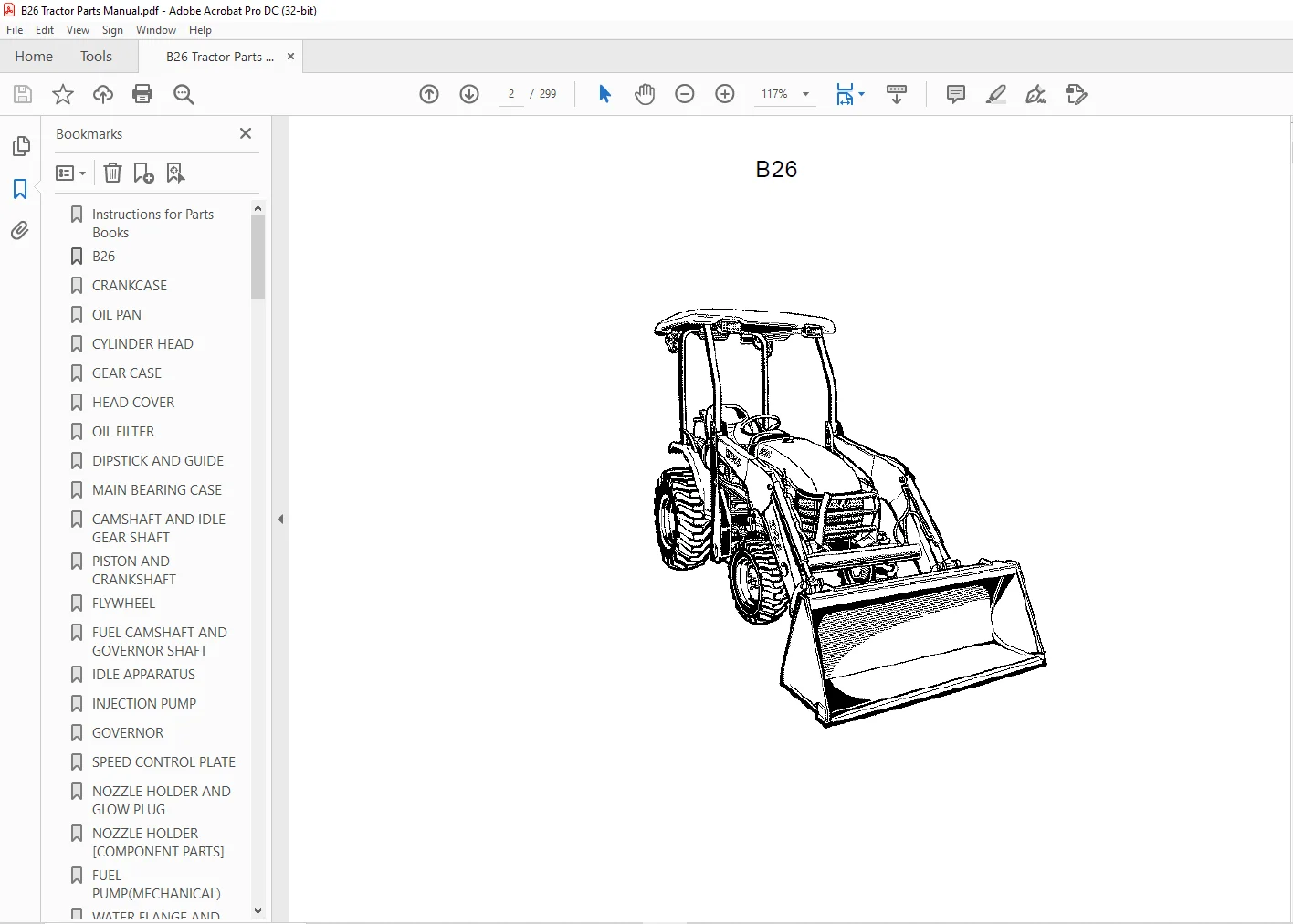

B26..............................................................  2

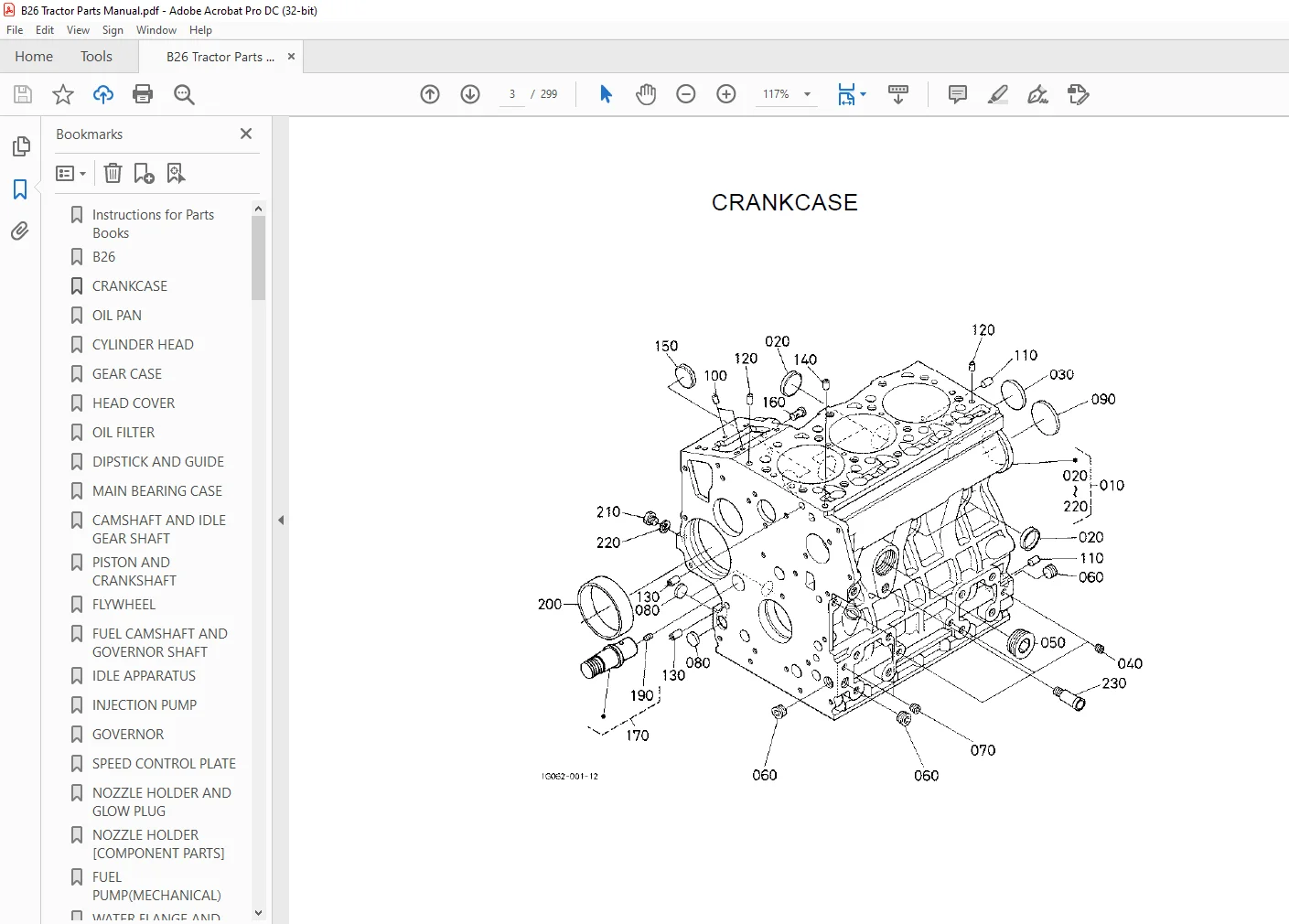

CRANKCASE........................................................  3
OIL PAN..........................................................  5
CYLINDER HEAD....................................................  7
GEAR CASE........................................................  9
HEAD COVER....................................................... 11
OIL FILTER....................................................... 13
DIPSTICK AND GUIDE............................................... 14
MAIN BEARING CASE................................................ 15
CAMSHAFT AND IDLE GEAR SHAFT..................................... 17
PISTON AND CRANKSHAFT............................................ 19

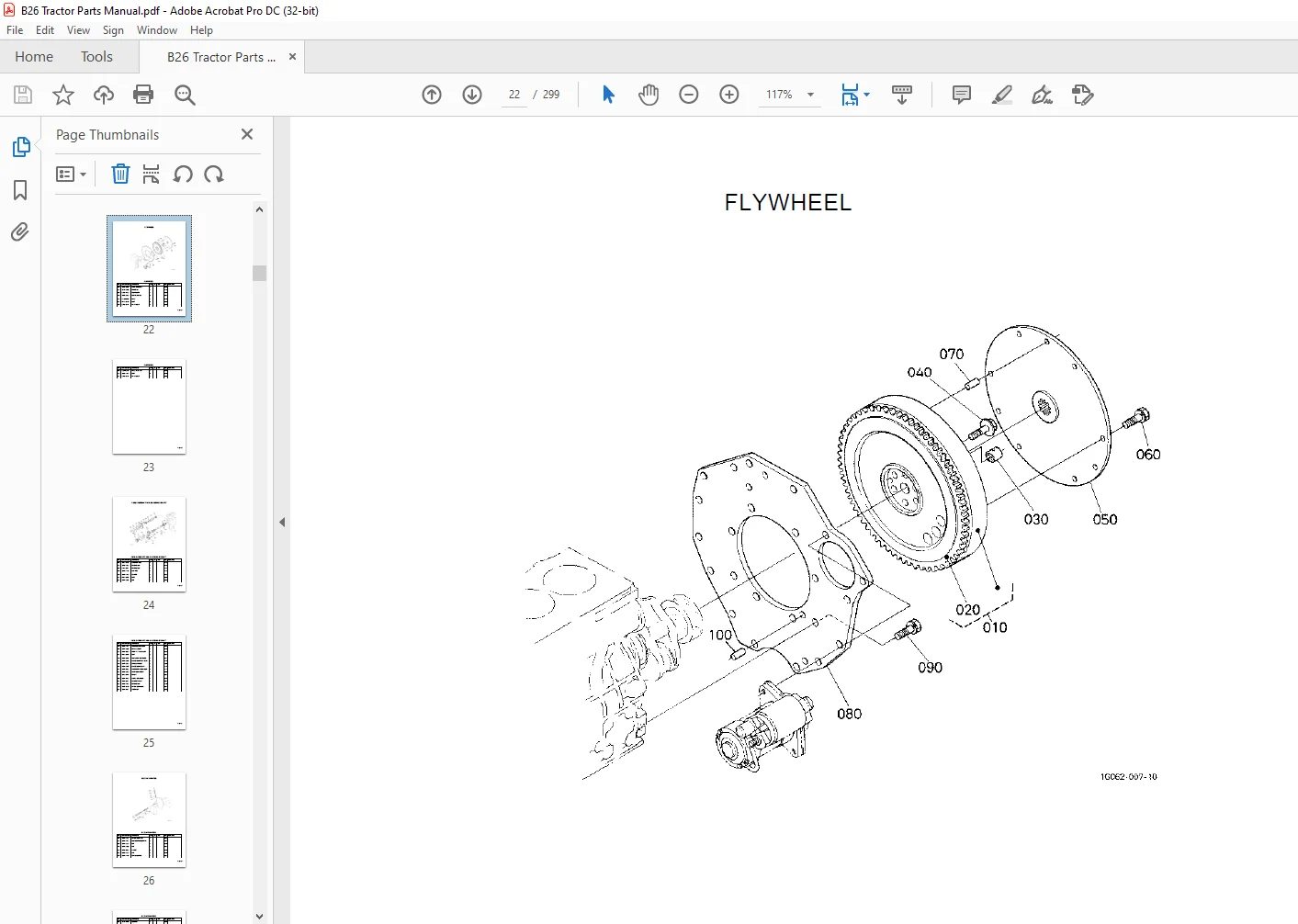

FLYWHEEL......................................................... 22
FUEL CAMSHAFT AND GOVERNOR SHAFT................................. 24
IDLE APPARATUS................................................... 26
INJECTION PUMP................................................... 28
GOVERNOR......................................................... 30
SPEED CONTROL PLATE.............................................. 32
NOZZLE HOLDER AND GLOW PLUG...................................... 34
NOZZLE HOLDER [COMPONENT PARTS].................................. 36
FUEL PUMP(MECHANICAL)............................................ 38
WATER FLANGE AND THERMOSTAT...................................... 39
WATER PUMP....................................................... 41
VALVE AND ROCKER ARM............................................. 43
INLET MANIFOLD................................................... 45
AIR CLEANER...................................................... 47
MUFFLER.......................................................... 49
UPPER GASKET KIT................................................. 51
LOWER GASKET KIT................................................. 53
ACCELERATOR LEVER................................................ 55
FUEL TANK........................................................ 57
FUEL PIPE........................................................ 59
FUEL FILTER [COMPONENT PARTS].................................... 61
FAN.............................................................. 62
WATER PIPE....................................................... 64
RADIATOR......................................................... 66
RESERVE TANK..................................................... 68
STOP SOLENOID.................................................... 70
ALTERNATOR....................................................... 71
ALTERNATOR [COMPONENT PARTS]..................................... 73
STARTER.......................................................... 75
STARTER [COMPONENT PARTS]........................................ 76
BATTERY.......................................................... 78
SWITCH........................................................... 80
PANEL BOARD...................................................... 82
PANEL BOARD [COMPONENT PARTS].................................... 84
HEAD LIGHT....................................................... 86
HAZARD LIGHT..................................................... 87
TAIL LIGHT....................................................... 88
WORKING LIGHT.................................................... 90
ELECTRICAL WIRING (BODY)......................................... 91
ELECTRICAL WIRING (CANOPY)....................................... 93
CLUTCH HOUSING................................................... 94
CENTER FRAME..................................................... 96
TRANSMISSION CASE................................................ 98
DIFFERENTIAL GEAR CASE...........................................100
REAR AXLE CASE LH................................................102
REAR AXLE CASE RH................................................104
CLUTCH SHAFT.....................................................106
PROPELLER SHAFT..................................................107
HST..............................................................109
HST [COMPONENT PARTS] 1..........................................111
HST [COMPONENT PARTS] 2..........................................113
HST [COMPONENT PARTS] 3..........................................115
HST [COMPONENT PARTS] 4..........................................117
RANGE GEAR SHAFT.................................................119
REVERSE SHAFT....................................................121
PTO COUNTER SHAFT................................................123
PTO CLUTCH SHAFT.................................................125
PTO CLUTCH.......................................................127
BEVEL GEAR SHAFT/RANGE GEAR......................................129
REAR DIFFERENTIAL................................................131
RANGE GEAR SHIFT FORK............................................133
DIFFERENTIAL LOCK SHIFT FORK.....................................135
SPEED CONTROL PEDAL..............................................136
RANGE GEAR SHIFT LEVER...........................................138
FRONT WHEEL DRIVE LEVER..........................................140
PTO GEAR SHIFT LEVER.............................................142
REAR AXLE........................................................143
DIFFERENTIAL LOCK PEDAL..........................................144
BRAKE............................................................145
BRAKE ROD........................................................147
PARKING BRAKE LEVER..............................................149
PARKING BRAKE LEVER..............................................151
BRAKE PEDAL......................................................152
POSITION CONTROL LEVER...........................................154
HYDRAULIC PUMP...................................................156
HYDRAULIC PUMP [COMPONENT PARTS].................................157
OIL TANK.........................................................159
HYDRAULIC OIL LINE(SUCTION)......................................161
HYDRAULIC OIL LINE(STEERING).....................................163
HYDRAULIC OIL LINE(BACKHOE)......................................165
HYDRAULIC OIL LINE (HST).........................................167
HYDRAULIC OIL LINE (OIL COOLER)..................................169
HYDRAULIC CYLINDER...............................................171
HYDRAULIC PISTON/LIFT ARM........................................173
FEED BACK LEVER..................................................175
CONTROL VALVE....................................................177
CONTROL VALVE [COMPONENT PARTS]..................................179
SAFETY VALVE.....................................................181
HYDRAULIC OUTLET.................................................183
HYDRAULIC OUTLET [COMPONENT PARTS]...............................186
HYDRAULIC OUTLET.................................................185
PTO VALVE........................................................188
PTO VALVE [COMPONENT PARTS]......................................190
3-POINT LINKAGE (LIFT ROD).......................................192
FRONT AXLE FRAME.................................................194
FRONT AXLE CASE..................................................195
FRONT DIFFERENTIAL...............................................197
DIFFERENTIAL GEAR SHAFT..........................................199
BEVEL GEAR CASE..................................................201
FRONT AXLE CASE..................................................202
FRONT AXLE.......................................................204
FRONT DRIVE SHAFT................................................206
STEERING HANDLE..................................................208
STEERING POST....................................................210
TILT PEDAL.......................................................212
TILT PEDAL.......................................................214
STEERING CONTROLLER..............................................215
STEERING LINKAGE.................................................216
STEERING CYLINDER [COMPONENT PARTS]..............................218
LOWER LINK.......................................................219
3-POINT LINKAGE (TOP LINK).......................................221
CHECK CHAIN......................................................223
HITCH............................................................225
PTO PROTECTOR....................................................226
FRONT GRILLE.....................................................228
BONNET...........................................................230
PANEL COVER......................................................232
SIDE COVER.......................................................233
SHUTTER PLATE....................................................235
LEVER GUIDE LH...................................................237
LEVER GUIDE RH...................................................239
FENDER...........................................................241
FLOOR SHEET......................................................243
FLOOR SHEET......................................................245
SEAT SUPPORT.....................................................246
SEAT SUSPENSION [COMPONENT PARTS] 1..............................248
SEAT SUSPENSION [COMPONENT PARTS] 2..............................250
STEP.............................................................252
MAIN FLAME.......................................................254
ROPS/FOPS........................................................256
SMV EMBLEM.......................................................258
CANOPY...........................................................260
FRONT WHEEL (23*8.50-14R4).......................................262
FRONT WHEEL (24*8.50-14).........................................264
REAR WHEEL (12.4-16R4)...........................................266
REAR WHEEL (12.4-16).............................................268
REAR WHEEL (13.6-10).............................................270
LABEL [ENGLISH]..................................................272
LABEL [FRENCH]...................................................275
ACCESSORIES AND SERVICE PARTS....................................278
WORKING LIGHT KIT (FRONT) (W/G No.L8045) [OPTION]................280
WORKING LIGHT KIT (REAR) (W/G No.L8045) [OPTION].................282
BACK BUZZER KIT (W/G No.B8011) [OPTION]..........................284
DRAWBER KIT (W/G No.B8036) [OPTION]..............................286
TOOL BOX KIT (W/G No.B8012) [OPTION].............................287
AUXILIARY CONTROL VALVE (W/G No.B8028) [OPTION]..................289
AUXILIARY CONTROL VALVE (FLOATING) (W/G No.B8029) [OPTION].......290
AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.B8027) [OPTION]......291
AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.B8027) [OPTION]......291
AUXILIARY CONTROL VALVE LEVER (1ST) (W/G No.B8027) [OPTION]......293
AUXILIARY CONTROL VALVE LEVER (2ND) (W/G No.B8030) [OPTION]......294
AUXILIARY CONTROL VALVE COUPLER (1ST) (W/G No.B8027) [OPTION]....296
AUXILIARY CONTROL VALVE COUPLER (2ND) (W/G No.B8030) [OPTION]....298

Questions? Email us: [email protected]

S.V
