Kubota Tractor BX23 Part Manual – PDF DOWNLOAD

Description

Kubota Tractor BX23 Part Manual – PDF DOWNLOAD

FILE DETAILS:

Kubota Tractor BX23 Part Manual – PDF DOWNLOAD

Language : English
Pages : 293
Downloadable : Yes
File Type : PDF

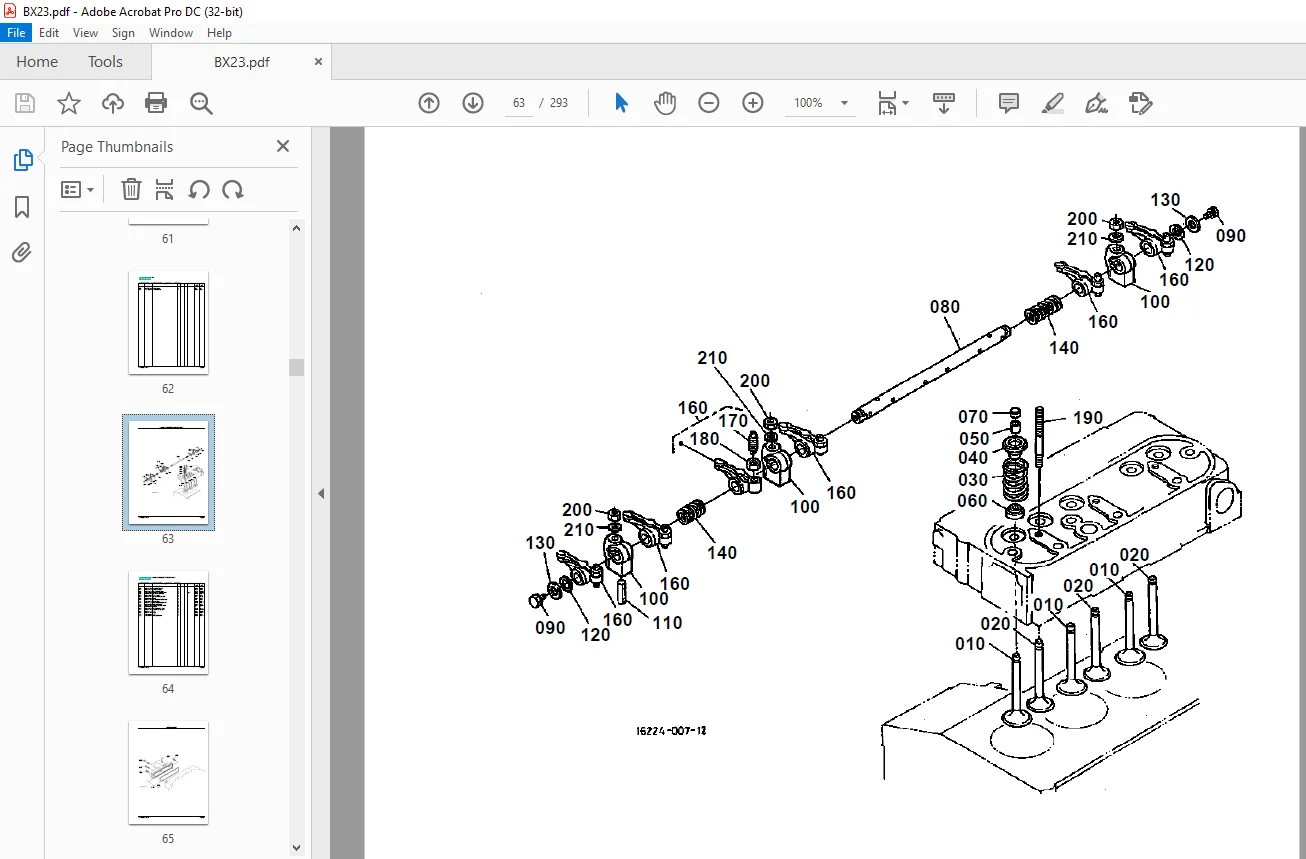

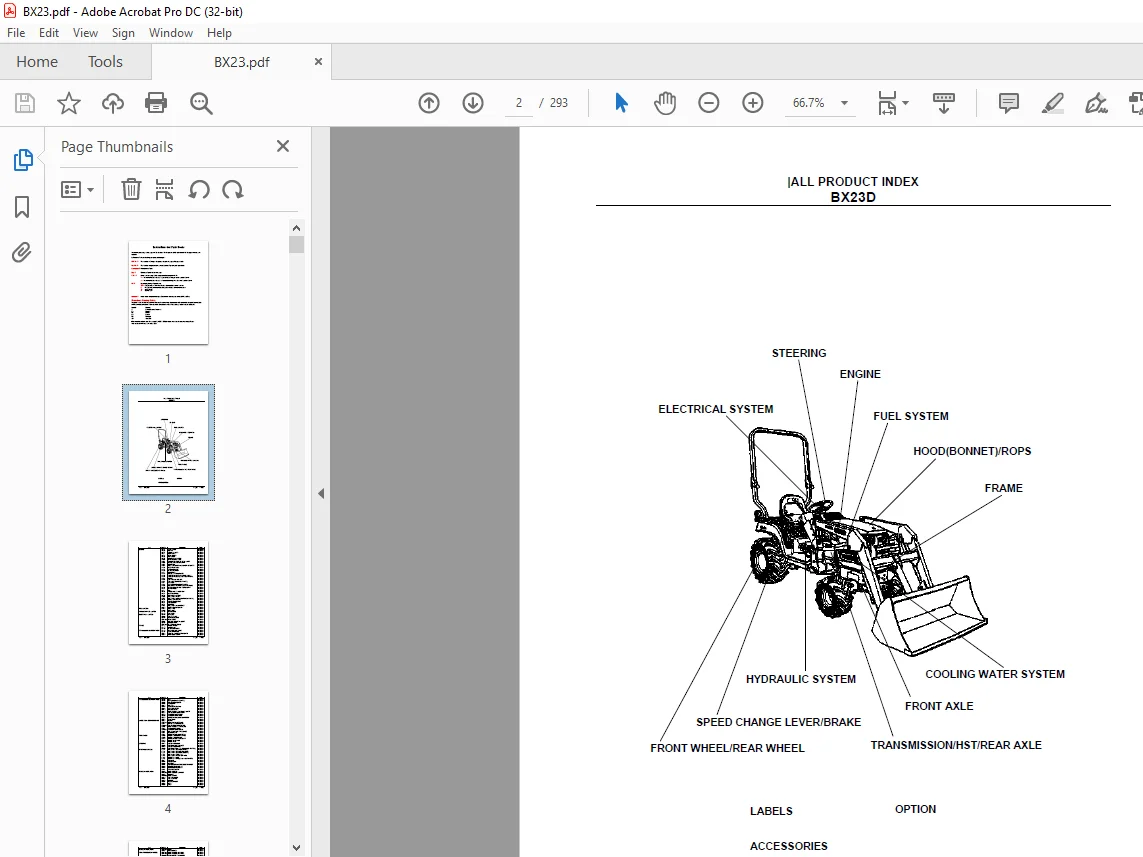

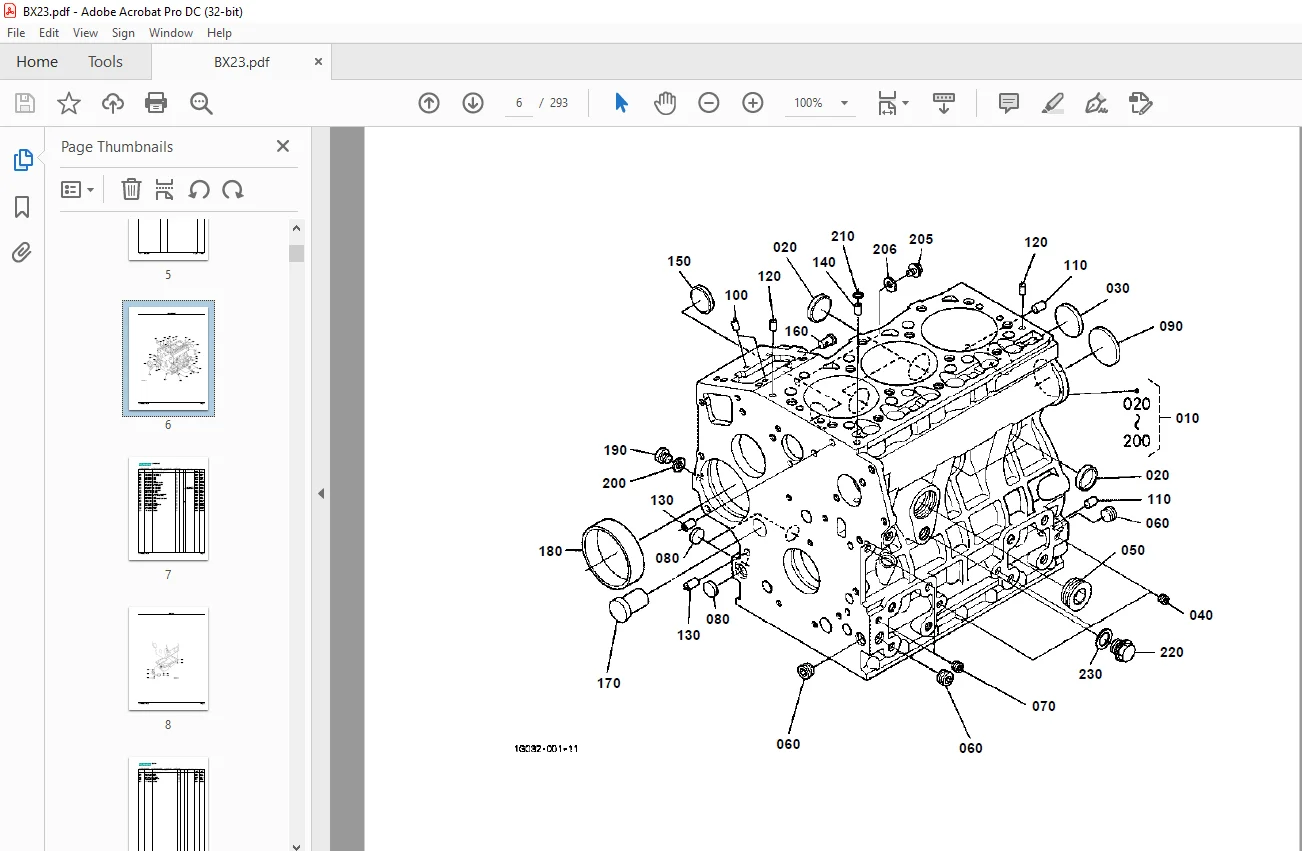

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Kubota Tractor BX23 Part Manual – PDF DOWNLOAD

Instructions for Parts Books
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No : The number refering to the part on the picture page of the parts book.
Part No. : The number assigned to this part at the time of printing the parts book.
Description Discription of part.
Q’ty  Quanity of part used on that page.
S.No.Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C Interchangeability of part shown.
ßà The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
ß new for old
à old for new
Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA]

TABLE OF CONTENTS:

Kubota Tractor BX23 Part Manual – PDF DOWNLOAD

Instructions for Parts Books............  1
BX23D...................................  2
CRANKCASE...............................  6
OIL PAN.................................  8
CYLINDER HEAD........................... 10
GEAR CASE............................... 12
HEAD COVER.............................. 14
OIL FILTER.............................. 16
DIPSTICK AND GUIDE...................... 18
MAIN BEARING CASE....................... 20
CAMSHAFT AND IDLE GEAR SHAFT............ 22
PISTON AND CRANKSHAFT................... 24
FLYWHEEL................................ 26
FUEL CAMSHAFT AND GOVERNOR SHAFT........ 28
IDLE APPARATUS.......................... 30
STOP SOLENOID........................... 33
INJECTION PUMP.......................... 35
GOVERNOR................................ 37
SPEED CONTROL PLATE..................... 39
NOZZLE HOLDER AND GLOW PLUG............. 41
NOZZLE HOLDER [COMPONENT PARTS]......... 43
COVER................................... 45
DYNAMO AND PULLEY....................... 47
DYNAMO [COMPONENT PARTS]................ 49
STARTER................................. 51
STARTER [COMPONENT PARTS]............... 53
OIL SWITCH/THERMOMETER AND PLUG......... 55
WATER FLANGE AND THERMOSTAT............. 57
WATER PUMP.............................. 59
FAN..................................... 61
VALVE AND ROCKER ARM SOUPAPES........... 63
INLET MANIFOLD.......................... 65
EXHAUST MANIFOLD........................ 67
HYDRAULIC PUMP.......................... 69
HYDRAULIC PUMP [COMPONENT PARTS]........ 71
UPPER GASKET KIT........................ 73
LOWER GASKET KIT........................ 75
AIR CLEANER............................. 77
MUFFLER................................. 79
HYDRAULIC PUMP COVER.................... 81
ACCELERATOR LEVER....................... 83
FUEL TANK............................... 86
FUEL PIPE............................... 89
WATER PIPE.............................. 91
RADIATOR................................ 93
BATTERY................................. 96
PANEL BOARD............................. 99
SWITCH/SENSOR...........................101
HEAD RIGHT..............................104
HAZARD LIGHT/TAIL LIGHT.................106
WINKER LAMP.............................109
ELECTRICAL WIRING.......................111
FRONT FRAME.............................113
SUB FRAME...............................116
ENGINE SUPPORT..........................119
TRANSMISSION CASE.......................122
REAR AXLE CASE..........................124
CLUTCH SHAFT/OUTPUT SHAFT...............126
PROPELLER SHAFT.........................128
HST.....................................131
HST [COMPONENT PARTS]...................133
RANGE GEAR SHAFT........................135
PTO SHAFT...............................137
MID PTO.................................139
REAR DIFFERENTIAL.......................141
FWD IDLE SHAFT..........................143
GP IDLE SHAFT...........................145
FRONT WHEEL PROPELLER SHAFT.............147
RANGE GEAR SHIFT FORK...................150
PTO GEAR SHIFT FORK.....................152
PTO GEAR SHIFT ARM......................154
DIFFERENTIAL LOCK SHIFT FORK............156
REAR AXLE...............................158
BRAKE...................................160
NEUTRAL HOLDER LINK.....................162
SPEED CONTROL PEDAL.....................165
RANGE GEAR SHIFT LEVER..................168
FRONT WHEEL DRIVE LEVER.................170
PTO SELECT LEVER........................173
PTO GEAR SHIFT LEVER....................176
HYDRAULIC CONTROL LEVER.................178
BRAKE PEDAL.............................181
DIFFERENTIAL LOCK PEDAL.................183
FRONT DIFFERENTIAL CASE.................186
FRONT DIFFERENTIAL......................188
DIFFERENTIAL GEAR SHAFT.................190
FRONT AXLE CASE.........................192
FRONT AXLE..............................194
STEERING HANDLE.........................196
STEERING CONTROLLER.....................198
STEERING LINKAGE........................201
STEERING CYLINDER [COMPONENT PARTS].....204
HYDRAULIC OIL LINE(SUCTION).............206
HYDRAULIC OIL LINE(DELIVERY)............208
HYDRAULIC OIL LINE(STEERING)............211
HYDRAULIC CYLINDER......................214
HYDRAULIC PISTON/LIFT ARM...............216
CONTROL VALVE...........................218
CONTROL VALVE [COMPONENT PARTS].........221
TOP LINK................................223
LOWER LINK..............................225
LIFT ROD................................227
TOP LINK BRACKET/FENDER BRACKET.........229
MOWER REAR LINK RH......................231
MOWER REAR LINK LH......................234
PTO PROTECTOR...........................236
FRONT GUARD.............................239
FRONT GLILLE SUPPORT....................242
BONNET..................................244
BONNET SIDE.............................247
CENTER PILLAR...........................249
PANEL FRAME.............................252
FENDER..................................254
SEAT SUPPORT............................257
SEAT....................................260
STEP....................................263
ROPS....................................266
SMV EMBLEM..............................268
FRONT WHEEL (18*8.50-8).................270
FRONT WHEEL (18*8.50-8).................272
REAR WHEEL (26*12.00-12)................274
REAR WHEEL (26*12.00-12)................276
LABEL (FRONT) [ENGLISH].................278
LABEL (FRONT) [FRENCH]..................280
LABEL (REAR) [ENGLISH]..................282
LABEL (REAR) [FRENCH]...................284
ACCESSORIES AND SERVICE PARTS...........286
ALTERNATOR KIT [OPTION].................288
ALTERNATOR [COMPONENT PARTS][OPTION]....290
WARKING LIGHT KIT [OPTION]..............292
