Kubota Utility Vehicle RTV500 Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
Kubota Utility Vehicle RTV500 Operator’s Manual – PDF DOWNLOAD
Language : English
Pages : 96
Downloadable : Yes
File Type : PDF

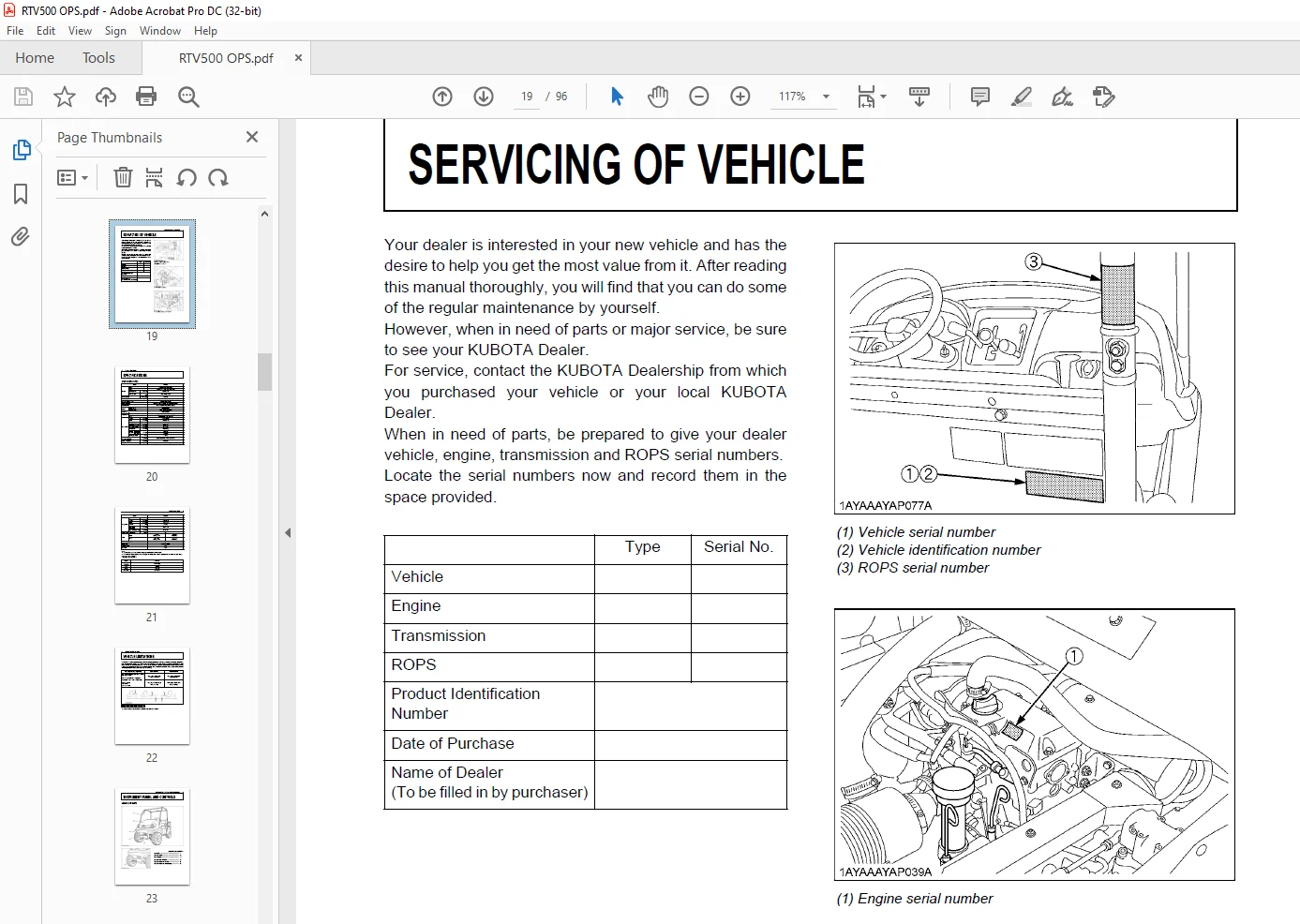

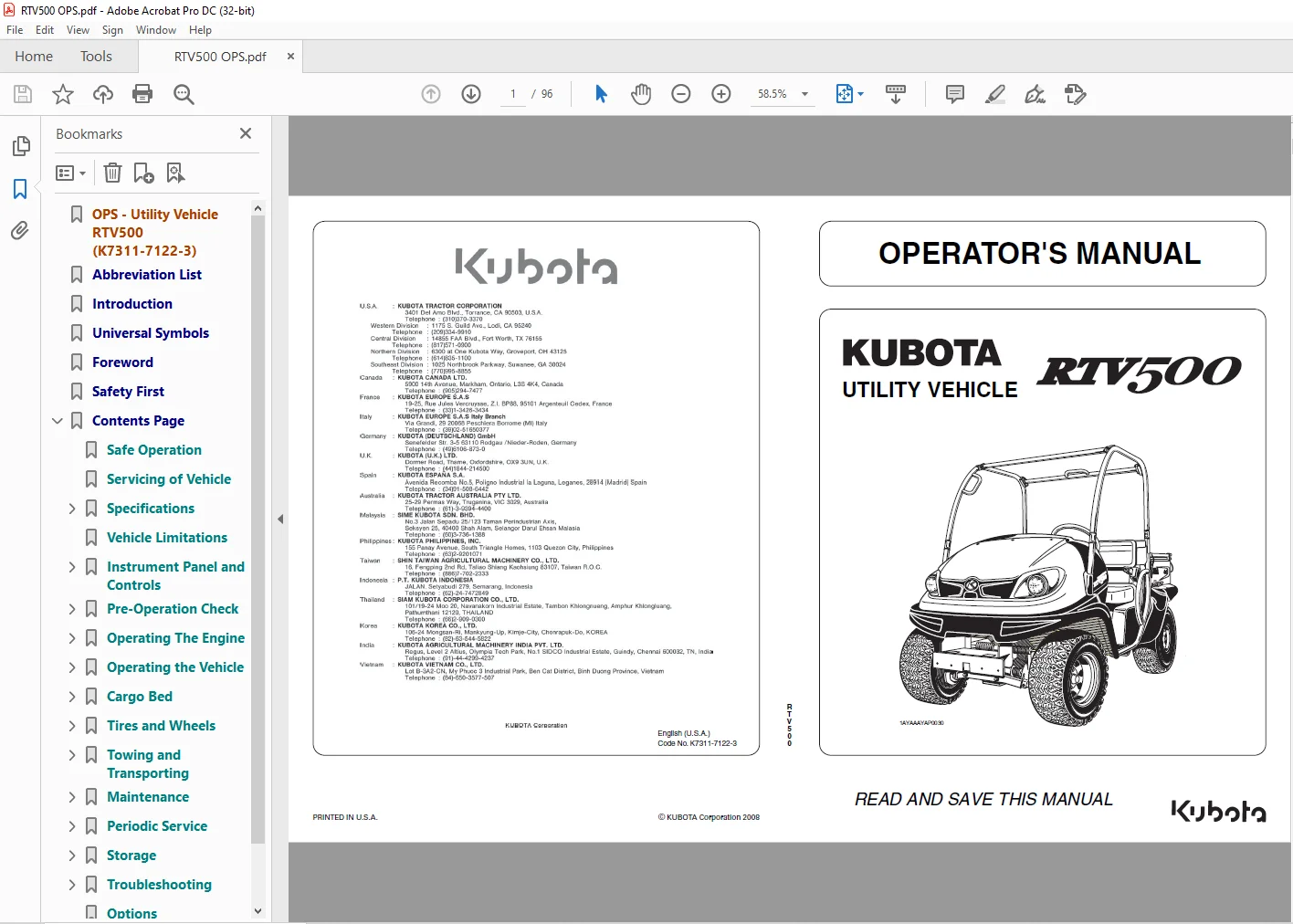

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Kubota Utility Vehicle RTV500 Operator’s Manual – PDF DOWNLOAD
FOREWORD:
You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service.
- To obtain the best use of your tractor, please read this manual carefully. If your tractor is provided with CAB, also read the CAB operator’s manual, which is a separate manual. It will help you become familiar with the operation of the tractor and contains many helpful hints about tractor maintenance.
- It is KUBOTA’s policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to be outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them.
SAFE OPERATION:
1. BEFORE OPERATING THE VEHICLE:
1. Know your equipment and its limitations. Read this entire manual before attempting to
start and operate the vehicle.
2. Pay special attention to the Danger, Warning and Caution labels on the vehicle.
3. Do not remove Roll-Over Protective Structures (ROPS) for any application and fasten
seat belts at all times. This combination will reduce the risk of serious injury or death, should
the vehicle be upset.
If the ROPS is loosened or removed for any reason, make sure that all parts are reinstalled
correctly before operating the vehicle.
Never modify or repair a ROPS because welding, bending, drilling, grinding, or cutting may
weaken the structure.
A damaged ROPS structure must be replaced, not repaired or revised.
If any structural member of the ROPS is damaged, replace the entire structure at your
local KUBOTA Dealer.
4. Always use the seat belts. Check the seat belts regularly and replace if frayed or
damaged.
5. Do not operate the vehicle or any implement attached to it while under the influence of
alcohol, medication, controlled substances or while fatigued.
6. Carefully check the vicinity before operating the vehicle or any implement
attached to it. Check for overhead clearance which may interfere with the CAB or ROPS. Do not
allow any bystanders around or near the vehicle during operation.
7. Never allow anyone without a valid driver’s license to operate this vehicle.
8. Before allowing other people to use your vehicle, explain how to operate and have
them read this manual before operation.
9. Never wear loose, torn, or bulky clothing around the vehicle. It may catch on moving
parts or controls, leading to the risk of an accident. Use additional safety items, e.g.
helmet, safety boots or shoes, eye and hearing protection, gloves, etc., as appropriate
or required.
10. This vehicle is for off road use only. KUBOTA does not recommend operating on public roads.

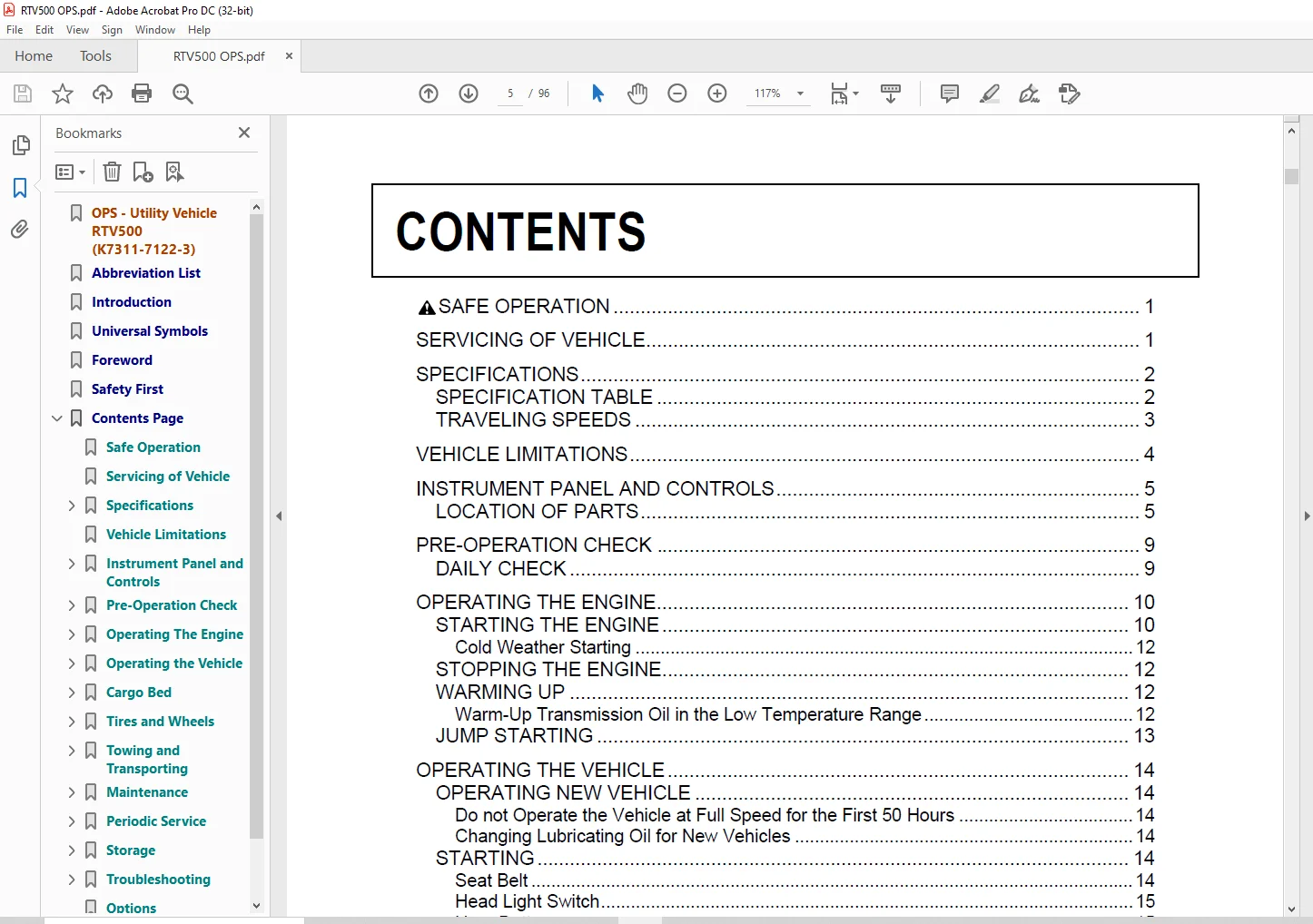

TABLE OF CONTENTS:
Kubota Utility Vehicle RTV500 Operator’s Manual – PDF DOWNLOAD
OPS - Utility Vehicle RTV500 (K7311-7122-3).................................... 1 Abbreviation List.............................................................. 2 Introduction................................................................... 2 Universal Symbols.............................................................. 3 Foreword....................................................................... 4 Safety First................................................................... 4 Contents Page.................................................................. 5 Safe Operation............................................................. 9 Servicing of Vehicle.......................................................19 Specifications.............................................................20 Specification Table....................................................20 Travelling Speeds......................................................21 Vehicle Limitations........................................................22 Instrument Panel and Controls..............................................23 Location of Parts......................................................23 Pre-Operation Check........................................................27 Daily Check............................................................27 Operating The Engine.......................................................28 Starting the Engine....................................................28 Cold Weather Starting..............................................30 Stopping the Engine....................................................30 Warming Up.............................................................30 Warm-Up Transmission Oil in the Low Temperature Range..............30 Jump Starting..........................................................31 Operating the Vehicle......................................................32 Operating New Vehicle..................................................32 Do Not Operate the Vehicle at Full Speed for the First 50 Hours....32 Changing Lubricating Oil for New Vehicles..........................32 Starting...............................................................32 Seat Belt..........................................................32 Head Light Switch..................................................33 Horn Button........................................................33 Brake Pedal........................................................34 Range Gear Shift Lever.............................................34 4WD Lever..........................................................35 Parking Brake Lever................................................35 Speed Control Pedal................................................35 Stopping...............................................................36 Stopping...........................................................36 Check During Driving...................................................36 Immediately Stop the Engine if:-...................................36 Easy Checker.......................................................37 Fuel Gauge.........................................................37 Coolant Temperature Gauge..........................................38 Hourmeter..........................................................38 Parking................................................................38 Parking Brake Lever................................................38 Accessory..............................................................39 12V Electric Outlet................................................39 Operating Techniques...................................................39 Differential Lock..................................................39 Unfamiliar Terrain.................................................40 Driving in Reverse.................................................40 Driving in "4WD"...................................................41 Turning the Vehicle................................................41 Hills..............................................................42 Traversing Hillsides...............................................42 Sliding and Skidding...............................................42 Driving Through Water..............................................43 Cargo Bed..................................................................44 Cargo Bed..............................................................44 General Caution....................................................44 Max. Cargo Load....................................................44 Cargo Bed Tailgate.................................................45 Raising and Lowering the Cargo Bed.................................46 Tires and Wheels...........................................................47 Tires..................................................................47 Inflation Pressure.................................................47 Tire Type and Use..................................................47 Wheels.................................................................48 Shock Absorbers........................................................48 Rear Shock Absorber Spring Adjustment..............................48 Towing and Transporting....................................................49 Towing and Transporting................................................49 Rear Trailer Hitch.................................................49 Front Trailer Hitch................................................49 Winch Mount Bracket................................................50 Transporting Vehicle...............................................50 Maintenance................................................................51 Service Intervals......................................................51 Lubricants, Fuel and Coolant...........................................54 Periodic Service...........................................................56 How to Open the Hood and Tilt the Seat.................................56 Hood...............................................................56 Operator's Seat....................................................57 How to Raise the Cargo Bed.............................................57 Raising and Lowering the Cargo Bed.................................57 Jack-Up Point..........................................................58 Front End..........................................................58 Rear End...........................................................58 Daily Check............................................................59 Walk Around Inspection.............................................59 Checking Amount of Fuel and Refueling..............................59 Checking Engine Oil Level..........................................60 Checking Transmission Fluid Level..................................61 Checking Coolant Level.............................................61 Cleaning Radiator Screen...........................................62 Checking Engine Cooling Fan........................................62 Checking Brake Fluid Level.........................................63 Checking Brake Pedal...............................................63 Checking Parking Brake.............................................64 Checking Gauges, Meter and Easy Checker............................64 Checking Head Light etc............................................64 Checking Seat Belt and ROPS........................................64 Checking Joint Boot................................................64 Checking Tire Inflation Pressure...................................65 Every 50 Hours.........................................................65 Greasing...........................................................65 Checking Engine Start System.......................................67 Every 100 Hours........................................................67 Checking VHT Neutral Spring........................................67 Checking Wheel Bolt Torque.........................................67 Cleaning Air Cleaner Primary Element...............................68 Cleaning Pre Cleaner Element.......................................68 Adjusting Alternator Drive Belt Tension............................69 Checking Fuel Line.................................................71 Checking Battery Condition.........................................72 Adjusting Toe In...................................................73 Cleaning Spark Arrester............................................74 Every 200 Hours........................................................75 Adjusting Parking Brake Lever......................................75 Replacing Engine Oil Filter........................................75 Changing Engine Oil................................................76 Cleaning Radiator Cooling Fins.....................................77 Replacing Transmission Oil Filter..................................78 Checking Spark Plug Condition and Gap..............................79 Checking Brake Pedal...............................................80 Checking Brake Hose and Pipe.......................................80 Checking Brake Light Switch........................................81 Checking Radiator Hose and Clamp...................................81 Checking Intake Air Line...........................................82 Every 300 Hours........................................................82 Checking Tire......................................................82 Every 400 Hours........................................................83 Changing Transmission Oil..........................................83 Changing Front Axle Case Oil.......................................84 Every 500 Hours........................................................84 Adjusting Engine Valve Clearance...................................84 Checking Engine Timing Belt........................................84 Every 1000 Hours.......................................................84 Replacing Engine Timing Belt.......................................84 Every After 1000 Hours.................................................84 Cleaning Engine Combustion Chamber.................................84 Every 1 Year...........................................................84 Replacing Air Cleaner Primary Element and Secondary Element........84 Replacing Pre Cleaner Element......................................84 Every 2 Years..........................................................85 Changing Brake Fluid...............................................85 Flushing Cooling System and Changing Coolant.......................85 Anti-Freeze........................................................85 Replacing Radiator Hose (Water Pipes)..............................86 Replacing Fuel Hose................................................86 Replacing Brake Master Cylinder (Inner Parts)......................86 Replacing Intake Air Line..........................................86 Replacing Engine Breather Hose.....................................86 Every 4 Years..........................................................87 Replacing Brake Hose...............................................87 Service As Required....................................................87 Checking Brake Pad.................................................87 Adjusting Parking Brake............................................87 Adjusting Alternator Drive Belt Tension............................87 Replacing Fuse.....................................................88 Replacing Slow-Blow Fuses..........................................89 Replacing Light Bulb...............................................89 Storage....................................................................90 Vehicle Storage........................................................90 Removing the Vehicle from Storage......................................90 Troubleshooting............................................................91 Engine Troubleshooting.................................................91 Battery Troubleshooting................................................93 Machine Troubleshooting................................................94 Options....................................................................95 Engine Emission Related Information........................................96
