Kurzweil K2000/K2000R Synthesizer Service Manual PDF – Young Chang PDF

Description

Kurzweil K2000/K2000R Synthesizer Service Manual PDF – Young Chang – PDF DOWNLOAD

LONG DESCRIPTION

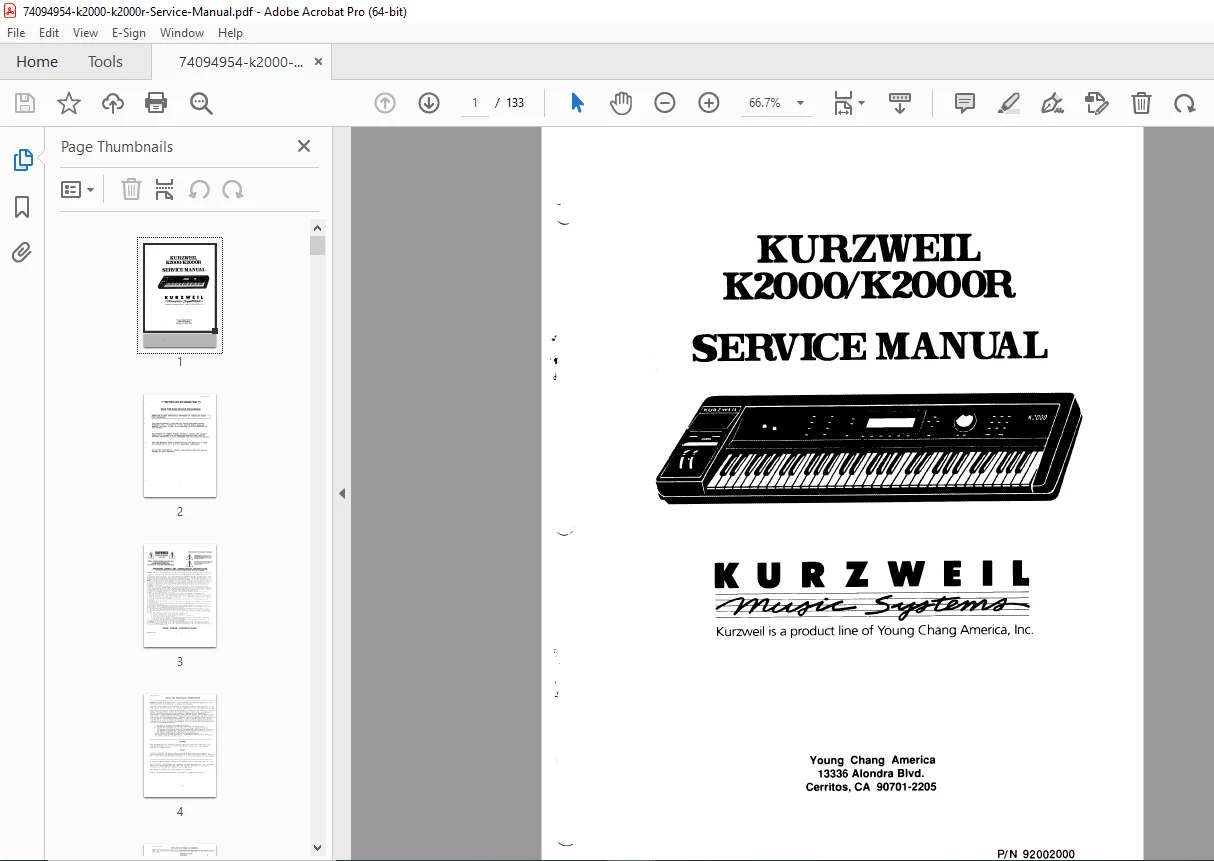

This is the official Kurzweil K2000/K2000R Service Manual (Part Number 92002000, Document 0701-2205) published by Young Chang America, Inc. This comprehensive technical manual provides complete service information for both the keyboard and rack-mounted versions of these professional synthesizer workstations.

Models Covered

This Kurzweil K2000 synthesizer service manual covers:

• K2000 – 61-key keyboard workstation with spring return synth action
• K2000R – 3-space rack module version with identical sound engine

Both models feature Kurzweil’s revolutionary VAST™ (Variable Architecture Synthesis Technology) system, offering unprecedented sound design flexibility and professional-grade audio quality.

Complete Technical Specifications

K2000 Keyboard Features:

• Keyboard: 61-key spring return synth action with velocity sensitivity
• Polyphony: 24-note polyphonic with dynamic voice allocation
• Display: 240 x 64-pixel backlit graphic LCD with adjustable contrast
• Sound Engine: 8 MB of 16-bit sample ROM (expandable to 24 MB)
• DSP Processing: Real-time DSP for each voice with 31 programmable algorithms
• Bandwidth: 20 kHz maximum for full-range audio reproduction
• Memory: 128 KB battery-backed RAM for user programs and setups
• Storage: 3.5″ floppy disk drive (DD/HD, DOS compatible)
• Preset Sounds: 199 factory preset programs, 100 factory preset setups
• Layers: Up to 3 layers per program, 32 layers for drum channel programs
• Sequencer: 15,000-note scratchpad sequencer, loads/plays MIDI Type 0 files

Performance Controls:

• Spring-loaded pitch wheel
• Full-throw modulation wheel (programmable)
• Volume slider
• Programmable controller slider
• Two programmable switch pedal inputs
• Programmable continuous controller input
• Alpha Wheel for parameter editing
• Alphanumeric keypad for quick data entry

Audio Outputs:

• Two 1/4″ mixed stereo audio outputs
• Four 1/4″ programmable outputs (2 stereo pairs or 4 mono)
• Insert capability for effects patching
• Stereo headphone jack

K2000R Rack Module Features:

• Convenient 3-space rack mountable design
• Same powerful sound engine as K2000 keyboard
• Ten analog outputs (four stereo pairs plus stereo master)
• Two SCSI buses for external devices
• MIDI In, Thru, Out with activity LED
• Optional internal hard drive capability

Manual Contents & Sections

This Kurzweil VAST synthesis workstation manual is organized into detailed technical sections:

Section 1: Specifications & General Information

• Complete K2000 and K2000R feature lists
• Technical specifications and environmental requirements
• Operating temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -13°F to 186°F (-25°C to 85°C)
• Relative humidity: 5-95% non-condensing
• Comprehensive glossary of synthesis terms
• Definitions of algorithms, DSP functions, envelopes, LFOs, keymaps, layers
• MIDI implementation details
• System architecture overview

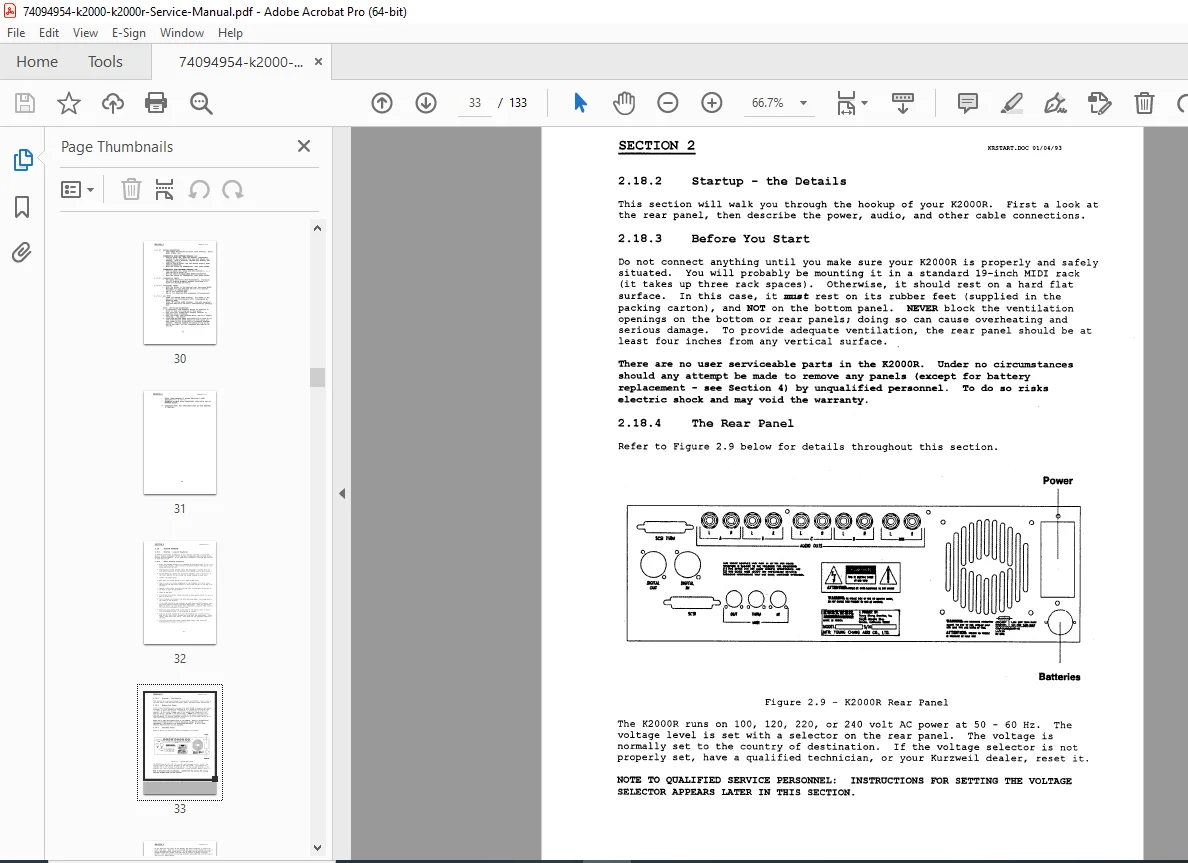

Section 2: Power-Up Procedures & Initial Diagnostics

• Power supply checkout procedures
• Initial startup sequence verification
• Boot diagnostics and error codes
• LED indicator meanings
• System initialization procedures

Section 3: Hardware Architecture

• Detailed circuit board descriptions
• Main processor board (HD6303A microprocessor)
• Audio/Power PCB schematics
• Digital signal processing circuitry
• Memory architecture (RAM/ROM configuration)
• SIMM socket specifications for expansion
• SCSI interface implementation

Section 4: Maintenance & Diagnostics

• Battery voltage testing and replacement procedures
• Battery types: maintains memory backup
• Expected battery life and replacement intervals
• Control surface diagnostics
• Keyboard action testing and calibration
• Pitch wheel and mod wheel center adjustment
• Pedal and footswitch compatibility testing
• Continuous controller calibration
• Alpha Wheel encoder diagnostics
• Panel button LED verification
• Audio output level optimization
• Noise reduction techniques
• Signal-to-noise ratio maximization
• Digital vs. analog gain adjustment recommendations

Section 5: Troubleshooting Procedures

• Systematic diagnostic approach
• Power supply problems
• Audio output issues
• MIDI communication failures
• Disk drive errors
• Display problems
• Keyboard response issues
• Control surface malfunctions
• Memory errors and data corruption
• Battery low voltage warnings

Section 6: Audio System

• Complete audio path schematics
• Output routing configurations
• Insert point connections
• Stereo effects processing
• Multi-output setup procedures
• Level matching with external equipment
• Grounding and noise elimination

Section 7: Circuit Schematics

• Complete schematic diagrams for all circuit boards
• Audio/Power PCB (multiple output paths)
• Main processor board
• Display interface circuitry
• MIDI interface circuits
• Power supply regulation
• Component locations and values
• IC specifications and pin assignments
• Op-amp configurations (TL072 circuits shown)
• Signal flow diagrams

Section 8: Optional Hardware

• Sampling Option Kit (SMP-R):
  • Analog, digital (AES-EBU, S/PDIF), and optical inputs
  • Version 2.0 software with graphic waveform editing
  • Sample editing features: time compression/expansion, sample rate conversion
  • Mixing, splicing, normalizing, crossfade looping, auto-looping
  • Fade in/out capabilities
• Memory Expansion:
  • Sample RAM expansion up to 64 MB via SIMM modules
  • Program/Sequence memory expansion (DP-RAM): 120K to 760K
• Storage Options:
  • Internal hard drive installation (up to 240 MB or more)
  • SCSI CD-ROM compatibility (Sony and Toshiba drives)
• Sound ROM Expansion:
  • Two 8 MB ROM sound blocks (ROM-1, ROM-2) available

Advanced Features Covered

VAST Synthesis System:

• 31 programmable DSP algorithms per voice
• Filters: Lowpass, Highpass, Allpass, Bandpass, Notch
• Programmable resonance
• EQ, distortion, panning capabilities
• Pulse width modulation
• Up to 3 programmable DSP functions per voice
• Real-time parameter control via MIDI

Multi-Effects Processing:

• Programmable stereo multi-effects on MIX outputs
• Simultaneous reverb, chorus, delay, flanging, EQ
• Real-time internal and MIDI control of effects parameters
• Leslie effect simulation

Sample Compatibility:

• Akai S1000 sample disk compatibility
• Reads Akai S1000 HD disks (samples, keymaps, programs)
• Ensoniq EPS disk compatibility (with version 2.0 software)
• MIDI Standard Sample Dump capability
• SMDI protocol support via SCSI (using Passport Alchemy)
• DOS-compatible floppy disk format

MIDI Implementation:

• Full MIDI In, Thru, Out
• Multi-timbral operation for multi-track sequencing
• 3-zone setups with independent controls on 3 MIDI channels
• Sends and receives mono (channel) pressure
• Receives poly (key) pressure
• System Exclusive implementation
• MIDIScope™ for analyzing MIDI events

Safety Information

This manual includes comprehensive safety warnings:

• No user serviceable components inside
• Qualified service personnel requirements
• Electrical safety precautions
• Grounding requirements
• AC input voltage selector information
• FCC Class B compliance information
• Radio and television interference guidelines

Component-Level Service Information

• Complete parts lists with component values
• Integrated circuit specifications
• Operational amplifier configurations
• Voltage regulator circuits (+5V, +12V, -12V)
• Clock generation and timing circuits
• SRAM specifications (2K, 8K configurations)
• Logic family details (74HC, 74AC series)
• Connector pinouts and signal descriptions

Who Needs This Kurzweil K2000 Keyboard Maintenance Troubleshooting Guide?

This service manual is essential for:

• Professional synthesizer repair technicians
• Electronic music instrument service centers
• Technical schools and training programs
• Kurzweil authorized service facilities
• Advanced users performing their own repairs
• Recording studios maintaining their equipment
• Anyone requiring component-level K2000/K2000R service information

Important Notes

⚠ Service Warning: This manual is written for qualified service personnel only. Unauthorized repairs may void warranties.

📞 Service Authorization: Only the Kurzweil Service Department has authority to determine qualified technician status. Contact Kurzweil National Service Manager for information.

🔧 Technical Level: This is a professional service manual with circuit schematics and component-level troubleshooting procedures.
