Kverneland Taarup 4036R Mower Parts Manual – PDF DOWNLOAD

Description

Kverneland Taarup 4036R Mower Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kverneland Taarup 4036R Mower Parts Manual – PDF DOWNLOAD

Language : English
Pages : 74
Downloadable : Yes
File Type : PDF

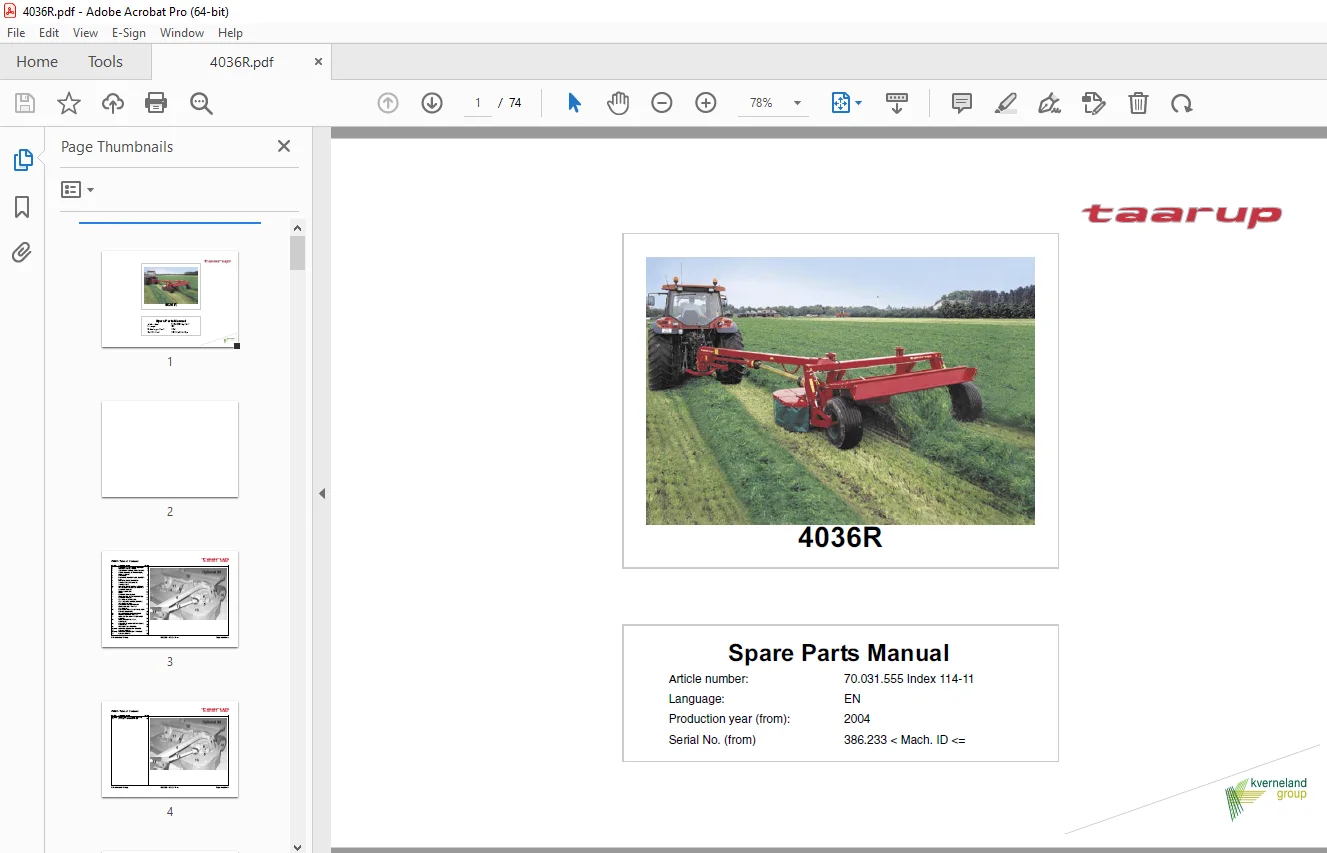

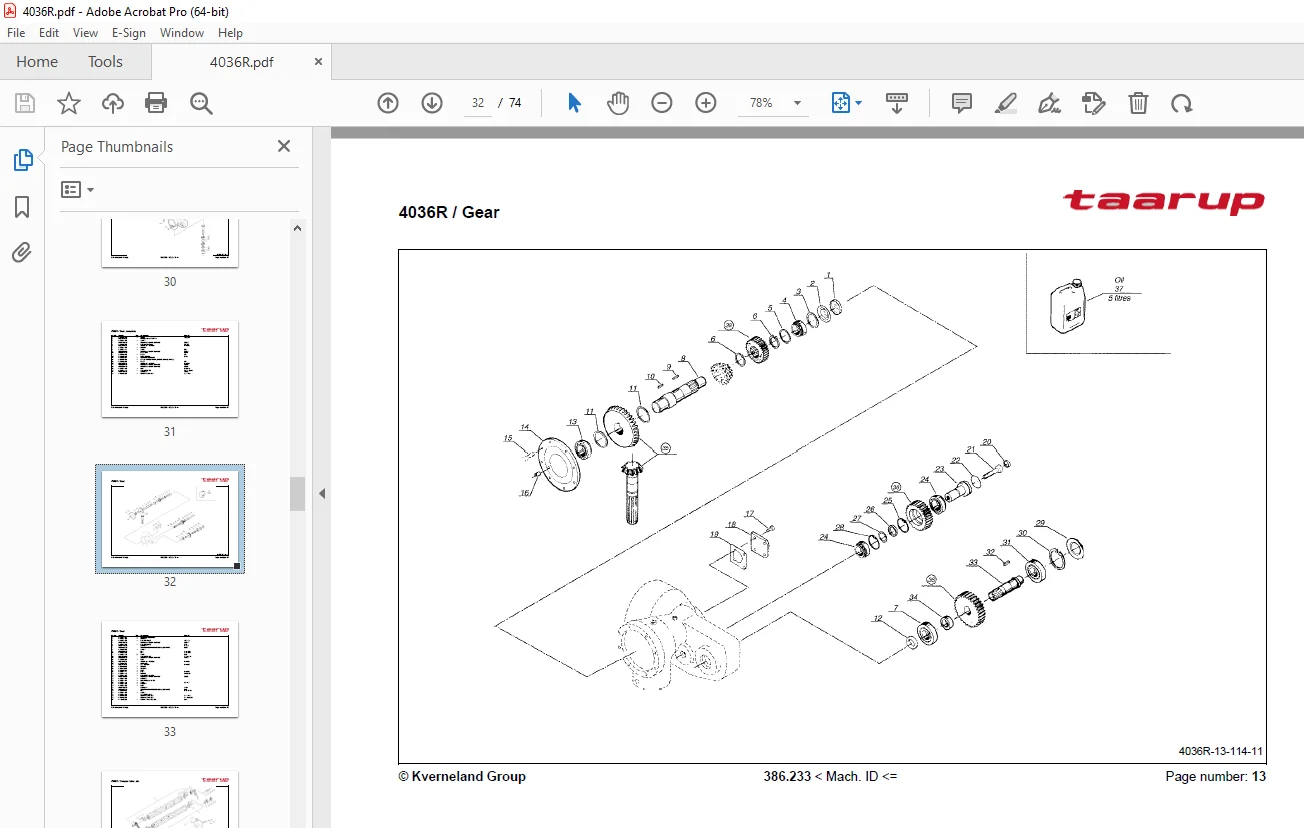

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kverneland Taarup 4036R Mower Parts Manual – PDF DOWNLOAD

Article number: 70.031.555 Index 114-11
Language: EN
Production year (from): 2004
Serial No. (from) 386.233 < Mach. ID <=

1 PRIMARY FRAME, WHEEL SUPPORT 1
2 WHEELS, TUBES, TYRES 2
4 SECONDARY FRAME, SPRINGS ETC. 3
3 COUNTERKNIFE, STRAW DIVIDER,
HIGH SKID ETC. 4
6 DRAWBAR 5
6 DRAWBAR, SUPPORT LEG, GUARDS
ETC. 6
8 HYDRAULIC FOR DRAWBAR 7
7 SWIVEL GEAR, COMPLETE 8
7 SWIVEL GEAR 9
10 HYDRAULIC FOR WHEEL SUPPORT 10
5 TRANSMISSION FOR CUTTERBAR &
CRIMPER ROLLER 11
9 GEAR, COMPLETE 12
9 GEAR 13
11 CRIMPER ROLLER, ETC 14
11 GEAR WHEEL TRANSMISSION FOR
CRIMPER ROLLER 15
3 CUTTERBAR, COMPLETE 16
3 CUTTING DISC, KNIVES, CONES &
THROWING WINGS 17
3 BEARINGS FOR CUTTERBAR 18
3 KNIFE AND BOLT KIT FOR
CUTTERBAR 19
12 REAR END INCL. UPPERPLATE, SIDE
PLATE & BRACKETS 20
13 END GUARDS FOR CUTTERBAR 21
13 GUARDS FOR CUTTERBAR 22
11 LUBRICATION UNIT FOR CRIMPER
ROLLER 23
15 WIDE ANGLE PTO SHAFT,
COMPLETE 24
15 FRICTION CLUTCH FOR PTO SHAFT,
COMPLETE 25
14 PTO SHAFT AT TRACTOR 26
Optional
99
LIGHTING EQUIPMENT SQUARE
REFLEX, COMPL. 27
Optional
99
LIGHTING EQUIPMENT TRIANGLE
REFLEX, COMPL. 28
