Kverneland Taarup 4232CT Mower Parts Manual – PDF DOWNLOAD

Description

Kverneland Taarup 4232CT Mower Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kverneland Taarup 4232CT Mower Parts Manual – PDF DOWNLOAD

Language : English
Pages : 65
Downloadable : Yes
File Type : PDF

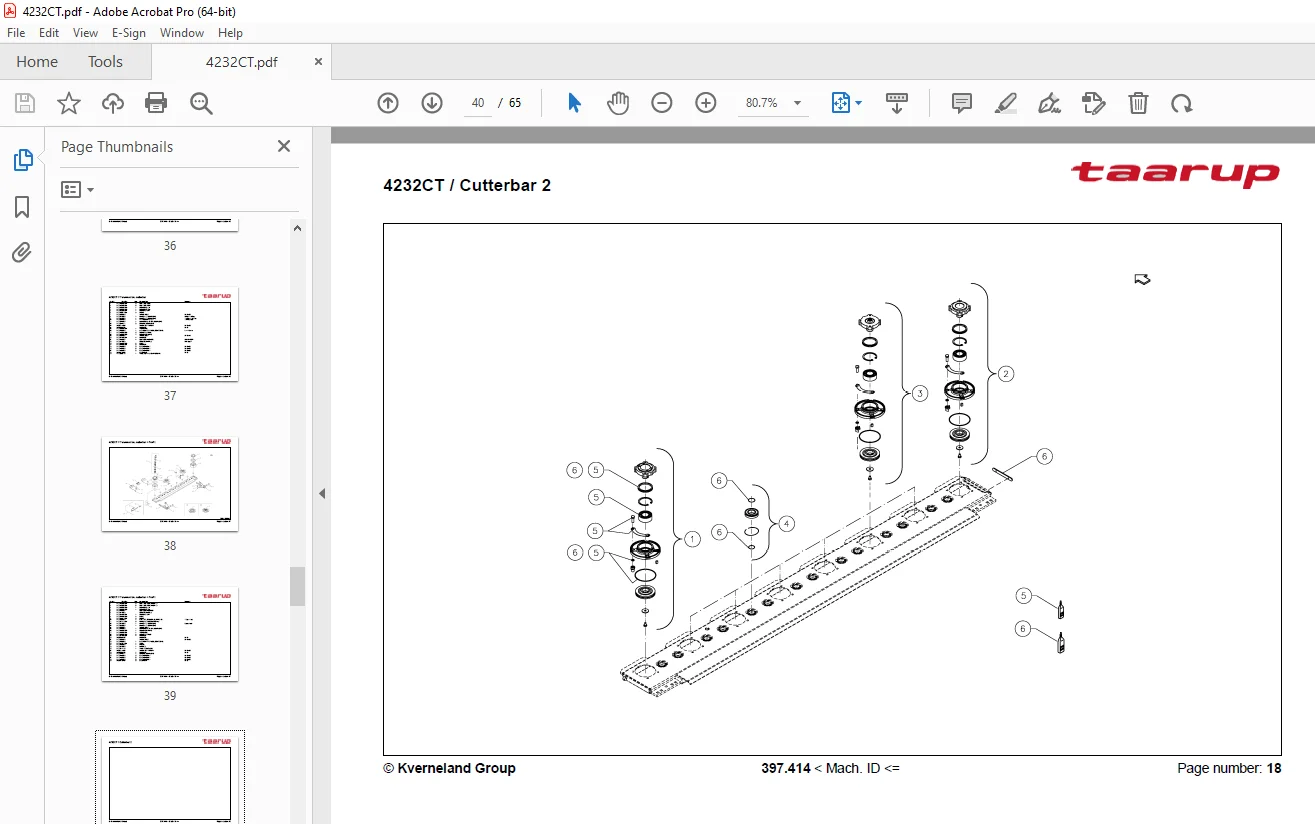

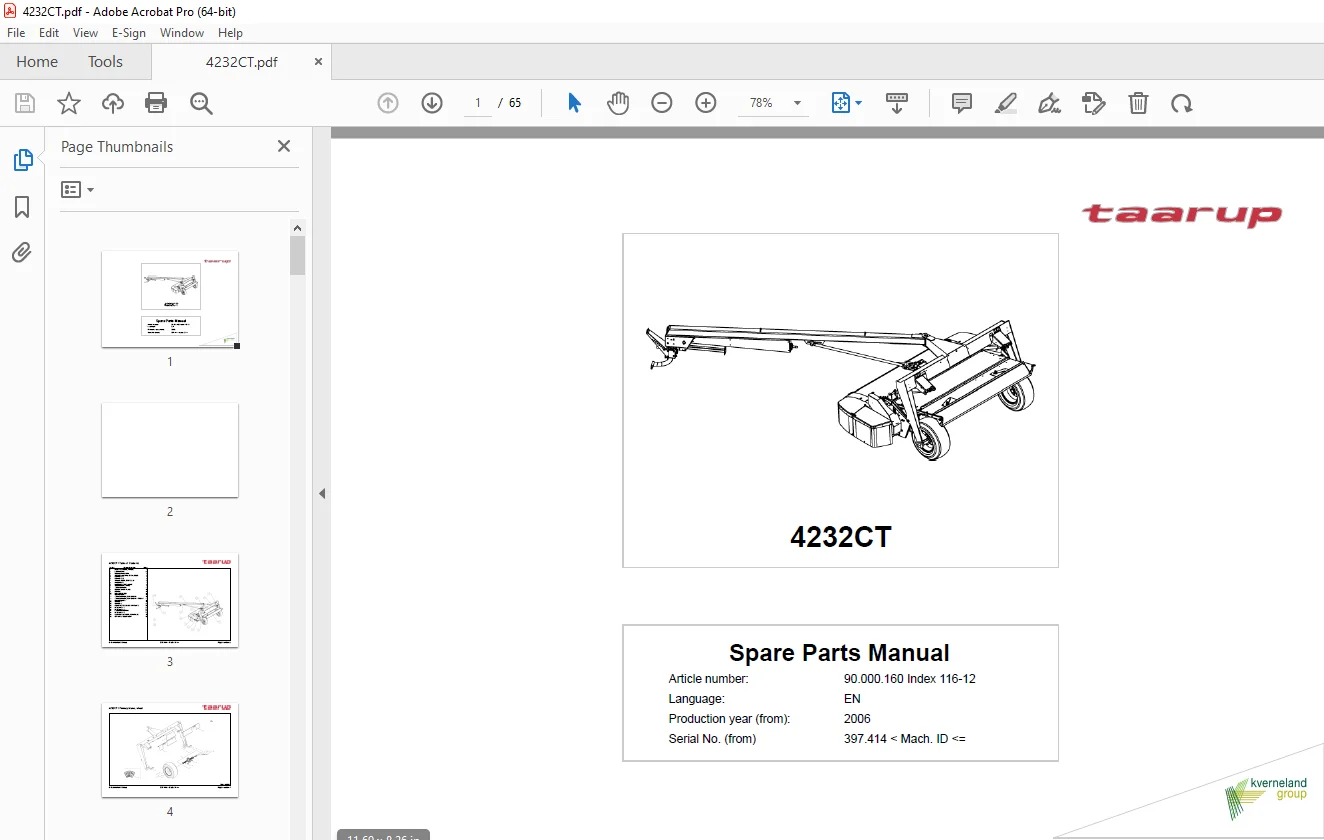

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kverneland Taarup 4232CT Mower Parts Manual – PDF DOWNLOAD

Article number: 90.000.160 Index 116-12
Language: EN
Production year (from): 2006
Serial No. (from) 397.414 < Mach. ID <=

1 LIGHTING KIT 26
2 CONNECTING ARM 2
2 SPRING, HYDRAULIC CYLINDER 3
3 DRAWBAR 1 4
3 DRAWBAR 2 5
4 SWIVEL GEAR, COMPLETE 6
5 HYDRAULIC 7
5 HYDRAULIC, DRAWBAR 8
6 SECONDARY FRAME 9
7 TRANSMISSION 11
8 CONDITIONER PLATE 12
9 ROTOR 13
10 MAIN GEAR BOX 14
11 CUTTERBAR 1 15
11 TRANSMISSION, CUTTERBAR 16
11 TRANSMISSION, CUTTERBAR + PROFIT 17
11 CUTTERBAR 2 18
12 GUARD 1 19
12 GUARD 2 20
12 REAR END & DEFLECTOR PLATE 21
13 PTO SHAFT 1 22
14 PTO SHAFT 2 23
14 FRICTION CLUTCH 24
14 PTO SHAFT 3 25
15 CENTRE GEAR BOX, COMPLETE 10
16 OPTIONAL EQUIPMENT 27
