Kverneland Taarup 90150 C 91150 C Rakes & Tedders Parts Manual PDF

Description

Kverneland Taarup 90150 C 91150 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kverneland Taarup 90150 C 91150 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

Language : English_Danish_German_French
Pages : 126
Downloadable : Yes
File Type : PDF

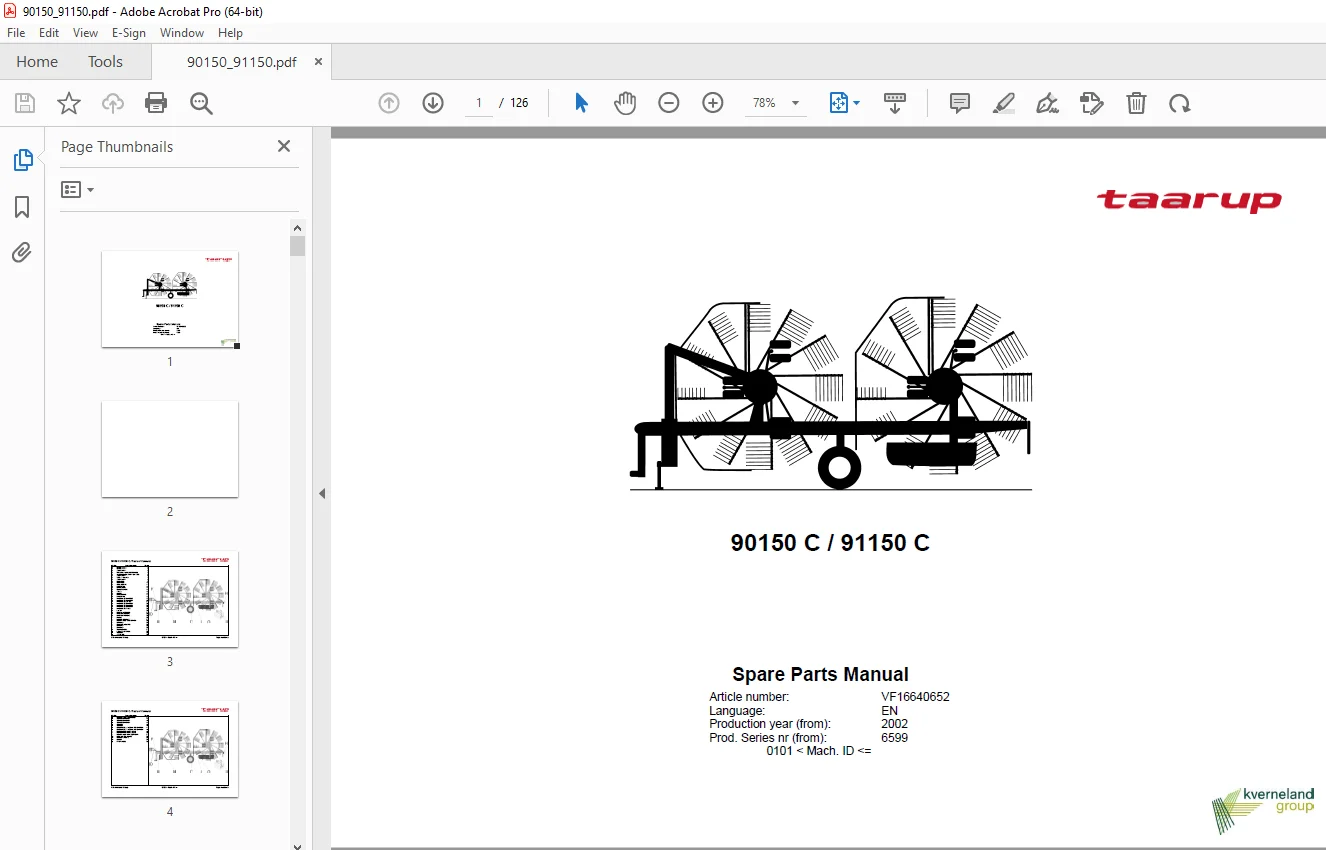

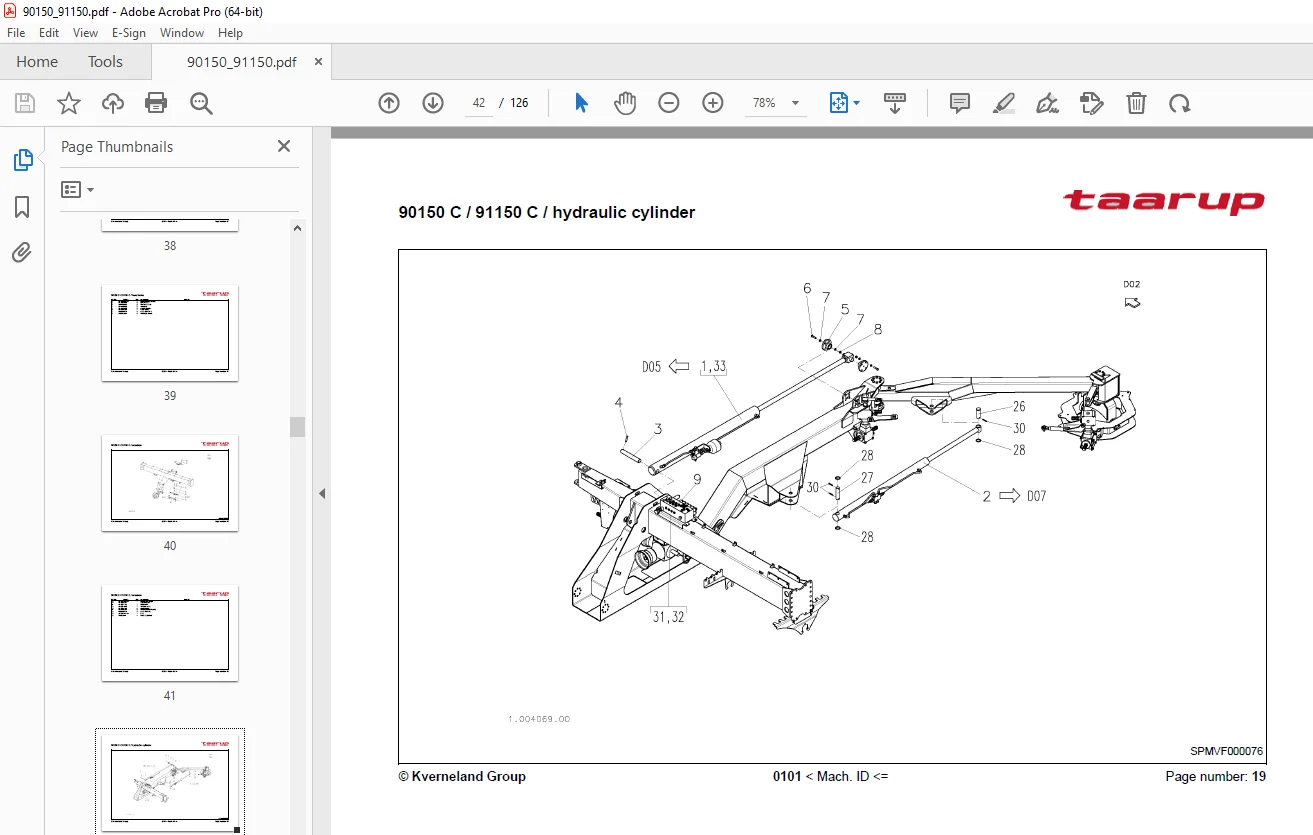

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kverneland Taarup 90150 C 91150 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

Article number. VF16640652
Language: EN
Production year (from): 2002
Prod. Series nr (from): 6599 0101 < Mach. ID <=

B DRIVE SHAFT 1
B DRIVE SHAFT 2
B JOINT SHAFT 3
B PTO SHAFT (WALTERSCHEID) 4
B INTERMEDIATE SHAFT ZW 2300 5
B JOINT SHAFT 6
B SAFETY CLUTCH 7
B JOINT SHAFT 8
B GEAR BOX 9
B GEAR BOX 10
B ANGLE DRIVE 11
C DIRECTION 12
C BRAKE AXLE 13
C OUTER COVER 14
C TYRES 15
C FRAME 16
C HAND BRAKE 17
D DIRECTION 18
D HYDRAULIC CYLINDER 19
D HYDRAULIC CYLINDER 20
D HYDRAULIC DEVICE 21
D HYDRAULIC CYLINDER 22
D HYDRAULIC CYLINDER 23
D HYDRAULIC CYLINDER 24
D HYDRAULIC BROKE 25
D FILTER 26
D PRESS. AIR BRAKE 27
D PRESS.AIR BRAKE 28
D PRESS.AIR BRAKE 29
F FRAME 30
F 3-POINT BRACKET 31
F ROTARY HUB SUSPENSION 32
F BRACKET 33
F BEARING HOUSING 34
F BRACKET 35
F BRACKET 36
G SWATH SHEET 37
H LIGHTING SYSTEM 38
H SENSOR 39
H JUNCTION 40
H ELECTRONIC CONTROLER 41
H SENSOR BRACKET 42
H SENSOR BRACKET 43
H SENSOR BRACKET 44
H SENSOR 45
H SENSOR 46
H ELECTRICALLY HEIGHT ADJUSTMENT 47
H ELECTRICALLY HEIGHT ADJUSTMENT 48
L ROTOR ARMS WORK. CCW 49
L ROTOR ARMS WORK. CCW 50
L ROTARY HUB WITH GEAR BOX 51
M PROTECTION DEVICE 52
M WARNING PLATE 53
M COVER 54
U PAINT LABEL 55
