Kverneland Taarup 9070 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

Description

Kverneland Taarup 9070 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kverneland Taarup 9070 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

Language : English
Pages : 95
Downloadable : Yes
File Type : PDF

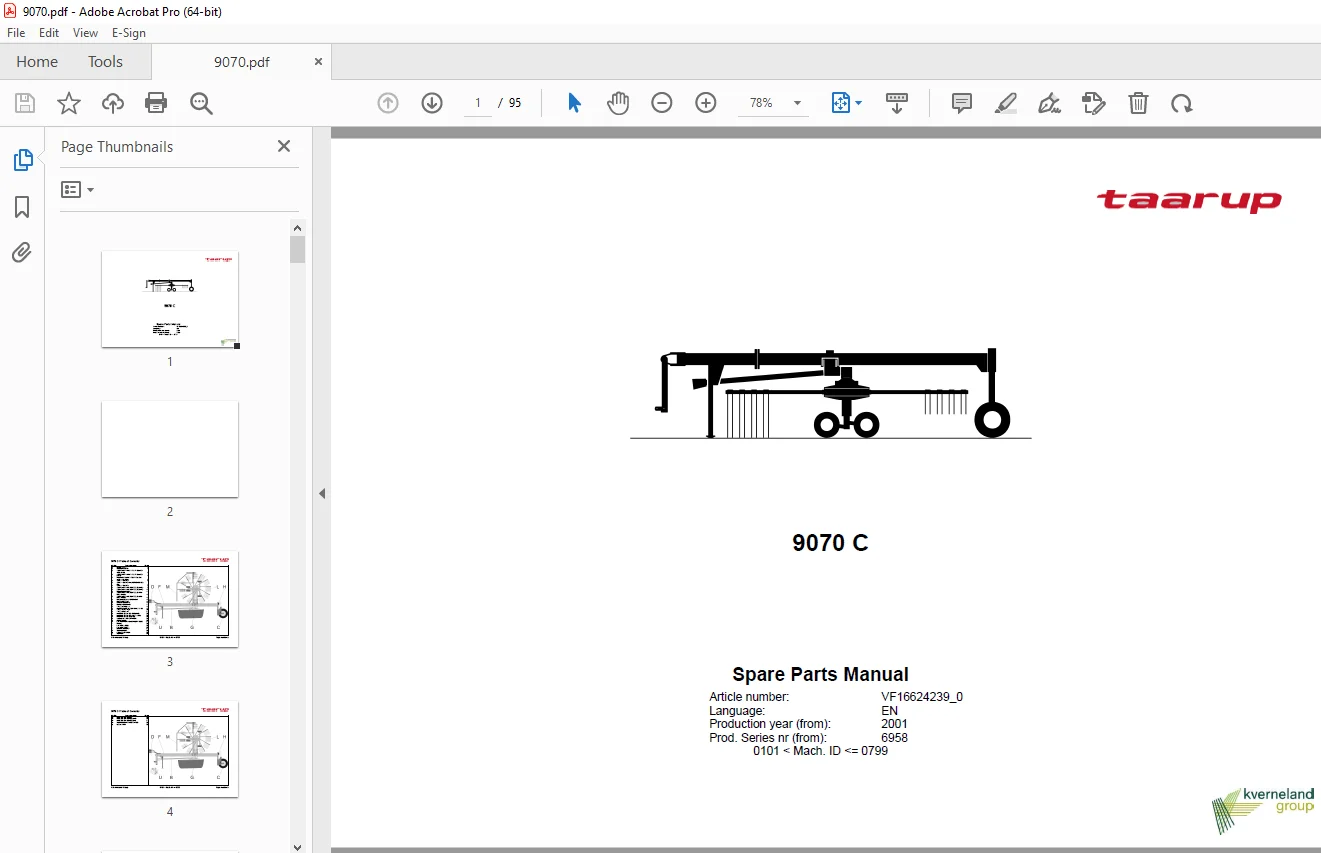

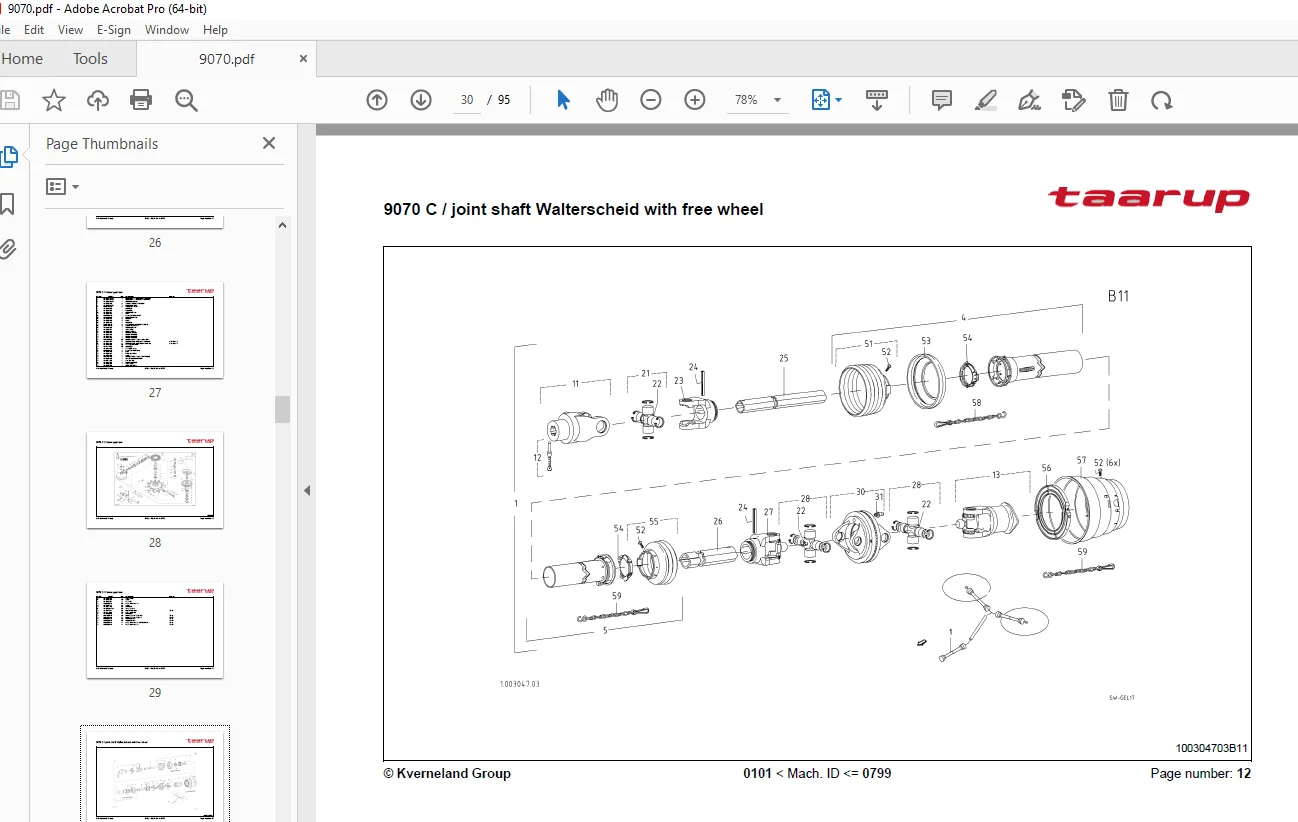

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kverneland Taarup 9070 C Rakes & Tedders Parts Manual – PDF DOWNLOAD

• Article number. VF16624239_0
• Language:EN
• Production year (from): 2001
• Prod. Series nr (from): 6958 0101 < Mach. ID <= 0799

B DRIVE SHAFT 1
B ANGULAR GEAR 2
B JOINT SHAFT WHIT SAFETY CLUTCH
-428 (-1999) 3
B JOINT SHAFT WITH SAFETY CLUTCH
(2000) 4
B PTO-SHAFT WITH SAFETY CLUTCH
+429 -1999 +2015 5
B SAFETY CLUTCH 6
B SAFETY CLUTCH WALTERSCHEID 500
NM 7
B SAFETY CLUTCH 8
B JOINT SHAFT WALTERSCHEID (-2175) 9
B JOINT SHAFT WALTERSCHEID (-2175) 10
B COMER-GEAR BOX 11
B JOINT SHAFT WALTERSCHEID WITH
FREE WHEEL 12
B JOINT SHAFT WALTERSCHEID WITH
FREE WHEEL 13
B FREEWHEEL WALTERSCHEID 14
C CHASSIS-FRAME 15
C DIRECTION PARTS 16
C FRAME TERRA LINK 17
C TYRES 16 X 6,5 – 8 18
C OUTER COVER 10,0/80-12 AW (-2116) 19
C TYRES 10/75 – 15,3 20
C TYRES 215/65-15 21
D HYDRAULIC DEVICE -1999 (-513) 22
D HYDRAULIC DEVICE +2000 (-2089) 23
D HYDRAULIC DEVICE (605) 24
D SINGLE LIFTING UNIT HYDR. 25
D FRAME HYDR. 26
D LIFTARM HYDR. ADJUSTMENT +2000 27
F FRAME 28
F LIFT ARM (-1999) 29
F LIFT ARM (2000) 30
F 3-POINT BRACKET 31
G SWATH SHEET 32
H LIGHTING SYSTEM 33
L SUPPORT 34
M PROTECTION DEVICE 35
M PROTECTION DEVICE (-513) 36
M PROTECTION DEVICE (514) 37
M SCRAPPER WARNING PLATES 38
U LABEL PAINT 39
