Kverneland Taarup BIO Bale Wrapper Parts Manual – PDF DOWNLOAD

Description

Kverneland Taarup BIO Bale Wrapper Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Kverneland Taarup BIO Bale Wrapper Parts Manual – PDF DOWNLOAD

Language : English
Pages : 160
Downloadable : Yes
File Type : PDF

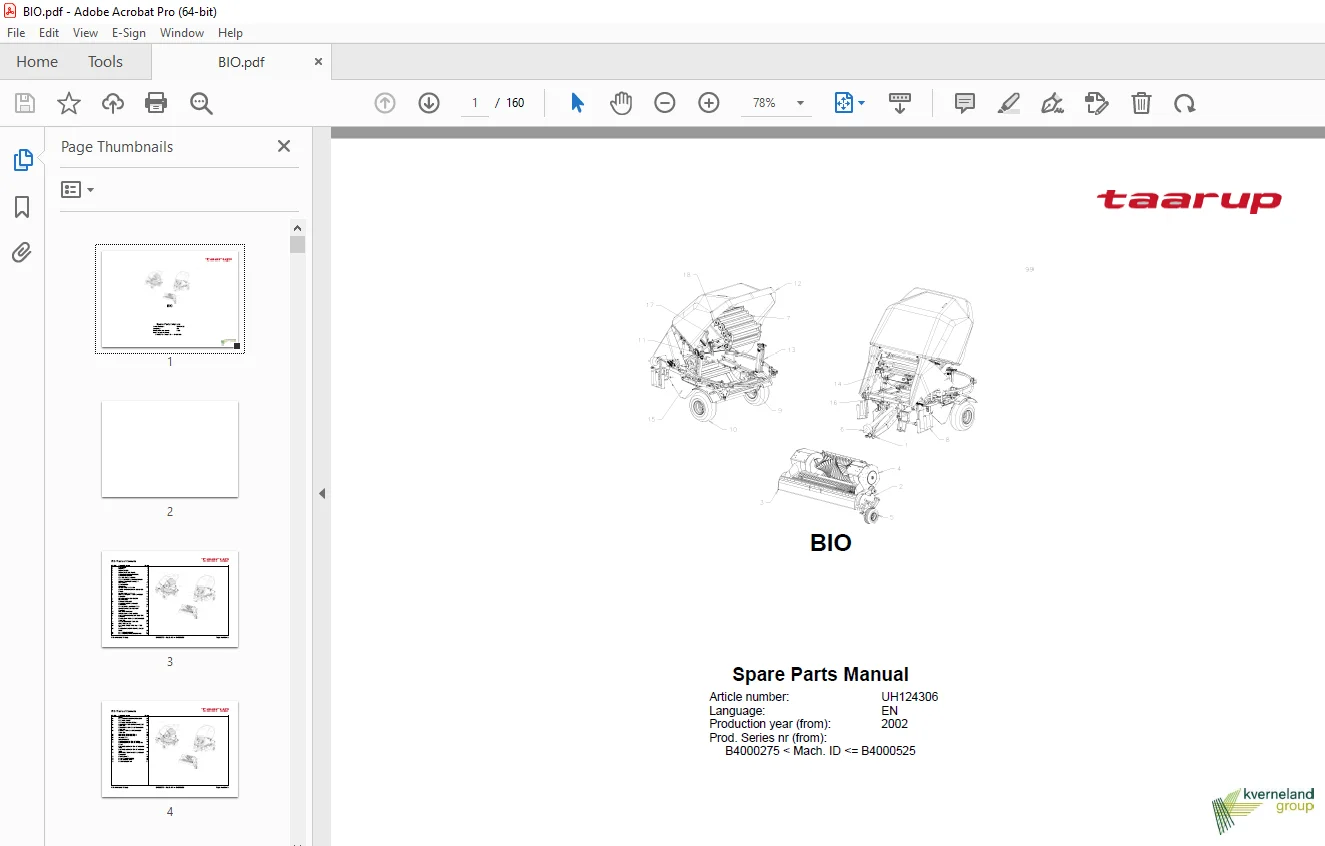

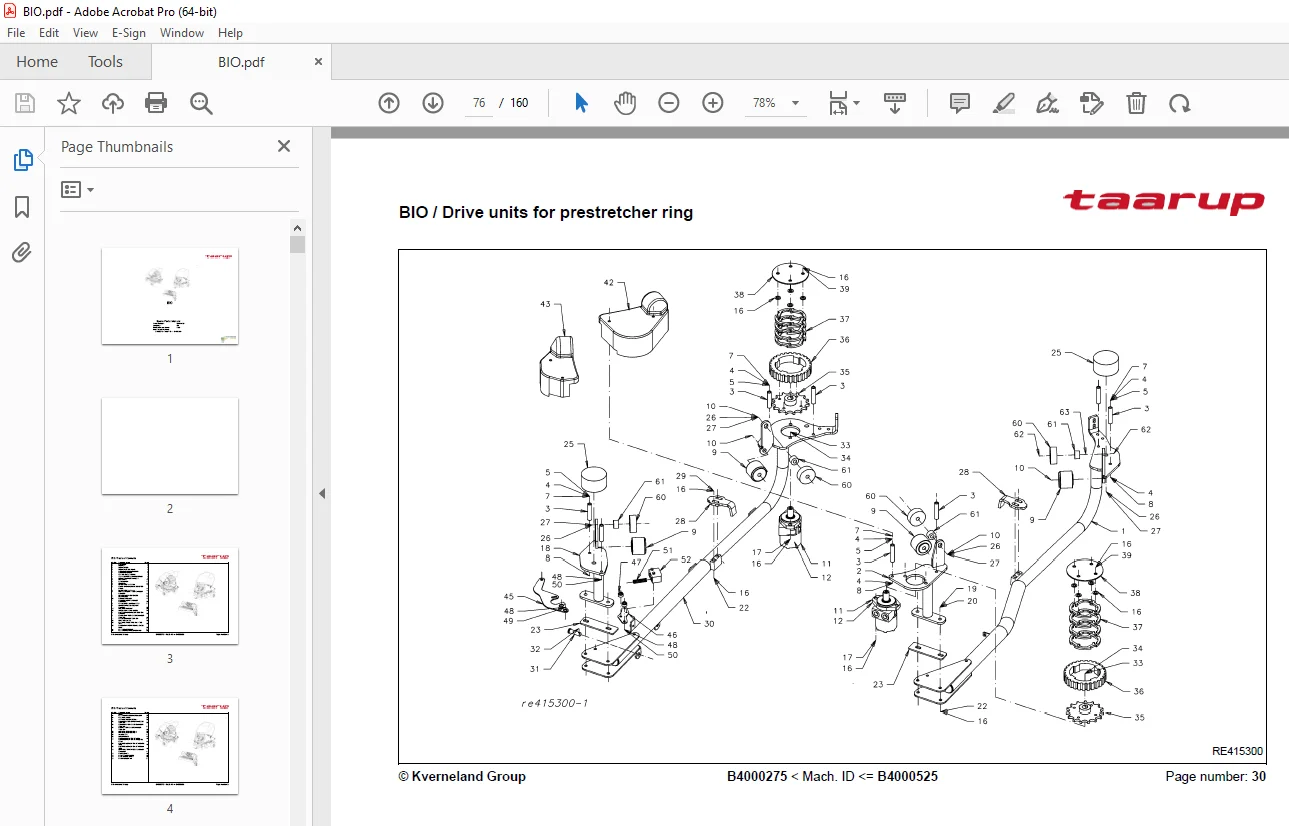

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Kverneland Taarup BIO Bale Wrapper Parts Manual – PDF DOWNLOAD

• Article number: UH124306
• Language: EN
• Production year (from): 2002
• Prod. Series nr (from): B4000275 < Mach. ID <= B4000525

1 DRAWBAR 1
2 PICK-UP 2
2 PICK-UP REEL 3
3 PICK-UP BAFFLE PLATE 4
4 CONVEYOR DRUM CHASSIS 5
4 CONVEYOR DRUM 6
4 CUTTER BLADES BEAM 7
4 SCRAPER FOR CONVEYOR DRUM 8
5 PICK-UP SUPPORT WHEELS 9
6 PTO SHAFT 10
6 CAM CLUTCH 11
6 GEARBOX 12
6 MAIN DRIVE SHAFT RH 13
6 CHAIN TENSIONER FOR COVEYOR
DRUM 14
6 MAIN DRIVE SHAFT LH 15
6 HYDR. DRIVE UNIT FOR CHAMBER
ROLLERS 16
7 END ROLLER W/CATCHERS 17
7 END ROLLER 18
19 REGULAR ROLLER 19
7 DRIVE ROLLER FOR BALER
CHAMBER 20
8 FRAME AND FILM ROLL RACK 21
9 LOWER CHAMBER SECTION
CHASSIS 22
99 HILL WRAPPING KIT 23
10 WHEEL SHAFT AND WHEEL 24
9 REAR, LOWER CHAMBER SECTION
CHASSIS 25
6 DRIVE JOINT FOR UPPER CHAMBER
SECTION 26
11 UPPER CHAMBER SECTION 27
12 LOCKING DEVICE 28
13 PRESTRETCHER RING W/LIFTING
STAY 29
13 DRIVE UNITS FOR PRESTRETCHER
RING 30
14 NET BINDING BRAKE 31
14 NET BINDING FRAMEWORK AND 32
BIO / Table of Contents
© Kverneland Group B4000275 < Mach. ID <= B4000525 Page number: a
PosNo. Assembly group Page
KNIFE
14 NET BINDING FEEDING ROLLERS 33
13 PRESTRETCHER 34
9 APPLICUTTER B4000275–> 35
15 COVERERS FOR LOWER CHAMBER
SECTION 36
12 COVERERS FOR UPPER CHAMBER
SECTION 37
16 BONNET FOR UPPER CHAMBER
SECTION 38
16 HYDRAULICS B4000275–> 39
16 HYDRAULICS B4000275–> 40
16 VALVE BANK 41
16 ELECTRONICS 42
17 CHAIN LUBRICATION SYSTEM 43
17 CHAIN LUBRICATION SYSTEM, OIL
PUMP 44
18 BEARING LUBRICATION SYSTEM RH.
SIDE 45
18 BEARING LUBRICATION SYSTEM LH
SIDE 46
99 LOW FRICTION PLATES FOR BALER
CHAMBER 47
99 ROAD LIGHTS 48
99 FALL DAMPER EXTRA 49
99 BALE ON END EXTRA 50
99 PU ANTICREEP KIT 51

S.V 11/24
