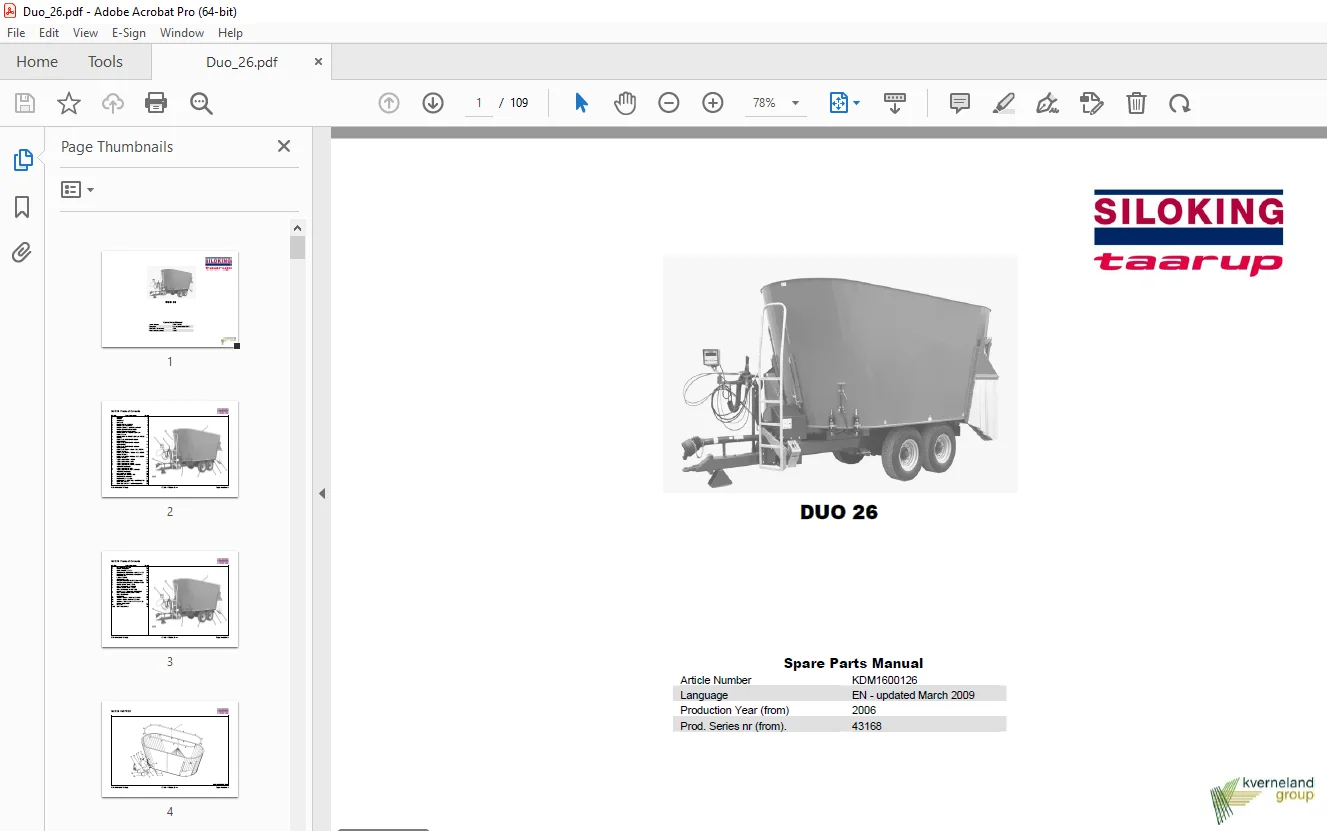

Kverneland Taarup DUO 26 Feeding Parts Manual PDF

1 HOPPER 1
1 AUGER 2
1 AUGER LF 3
2 CHASSIS 4
3 DOOR FRONT CENTRE 5
3 DOOR REAR CENTRE 6
3 DOOR CENTRE – STRAW BLOWER 7
3 FRONT CONVEYOR 2340MM 8
3 REAR CONVEYOR 2340MM 9
3 NARR. CONFIG. FRONT CONV. (W.
FOLD. CONV) 10
3 NARR. CONFIG. REAR CONV. (W. FOLD.
CONV) 11
3 FOLDABLE CONVEYOR 800 (W.
CONVEYOR) 12
3 FOLDABLE CONVEYOR 1100 (W.
CONVEYOR) 13
3 FOLDABLE CONVEYOR 1500 (W.
CONVEYOR) 14
3 FOLDABLE CONV. 800 (W. SIDE DOOR
FRONT RIGHT) 15
3 FOLDABLE CONV. 1100 (W. SIDE DOOR
FRONT RIGHT) 16
3 FOLDABLE CONV. 1500 (W. SIDE DOOR
FRONT RIGHT) 17
3 SIDE DOOR FRONT RIGHT 18
3 SIDE DOOR FRONT LEFT 19

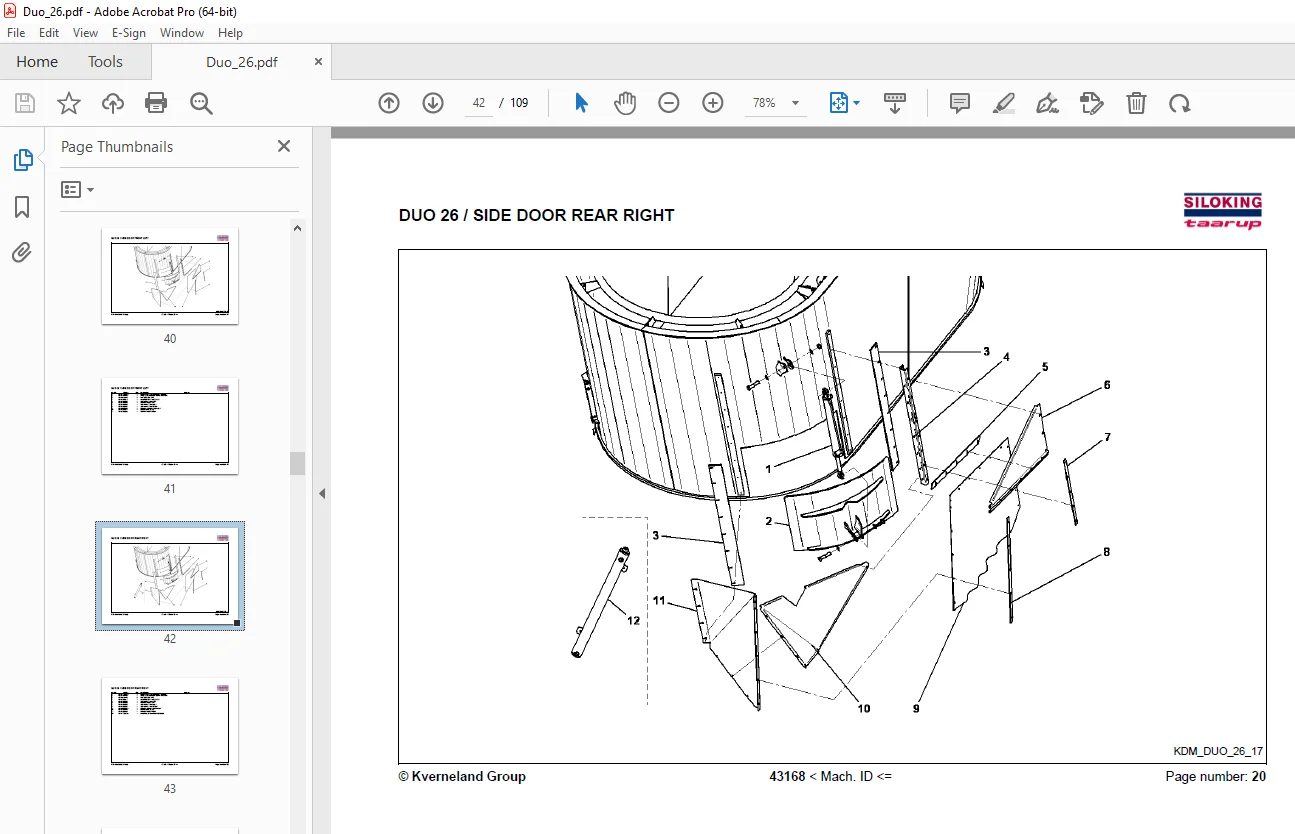

3 SIDE DOOR REAR RIGHT 20
3 SIDE DOOR REAR RIGHT (400 MM
TOWARDS MIDDLE) 21
3 SIDE DOOR REAR LEFT 22
3 SIDE DOOR REAR LEFT (400 MM
TOWARDS MIDDLE) 23
4 WEIGHING SYSTEM 24
5 HYDRAULICS – OVERVIEW 25
5 ELECTRICAL VALVES 26
5 MECHANICAL VALVES 27
5 MECHANICAL CONTROL – HYDRAULICS 28
5 OWN OIL SUPPLY 29
5 OWN OIL SUPPLY – STRAW BLOWER 30
DUO 26 / Table of Contents
© Kverneland Group 43168 < Mach. ID <= Page number: a
PosNo. Assembly group Page
5 FLOW REGULATION 31
5 VALVES HOLDER 32
5 OWN POWER SUPPLY 33
5 ELECTRICAL CONTROL – HYDRAULICS 34
5 ELECTRICAL CONTROL DINACOM 2 –
HYDRAULICS 35
6 LIGHTING BAR 36
7 STEERING AXLE 37
8 WHEELS 355/60 R18 (TANDEM AXLE) 38
8 WHEELS 355/50 R22,5 (TANDEM AXLE) 39
9 CONN. DRIVE SHAFT GKN
WALTERSCHEID BACKSIDE 40
9 CONN. DRIVE SHAFT GKN
WALTERSCHEID FRONTSIDE 41
9 DRIVE SHAFT GKN WALTERSCHEID 42
9 WIDE ANGLE DRIVE SHAFT GKN
WALTERSCHEID 43
9 GEARBOX 44
10 STEPS – CONV. FRONT MOUNTED 45
10 STEPS – CONV. REAR MOUNTED 46
10 STEPS – FOLD. CONV. NARR. CONFIG.
FRONT MOUNTED 47
10 LADDER 48
9999 STRAW BLOWER 49
DUO 26 / Table of Contents
©
