Landoll Bendi Forklift AC Parts Manual – PDF DOWNLOAD

Description

Landoll Bendi Forklift AC Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Landoll Bendi Forklift AC Parts Manual – PDF DOWNLOAD

Language : English
Pages :106
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Landoll Bendi Forklift AC Parts Manual – PDF DOWNLOAD

TABLE OF CONTENTS 3
DESCRIPTION PAGE NO 7
COUNTERWEIGHT AND FAN ASSEMBLY 1-511
COVER ASSEMBLY 1-713
DOOR ASSEMBLY 1-915
BATTERY COMPARTMENT PANEL ASSEMBLY 1-1117
BATTERY GUIDE ASSEMBLY 1-1319
ROLLOUT BATTERY TRAY ASSEMBLY (OPTION) 1-1521
FAST-CHANGE BATTERY ASSEMBLY (OPTION) 1-1723
SEAT BASE ASSEMBLY 1-1925
SEAT ASSEMBLY 1-2127
ACCELERATOR PEDAL ASSEMBLY 1-2329
B30 DRIVE LINE ASSEMBLY 1-2430
B40/45 DRIVE LINE ASSEMBLY 1-2531
GEARBOX, BREVINI 29:1 INLINE (B40/B45) 1-2632
GEARBOX, PLANETARY 293:1(RR USA) (B30) 1-2733
SHAFT DRIVE MOTOR ASSEMBLY, AC 1-2834
SHAFT DRIVE MOTOR ASSEMBLY, AC 1-2935
LIFT MOTOR ASSEMBLY 1-3137
HYDRAULIC FILTER ASSEMBLY 1-3339
HYDRAULIC VALVE ASSEMBLY 1-3642
OVERHEAD GUARD, ALARM, AND LIGHTING ASSEMBLY 1-4046
PARKING BRAKE ASSEMBLY 1-4652
BRAKE PEDAL ASSEMBLY 1-4955
STEERING COLUMN/DASH ASSEMBLY 1-5359
STEERING COLUMN PARTS 1-5561
LOAD WHEEL AND AXLE ASSEMBLY 1-5763
DRIVE WHEEL ASSEMBLY 1-5965
FRONT ROTATION ASSEMBLY 1-6470
TILT CYLINDER 1-6672
HYDRAULIC CONTROL VALVE 1-6773
STEERING CONTROL VALVE 1-6874
LIFT PUMP MOTOR ASSEMBLY 1-6975
DISC VALVE HYDRAULIC MOTOR ASSEMBLY 1-7177
TILT CYLINDER HYDRAULIC ASSEMBLY 1-7379
CONTROLLER ASSEMBLY 1-7581
AC CONTROLLER ASSEMBLY 1-7783
LIGHT WIRING INSTALLATION 1-8389
HEAVY CABLE INSTALLATION 1-8591
FORKS 1-8692
LOAD BACKREST OPTIONS 1-8793
MAST OPTIONS 1-8894
DECAL PLACEMENT 1-9197
ACCESSORIES 1-9298

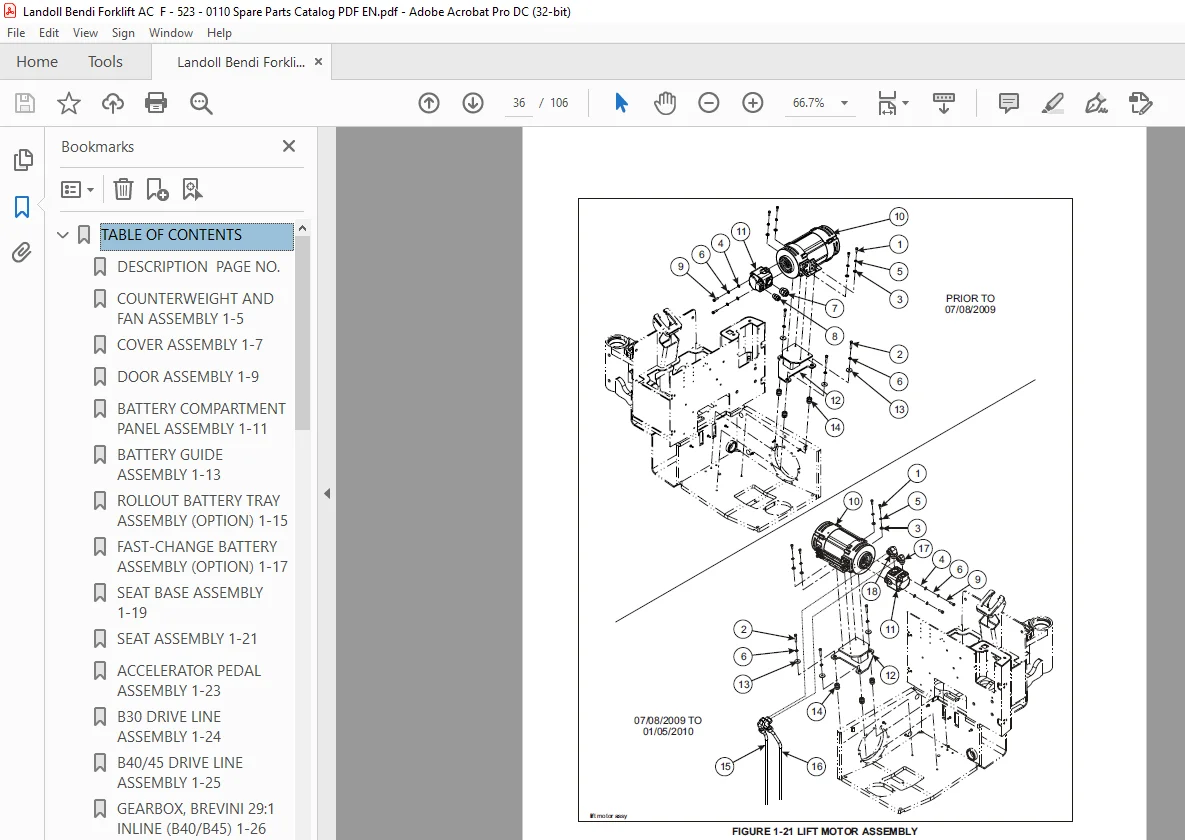

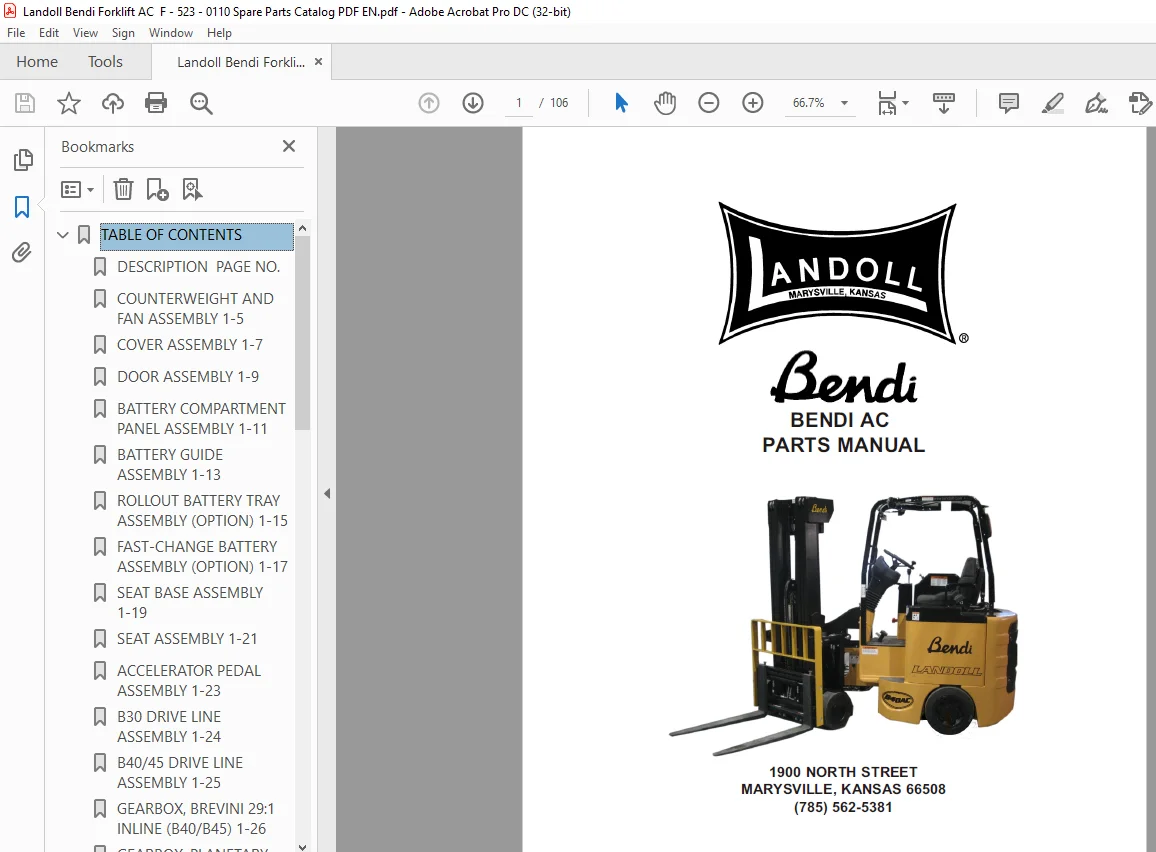

IMAGES PREVIEW OF THE MANUAL:
