Landoll Bendi Forklift B3/AC Electrical Schematic Manual 156331

Description

Detailed Electrical Schematic

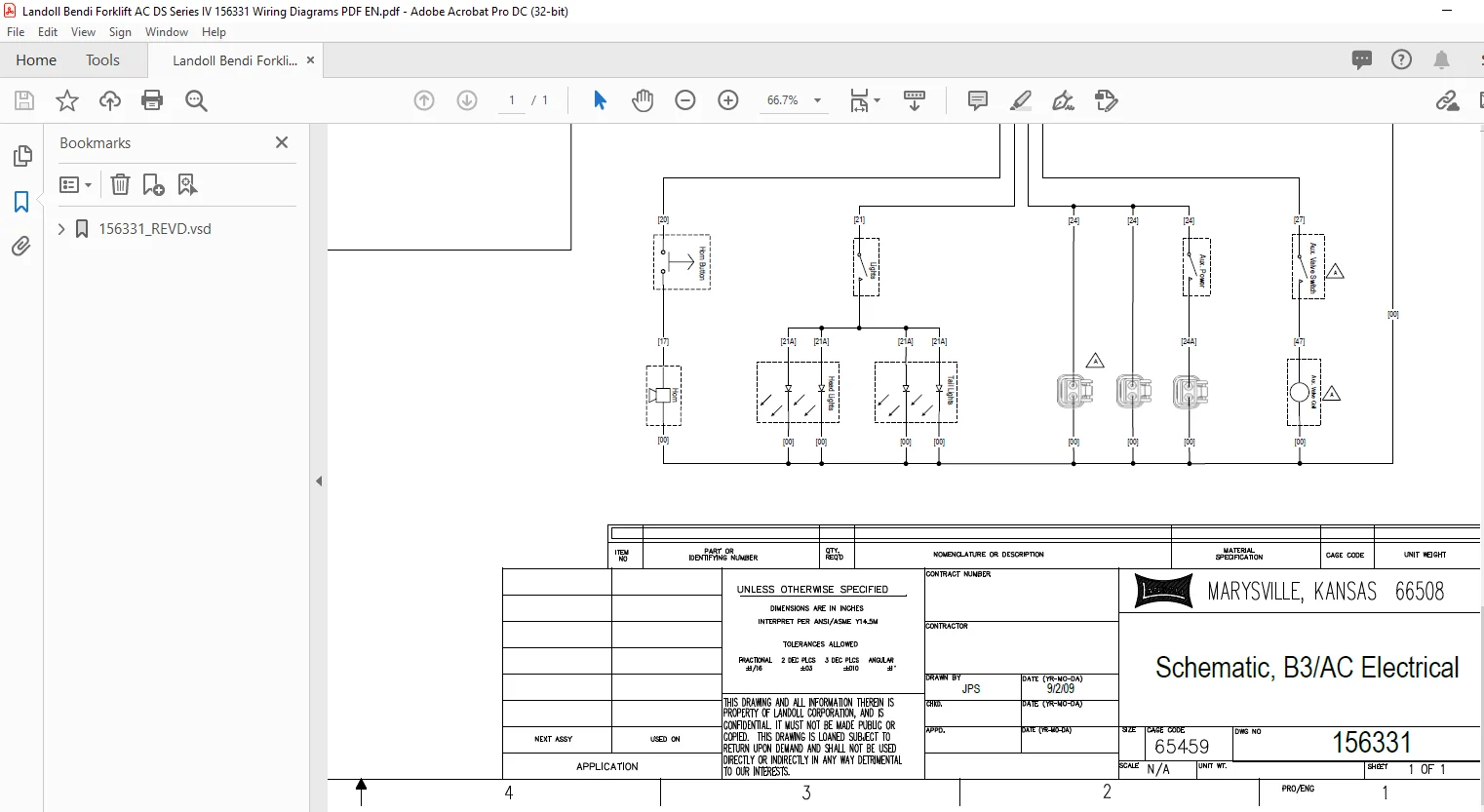

This document, manual number 156331, is the electrical schematic for the Landoll Bendi B3/AC forklift. It is a critical technical resource for electricians and service technicians who are responsible for the maintenance and repair of this model’s complex electrical systems. This schematic provides a clear and accurate map of all wiring and electrical components.

Technical Information and Use

This schematic contains the detailed diagrams required to trace circuits and understand the electrical logic of the B3/AC forklift. It shows the connections between the battery, controllers, motors, sensors, and operator controls. Using this document is essential for accurately diagnosing electrical faults, such as short circuits, open circuits, or malfunctioning components, which helps to speed up the repair process significantly.

An Essential Tool for Technicians

Attempting to troubleshoot modern forklift electrical systems without a proper schematic can be incredibly difficult and may lead to further damage. This manual provides the necessary information to perform repairs safely and effectively, ensuring the forklift is returned to service in optimal condition. It is an indispensable tool for any professional working on a Landoll Bendi B3/AC.

Get immediate access to this crucial schematic. By downloading this PDF, you can have the detailed wiring diagram available on your digital devices for quick reference in the workshop or out in the field.

Original Product Details

Landoll Bendi Forklift B3/AC Electrical Schematic Manual 156331 – PDF DOWNLOAD

FILE DETAILS:

Landoll Bendi Forklift B3/AC Electrical Schematic Manual 156331 – PDF DOWNLOAD

Language : English
Pages :1
Downloadable : Yes
File Type : PDF

S.M 5/24
