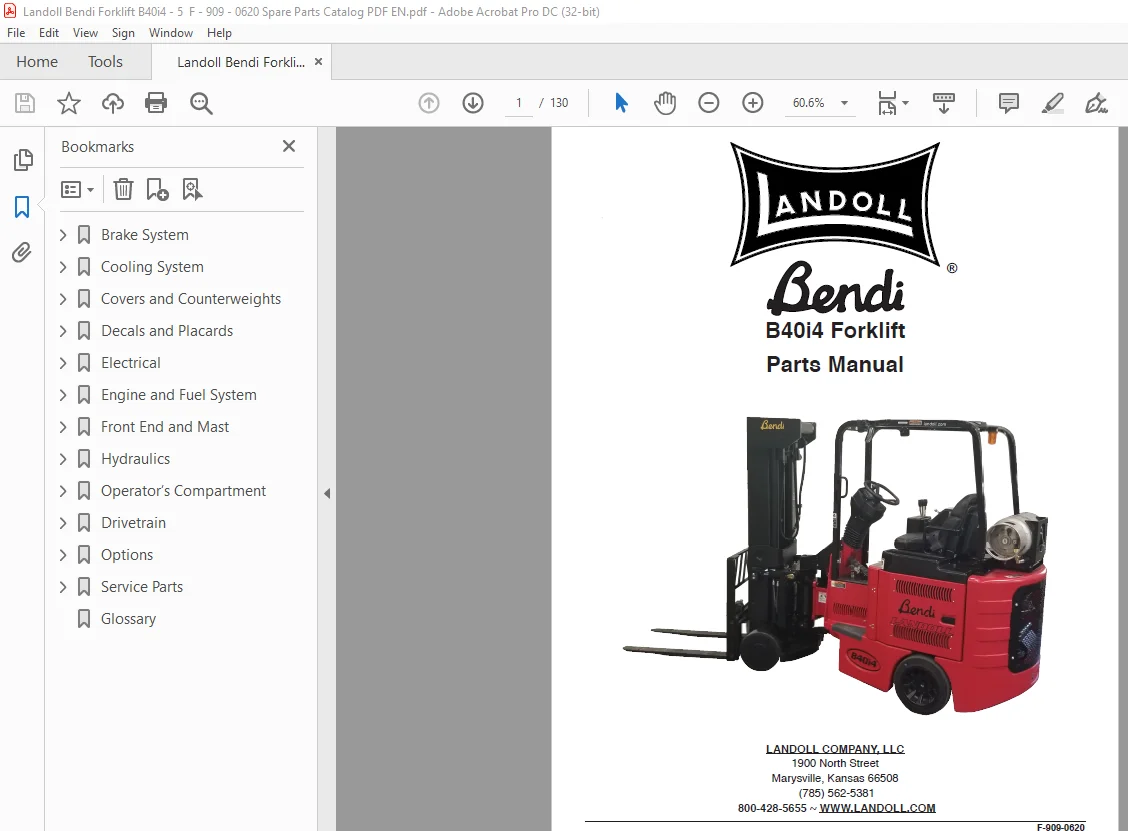

Landoll Bendi Forklift B40i4 Forklift Parts Manual – PDF DOWNLOAD

Description

Landoll Bendi Forklift B40i4 Forklift Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Landoll Bendi Forklift B40i4 Forklift Parts Manual – PDF DOWNLOAD

Language : English
Pages :130
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Landoll Bendi Forklift B40i4 Forklift Parts Manual – PDF DOWNLOAD

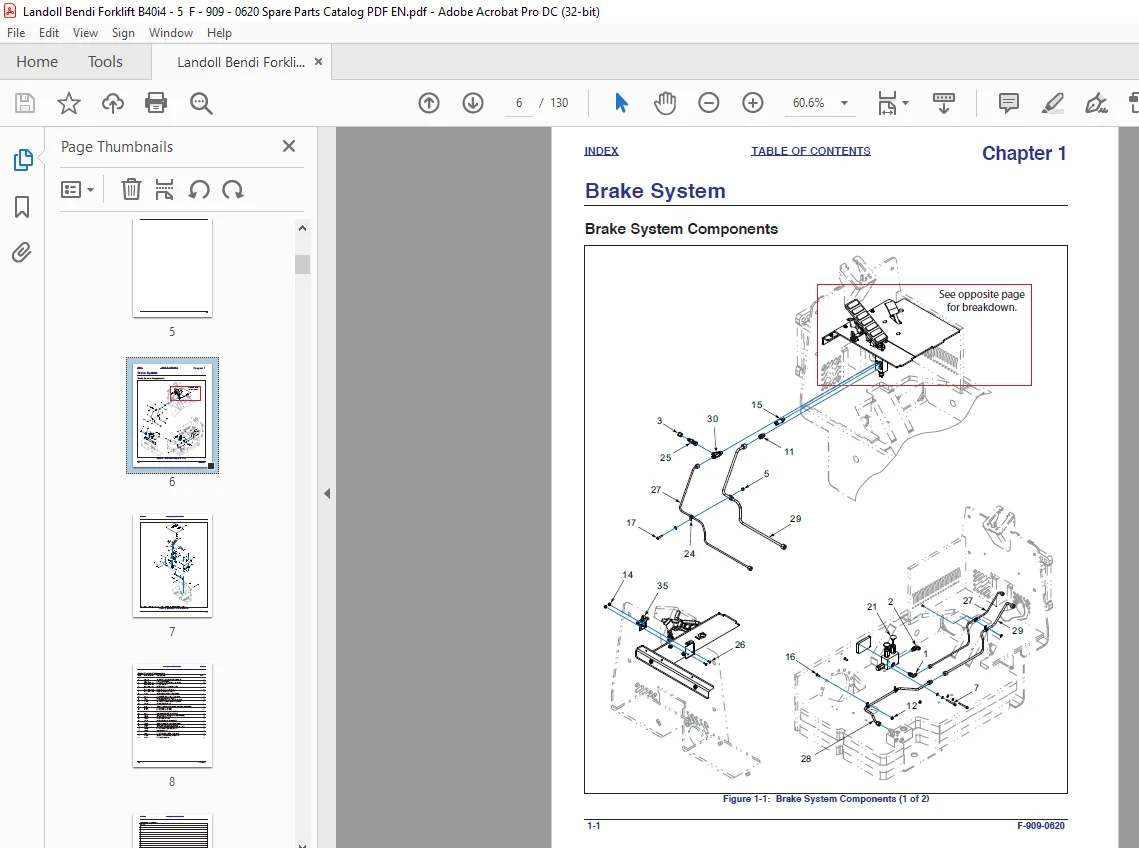

Brake System 6
Brake System Components 6
Cooling System 10
Radiator Assembly 10
Radiator Hoses 12
Radiator Mounting 14
Covers and Counterweights 16
Covers and Doors 16
Counterweights 20
Decals and Placards 22
Decal and Placard Placement 22
Decal Identification 26
Electrical 30
Battery and Tray 30
Controller Installation 32
Lighting 34
Steering Column Electrical Components 36
Steering Sensor and Horn 38
Valve Harness 40
Electrical Diagram 42
Engine and Fuel System 46
Air Intake 46
Engine Components 48
Engine Mounts 52
Exhaust 56
Fuel System 58
Front End and Mast 62
Fork Information 62
Mast Information 63
Front Plate Assembly 64
Mast Installation 66
Steering Axle Components 68
Hydraulics 70
Cooling System Hydraulics 70
Drive Motor Hydaulics 72
Filters 74
Hydaulic Tank 76
Pumps 78
Steering Hydraulics 80
Tilt Components 82
Valve 83
Hydraulic Diagram 84
Operator’s Compartment 90
Control Levers 90
Floor Plates and Pedals 92
Overhead Guard 94
Seat 96
Seat Base Installation 98
Steering Column100
Drivetrain104
Drive Motor Installation104
Drive Wheels105
Load Wheels106
Motor Brake Assembly107
Options108
Fire Extinguisher108
OHG Clear Guard109
Operator Fan110
Service Parts112
Service Parts112
Glossary114
