Laverda EU Harvesting AL QUATTRO TECHNO Combines Operator’s Manual SN ZN205529_03000126 – PDF DOWNLOAD

Description

Laverda EU Harvesting AL QUATTRO TECHNO Combines Operator’s Manual SN ZN205529_03000126 – PDF DOWNLOAD

FILE DETAILS:

Laverda EU Harvesting AL QUATTRO TECHNO Combines Operator’s Manual SN ZN205529_03000126 – PDF DOWNLOAD

Language : English
Pages : 397
Downloadable : Yes
File Type : PDF
Size: 97.3 MB

TABLE OF CONTENTS:

Laverda EU Harvesting AL QUATTRO TECHNO Combines Operator’s Manual SN ZN205529_03000126 – PDF DOWNLOAD

Cover 1
Table of Contents 3
1 General Information 4
2 Safety 22
3 Operation 74
4 Controls and Instruments 84
5 Field Operations 140
6 Lubrication and Maintenance 200
7 Adjustments 260
8 Systems 292
9 Troubleshooting 336
10 Off-Season Storage 352
11 Optional equipment 358
12 Technical Specifications 380

DESCRIPTION:

Laverda EU Harvesting AL QUATTRO TECHNO Combines Operator’s Manual SN ZN205529_03000126 – PDF DOWNLOAD

Information
1.1.1 Introduction
Your new self-propelled combine is manufactured for harvesting seed and cereal crops, for threshing,
separating, cleaning and conveying the grain into the tank and depositing the straw on the ground.
This Operator’s Manual contains all the necessary practical information on the operation, adjustment and
maintenance of your new machine and should be used as a practical reference guide.
Your combine was designed and built to ensure optimum performance, comfort and ease-of-operation in a
wide variety of crops and conditions.
The combine has been thoroughly inspected prior to delivery both at the factory and by your Dealer, to
ensure you receive it in perfect condition.
To keep the combine in perfect condition and to ensure trouble-free performance, the periodical
maintenance operations listed in this manual must be carried out at the recommended intervals.
Before operating and/or driving the combine, read this Operator’s Manual carefully, paying
particular attention to the section on safety rules.
Always keep this manual to hand for further reference.
The terms “left” and “right” are always used with reference to the machine travelling direction.
Should you require further information about the machine, please do not hesitate to contact your
authorized Dealer. Your Dealer provides specially trained personnel, genuine spare parts and the required
tools to solve any problems that may arise.

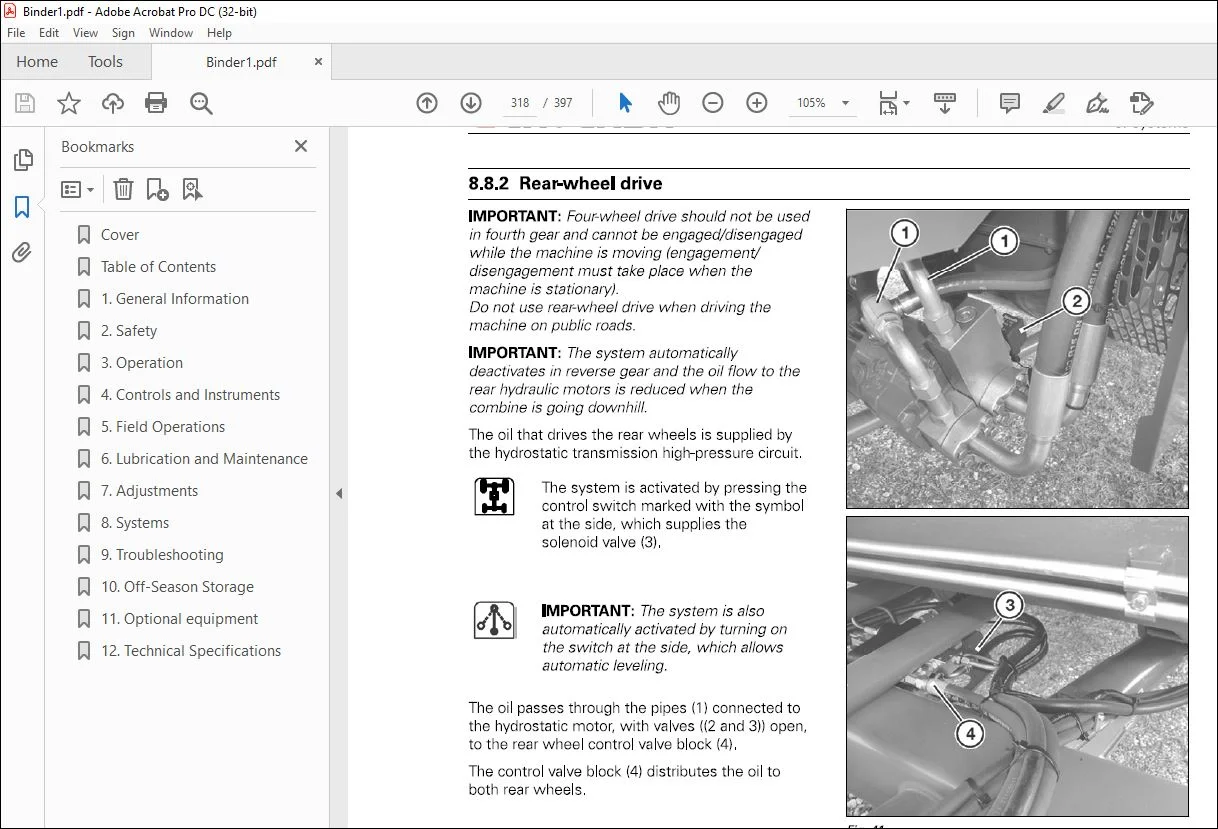

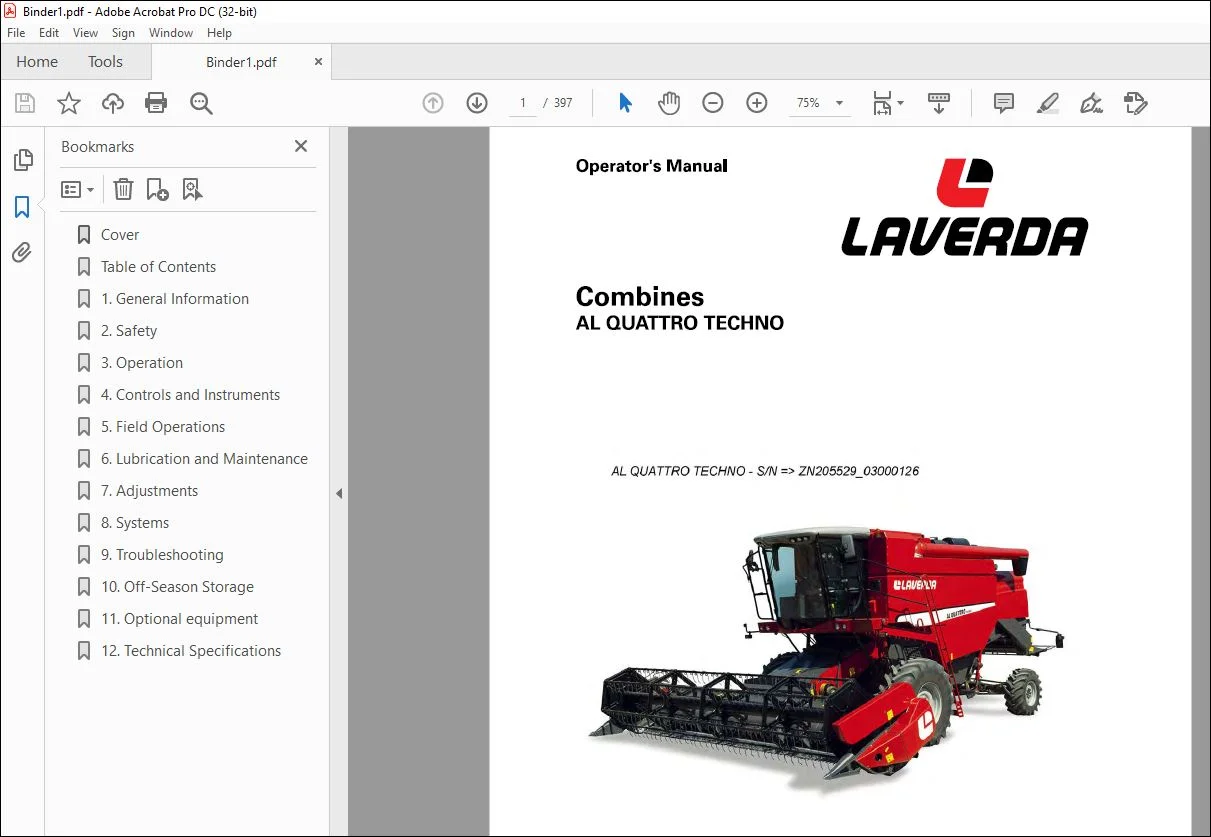

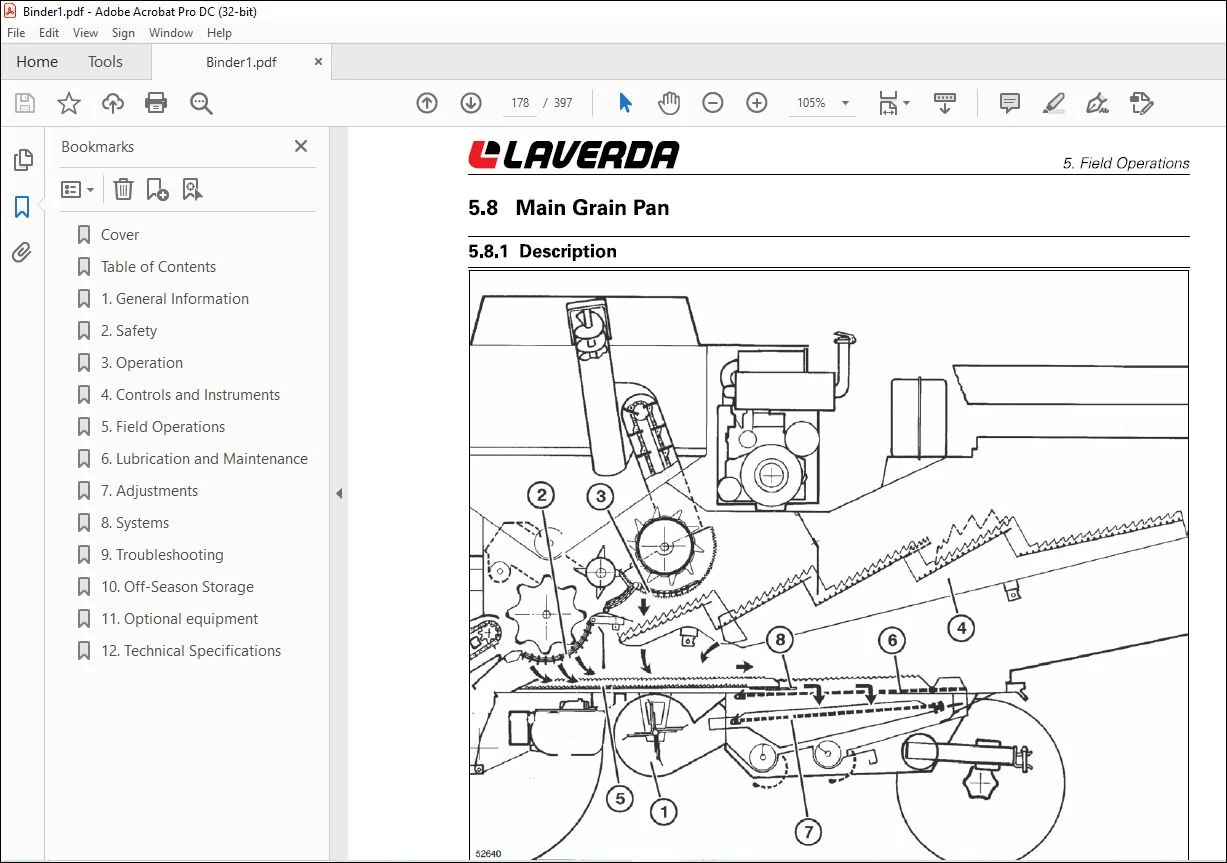

IMAGES PREVIEW OF THE MANUAL:
