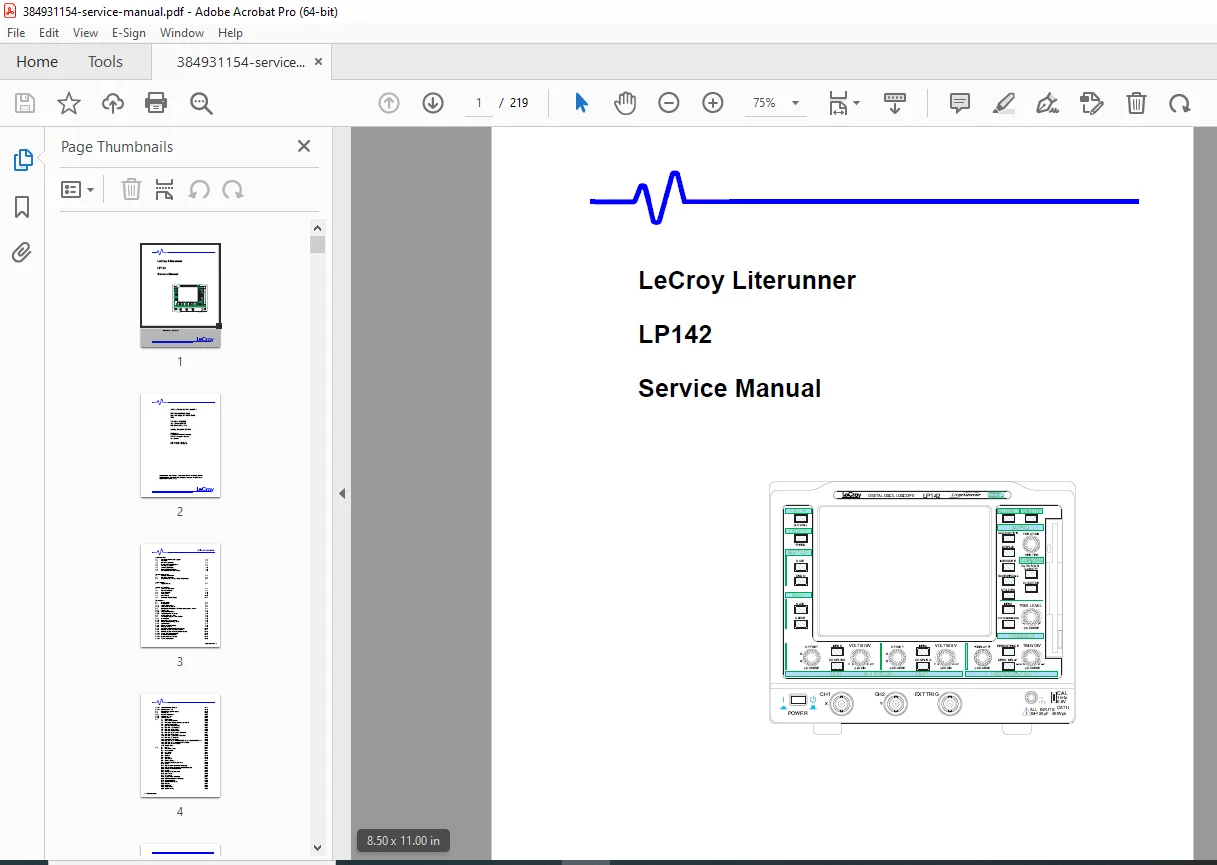

LeCroy LiteRunner LP142 Digital Oscilloscope Service Manual PDF (2000)

Description

LeCroy LiteRunner LP142 Digital Oscilloscope Service Manual PDF DOWNLOAD (2000)

Description

This factory-issued LeCroy LiteRunner LP142 Service Manual is the authoritative technical guide for servicing, diagnosing, calibrating, repairing, and maintaining the LP142 Digital Oscilloscope.
It includes complete theory of operation, board-level schematics, A/D converter architecture, power supply circuits, adjustment procedures, troubleshooting flowcharts, specifications, disassembly steps, and mechanical parts removal instructions.
Everything below is taken directly from the manual itself.

Table of Contents

Read This First

• Warranty and Product Support

• Product Assistance

• Maintenance Agreements

• Service & Repair

• Returning a Product

• Included Accessories

General Information

• Safe Installation and Operation

• Operating Environment

• Power Requirements & Fuses

• Grounding & Safety Symbols

• Cleaning & Maintenance

• Battery Information

Specifications

Includes full details for:

• Display

• Vertical section (Y-axis)

• Triggering system

• TV trigger

• Horizontal section (X-axis)

• Acquisition functions

• Display modes

• Measurements & Frequency counter

• RS-232C / GP-IB

• Calibration signal output

• Electrical, environmental & CE compliance

Theory of Operation

4.1 Processor Board

• CPU architecture

• Memory system (SRAM, Flash)

• LCD controller

• Printer interface

• Bus control mappings

• Reset, interrupts, voltage detection

• RTC & PCMCIA interface

4.2 Mother Board

• Panel key interface

• LCD peripherals

• Forced power-off circuit

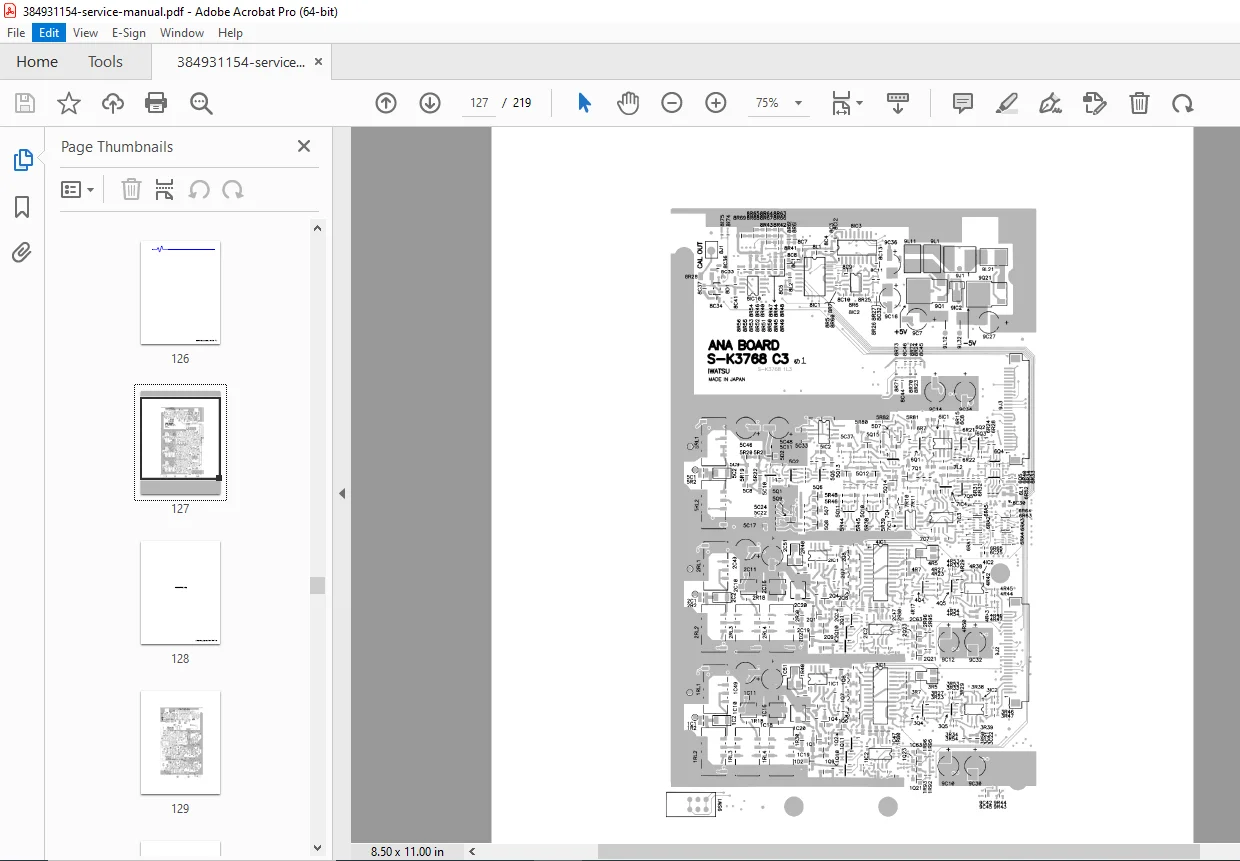

4.3 ANA Board

• Analog acquisition chain

• Impedance buffers, attenuators

• Trigger control

• Relay logic

• Gain tables

• Calibration circuits

4.4 DMC Board

• Data acquisition system

• HAD626 500 MSPS converter

• Clock generator 1GHz → 250MHz

• Phase measurement circuits

4.5 Power Supply

• Harmonic control supply

• Regulators & protection logic

• Flyback converter

🛠️ Maintenance

Troubleshooting Flowcharts

• Fuse failure

• Fan fault

• Power supply failure

• Display problems

• Panel key issues

• Printer, RS232, GP-IB, ATA card

• Self-calibration and performance issues

Board Replacement Procedures

• Keyboard

• Printer Board

• Power Board

• Motherboard

• ANA Board

• DMC Board

Adjustment Procedures

Adjustment A Procedures

• DC Gain

• Attenuator Compensation

• Input C

• Calibration Levels

• DMC Clock Delay

• Timebase Gain

• Trigger Skew

• Temperature Calibration

• Built-in Clock Calibration

Check B Procedures

• Display

• Backlight

• Voltage sensitivity

• Noise

• Frequency characteristics

• Trigger functions

• Memory mode

• Autoset

• Built-in printer & floppy

• RS-232C tests

🧩 Mechanical Parts & Disassembly

• Rear case removal

• ANA & DMC board removal

• Power unit removal

• Front assembly, LCD assembly

• Main frame & chassis

• Step-by-step reassembly
