Liebherr A 904 C Litronic / A 904 C HD Litronic 1071 1004 Machine for Industrial Operating Manual SN 57189 – PDF DOWNLOAD
$28.95
Liebherr A 904 C Litronic / A 904 C HD Litronic 1071 1004 Machine for Industrial Operating Manual SN 57189 – PDF DOWNLOAD
Product ID
Manufacturer: Liebherr-Hydraulikbagger GmbH
Type: 904 C Litronic / A 904 C HD Litronic
Type no.: 1071 / 1004
From Serial no.: 57189
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Liebherr A 904 C Litronic / A 904 C HD Litronic 1071 1004 Machine for Industrial Operating Manual SN 57189 – PDF DOWNLOAD
FILE DETAILS:
Liebherr A 904 C Litronic / A 904 C HD Litronic 1071 1004 Machine for Industrial Operating Manual SN 57189 – PDF DOWNLOAD
Language : English
Pages : 314
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Liebherr A 904 C Litronic / A 904 C HD Litronic 1071 1004 Machine for Industrial Operating Manual SN 57189 – PDF DOWNLOAD
Product ID
Manufacturer: Liebherr-Hydraulikbagger GmbH
Type: 904 C Litronic / A 904 C HD Litronic
Type no.: 1071 / 1004
From Serial no.: 57189

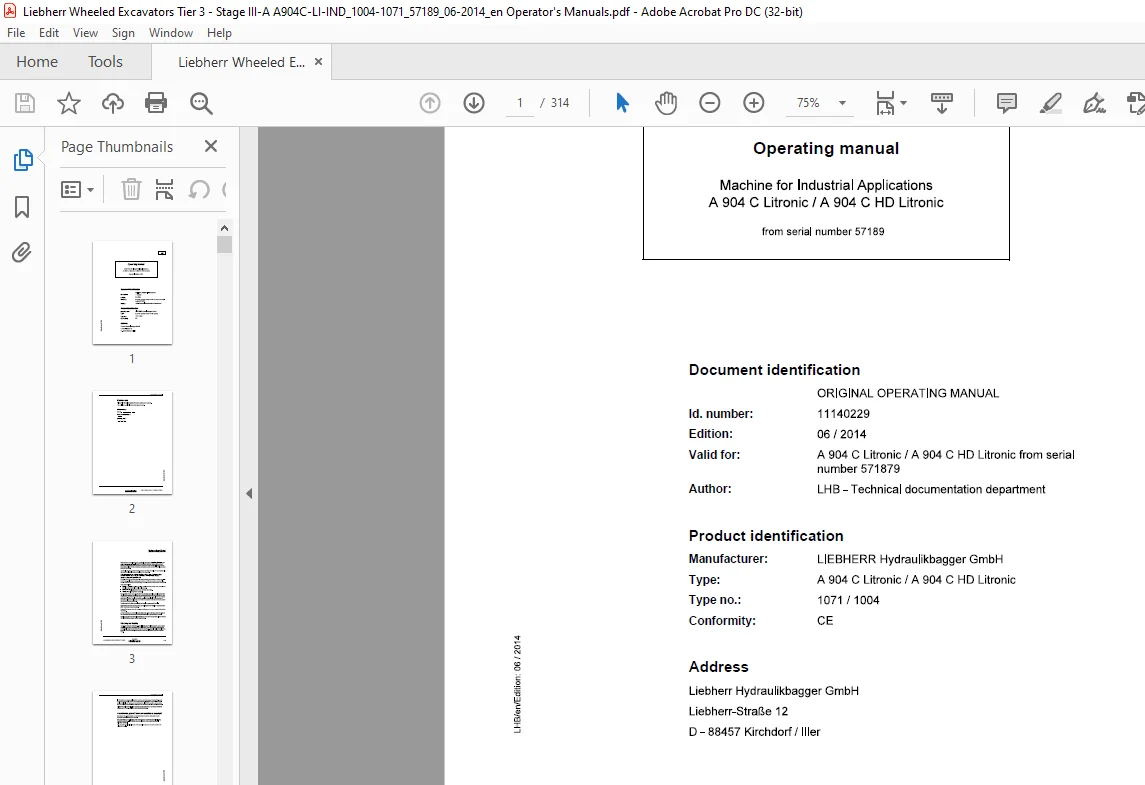

Introduction:
- This operating manual has been specifically devised for machine operators and maintenance personnel. It contains important warnings, information and tips regarding the maintenance and proper operation of the machine. It assists you in becoming familiar with the functions and features of the machine and helps prevent incorrect operation.
- By strictly adhering to the instructions in the operating manual, you can significantly enhance the reliability and service life of the machine.
- The operating manual is an integral part of the scope of delivery of the machine. Ensure that a copy is at all times available in the storage compartment in the operator’s cab.
- Carefully read the operating manual before starting the machine and then regularly read it again. All persons carrying out work on or with the machine must be fully familiar with the content of the operating manual and must adhere to the instructions.
Such work include:
– Machine operation including tooling, troubleshooting during work, general care and cleaning, disposal of fuels and lubricants.
– Maintenance including inspection, servicing and repair.
– Transport or loading of the machine.
– Maintenance including inspection, servicing and repair.
– Transport or loading of the machine.
- The machine owner must ensure that this operating manual is complemented with the relevant statutory regulations for accident prevention and the protection of the environment. Apart from the instructions in this operating manual and the statutory accident prevention, health and safety regulations applicable in the country of operation, all personnel working on or with the machine must adhere to best practice for safe and proper operation.
- Certain sections in this manual might not apply to your specific model.
- Some of the figures in this operating manual might show details or equipment that differ from those in your machine.
- Some of the figures show the equipment with guards or covers removed (for better depiction).
- As our products are constantly being improved, certain changes might be made to the equipment which are not referred to specifically in this operating manual.
- Should you require additional information or if you have any queries, please contact the LIEBHERR customer service department.
Warranty and liability:
- Due to the range of products (e.g. fuels, lubricants, tool attachments, spare parts) available from other manufacturers, LIEBHERR is not in a position to assess the compatibility of these products with its own machines. This also applies in relation to possible effects that third-party products have on LIEBHERR products and vice versa.
- It is therefore the responsibility of the machine owner to assess whether third-party products can be safely used in conjunction with the LIEBHERR machine. LIEBHERR shall not be liable for damage to or downtimes of LIEBHERR machine caused by the use a third-party products. Such damage is not covered by the LIEBHERR warranty.
- LIEBHERR shall not be liable for damage caused by improper operation, insufficient maintenance or non-compliance with safety instructions.
Amendments, general terms and conditions, copyright:
- We reserve the right to modify our products and amend the instructions in this operating manual without prior notice.
- The reproduction or publication of the content of this operating manual (including figures) is prohibited. LIEBHERR reserves all rights in this operating manual, including copyright.
- The warranty and liability clauses of the general business terms and conditions of LIEBHERR apply.

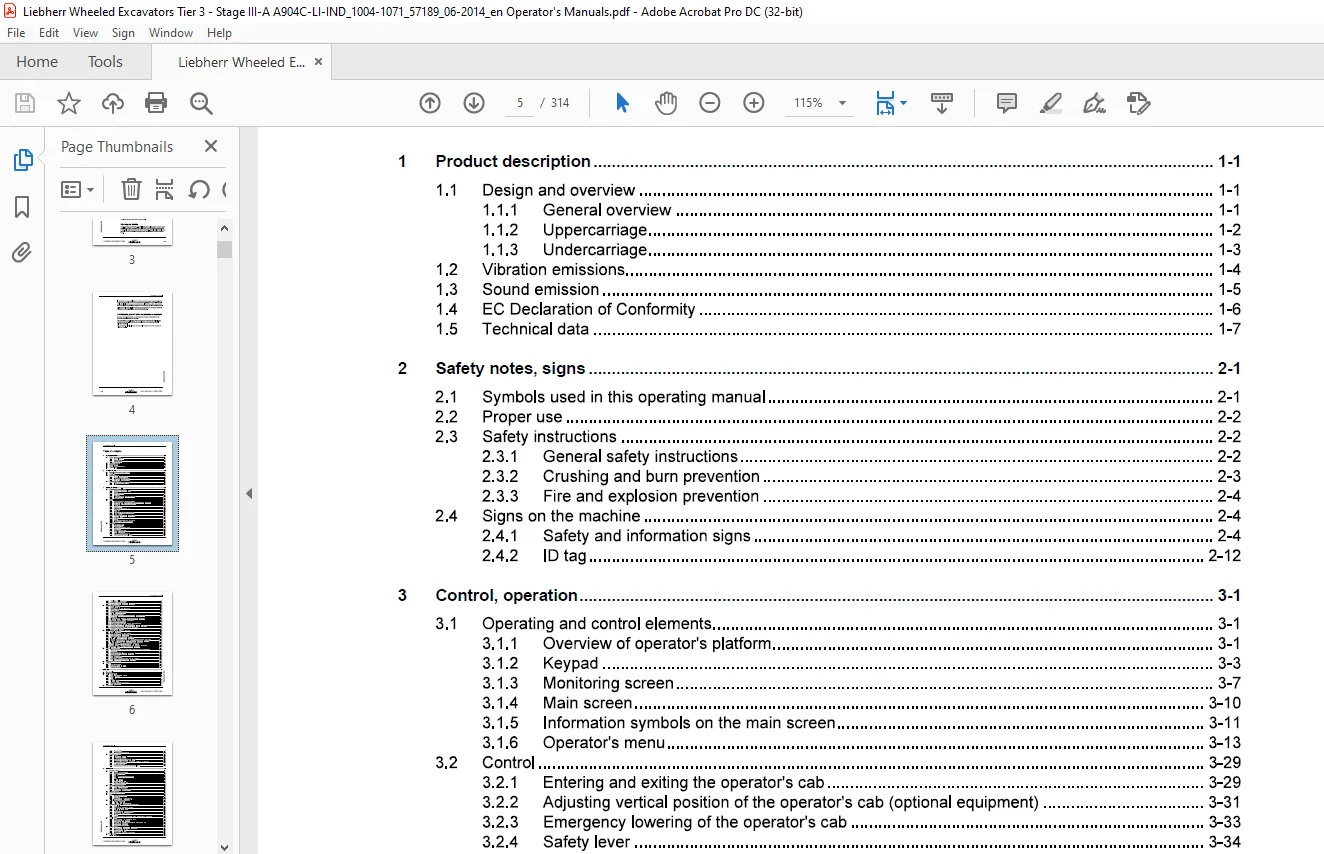

TABLE OF CONTENTS:
Liebherr A 904 C Litronic / A 904 C HD Litronic 1071 1004 Machine for Industrial Operating Manual SN 57189 – PDF DOWNLOAD
1 Product description 1-1
Operating manual
1 1 Design and overview 1-1
1 1 1 General overview 1-1
1 1 2 Uppercarriage 1-2
1 1 3 Undercarriage 1-3
1 2 Vibration emissions 1-4
1 3 Sound emission 1-5
1 4 EC Declaration of Conformity 1-6
1 5 Technical data 1-7
Operating manual
1 1 Design and overview 1-1
1 1 1 General overview 1-1
1 1 2 Uppercarriage 1-2
1 1 3 Undercarriage 1-3
1 2 Vibration emissions 1-4
1 3 Sound emission 1-5
1 4 EC Declaration of Conformity 1-6
1 5 Technical data 1-7
2 Safety notes, signs 2-1
2 1 Symbols used in this operating manual 2-1
2 2 Proper use 2-2
2 3 Safety instructions 2-2
2 3 1 General safety instructions 2-2
2 3 2 Crushing and burn prevention 2-3
2 3 3 Fire and explosion prevention 2-4
2 4 Signs on the machine 2-4
2 4 1 Safety and information signs 2-4
2 4 2 IDtag 2-12
2 1 Symbols used in this operating manual 2-1
2 2 Proper use 2-2
2 3 Safety instructions 2-2
2 3 1 General safety instructions 2-2
2 3 2 Crushing and burn prevention 2-3
2 3 3 Fire and explosion prevention 2-4
2 4 Signs on the machine 2-4
2 4 1 Safety and information signs 2-4
2 4 2 IDtag 2-12
3 Control, operation 3-1
3 1 Operating and control elements 3-1
3 1 1 Overview of operator’s platform 3-1
3 1 2 Keypad 3-3
3 1 3 Monitoring screen 3-7
3 1 4 Main screen 3-10
3 1 5 Information symbols on the main screen 3-11
3 1 6 Operator’s menu 3-13
3 2 Control 3-29
3 2 1 Entering and exiting the operator’s cab 3-29
3 2 2 Adjusting vertical position of the operator’s cab (optional equipment) 3-31
3 2 3 Emergency lowering of the operator’s cab 3-33
3 2 4 Safety lever 3-34
3 2 5 Operator seat 3-35
3 2 6 Adjusting the steering column 3-38
3 2 7 Windscreen 3-39
3 2 8 Sun blind 3-40
3 2 9 Emergency exit through rear window 3-41
3 2 10 Inside lighting 3-41
3 2 11 Fire extinguisher (optional equipment)* 3-42
3 2 12 Windshield wiper 3-42
3 2 13 Lighting 3-44
3 2 14 Radio mute mode (optional equipment) 3-45
0 3 2 15 Heating and air-conditioning system 3-45
3 3 Operation 3-51
0 3 3 1 Safety instructions 3-51
3 3 2 Starting machine 3-52
3 3 3 Switching off the diesel engine 3-58
3 3 4 Starting aids 3-58
3 3 5 Jump start procedure 3-61
3 3 6 Travelling operation 3-62
3 3 7 Travel warning device (option) 3-64
3 3 8 Drive deactivation (optional extra) 3-64
3 3 9 Oscillating axle locking device 3-65
3 3 10 Operation of support system 3-66
3 3 11 Operation of dozer blade (optional equipment) 3-68
Working with the machine 3-68
3 4 1 Safety Instructions 3-68
3 4 2 Sensor controlled low idle automatic 3-72
3 4 3 Working position 3-73
3 4 4 Operating working attachment 3-74
3 4 5 Swivelling the uppercarriage 3-75
3 4 6 Halting the uppercarriage 3-76
3 4 7 Lowering the working attachment when diesel engine is shut off 3-77
3 4 8 Grab control 3-77
3 4 9 Electronic stick cylinder shut-down function (optional equipment) 3-78
3 4 10 Mechanical stick cylinder shut-down function 3-80
3 4 11 Adjustment of attachment tool 3-83
3 4 12 Operating the attachment tool (by pedals, push buttons) 3-83
3 4 13 Changeover of control (optional equipment) 3-86
3 4 14 Operating attachment tool (mini joystick control, optional equipment) 3-86
3 4 15 Changeover of joystick control (optional equipment) 3-89
3 4 16 Magnetic system (option) 3-89
Installation and removal of attachment parts 3-90
3 5 1 Safety Instructions 3-90
3 5 2 Installation and removal of digging tool 3-92
3 5 3 Attachment of grapple to bucket stick 3-94
3 5 4 Attachment of grapple to industrial stick 3-97
3 5 5 Multi-coupling system (optional equipment) 3-99
3 5 6 Industrial stick with mechanical quick-change adapter (optional equipment) 3-102
3 5 7 Industrial stick with hydraulic quick-change adapter (optional equipment) 3-106
3 5 8 LIKUFIX MH 40 quick-coupling system (optional equipment) 3-112
3 5 9 Hydraulic quick-change adapter (optional equipment) 3-117
3 5 10 Hydraulic quick-change adapter with LI KUFIX ( optional equipment) 3-123
3 5 11 Mechanical quick-change adapter (optional equipment) 3-124
General working methods 3-128
3 6 1 Tips for the proper operation of the machine preventing damage and wear 3-128
3 6 2 Preparation 3-130
3 6 3 Working with grapples 3-131
3 6 4 Excavating and moving material with grapples 3-131
3 6 5 Loading operation 3-132
3 6 6 Load lifting operation 3-133
3 6 7 Use of quick-change adapter for load lifting operation 3-134
3 6 8 Overload warning system (optional equipment) 3-135
Parking and exiting machine 3-137
Transport 3-138
3 8 1 Safety instructions 3-138
3 8 2 Transportation on low-loader 3-138
3 8 3 Loading with crane 3-140
Error code list 4-1 O
Faults and remedies 4-8 ~
4 2 1 Diesel engine and fuel system 4-8 8i::::
4 2 2 Hydraulic system 4-10 ,g
4 2 3 Travelling 4-11 ;
4 2 4 Brakes 4-12 ~
4 2 5 Electrical system 4-12 :i:::
I 4 2 6 Heating and air conditioning system 4-13
4 2 7 Working attachment 4-13
Fuses and relays 4-13
copyright by
A 904 C Litronic / A 904 C HD Litronic / 11140229
MJFCIFSS
5 Maintenance 5-1
Operating manual
4 3 1 Fuse box E50 4-14
4 3 2 ESP02 printed circuit board 4-15
4 4 Emergency operation 4-16
4 4 1 Purpose 4-16
4 4 2 Identifying solenoid valve 4-17
4 4 3 Emergency mode control 4-17
4 4 4 Emergency operation of hydraulic pump 4-20
4 4 5 Emergency operation of electric stick cylinder shut-down function 4-21
4 4 6 Emergency gear shifting 4-21
4 4 7 Towing the machine 4-22
4 4 8 Disengaging transmission (emergency release) 4-23
5 1 Safety instructions 5-1
5 1 1 General safety instructions 5-1
5 1 2 Checking for cracks 5-1
5 1 3 Welding 5-2
5 1 4 Fuels, lubricants and process chemicals 5-2
5 1 5 Repair 5-2
5 1 6 Electrical system 5-3
5 1 7 Pressure accumulator 5-3
5 1 8 Hydraulic hoses and lines 5-4
5 1 9 Cab protection (FOPS) 5-5
5 2 Maintenance access doors 5-5
5 2 1 Overview of access doors 5-5
5 2 2 Door locking mechanism 5-6
5 2 3 Engine hood locking mechanism 5-7
5 3 Cleaning machine 5-7
5 4 Care for rubber components 5-8
5 5 Tyres 5-8
5 5 1 Checking tyre pressure 5-8
5 5 2 Foam tyres 5-10
5 5 3 Checking wheel lugs for proper fit 5-10
5 6 Fuels, lubricants and process chemicals 5-10
5 6 1 General information 5-10
5 6 2 Filling volumes, lubricating chart 5-11
5 7 Specifications for fuels, lubricants and process chemicals 5-15
5 7 1 Diesel fuels 5-15
5 7 2 Lubricating oil for the diesel engine 5-16
5 7 3 Coolants for diesel engine 5-18
5 7 4 Hydraulic oil 5-21
5 7 5 Lubricants for axles and gearboxes 5-27
5 7 6 Lubricating oil for transmission 5-28
5 7 7 Grease 5-29
5 7 8 Lubricants and care products for electrical and mechanical components 5-29
5 8 Diesel engine 5-30
5 8 1 Checking the oil level in the diesel engine 5-30
5 8 2 Changing the diesel engine oil 5-30
5 8 3 Ribbed V-belt for A/C compressor and alternator installation 5-32
5 8 4 Crankcase bleeding point 5-32
5 8 5 Grease the starter tooth ring 5-33
Cooling system 5-34
5 9 1 Checking and cleaning the cooling system 5-34
5 9 2 Checking the coolant level 5-34
5 9 3 Changing the coolant 5-35
5 9 4 Checking coolant, adjusting mixing ratio 5-37
5 10 Fuel system 5-41
5 10 1 Refuelling 5-41
copyright by
A 904 C Litronic / A 904 C HD Litronic / 11140229
MJFCIFSS
Operating manual
5 10 2 Dewatering fuel tank 5-42
5 10 3 Emptying and cleaning fuel tank 5-43
5 10 4 Maintenance of fuel filter 5-44
5 10 5 Bleeding fuel system 5-46
5 11 Dry air filter 5-48
5 11 1 Changing the main element 5-49
5 11 2 Changing the safety element 5-50
5 11 3 Checking the filtered air line 5-50
5 12 Hydraulic system 5-51
5 12 1 Preparations 5-51
5 12 2 Checking the oil level in the hydraulic tank 5-51
5 12 3 Depressurizing the hydraulic system 5-52
5 12 4 Replacing the breather filter 5-53
5 12 5 Emptying and refilling the hydraulic tank 5-53
5 12 6 Return filter 5-54
5 12 7 Control oil filter 5-55
5 12 8 Control circuit 5-56
5 12 9 Bleeding the hydraulic pump 5-56
5 12 10 Bypass oil filter (optional equipment) 5-57
5 12 11 Maintenance of hydraulic cylinders 5-58
5 12 12 Replacing hydraulic hoses 5-59
5 13 Changing the oil on components 5-59
5 13 1 General notes 5-59
5 13 2 Swin gear – oil change 5-60
5 13 3 Transmission – oil change 5-61
5 13 4 Steering and rigid axle – oil change 5-61
5 13 5 Wheel head – oil change 5-62
5 13 6 Pump distributor gear – oil change 5-63
5 14 Checking brake pads for wear 5-63
5 15 Electrical system 5-64
5 15 1 Notes regarding the electrical system 5-64
5 15 2 Battery main switch 5-64
5 15 3 Battery care 5-65
5 15 4 Slip ring body (optional equipment) 5-66
5 16 Heating and air-conditioning system 5-67
5 16 1 Recirculated and ambient air filter 5-67
5 16 2 Heating system 5-68
5 16 3 air-conditioning system 5-68
5 17 Automatic lubrication of the machine 5-69
5 17 1 Semi-automatic central greasing system 5-69
5 17 2 Fully automatic central greasing system (optional extra) 5-71
5 18 Manual lubrication of the machine 5-73
5 18 1 Steering axle 5-73
5 18 2 Central lubrication system of steering axle (optional equipment) 5-74
5 18 3 Digging buckets/ bucket tilting device 5-74
5 18 4 Attachments (optional equipment) 5-75
5 18 5 Industrial stick with mechanical quick-change adapter 5-76
5 18 6 Industrial stick with hydraulic quick-change adapter 5-76
5 18 7 LIKUFIX MH 40 quick-coupling system 5-77 ~
5 18 8 Hydraulic quick change adapter 5-77 ~
5 18 9 Mechanical quick-change adapter 5-78 8
5 19 Couplings of the quick-change adapter systems (optional equipment) 5-79 g
5 19 1 Hydraulic coupling 5-79 ~
5 19 2 LIKUFIX electric coupling 5-80 i;:
5 20 Parking and swing gear brake 5-81 ~
5 21 General maintenance tasks 5-81 :i
5 21 1 Replacing wear parts 5-81
5 21 2 Replacing teeth on digging tool 5-81
5 21 3 Welded parts on the machine 5-83
5 22 Maintenance and inspection schedule 5-84
3 1 Operating and control elements 3-1
3 1 1 Overview of operator’s platform 3-1
3 1 2 Keypad 3-3
3 1 3 Monitoring screen 3-7
3 1 4 Main screen 3-10
3 1 5 Information symbols on the main screen 3-11
3 1 6 Operator’s menu 3-13
3 2 Control 3-29
3 2 1 Entering and exiting the operator’s cab 3-29
3 2 2 Adjusting vertical position of the operator’s cab (optional equipment) 3-31
3 2 3 Emergency lowering of the operator’s cab 3-33
3 2 4 Safety lever 3-34
3 2 5 Operator seat 3-35
3 2 6 Adjusting the steering column 3-38
3 2 7 Windscreen 3-39
3 2 8 Sun blind 3-40
3 2 9 Emergency exit through rear window 3-41
3 2 10 Inside lighting 3-41
3 2 11 Fire extinguisher (optional equipment)* 3-42
3 2 12 Windshield wiper 3-42
3 2 13 Lighting 3-44
3 2 14 Radio mute mode (optional equipment) 3-45
0 3 2 15 Heating and air-conditioning system 3-45
3 3 Operation 3-51
0 3 3 1 Safety instructions 3-51
3 3 2 Starting machine 3-52
3 3 3 Switching off the diesel engine 3-58
3 3 4 Starting aids 3-58
3 3 5 Jump start procedure 3-61
3 3 6 Travelling operation 3-62
3 3 7 Travel warning device (option) 3-64
3 3 8 Drive deactivation (optional extra) 3-64
3 3 9 Oscillating axle locking device 3-65
3 3 10 Operation of support system 3-66
3 3 11 Operation of dozer blade (optional equipment) 3-68
Working with the machine 3-68
3 4 1 Safety Instructions 3-68
3 4 2 Sensor controlled low idle automatic 3-72
3 4 3 Working position 3-73
3 4 4 Operating working attachment 3-74
3 4 5 Swivelling the uppercarriage 3-75
3 4 6 Halting the uppercarriage 3-76
3 4 7 Lowering the working attachment when diesel engine is shut off 3-77
3 4 8 Grab control 3-77
3 4 9 Electronic stick cylinder shut-down function (optional equipment) 3-78
3 4 10 Mechanical stick cylinder shut-down function 3-80
3 4 11 Adjustment of attachment tool 3-83
3 4 12 Operating the attachment tool (by pedals, push buttons) 3-83
3 4 13 Changeover of control (optional equipment) 3-86
3 4 14 Operating attachment tool (mini joystick control, optional equipment) 3-86
3 4 15 Changeover of joystick control (optional equipment) 3-89
3 4 16 Magnetic system (option) 3-89
Installation and removal of attachment parts 3-90
3 5 1 Safety Instructions 3-90
3 5 2 Installation and removal of digging tool 3-92
3 5 3 Attachment of grapple to bucket stick 3-94
3 5 4 Attachment of grapple to industrial stick 3-97
3 5 5 Multi-coupling system (optional equipment) 3-99
3 5 6 Industrial stick with mechanical quick-change adapter (optional equipment) 3-102
3 5 7 Industrial stick with hydraulic quick-change adapter (optional equipment) 3-106
3 5 8 LIKUFIX MH 40 quick-coupling system (optional equipment) 3-112
3 5 9 Hydraulic quick-change adapter (optional equipment) 3-117
3 5 10 Hydraulic quick-change adapter with LI KUFIX ( optional equipment) 3-123
3 5 11 Mechanical quick-change adapter (optional equipment) 3-124
General working methods 3-128
3 6 1 Tips for the proper operation of the machine preventing damage and wear 3-128
3 6 2 Preparation 3-130
3 6 3 Working with grapples 3-131
3 6 4 Excavating and moving material with grapples 3-131
3 6 5 Loading operation 3-132
3 6 6 Load lifting operation 3-133
3 6 7 Use of quick-change adapter for load lifting operation 3-134
3 6 8 Overload warning system (optional equipment) 3-135
Parking and exiting machine 3-137
Transport 3-138
3 8 1 Safety instructions 3-138
3 8 2 Transportation on low-loader 3-138
3 8 3 Loading with crane 3-140
Error code list 4-1 O
Faults and remedies 4-8 ~
4 2 1 Diesel engine and fuel system 4-8 8i::::
4 2 2 Hydraulic system 4-10 ,g
4 2 3 Travelling 4-11 ;
4 2 4 Brakes 4-12 ~
4 2 5 Electrical system 4-12 :i:::
I 4 2 6 Heating and air conditioning system 4-13
4 2 7 Working attachment 4-13
Fuses and relays 4-13
copyright by
A 904 C Litronic / A 904 C HD Litronic / 11140229
MJFCIFSS
5 Maintenance 5-1
Operating manual
4 3 1 Fuse box E50 4-14
4 3 2 ESP02 printed circuit board 4-15
4 4 Emergency operation 4-16
4 4 1 Purpose 4-16
4 4 2 Identifying solenoid valve 4-17
4 4 3 Emergency mode control 4-17
4 4 4 Emergency operation of hydraulic pump 4-20
4 4 5 Emergency operation of electric stick cylinder shut-down function 4-21
4 4 6 Emergency gear shifting 4-21
4 4 7 Towing the machine 4-22
4 4 8 Disengaging transmission (emergency release) 4-23
5 1 Safety instructions 5-1
5 1 1 General safety instructions 5-1
5 1 2 Checking for cracks 5-1
5 1 3 Welding 5-2
5 1 4 Fuels, lubricants and process chemicals 5-2
5 1 5 Repair 5-2
5 1 6 Electrical system 5-3
5 1 7 Pressure accumulator 5-3
5 1 8 Hydraulic hoses and lines 5-4
5 1 9 Cab protection (FOPS) 5-5
5 2 Maintenance access doors 5-5
5 2 1 Overview of access doors 5-5
5 2 2 Door locking mechanism 5-6
5 2 3 Engine hood locking mechanism 5-7
5 3 Cleaning machine 5-7
5 4 Care for rubber components 5-8
5 5 Tyres 5-8
5 5 1 Checking tyre pressure 5-8
5 5 2 Foam tyres 5-10
5 5 3 Checking wheel lugs for proper fit 5-10
5 6 Fuels, lubricants and process chemicals 5-10
5 6 1 General information 5-10
5 6 2 Filling volumes, lubricating chart 5-11
5 7 Specifications for fuels, lubricants and process chemicals 5-15
5 7 1 Diesel fuels 5-15
5 7 2 Lubricating oil for the diesel engine 5-16
5 7 3 Coolants for diesel engine 5-18
5 7 4 Hydraulic oil 5-21
5 7 5 Lubricants for axles and gearboxes 5-27
5 7 6 Lubricating oil for transmission 5-28
5 7 7 Grease 5-29
5 7 8 Lubricants and care products for electrical and mechanical components 5-29
5 8 Diesel engine 5-30
5 8 1 Checking the oil level in the diesel engine 5-30
5 8 2 Changing the diesel engine oil 5-30
5 8 3 Ribbed V-belt for A/C compressor and alternator installation 5-32
5 8 4 Crankcase bleeding point 5-32
5 8 5 Grease the starter tooth ring 5-33
Cooling system 5-34
5 9 1 Checking and cleaning the cooling system 5-34
5 9 2 Checking the coolant level 5-34
5 9 3 Changing the coolant 5-35
5 9 4 Checking coolant, adjusting mixing ratio 5-37
5 10 Fuel system 5-41
5 10 1 Refuelling 5-41
copyright by
A 904 C Litronic / A 904 C HD Litronic / 11140229
MJFCIFSS
Operating manual
5 10 2 Dewatering fuel tank 5-42
5 10 3 Emptying and cleaning fuel tank 5-43
5 10 4 Maintenance of fuel filter 5-44
5 10 5 Bleeding fuel system 5-46
5 11 Dry air filter 5-48
5 11 1 Changing the main element 5-49
5 11 2 Changing the safety element 5-50
5 11 3 Checking the filtered air line 5-50
5 12 Hydraulic system 5-51
5 12 1 Preparations 5-51
5 12 2 Checking the oil level in the hydraulic tank 5-51
5 12 3 Depressurizing the hydraulic system 5-52
5 12 4 Replacing the breather filter 5-53
5 12 5 Emptying and refilling the hydraulic tank 5-53
5 12 6 Return filter 5-54
5 12 7 Control oil filter 5-55
5 12 8 Control circuit 5-56
5 12 9 Bleeding the hydraulic pump 5-56
5 12 10 Bypass oil filter (optional equipment) 5-57
5 12 11 Maintenance of hydraulic cylinders 5-58
5 12 12 Replacing hydraulic hoses 5-59
5 13 Changing the oil on components 5-59
5 13 1 General notes 5-59
5 13 2 Swin gear – oil change 5-60
5 13 3 Transmission – oil change 5-61
5 13 4 Steering and rigid axle – oil change 5-61
5 13 5 Wheel head – oil change 5-62
5 13 6 Pump distributor gear – oil change 5-63
5 14 Checking brake pads for wear 5-63
5 15 Electrical system 5-64
5 15 1 Notes regarding the electrical system 5-64
5 15 2 Battery main switch 5-64
5 15 3 Battery care 5-65
5 15 4 Slip ring body (optional equipment) 5-66
5 16 Heating and air-conditioning system 5-67
5 16 1 Recirculated and ambient air filter 5-67
5 16 2 Heating system 5-68
5 16 3 air-conditioning system 5-68
5 17 Automatic lubrication of the machine 5-69
5 17 1 Semi-automatic central greasing system 5-69
5 17 2 Fully automatic central greasing system (optional extra) 5-71
5 18 Manual lubrication of the machine 5-73
5 18 1 Steering axle 5-73
5 18 2 Central lubrication system of steering axle (optional equipment) 5-74
5 18 3 Digging buckets/ bucket tilting device 5-74
5 18 4 Attachments (optional equipment) 5-75
5 18 5 Industrial stick with mechanical quick-change adapter 5-76
5 18 6 Industrial stick with hydraulic quick-change adapter 5-76
5 18 7 LIKUFIX MH 40 quick-coupling system 5-77 ~
5 18 8 Hydraulic quick change adapter 5-77 ~
5 18 9 Mechanical quick-change adapter 5-78 8
5 19 Couplings of the quick-change adapter systems (optional equipment) 5-79 g
5 19 1 Hydraulic coupling 5-79 ~
5 19 2 LIKUFIX electric coupling 5-80 i;:
5 20 Parking and swing gear brake 5-81 ~
5 21 General maintenance tasks 5-81 :i
5 21 1 Replacing wear parts 5-81
5 21 2 Replacing teeth on digging tool 5-81
5 21 3 Welded parts on the machine 5-83
5 22 Maintenance and inspection schedule 5-84

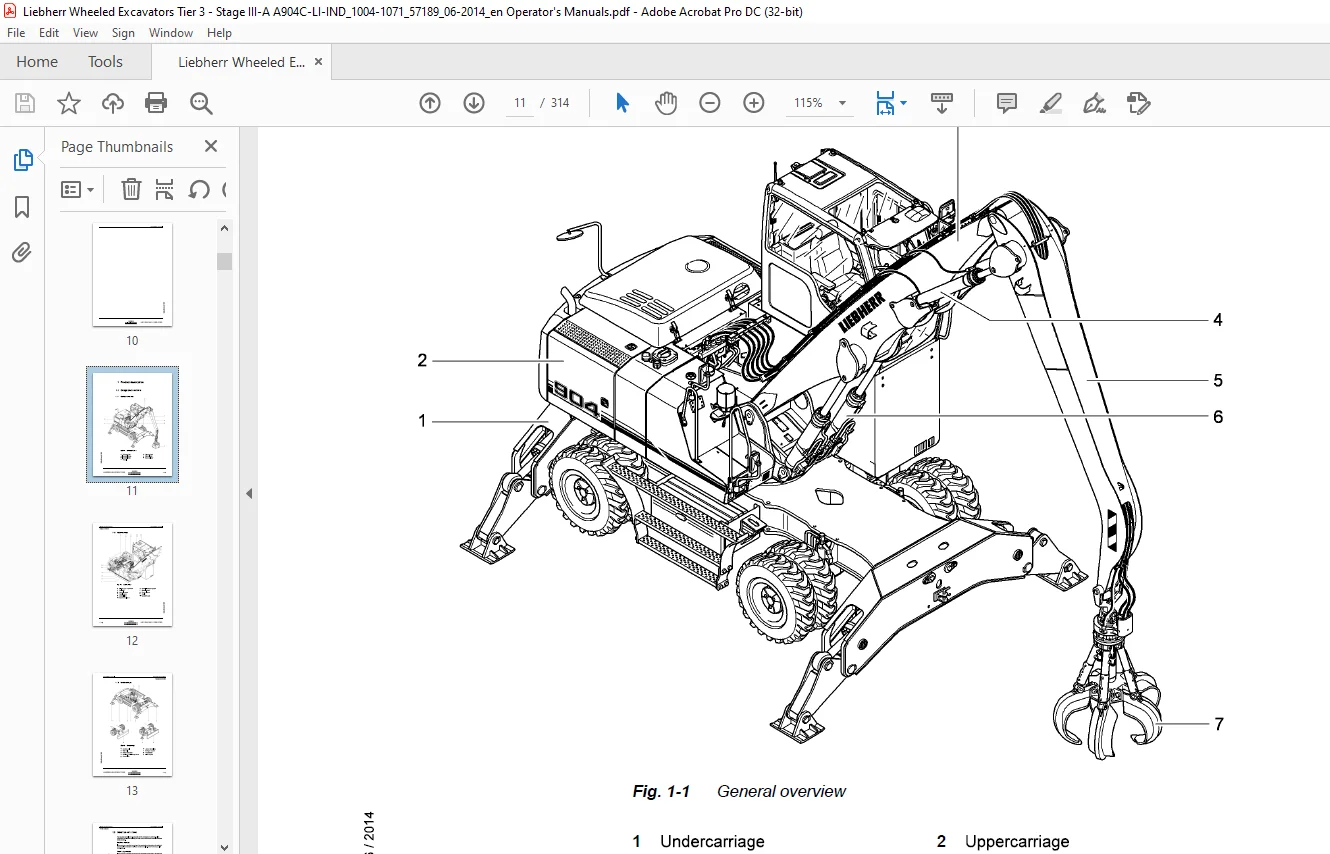

IMAGES PREVIEW OF THE MANUAL:
Customer Support: [email protected]
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
S.V
