Liebherr Crane HS 8130 HD Parts Catalog Manual SN 185218 PDF

Description

Liebherr Crane HS 8130 HD Parts Catalog Manual SN 185218 – PDF DOWNLOAD

FILE DETAILS:

Liebherr Crane HS 8130 HD Parts Catalog Manual SN 185218 – PDF DOWNLOAD

Language : English
Pages : 881
Downloadable : Yes
File Type : PDF

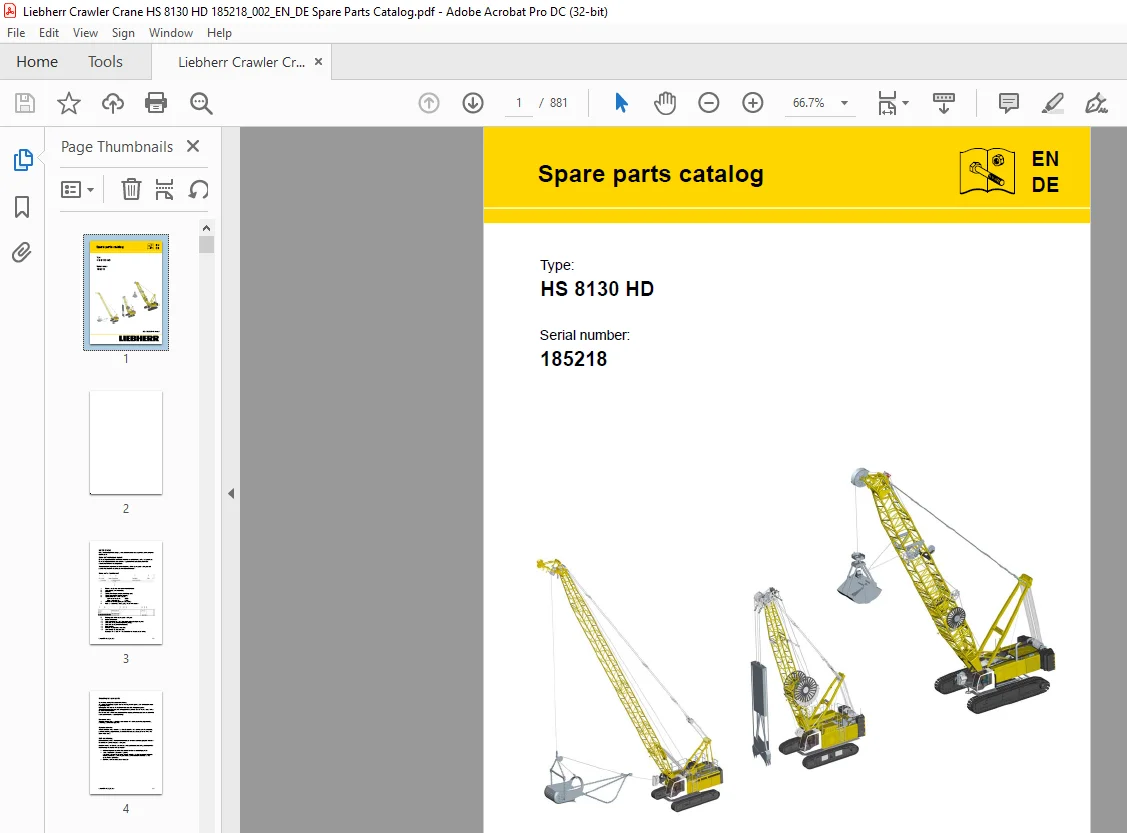

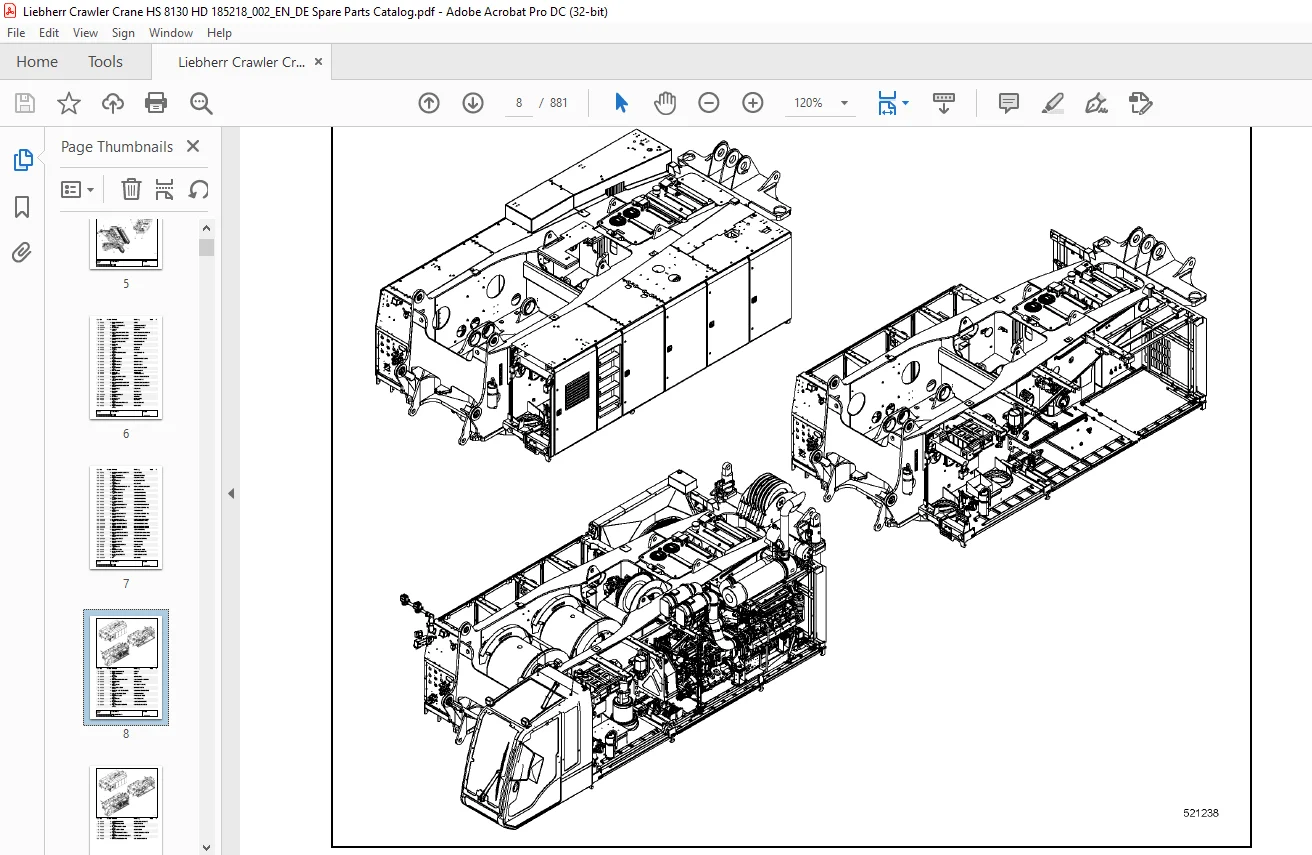

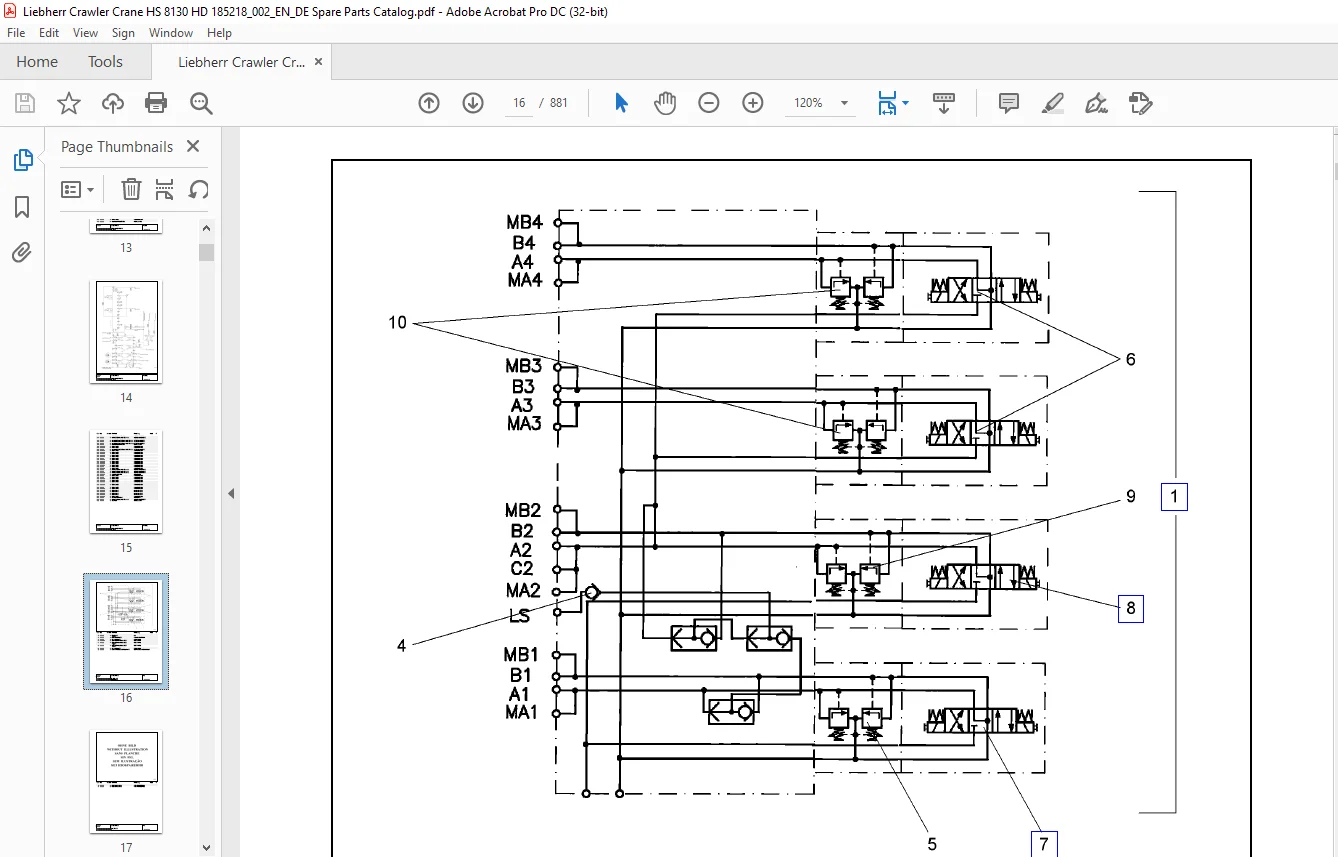

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Liebherr Crane HS 8130 HD Parts Catalog Manual SN 185218 – PDF DOWNLOAD

HS 8130 HD  185218
.................................  1
Catalog.............................................  5
	01 85 218 14 / HS 8130 HD.......................  5
	11 31 160 2 / SUPERSTRUCTURE CPL................  8
	10 51 917 1 / SUPERSTRUCTURE HYDR............... 10
	10 35 148 6 / VALVE BLOCK....................... 16
	10 52 459 5 / SEALING SET....................... 17
	11 22 918 4 / DIRECTIONAL CONTROL VALVE......... 18
	10 59 143 5 / DIRECTIONAL CONTROL VALVE......... 19
	10 51 917 2 / SUPERSTRUCTURE EL................. 20
	10 53 048 9 / FUSE HOLDER....................... 22
	70 27 205 / WORK LIGHT.......................... 23
	10 22 450 0 / WORK LIGHT........................ 24
	10 56 645 8 / TERMINAL BOX...................... 25
	11 23 908 2 / CONTROL CONSOLE................... 27
	10 51 830 3 / HOSE LIST......................... 28
	10 50 967 6 / TANK HYDR CPL..................... 31
	10 44 678 0 / RETURN FILTER..................... 33
	11 28 086 8 / AERATION FILTER................... 34
	10 50 967 5 / FUEL TANK CPL..................... 35
	11 27 342 5 / DRIVER INSTALLATION............... 37
	10 50 967 4 / SUPERSTR. SLEWING RING INSTAL..... 38
	10 50 968 2 / SLEWING RING PROTECTION........... 39
	10 50 968 4 / CENTRAL GREASING.................. 40
	11 28 048 1 / CONNECTION PARTS.................. 41
	11 29 697 8 / MOUNTING PARTS.................... 42
	11 28 669 6 / CONNECTION PARTS.................. 43
	11 29 698 1 / MOUNTING PARTS.................... 44
	11 89 019 4 / PANELLING CPL..................... 45
	10 51 917 6 / COVERS............................ 48
	11 28 456 7 / DOOR.............................. 50
	11 28 457 4 / DOOR.............................. 51
	11 28 668 8 / DOOR.............................. 52
	11 28 859 9 / DOOR.............................. 53
	10 51 917 7 / COVER UNDERSIDE................... 54
	10 57 884 5 / FIRE EXTINGUISHER MOUNTING........ 56
	92 65 477 14 / FIRE EXTINGUISHER RFK............ 58
	11 31 160 3 / CABIN SUSPENSION CPL.............. 59
	10 50 968 6 / BATTERY INSTALLATION.............. 60
	11 27 436 2 / LIMIT SWITCH INSTALLATION......... 61
	11 27 436 3 / MODULES INSTALLATION.............. 62
	11 27 436 5 / A-FRAME ERECTION CYL INSTAL....... 64
	10 56 459 7 / A-FRAME ERECTION HYDR............. 65
	11 29 040 8 / TUBING HYDR....................... 66
	10 22 540 8 / VALVE BLOCK....................... 68
	10 56 459 9 / HOSE LIST......................... 69
	11 29 902 2 / ADD-ON PARTS...................... 70
	11 31 160 7 / MOUNTING PARTS SUPERSTRUCTURE..... 71
	10 51 982 4 / CENTRAL POWER UNIT CPL............ 83
	10 51 982 5 / HYDR POWER UNIT................... 85
	10 22 505 6 / DOUBLE V-PUMP..................... 89
	10 46 746 6 / DRIVING GEAR...................... 90
	57 19 013 08 / CONNECTING PLATE................. 91
	10 50 382 1 / REGULATOR......................... 92
	10 50 383 6 / REGULATOR ELEMENT................. 93
	10 09 797 2 / CONTROL UNIT INSERT............... 94
	10 50 384 8 / PUMP SUPPORT...................... 95
	10 12 873 9 / V PUMP............................ 96
	10 14 550 3 / REGULATING VALVE.................. 98
	10 12 942 0 / PRESSURE REDUCTION VALVE.......... 99
	10 12 321 4 / SEAL KIT PRESSUR.CONTROL VALVE....100
	10 13 333 4 / COVER.............................101
	10 12 579 7 / RK ADDITIONAL PARTS...............102
	10 13 773 5 / REPAIR KIT DRIVING MECHANISM......103
	10 13 463 6 / REPAIR KIT SHAFT..................104
	10 13 470 3 / RK CYLINDER+CONTROL PLATE.........105
	10 13 463 7 / RK PULL-BACK BALL+PULL-B.PLATE....106
	10 13 463 8 / RK PISTON WITH GUIDE SHOE.........107
	10 13 464 1 / REPAIR KIT LEVER..................108
	10 13 464 7 / REGULATION REPAIR KIT.............109
	10 13 464 8 / SEAL KIT CPL......................110
	10 12 340 0 / ORIFICE...........................111
	10 13 464 9 / GASKET KIT INT.FLANGE.............112
	10 12 226 5 / SEAL KIT REGULATING VALVE.........113
	10 12 342 8 / THROUGH DRIVE.....................114
	10 13 083 0 / THROUGH DRIVE.....................115
	10 13 083 1 / CONSTRUCTION KIT OUTPUT...........116
	10 14 080 3 / THROUGH DRIVE.....................117
	10 14 076 5 / THROUGH DRIVE.....................118
	10 14 075 9 / THROUGH DRIVE.....................119
	10 14 161 6 / CONSTRUCTION KIT OUTPUT...........120
	10 14 788 7 / THROUGH DRIVE.....................121
	59 23 207 14 / V PUMP...........................122
	11 22 197 1 / PUMP ELEMENT......................123
	11 22 197 2 / PUMP ELEMENT......................124
	59 22 139 14 / CONTROL VALVE....................125
	51 22 563 14 / V PUMP...........................126
	11 23 429 0 / PUMP ELEMENT......................127
	11 23 429 2 / PUMP ELEMENT......................128
	10 28 766 4 / DRIVING GEAR......................129
	10 28 766 5 / ADJUSTING PIECE...................130
	10 35 160 3 / CONTROL VALVE.....................131
	59 23 208 14 / V PUMP...........................132
	11 22 192 7 / PUMP ELEMENT......................133
	11 21 780 9 / PUMP ELEMENT......................134
	59 22 982 14 / CONTROL VALVE....................135
	11 22 126 2 / CONTROL VALVE.....................136
	10 59 274 6 / V PUMP............................137
	11 21 990 2 / DRIVING GEAR......................138
	11 21 990 5 / ADJUSTMENT........................139
	11 21 992 7 / COVER.............................140
	11 21 992 9 / COVER.............................141
	11 21 991 0 / PUMP HOUSING......................142
	11 21 993 0 / PUMP HOUSING......................143
	10 59 347 4 / PRESSURE LIMITING VALVE...........145
	11 21 936 9 / LOCKING SET.......................146
	11 06 730 4 / SHUTDOWN VALVE....................147
	11 06 730 5 / SHUTTLE VALVE.....................148
	11 26 744 7 / SHUTTLE VALVE.....................149
	11 21 935 0 / PUMP COVER........................150
	11 21 991 7 / CONTROL GEAR......................151
	11 21 991 8 / BEARING FLANGE....................152
	10 56 276 0 / DISTRIBUTOR GEARBOX...............153
	11 27 834 5 / HYDR POWER UNIT...................155
	51 22 332 14 / OIL MOTOR........................156
	10 22 358 1 / PRESSURE FILTER...................157
	51 14 048 14 / PRESSURE LIMITING VALVE..........158
	11 27 312 3 / CENTRAL POWER UNIT EL.............159
	10 51 983 2 / HOSE LIST.........................160
	10 51 826 6 / MOTOR BEARING CPL.................162
	10 51 982 6 / INTAKE PIPE OIL CPL...............163
	10 51 880 8 / ADD-ON PARTS DIESEL ENGINE........165
	11 28 691 2 / EXHAUST GAS COLLECTION............166
	91 44 757 / END COVER...........................167
	11 30 724 5 / FINGER GUARD......................168
	10 51 983 0 / COOLER INSTALLATION WATER.........169
	11 28 718 4 / COOLER MOTOR......................172
	11 29 307 0 / EQUALIZING RESERVOIR..............173
	10 51 983 1 / COOLER INSTALLATION CHARGE AIR....174
	10 51 983 3 / SUCTION UNIT AIR..................177
	10 52 297 2 / AIR FILTER........................178
	10 51 881 0 / EXHAUST GAS SYSTEM................179
	10 51 982 7 / FUEL SYSTEM.......................180
	10 56 987 8 / ADD-ON PRELIMINARY FUEL FILTER....181
	10 30 300 7 / FUEL PREFILTER....................182
	11 29 331 3 / HOSE LIST.........................183
	11 90 394 0 / HOT-WATER HEATING SUPERSTR........184
	11 28 938 5 / HOSE LIST.........................185
	10 55 682 6 / ASSEMBLY INSTAL...................186
	93 50 247 3 / UREA CONTAINER....................189
	11 28 963 8 / AGGREGATE FRAME CPL...............190
	10 14 173 6 / DIESEL ENGINE.....................191
	10 14 328 9 / CRANKCASE CPL.....................195
	10 14 329 0 / CRANKCASE PRE-ASSY................196
	90 78 462 / POWER UNIT SUPPORT ATTACHMENT.......197
	10 14 176 9 / FINAL CONTROL VALVE...............198
	10 14 209 6 / PISTON COOLING....................199
	10 14 301 6 / CRANKCASE BREATHER ASSEMBLY.......200
	10 12 564 6 / OIL SEPARATOR.....................201
	11 35 673 5 / OIL SEPARATOR.....................202
	10 13 705 1 / OIL RETURN PIPE...................203
	10 12 594 0 / OIL SUMP WITH FASTENING...........204
	11 36 437 8 / OIL SUMP PRE-ASS..................205
	10 12 923 5 / LOCKING PIECES....................206
	10 11 861 9 / LOCKING PIECES....................207
	10 13 539 2 / LEVEL SENSOR......................208
	10 11 555 4 / OIL DRAIN PLUG....................209
	50 04 624 / OIL DRAIN PLUG......................210
	90 78 049 / CYLINDER............................211
	10 13 080 8 / CRANKSHAFT........................212
	10 12 854 0 / CRANKSHAFT BEARINGS...............213
	10 12 134 6 / RK CRANKSHAFT SEAL................214
	90 77 286 / DRIVING PARTS.......................215
	10 11 687 6 / CONROD............................216
	10 14 822 1 / PISTON CPL........................217
	10 14 327 6 / CYLINDER HEAD ASSEMBLY............218
	10 14 778 1 / CYLINDER HEAD PRE-ASSY............219
	10 14 778 0 / CYLINDER HEAD.....................220
	10 11 806 0 / ROCKER ARMS DEVICE CPL............221
	10 12 250 3 / ROCKER LEVERBLOCK PRE-ASSEMBLY....222
	10 11 940 7 / ROCKER ARM PRE-ASSY...............223
	10 12 264 5 / CYLINDER HEAD COVER...............224
	10 12 264 0 / CYLINDER HEAD COVER...............225
	11 36 430 3 / CYLINDER HAED COVER PRE-ASS.......226
	10 12 264 6 / CYLINDER HEAD COVER ASSEMBLY......227
	11 36 432 0 / CYLINDER HAED COVER PRE-ASS.......228
	10 12 265 9 / CYLINDER HEAD COVER ASSEMBLY......229
	11 36 432 5 / CYLINDER HAED COVER PRE-ASS.......230
	10 12 294 0 / CAMSHAFT CPL......................231
	10 12 459 1 / GEARWHEEL PRE-ASS.................232
	10 11 632 0 / CONTROL PARTS.....................233
	11 36 574 6 / OIL MODULE ASSEMBLY...............234
	11 36 519 3 / OIL MODULE LEFT PRE-ASS...........235
	11 36 519 2 / OIL MODULE LEFT...................236
	10 12 711 3 / OIL FILTER HOUSING ASSEMBLY.......237
	11 36 572 8 / OIL MODULE RIGHT PRE-ASS..........238
	11 36 519 4 / OIL MODULE RIGHT..................239
	10 11 616 5 / LUBE OIL PUMP WITH FASTENING......240
	10 15 085 8 / HIGH PRESSURE PUMP W.FASTENING....241
	10 15 074 4 / RK HIGH PRESSURE PUMP.............242
	10 15 282 1 / SEAL KIT HIGH PRESSURE PUMP.......243
	10 13 543 3 / INJECTOR FASTENING................244
	10 12 672 4 / FUEL FINE-FILTER ASSEMBLY.........245
	10 12 741 9 / FUEL FILTER MODULE................246
	10 14 372 5 / FUEL LINES........................247
	10 15 187 5 / HIGH PRESSURE PIPE ASSEMBLY.......249
	10 14 372 6 / LEAK OIL LINE ADD-ON..............250
	10 13 516 4 / INTAKE STACK ASSEMBLY.............251
	10 14 633 3 / INTAKE STACK ASSEMBLY.............252
	10 14 177 1 / CHARGE AIR LINE ASSEMBLY..........253
	10 13 304 3 / AIR INTAKE ASSEMBLY...............254
	90 78 314 / HEATING FLANGE ADD-ON...............255
	10 29 998 8 / HEATING FLANGE PRE.ASS............256
	10 15 029 6 / AIR COND. COMPRESSOR ADD-ON.......257
	10 14 330 2 / WATER PUMP WITH FASTENING.........258
	10 11 822 3 / INTERMEDIATE GEAR ASSEMBLY........259
	11 35 374 8 / THERMOSTAT HOUSING ASSEMBLY.......260
	10 14 176 5 / COOLANT PIPE BEND ADD-ON..........261
	10 14 504 4 / CONNECTION F.WATER PIPE...........263
	10 14 519 3 / WATER CONNECTION..................264
	10 14 519 6 / WATER CONNECTION..................265
	10 14 135 6 / EXHAUST PIPE ASSEMBLY.............266
	10 14 135 4 / EXHAUST PIPE RIGHT................267
	10 14 135 5 / EXHAUST PIPE LEFT.................268
	10 14 155 8 / OUTLET MANIFOLD ADD-ON............269
	10 14 171 8 / EXHAUST TC MOUNTING...............270
	10 14 171 9 / EXHAUST TC MOUNTING...............271
	10 14 152 8 / EXHAUST NOZZLE ATTACHMENT.........272
	10 14 379 0 / REGULATION BOOST PRESSURE.........273
	90 80 641 / STARTER INSTALLATION................274
	90 78 564 / LOCKING PIECES......................275
	90 79 955 / ATTACHING PART......................276
	10 14 469 6 / PROTECTION PLATE ASSEMBLY.........277
	10 12 032 4 / FLYWHEEL HOUSING MOUNTING.........278
	90 78 467 / AJDUSTING PLATE.....................279
	10 12 007 1 / FLYWHEEL ASSEMBLY.................280
	10 12 007 2 / FLYWHEEL PRR-ASSEMBLY.............281
	10 14 194 7 / MOTOR CONTROL DEVICE..............282
	10 14 178 8 / CONTROL BOX ANNEXE................283
	10 14 184 0 / CABLE HARNESS MOUNTING............284
	10 14 193 7 / ENGINE CONTROL SENSORS............285
	10 12 039 3 / LOCKING PIECES....................286
	90 80 459 / LOCKING PIECES......................287
	11 29 285 9 / RETURN PIPE CPL...................288
	11 89 581 6 / EXHAUST GAS SYSTEM................289
	10 14 404 5 / SCR CPL...........................290
	11 26 376 9 / TRANSPORT FLAP....................291
	10 59 256 9 / RADIO RFK.........................292
	10 51 127 4 / DOUBLE T-MASTER SWITCH INSTAL.....293
	10 50 942 8 / COUNTERWEIGHT ARRANGEMENT.........294
	11 29 413 5 / BALLAST CPL.......................295
	11 28 379 2 / COUNTERWEIGHT.....................296
	11 29 662 6 / LASHING BALLAST...................297
	11 91 660 7 / LASHING...........................298
	11 29 676 2 / LASHING...........................299
	11 29 700 9 / MOUNTING PARTS....................300
	10 50 942 9 / ADD COUNTERW. 1 ARRANGEMENT.......301
	11 30 533 5 / ADD COUNTERWEIGHT CPL.............302
	11 29 681 9 / LASHING...........................303
	10 50 967 8 / LUG SUPERSTRUCTURE CPL............304
	10 56 266 7 / TUBING HYDR.......................306
	51 22 527 14 / OIL MOTOR........................307
	11 26 708 5 / HOSE LIST.........................308
	11 26 708 9 / WINCH.............................309
	11 92 090 7 / GEARBOX...........................310
	11 92 091 6 / REPAIR KIT........................312
	11 92 090 8 / ROPE DRUM.........................314
	11 92 090 9 / FLANGE BEARING....................315
	11 92 091 0 / DRIVE.............................316
	11 92 091 1 / WINCH TRESTLE.....................318
	10 58 384 5 / OIL LINE..........................319
	11 26 708 6 / LUG SHEAVE SET....................320
	11 28 888 5 / ROPE GUARD LUG CPL................321
	10 09 901 6 / BRACKET...........................322
	10 50 943 0 / ROPES LUG.........................323
	10 50 943 1 / SG INSTALLATION...................324
	10 51 772 8 / SG HYDR...........................325
	10 56 268 5 / TUBING HYDR.......................326
	59 22 098 14 / OIL MOTOR........................328
	10 51 772 9 / HOSE LIST.........................329
	11 28 924 9 / SG INSTALLATION CPL...............330
	11 26 095 4 / CABIN CPL.........................331
	10 51 903 3 / DRIVER STAND HYDR.................333
	98 81 994 / PILOT CONTROL UNIT..................335
	98 81 995 / PILOT CONTROL UNIT..................337
	11 26 095 5 / CABIN EL..........................339
	10 55 963 5 / SWITCH CABINET X1.................341
	99 20 811 14 / RESERVE FUSES....................343
	10 51 907 9 / CONTROL STAND LEFT................344
	11 21 481 8 / MASTER SWITCH.....................345
	10 03 610 7 / KEYBOARD OPERATING PANEL CPL......346
	10 53 171 8 / KEYBOARD..........................347
	38 50 944 14 / SWITCHING HOUSING................348
	69 31 685 14 / SAFETY LEVER CPL.................349
	11 26 095 7 / CONTROL STAND RIGHT...............350
	91 65 251 14 / CABLE DUCT CABINET 1.............351
	61 10 526 14 / FILTER BLOWER INSTALLATION.......352
	10 51 903 1 / HOSE LIST.........................353
	11 25 573 8 / HOSE LIST.........................354
	10 35 008 0 / CABIN.............................355
	10 22 645 4 / DOOR ACCESSORIES..................357
	95 95 763 14 / GUIDE CPL........................358
	10 35 007 6 / SLIDING DOOR......................359
	10 22 441 3 / SLIDING WINDOW....................360
	11 25 097 0 / SLIDING WINDOW....................361
	59 22 871 14 / FRONT WINDOW CPL.................362
	59 22 895 14 / FLAP CPL.........................363
	59 22 905 14 / MIRROR + SUNN VISOR..............364
	59 22 914 14 / PLATFORM FIXATION CPL............365
	59 22 930 14 / AIR CONDITIONER..................366
	10 58 467 1 / WATER VALVE.......................368
	10 22 506 8 / OPERATOR SEAT.....................369
	70 24 996 / SEAT FRAME..........................370
	10 28 999 3 / VIBRATING SYSTEM..................371
	11 26 095 6 / STEERING CONSOLE RIGHT CPL........372
	97 07 857 03 / SPIRIT LEVEL ASSY................373
	10 53 756 0 / LAMP HOLDER CPL...................374
	10 50 943 2 / CONNECTION SUPERSTR UC............375
	11 29 366 1 / LASHING SUPERSTRUCTURE............376
	10 50 943 3 / UC CPL............................377
	10 51 589 2 / UC HYDR...........................378
	10 56 268 7 / TUBING HYDR.......................379
	59 20 628 14 / OIL MOTOR........................382
	11 29 023 6 / UC EL.............................383
	11 29 023 8 / CABLE LOOM........................384
	11 31 403 5 / CLAMPING SOCKET...................386
	10 51 589 4 / HOSE LIST.........................387
	11 28 848 6 / CENTRE PART CPL...................389
	11 29 400 0 / WEDGING LEFT CPL..................395
	11 29 400 3 / WEDGING RIGHT CPL.................396
	11 29 553 9 / PIN CPL...........................397
	10 51 588 9 / CRAWLER CARRIER RIGHT CPL.........398
	94 44 240 03 / TRACTION DRIVE...................400
	11 27 556 6 / GUIDE WHEEL UNIT CPL..............403
	10 51 589 0 / CRAWLER CARRIER LEFT CPL..........404
	10 50 943 4 / UC CRAWLER OUTFIT.................406
	11 27 554 3 / CRAWLER CHAIN CPL.................407
	10 50 943 5 / WINCH 1 FREE-FALL.................408
	11 26 927 4 / DRIVE UNIT........................409
	10 56 286 8 / TUBING HYDR.......................410
	10 56 287 0 / HOSE LIST.........................412
	10 56 286 7 / TUBING HYDR.......................413
	50 29 850 14 / BRAKE PEDAL......................415
	10 56 287 1 / HOSE LIST.........................416
	11 28 975 6 / WINCH 1 INSTALLATION..............417
	10 51 655 3 / WINCH.............................418
	11 90 940 5 / GEARBOX...........................419
	11 90 941 3 / REPAIR KIT........................420
	11 90 940 6 / FLANGE BRAKE......................421
	11 90 940 7 / ROPE DRUM.........................422
	11 90 940 8 / DRIVE.............................423
	11 90 941 0 / WINCH TRESTLE.....................424
	11 90 940 9 / OIL LINE..........................425
	10 50 943 6 / WINCH 2 FREE-FALL.................426
	10 51 655 6 / DRIVE UNIT........................427
	10 56 287 7 / TUBING HYDR.......................428
	10 56 287 3 / HOSE LIST.........................430
	10 56 287 6 / TUBING HYDR.......................431
	10 22 452 9 / VALVE BLOCK.......................433
	10 56 287 2 / HOSE LIST.........................434
	11 28 978 6 / WINCH 2 INSTALLATION..............435
	10 50 943 7 / TOOL EQUIPMENT....................436
	10 56 183 8 / TOOL..............................437
	11 89 502 5 / PIVOT PIECE CPL...................438
	11 22 932 3 / PIVOT PIECE EL....................440
	11 91 789 0 / CABLE LOOM 1 PIVOT PIECE EL.......441
	10 56 195 6 / HOSE LIST.........................443
	11 90 701 7 / GANGWAY PIVOT PIECE...............444
	11 28 391 3 / FIXING CLAMP......................445
	11 29 724 9 / PIN CPL...........................446
	11 29 725 5 / PIN CPL...........................447
	95 34 317 03 / CABLE HOLDER RFK.................448
	10 50 967 9 / TILT-BACK SUPPORTS INSTAL.........449
	10 56 288 5 / TILTING-BACK SUPPORTS HYDR........450
	10 56 289 1 / TUBING HYDR.......................451
	59 20 224 14 / LOAD HOLDING VALVE...............453
	10 56 288 7 / HOSE LIST.........................454
	11 29 044 2 / TILT-BACK SUPPORTS INSTAL.........455
	11 29 751 8 / A-FRAME 1 MAIN BOOM...............456
	10 50 943 9 / BOOM FRAME CPL....................457
	10 53 044 3 / A-FRAME ELECTRICS.................459
	11 28 871 2 / A-FRAME 1 ASSEMBLY UNIT...........460
	11 28 660 1 / ANCHORING ROD CPL.................461
	11 25 204 2 / SUPPORT CPL.......................462
	11 30 311 5 / INTERMEDIATE PIECE ASSEMB UNIT....463
	10 51 838 9 / BOOM INTERMEDIATE SECTION CPL.....464
	11 27 437 9 / GUY ROPE RIGHT CPL................465
	11 29 617 1 / TRANSPORT LASHING.................466
	11 89 264 0 / GANGWAY INTERMEDIATE SECTION......467
	11 28 667 9 / FIXING CLAMP......................468
	11 89 263 7 / DIAGONAL PROTECTION...............469
	11 26 943 8 / HOLDER CPL........................471
	11 30 312 5 / INTERMEDIATE PIECE ASSEMB UNIT....472
	10 51 847 0 / BOOM INTERMEDIATE SECTION CPL.....473
	11 27 438 0 / GUY ROPE RIGHT CPL................474
	11 89 264 1 / GANGWAY INTERMEDIATE SECTION......475
	11 27 438 2 / BOOM HEAD CPL.....................476
	11 91 340 4 / BOOM HEAD EL......................477
	11 91 340 7 / CABLE LOOM........................478
	11 89 973 2 / GANGWAY HEAD SECTION..............479
	11 89 263 8 / DIAGONAL PROTECTION...............480
	11 29 546 8 / HOIST LIMIT SWITCH................482
	11 29 550 5 / MOUNTING MATERIAL.................483
	11 24 937 5 / LIMIT SWITCH......................484
	11 30 278 9 / GUY ROPE BOOM HEAD CPL............485
	11 27 438 3 / ROLLER SET........................486
	79 05 046 14 / ROPE PULLEY CPL..................488
	91 79 975 14 / ROPE PULLEY CPL..................489
	74 81 383 14 / BOTTOM HOOK BLOCK................490
	11 22 945 7 / ROPE SHEAVE.......................492
	11 27 122 1 / ROPE FIXING POINT.................493
	11 27 122 4 / HANGER............................495
	11 27 122 5 / SINGLE HOOK.......................497
	11 90 722 6 / MODEM RFK.........................499
	11 22 322 6 / MODEM CPL RFK.....................500
	11 25 016 2 / EMERGENCY OPERATION EL RFK........501
	11 91 754 2 / EMERGENCY STOP RFK................502
	11 91 764 2 / EMERGENCY STOP EL RFK.............503
	11 92 054 0 / SUPERSTRUCTURE EL REM.............504
	11 27 447 6 / CASING-OSCILLATOR ADD-ON RFK......505
	11 27 447 7 / CASING-OSCILLATOR HYDR RFK........506
	11 28 265 5 / TUBING HYDR.......................507
	11 28 265 6 / TUBING HYDR.......................509
	51 05 719 14 / QUICK-FITTING THREAD COUPLING....511
	10 56 375 3 / CASING-OSCILLATOR EL..............512
	10 56 378 0 / UC REM. EL........................513
	10 56 377 9 / SUPERSTRUCTURE REM. EL............514
	11 27 447 8 / HOSE LIST.........................515
	11 89 221 9 / HOSE LIST.........................516
	11 27 447 9 / CASING-OSCILLATOR ADD-ON RFK......517
	11 91 475 9 / CASING-OSCILLATOR ADD-ON RFK......519
	11 92 063 1 / ANGLE INDICATION RFK..............520
	91 90 584 14 / ANGLE INDICATION.................521
	11 92 592 5 / CUSTOMER PACKAGE RFK..............522
	99 39 870 14 / PREPARATION EL RFK...............523
	10 51 918 0 / ROOF RAILING RFK..................524
	11 27 441 5 / PLATFORMS RFK.....................528
	11 92 189 2 / ACCESS CPL........................532
	11 30 457 0 / PIN CPL...........................534
	11 30 431 3 / PLUG CPL..........................535
	11 30 683 3 / PLUG CPL..........................536
	10 52 547 1 / ADDNL.FLOODLIGHT SUPERSTR. RFK....537
	10 59 371 2 / ADD FLOODLIGHT EL RFK.............543
	11 22 870 8 / SEARCHLIGHT SUPPORT CPL...........544
	11 31 199 4 / MODIFICATION KIT EL RFK...........545
	11 89 993 8 / FALL PROTECTION RFK...............546
	10 55 601 3 / ROLLING TRUCK CPL.................547
	11 89 993 9 / FALL PROTECTION RFK...............548
	11 90 104 0 / RAIL CPL..........................549
	11 89 994 0 / FALL PROTECTION RFK...............550
	11 90 104 5 / RAIL CPL..........................551
	11 89 994 1 / FALL PROTECTION RFK...............552
	11 90 343 0 / RAIL CPL..........................553
	11 27 436 4 / BOLT RETRACTION DEVICE RFK........554
	11 29 439 3 / BOLT RETRACTION DEVICE RFK........555
	11 29 439 5 / TUBING HYDR.......................556
	59 21 458 14 / VALVE BLOCK......................557
	11 89 241 4 / DOUBLE-ACTING CYL.................558
	11 29 439 7 / HOSE LIST.........................559
	11 29 051 2 / BOLT EXTRACTION DEVICE............560
	10 56 827 5 / SELF-LOADING SYSTEM RFK...........561
	10 56 828 1 / SELF-LOADING SYSTEM HYDR RFK......562
	51 16 363 14 / LOWERING BRAKE VALVE.............563
	10 56 828 2 / HOSE LIST.........................565
	11 29 557 2 / ADD-ON PARTS......................566
	11 28 926 6 / BOLTING RFK.......................567
	11 28 926 7 / BOLTING HYDR......................568
	11 28 927 0 / TUBING HYDR.......................569
	11 29 686 0 / DOUBLE-ACTING CYL.................571
	11 29 037 7 / UC EL.............................572
	11 28 926 8 / HOSE LIST.........................573
	11 29 557 4 / ADD-ON PARTS......................574
	11 28 921 6 / SELF-LOADING SYSTEM RFK...........576
	11 29 716 4 / SELF-LOADING SYSTEM RFK...........577
	11 29 403 5 / JACK-UP SYSTEM HYDR RFK...........578
	11 29 403 7 / TUBING HYDR.......................579
	10 55 119 1 / LID CPL...........................581
	10 55 154 8 / QUICK RELEASE FITTING.............582
	10 44 510 1 / QUICK RELEASE FITTING.............583
	10 44 510 2 / QUICK RELEASE FITTING.............584
	11 29 038 0 / UC EL.............................585
	11 29 403 9 / HOSE LIST.........................586
	11 29 715 1 / ADD-ON PARTS......................587
	11 91 872 5 / CHAIN CPL.........................589
	11 29 376 9 / SELF-LOADING SYSTEM RFK...........590
	11 29 409 7 / SELF-LOADING SYSTEM RFK...........591
	11 27 445 5 / JACK-UP SYSTEM HYDR RFK...........593
	11 28 393 5 / TUBING HYDR.......................594
	11 27 445 6 / HOSE LIST.........................595
	11 30 440 2 / MOUNTING CROSS BEAM CPL...........596
	11 28 925 7 / BOLTING RFK.......................597
	11 28 925 8 / BOLTING HYDR......................598
	11 28 926 2 / TUBING HYDR.......................599
	11 29 412 3 / DOUBLE-ACTING CYL.................601
	11 29 037 9 / UC EL.............................602
	11 28 925 9 / HOSE LIST.........................603
	11 29 557 8 / ADD-ON PARTS......................604
	10 53 635 0 / SYNCHRONIZING HYDR RFK............605
	10 53 635 1 / SYNCHRONIZING HYDR RFK............606
	10 55 459 4 / TUBING HYDR.......................607
	10 53 635 2 / HOSE LIST.........................608
	95 43 707 03 / SENSOR ADD-ON WINCH 1 RFK........609
	95 43 990 03 / SENSOR ADD-ON WINCH 2 RFK........610
	11 23 647 8 / ROPE MOUNTING RFK.................611
	11 89 436 2 / VIDEO MONITORING SYSTEM RFK.......612
	11 89 721 5 / CAMERA INSTALLATION...............613
	10 50 775 0 / CAMERA MONITORING.................614
	11 27 451 7 / VIDEO MONITORING SYSTEM RFK.......615
	10 53 246 1 / CAMERA MONITORING.................617
	10 53 352 4 / CABIN EL..........................618
	91 98 566 14 / ROOF GRID CABIN RFK..............619
	99 21 973 14 / DRIVER'S SEAT RFK................620
	10 04 363 3 / DRIVERS SEAT AIR-SUSPENDET........621
	70 28 516 / SEAT FRAME..........................622
	10 28 999 2 / VIBRATING SYSTEM..................623
	99 21 473 14 / DRIVERS SEAT EL RFK..............624
	10 56 427 9 / WIRING HARNESS....................625
	11 23 189 1 / AIR CONDITIONING UNIT RFK.........627
	11 21 750 0 / LIQUEFIER.........................628
	11 23 671 4 / FRAME.............................629
	10 56 536 8 / SOLENOIDVALVE BUILT-IN KIT RFK....630
	10 56 536 7 / SOLENOID VALVE BUILT-IN KIT.......631
	10 52 764 2 / HOSE LIST.........................632
	11 29 560 4 / PLATFORM RFK......................633
	10 51 628 5 / REFUELLING PUMP CPL...............635
	10 52 957 6 / REFUELLING PUMP CPL...............636
	51 00 959 14 / REFUEL PUMP......................637
	10 52 155 9 / MODULE REFUELLING SYSTEM..........638
	11 28 921 3 / REFUELLING SYSTEM RFK.............640
	11 27 501 3 / REFUELLING SYSTEM EL..............642
	11 31 401 0 / SWITCH CABINET....................643
	11 31 400 8 / SWITCH UNIT.......................645
	11 31 397 1 / SUPERSTRUCTURE REM. EL............646
Numerical index.....................................647
Alphabetical index (EN).............................695
Alphabetical index (DE).............................789

Customer Support: [email protected]

https://vimeo.com/897401502?share=copy

S.V
