Description
Liebherr Crane LTC 1055-3.1 Load chart Manual 056319 – PDF DOWNLOAD
FILE DETAILS:
Liebherr Crane LTC 1055-3.1 Load chart Manual 056319 – PDF DOWNLOAD
Language : English
Pages : 632
Downloadable : Yes
File Type : PDF

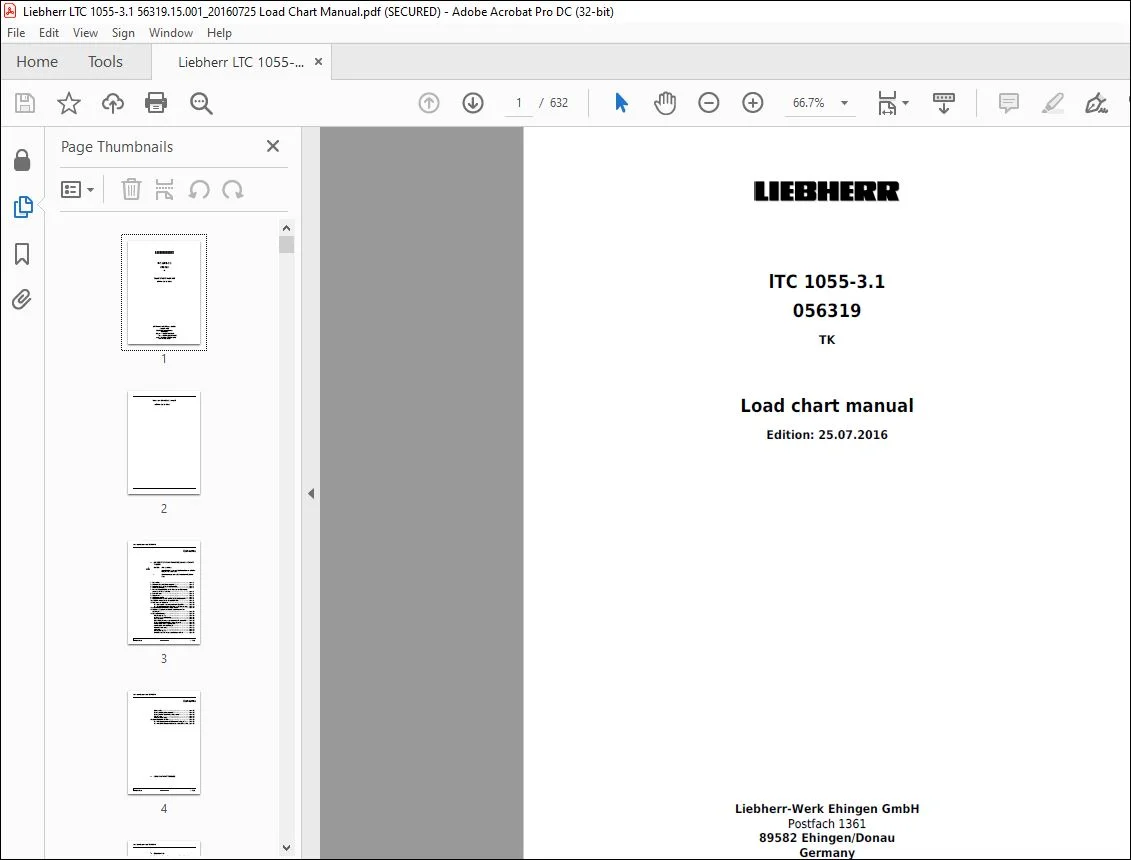

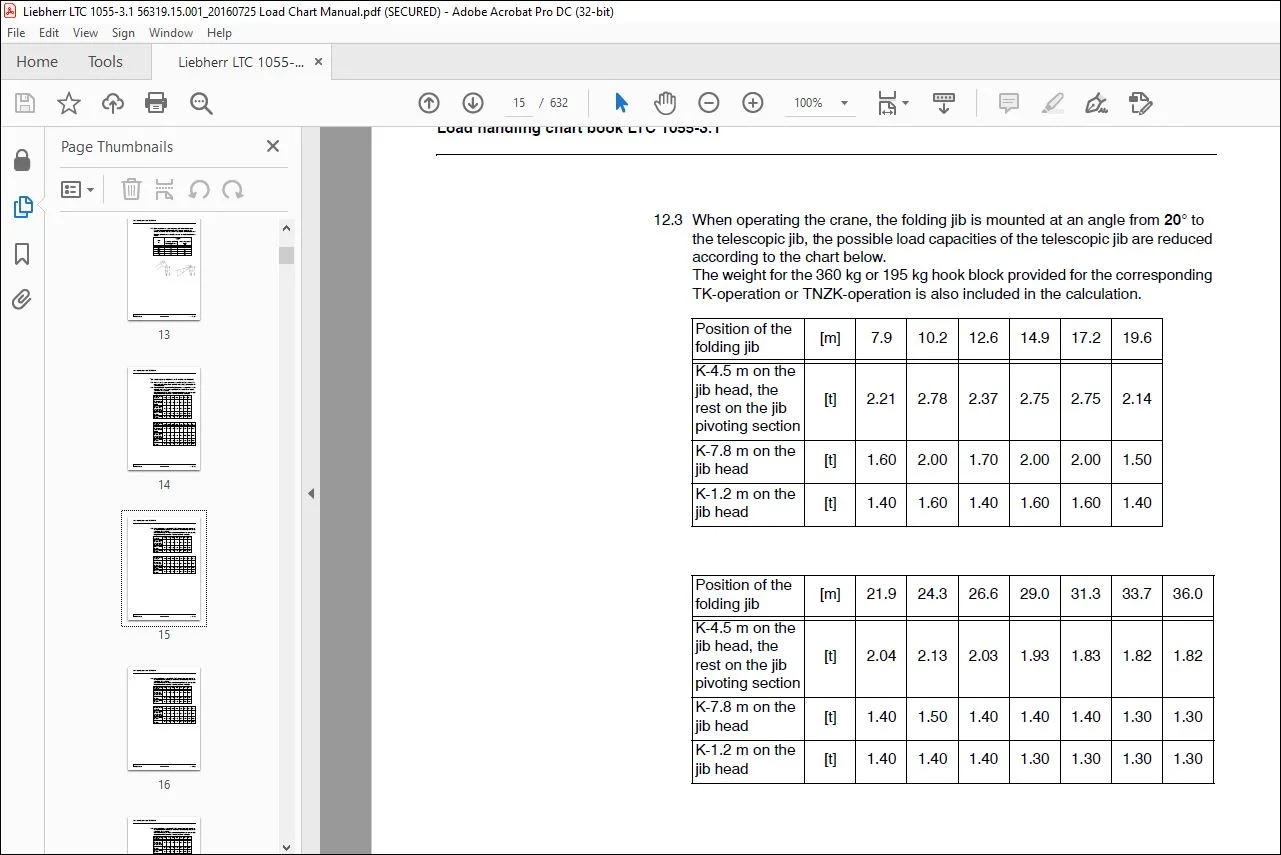

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Liebherr Crane LTC 1055-3.1 Load chart Manual 056319 – PDF DOWNLOAD
1. Explanations
1.1 The load capacity values in the tables are stated in metric tons [t].
1.2 The working radius is the horizontal gravity center distance of the load from
the rotational axis of the crane superstructure measured at the ground. The
radius stated is valid under load conditions, i.e. including boom flexure.
1.3 The load capacity values are specified in fixed stages in the load charts, subject
to reach and telescopic boom length. The load capacity value between
two reach stages does not change linear, but may be closer to the load capacity
value for the greater or smaller reach. For the intermediate areas, the load
capacities which are displayed in the LICCON operating screen apply.
1.4 Boom positions differing from those given in the load capacity tables are not
permissible.
1.5 Even without a load, the boom may only be moved inside those areas for
which load capacity values are stated, otherwise there is a danger of tilting. In
normal operation, this hazard is prevented by the overload safety device. After
switching to “Assembly” mode (with the “assembly” key-operated switch), the
boom must not be lowered or topped outside the range of the working radius.
1.6 The stated load capacities contain the weights of the load bearing, lifting and
slinging tackle. The possible weight for the load to be lifted is therefore reduced
according to the weights of the afore-mentioned tackle.
1.7 If the boomnose is mounted on the jib head during crane operation, then the
possible load is reduced further corresponding the weight of the boomnose.
2. Crane operating mode “Crane supported”
2.1 Before the crane is raised on its supports, the axle suspension must be blokked.
2.2 The sliding arms of the hydraulic support jack must be extended (to a uniform
length on both sides) to the extent stated in the applirope load capacity table.
2.3 The sliding arms must be secured by pins.
2.4 It is necessary to place stable underlay material under the support pads of the
support jacks over a large surface area according to ground conditions.
2.5 All wheels must be raised clear of the ground.
2.6 The crane is to be horizontally aligned via the support control unit. Additionally,
the horizontal position of the crane must be checked from time to time
during crane operation and adjusted as required.

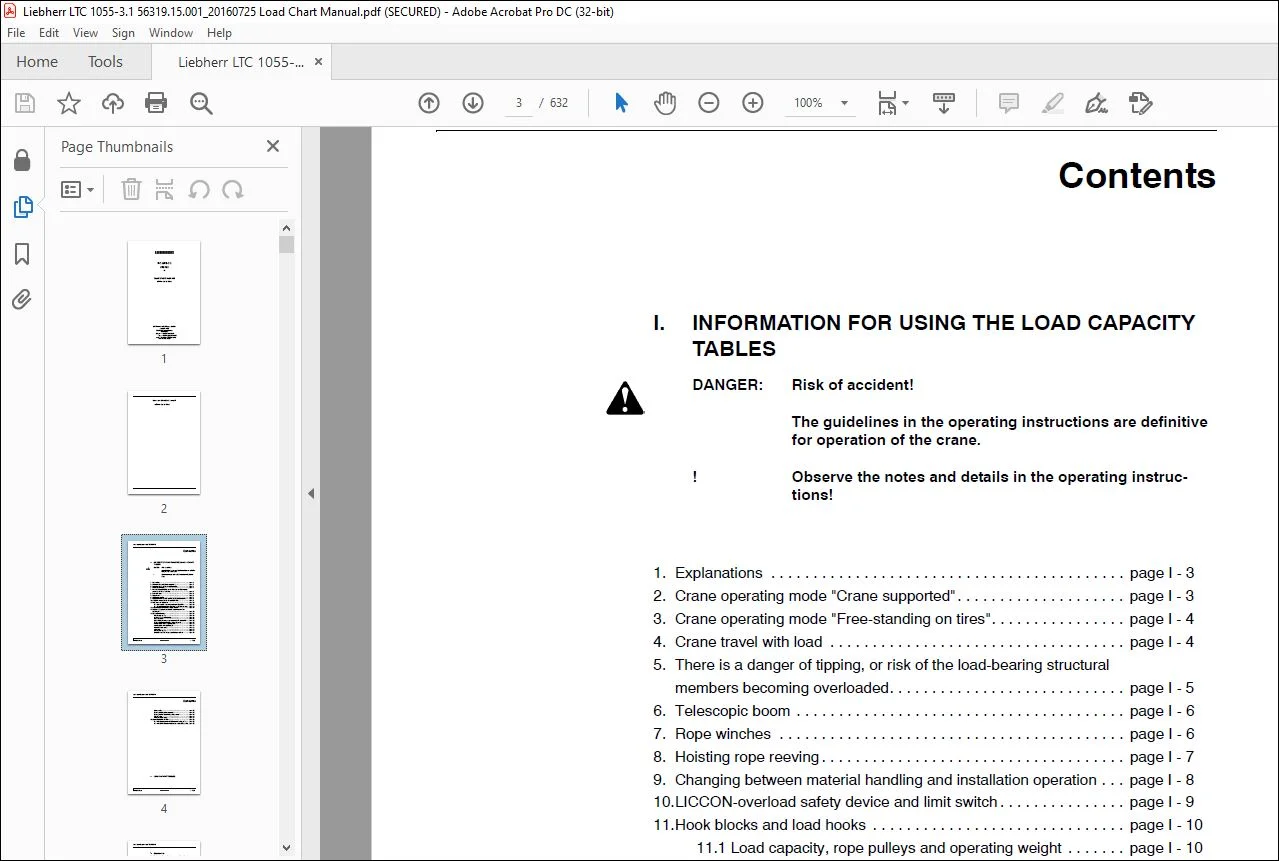

TABLE OF CONTENTS:
Liebherr Crane LTC 1055-3.1 Load chart Manual 056319 – PDF DOWNLOAD
I. INFORMATION FOR USING THE LOAD CAPACITY TABLES........................................................ 0 II. LOAD CAPACITY TABLES................................................................................. 0 1. Explanations.......................................................................................... 0 2. Crane operating mode "Crane supported"................................................................ 0 3. Crane operating mode "Free-standing on tires"......................................................... 0 4. Crane travel with load................................................................................ 0 5. There is a danger of tipping, or risk of the load- bearing structural members becoming overloaded:.... 0 6. Telescopic boom....................................................................................... 0 7. Rope winches.......................................................................................... 0 8. Hoisting rope reeving................................................................................. 0 9. Changing between material handling and installation operation......................................... 0 10. LICCON-overload safety device and limit switch....................................................... 0 11. Hook blocks and load hooks........................................................................... 0 11.1 Load capacity, rope pulleys and operating weight................................................ 0 11.2 Distance between hook and pulley set in the boom head........................................... 0 12. Load capacity reduction with folding jib mounted..................................................... 0 13. Maximum turning speed of the crane’s superstructure with a nominal load.............................. 0 14. Explanation of symbols............................................................................... 0 Hoisting rope reeving................................................................................ 0 Load capacity in metric tons [t]..................................................................... 0 Operating mode....................................................................................... 0 Operating types that can only be operated with accessories!.......................................... 0 Crane operation featuring lifting beam with hooks.................................................... 0 Working radius of the telescopic boom................................................................ 0 Working radius of the additional jib................................................................. 0 Telescopic boom length............................................................................... 0 Short code........................................................................................... 0 Hoisting rope reeving................................................................................ 0 Extension conditions of the telescopic boom sections................................................. 0 Counterweight........................................................................................ 0 Crane operations "Crane supported"................................................................... 0 Crane operation "Crane free-standing on tyres"....................................................... 0 Slewing range........................................................................................ 0 Permissible wind speed............................................................................... 0 15. Observation of wind conditions....................................................................... 0 15.1 Wind influence on the LICCON-overload safety device............................................. 0 15.2 Permissible wind speed and surface susceptibility to wind....................................... 0 [...] [...] ... | TK | ISO DIN....................................................................... 31 T K 0° 1.2m................................................................................. 36 4.4/ 0 t | 6.26 x 6.26 m | 360°............................................................. 36 4.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................. 52 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................ 60 10.4/ 0 t | 6.26 x 4.5 m | 360°............................................................. 76 4.4/ 0 t | 14I--I10 | !0°.................................................................... 92 10.4/ 0 t | 14I--I10 | !0°................................................................... 95 2.5/1.9 t | 14I--I10 | 360°.................................................................. 98 T K 0° 4.5m | 360°........................................................................ 99 4.4/ 0 t | 6.26 x 6.26 m...................................................................... 99 4.4/ 0 t | 6.26 x 4.5 m.......................................................................103 10.4/ 0 t | 6.26 x 6.26 m.....................................................................107 10.4/ 0 t | 6.26 x 4.5 m......................................................................111 T K 0° 7.8m | 360°........................................................................115 4.4/ 0 t | 6.26 x 6.26 m......................................................................115 4.4/ 0 t | 6.26 x 4.5 m.......................................................................119 10.4/ 0 t | 6.26 x 6.26 m.....................................................................123 10.4/ 0 t | 6.26 x 4.5 m......................................................................127 T K 0° 10.2m | 360°.......................................................................131 4.4/ 0 t | 6.26 x 6.26 m......................................................................131 4.4/ 0 t | 6.26 x 4.5 m.......................................................................135 10.4/ 0 t | 6.26 x 6.26 m.....................................................................139 10.4/ 0 t | 6.26 x 4.5 m......................................................................143 T K 0° 12.6m | 360°.......................................................................147 4.4/ 0 t | 6.26 x 6.26 m......................................................................147 4.4/ 0 t | 6.26 x 4.5 m.......................................................................151 10.4/ 0 t | 6.26 x 6.26 m.....................................................................155 10.4/ 0 t | 6.26 x 4.5 m......................................................................159 T K 0° 15.0m | 360°.......................................................................163 4.4/ 0 t | 6.26 x 6.26 m......................................................................163 4.4/ 0 t | 6.26 x 4.5 m.......................................................................167 10.4/ 0 t | 6.26 x 6.26 m.....................................................................171 10.4/ 0 t | 6.26 x 4.5 m......................................................................175 T K 20° 1.2m.................................................................................179 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................179 4.4/ 0 t | 6.26 x 4.5 m | 360°..............................................................195 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................211 10.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................227 4.4/ 0 t | 14I--I10 | !0°....................................................................243 10.4/ 0 t | 14I--I10 | !0°...................................................................246 2.5/1.9 t | 14I--I10 | 360°..................................................................249 T K 20° 4.5m | 360°........................................................................250 4.4/ 0 t | 6.26 x 6.26 m......................................................................250 4.4/ 0 t | 6.26 x 4.5 m.......................................................................254 10.4/ 0 t | 6.26 x 6.26 m.....................................................................258 10.4/ 0 t | 6.26 x 4.5 m......................................................................262 T K 20° 7.8m | 360°........................................................................266 4.4/ 0 t | 6.26 x 6.26 m......................................................................266 4.4/ 0 t | 6.26 x 4.5 m.......................................................................270 10.4/ 0 t | 6.26 x 6.26 m.....................................................................274 10.4/ 0 t | 6.26 x 4.5 m......................................................................278 T K 20° 10.2m | 360°.......................................................................282 4.4/ 0 t | 6.26 x 6.26 m......................................................................282 4.4/ 0 t | 6.26 x 4.5 m.......................................................................286 10.4/ 0 t | 6.26 x 6.26 m.....................................................................290 10.4/ 0 t | 6.26 x 4.5 m......................................................................294 T K 20° 12.6m | 360°.......................................................................298 4.4/ 0 t | 6.26 x 6.26 m......................................................................298 4.4/ 0 t | 6.26 x 4.5 m.......................................................................302 10.4/ 0 t | 6.26 x 6.26 m.....................................................................306 10.4/ 0 t | 6.26 x 4.5 m......................................................................310 T K 20° 15.0m | 360°.......................................................................314 4.4/ 0 t | 6.26 x 6.26 m......................................................................314 4.4/ 0 t | 6.26 x 4.5 m.......................................................................318 10.4/ 0 t | 6.26 x 6.26 m.....................................................................322 10.4/ 0 t | 6.26 x 4.5 m......................................................................326 T K 40° 1.2m.................................................................................330 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................330 4.4/ 0 t | 6.26 x 4.5 m | 360°..............................................................346 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................362 10.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................378 4.4/ 0 t | 14I--I10 | !0°....................................................................394 10.4/ 0 t | 14I--I10 | !0°...................................................................397 2.5/1.9 t | 14I--I10 | 360°..................................................................400 T K 40° 4.5m | 360°........................................................................401 4.4/ 0 t | 6.26 x 6.26 m......................................................................401 4.4/ 0 t | 6.26 x 4.5 m.......................................................................405 10.4/ 0 t | 6.26 x 6.26 m.....................................................................409 10.4/ 0 t | 6.26 x 4.5 m......................................................................413 T K 40° 7.8m | 360°........................................................................417 4.4/ 0 t | 6.26 x 6.26 m......................................................................417 4.4/ 0 t | 6.26 x 4.5 m.......................................................................421 10.4/ 0 t | 6.26 x 6.26 m.....................................................................425 10.4/ 0 t | 6.26 x 4.5 m......................................................................429 T K 40° 10.2m | 360°.......................................................................433 4.4/ 0 t | 6.26 x 6.26 m......................................................................433 4.4/ 0 t | 6.26 x 4.5 m.......................................................................437 10.4/ 0 t | 6.26 x 6.26 m.....................................................................441 10.4/ 0 t | 6.26 x 4.5 m......................................................................445 T K 40° 12.6m | 360°.......................................................................449 4.4/ 0 t | 6.26 x 6.26 m......................................................................449 4.4/ 0 t | 6.26 x 4.5 m.......................................................................453 10.4/ 0 t | 6.26 x 6.26 m.....................................................................457 10.4/ 0 t | 6.26 x 4.5 m......................................................................461 T K 40° 15.0m | 360°.......................................................................465 4.4/ 0 t | 6.26 x 6.26 m......................................................................465 4.4/ 0 t | 6.26 x 4.5 m.......................................................................469 10.4/ 0 t | 6.26 x 6.26 m.....................................................................473 10.4/ 0 t | 6.26 x 4.5 m......................................................................477 T K 60° 1.2m.................................................................................481 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................481 4.4/ 0 t | 6.26 x 4.5 m | 360°..............................................................497 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................513 10.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................529 4.4/ 0 t | 14I--I10 | !0°....................................................................545 10.4/ 0 t | 14I--I10 | !0°...................................................................548 2.5/1.9 t | 14I--I10 | 360°..................................................................551 T K 60° 4.5m | 360°........................................................................552 4.4/ 0 t | 6.26 x 6.26 m......................................................................552 4.4/ 0 t | 6.26 x 4.5 m.......................................................................556 10.4/ 0 t | 6.26 x 6.26 m.....................................................................560 10.4/ 0 t | 6.26 x 4.5 m......................................................................564 T K 60° 7.8m | 360°........................................................................568 4.4/ 0 t | 6.26 x 6.26 m......................................................................568 4.4/ 0 t | 6.26 x 4.5 m.......................................................................572 10.4/ 0 t | 6.26 x 6.26 m.....................................................................576 10.4/ 0 t | 6.26 x 4.5 m......................................................................580 T K 60° 10.2m | 360°.......................................................................584 4.4/ 0 t | 6.26 x 6.26 m......................................................................584 4.4/ 0 t | 6.26 x 4.5 m.......................................................................588 10.4/ 0 t | 6.26 x 6.26 m.....................................................................592 10.4/ 0 t | 6.26 x 4.5 m......................................................................596 T K 60° 12.6m | 360°.......................................................................600 4.4/ 0 t | 6.26 x 6.26 m......................................................................600 4.4/ 0 t | 6.26 x 4.5 m.......................................................................604 10.4/ 0 t | 6.26 x 6.26 m.....................................................................608 10.4/ 0 t | 6.26 x 4.5 m......................................................................612 T K 60° 15.0m | 360°.......................................................................616 4.4/ 0 t | 6.26 x 6.26 m......................................................................616 4.4/ 0 t | 6.26 x 4.5 m.......................................................................620 10.4/ 0 t | 6.26 x 6.26 m.....................................................................624 10.4/ 0 t | 6.26 x 4.5 m......................................................................628
