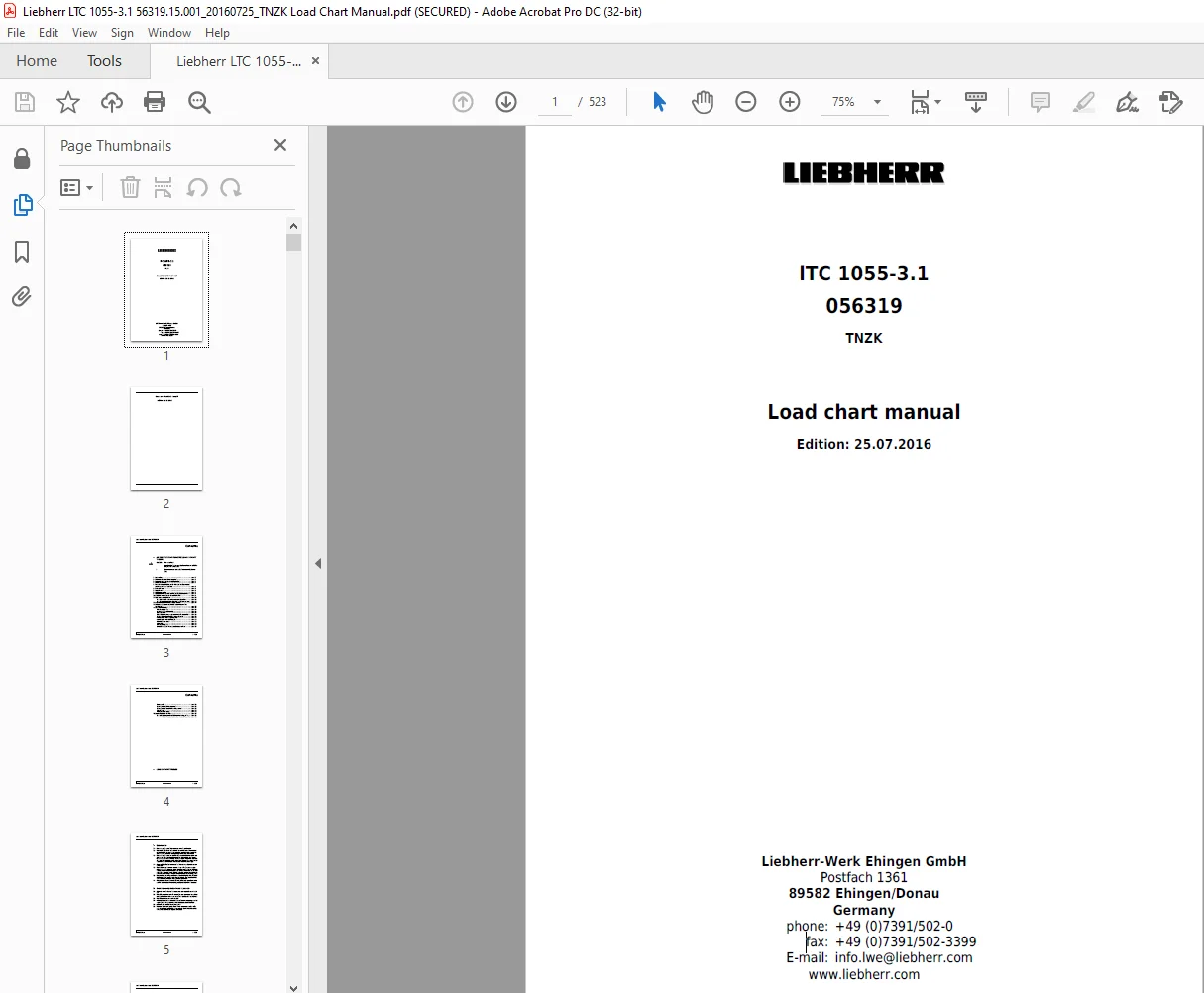

Liebherr Crane LTC 1055-3.1 Load Chart Manual 056319_TNZK – PDF DOWNLOAD
FILE DETAILS:
Liebherr Crane LTC 1055-3.1 Load Chart Manual 056319_TNZK – PDF DOWNLOAD
Language : English
Pages : 523
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Liebherr Crane LTC 1055-3.1 Load Chart Manual 056319_TNZK – PDF DOWNLOAD
1. Explanations:
1.1 The load capacity values in the tables are stated in metric tons [t].
1.2 The working radius is the horizontal gravity center distance of the load from the rotational
axis of the crane superstructure measured at the ground. The radius stated is valid under load
conditions, i.e. including boom flexure.

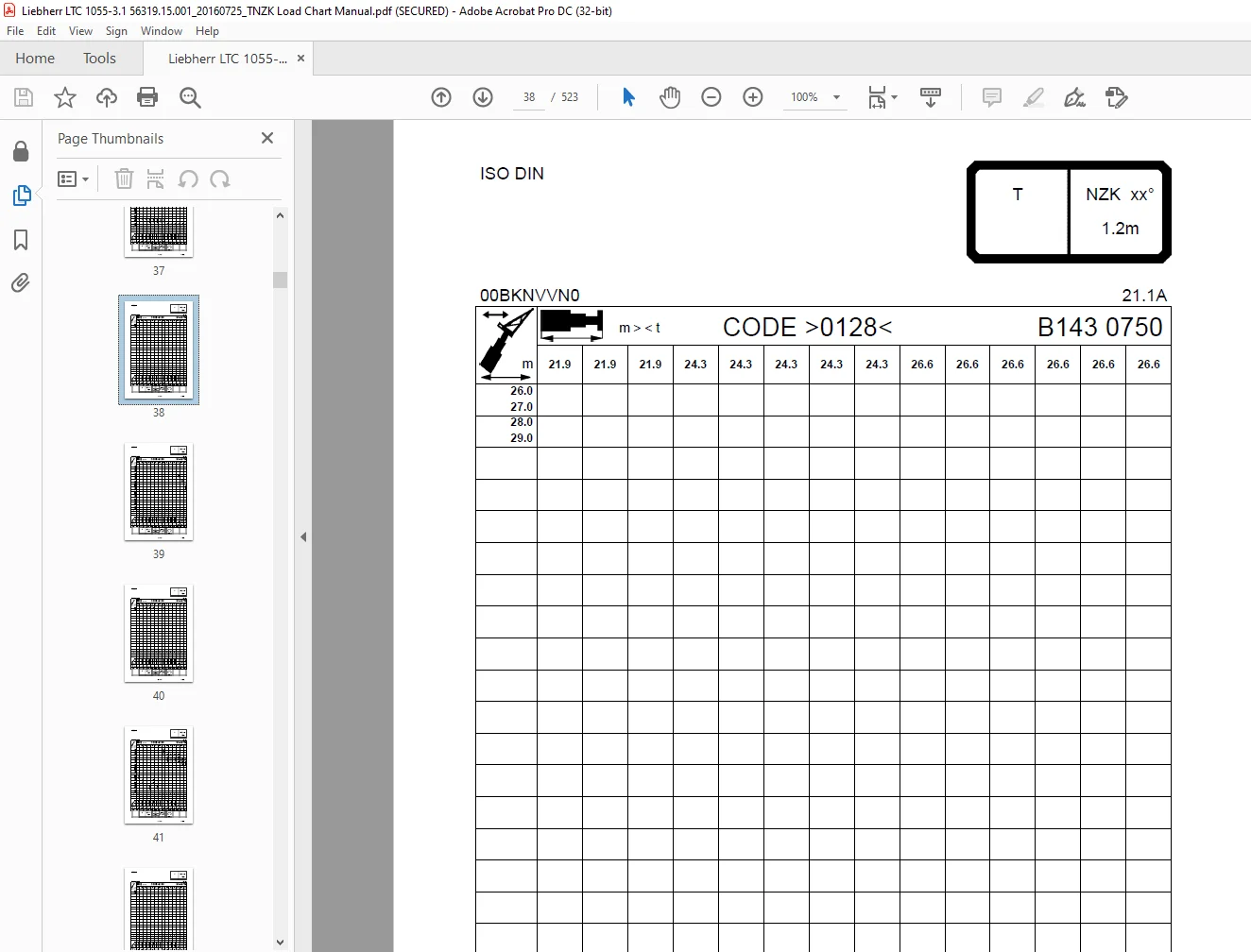

1.3 The load capacity values are specified in fixed stages in the load charts, sub- ject to
reach and telescopic boom length. The load capacity value between two reach stages does not change
linear, but may be closer to the load capa- city value for the greater or smaller reach. For the
intermediate areas, the load capacities which are displayed in the LICCON operating screen apply.
1.4 Boom positions differing from those given in the load capacity tables are not permissible.
1.5 Even without a load, the boom may only be moved inside those areas for which load capacity
values are stated, otherwise there is a danger of tilting. In normal operation, this hazard is
prevented by the overload safety device. After switching to “Assembly” mode (with the “assembly”
key-operated switch), the boom must not be lowered or topped outside the range of the working
radius.
1.6 The stated load capacities contain the weights of the load bearing, lifting and slinging
tackle. The possible weight for the load to be lifted is therefore redu- ced according to the
weights of the afore-mentioned tackle.
1.7 If the boomnose is mounted on the jib head during crane operation, then the possible load is
reduced further corresponding the weight of the boomnose.
1.1 The load capacity values in the tables are stated in metric tons [t].
1.2 The working radius is the horizontal gravity center distance of the load from the rotational
axis of the crane superstructure measured at the ground. The radius stated is valid under load
conditions, i.e. including boom flexure.
1.3 The load capacity values are specified in fixed stages in the load charts, sub- ject to
reach and telescopic boom length. The load capacity value between two reach stages does not change
linear, but may be closer to the load capa- city value for the greater or smaller reach. For the
intermediate areas, the load capacities which are displayed in the LICCON operating screen apply.
1.4 Boom positions differing from those given in the load capacity tables are not permissible.
1.5 Even without a load, the boom may only be moved inside those areas for which load capacity
values are stated, otherwise there is a danger of tilting. In normal operation, this hazard is
prevented by the overload safety device. After switching to “Assembly” mode (with the “assembly”
key-operated switch), the boom must not be lowered or topped outside the range of the working
radius.
1.6 The stated load capacities contain the weights of the load bearing, lifting and slinging
tackle. The possible weight for the load to be lifted is therefore redu- ced according to the
weights of the afore-mentioned tackle.
1.7 If the boomnose is mounted on the jib head during crane operation, then the possible load is
reduced further corresponding the weight of the boomnose.
2. Crane operating mode “Crane supported”:
2.1 Before the crane is raised on its supports, the axle suspension must be blok- ked.
2.2 The sliding arms of the hydraulic support jack must be extended (to a uniform length on both
sides) to the extent stated in the applirope load capacity table.
2.3 The sliding arms must be secured by pins.
2.4 It is necessary to place stable underlay material under the support pads of the support
jacks over a large surface area according to ground conditions.
2.5 All wheels must be raised clear of the ground.
2.6 The crane is to be horizontally aligned via the support control unit. Additio- nally, the
horizontal position of the crane must be checked from time to time during crane operation and
adjusted as required.
2.1 Before the crane is raised on its supports, the axle suspension must be blok- ked.
2.2 The sliding arms of the hydraulic support jack must be extended (to a uniform length on both
sides) to the extent stated in the applirope load capacity table.
2.3 The sliding arms must be secured by pins.
2.4 It is necessary to place stable underlay material under the support pads of the support
jacks over a large surface area according to ground conditions.
2.5 All wheels must be raised clear of the ground.
2.6 The crane is to be horizontally aligned via the support control unit. Additio- nally, the
horizontal position of the crane must be checked from time to time during crane operation and
adjusted as required.
TABLE OF CONTENTS:
Liebherr Crane LTC 1055-3.1 Load Chart Manual 056319_TNZK – PDF DOWNLOAD

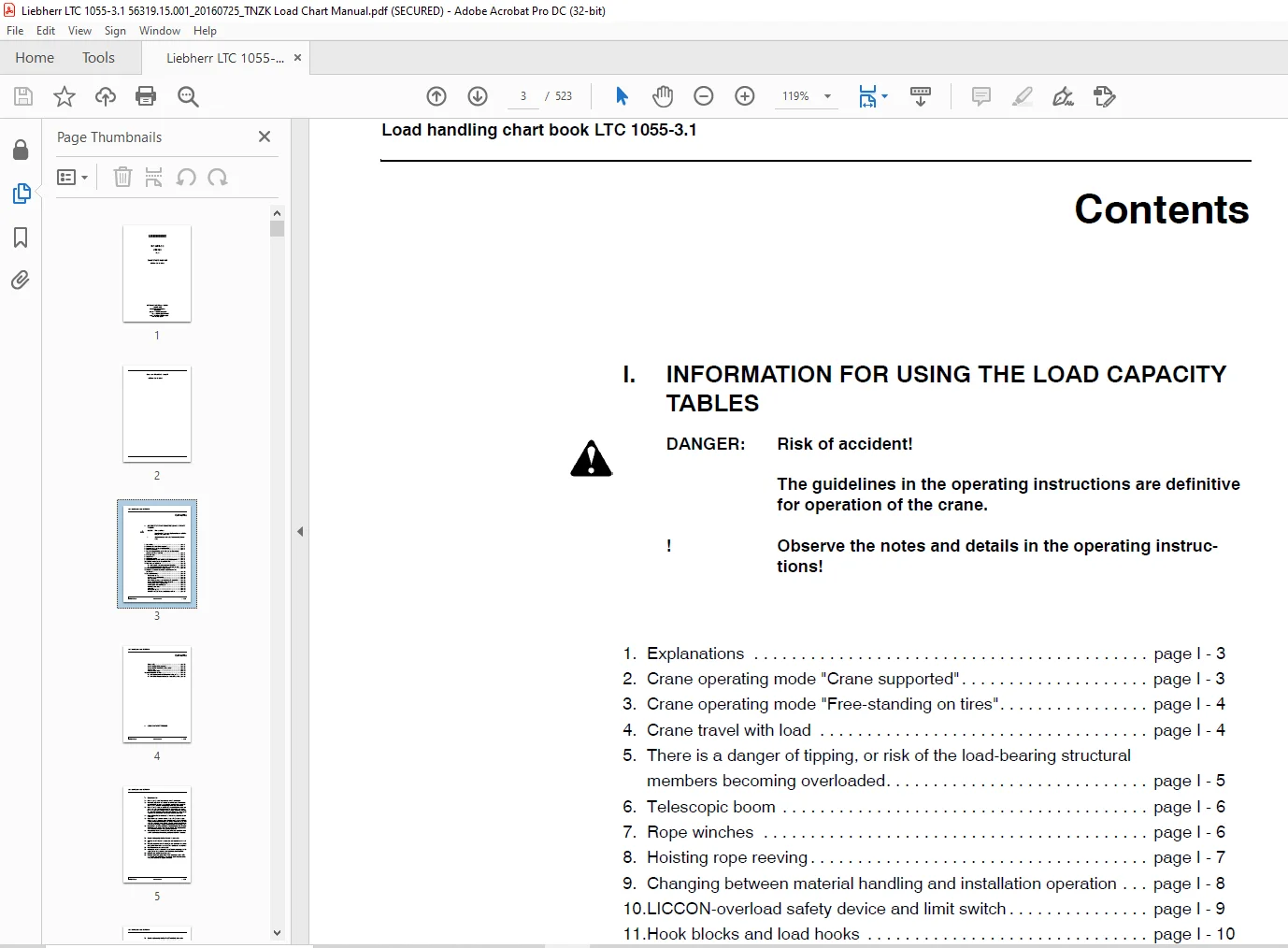

I. INFORMATION FOR USING THE LOAD CAPACITY TABLES........................................................ 0 II. LOAD CAPACITY TABLES................................................................................. 0 1. Explanations.......................................................................................... 0 2. Crane operating mode "Crane supported"................................................................ 0 3. Crane operating mode "Free-standing on tires"......................................................... 0 4. Crane travel with load................................................................................ 0 5. There is a danger of tipping, or risk of the load- bearing structural members becoming overloaded:.... 0 6. Telescopic boom....................................................................................... 0 7. Rope winches.......................................................................................... 0 8. Hoisting rope reeving................................................................................. 0 9. Changing between material handling and installation operation......................................... 0 10. LICCON-overload safety device and limit switch....................................................... 0 11. Hook blocks and load hooks........................................................................... 0 11.1 Load capacity, rope pulleys and operating weight................................................ 0 11.2 Distance between hook and pulley set in the boom head........................................... 0 12. Load capacity reduction with folding jib mounted..................................................... 0 13. Maximum turning speed of the crane’s superstructure with a nominal load.............................. 0 14. Explanation of symbols............................................................................... 0 Hoisting rope reeving................................................................................ 0 Load capacity in metric tons [t]..................................................................... 0 Operating mode....................................................................................... 0 Operating types that can only be operated with accessories!.......................................... 0 Crane operation featuring lifting beam with hooks.................................................... 0 Working radius of the telescopic boom................................................................ 0 Working radius of the additional jib................................................................. 0 Telescopic boom length............................................................................... 0 Short code........................................................................................... 0 Hoisting rope reeving................................................................................ 0 Extension conditions of the telescopic boom sections................................................. 0 Counterweight........................................................................................ 0 Crane operations "Crane supported"................................................................... 0 Crane operation "Crane free-standing on tyres"....................................................... 0 Slewing range........................................................................................ 0 Permissible wind speed............................................................................... 0 15. Observation of wind conditions....................................................................... 0 15.1 Wind influence on the LICCON-overload safety device............................................. 0 15.2 Permissible wind speed and surface susceptibility to wind....................................... 0 [...] [...] ... | TNZK | ISO DIN..................................................................... 31 T NZK xx° 1.2m................................................................................ 33 4.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................. 33 10.4/ 0 t | 6.26 x 4.5 m | 360°............................................................. 69 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................105 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................141 4.4/ 0 t | 14I--I10 | !0°....................................................................177 10.4/ 0 t | 14I--I10 | !0°...................................................................189 2.5/1.9 t | 14I--I10 | 360°..................................................................201 T NZK xx° 4.5m | 360°.......................................................................203 4.4/ 0 t | 6.26 x 4.5 m.......................................................................203 10.4/ 0 t | 6.26 x 4.5 m......................................................................219 4.4/ 0 t | 6.26 x 6.26 m......................................................................235 10.4/ 0 t | 6.26 x 6.26 m.....................................................................251 T NZK xx° 7.8m | 360°.......................................................................267 4.4/ 0 t | 6.26 x 4.5 m.......................................................................267 10.4/ 0 t | 6.26 x 4.5 m......................................................................283 4.4/ 0 t | 6.26 x 6.26 m......................................................................299 10.4/ 0 t | 6.26 x 6.26 m.....................................................................315 T NZK xx° 10.2m | 360°......................................................................331 4.4/ 0 t | 6.26 x 4.5 m.......................................................................331 10.4/ 0 t | 6.26 x 4.5 m......................................................................347 4.4/ 0 t | 6.26 x 6.26 m......................................................................363 10.4/ 0 t | 6.26 x 6.26 m.....................................................................379 T NZK xx° 12.6m | 360°......................................................................395 4.4/ 0 t | 6.26 x 4.5 m.......................................................................395 10.4/ 0 t | 6.26 x 4.5 m......................................................................411 4.4/ 0 t | 6.26 x 6.26 m......................................................................427 10.4/ 0 t | 6.26 x 6.26 m.....................................................................443 T NZK xx° 15.0m | 360°......................................................................459 4.4/ 0 t | 6.26 x 4.5 m.......................................................................459 10.4/ 0 t | 6.26 x 4.5 m......................................................................475 4.4/ 0 t | 6.26 x 6.26 m......................................................................491 10.4/ 0 t | 6.26 x 6.26 m.....................................................................507
