Liebherr Crane LTC 1055-3.1 Spare Parts Catalogue Manual 056319 – PDF DOWNLOAD
$36.95
Liebherr Crane LTC 1055-3.1 Spare Parts Catalogue Manual 056319 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Liebherr Crane LTC 1055-3.1 Spare Parts Catalogue Manual 056319 – PDF DOWNLOAD
FILE DETAILS:
Liebherr Crane LTC 1055-3.1 Spare Parts Catalogue Manual 056319 – PDF DOWNLOAD
Language : English
Pages : 1138
Downloadable : Yes
File Type : PDF

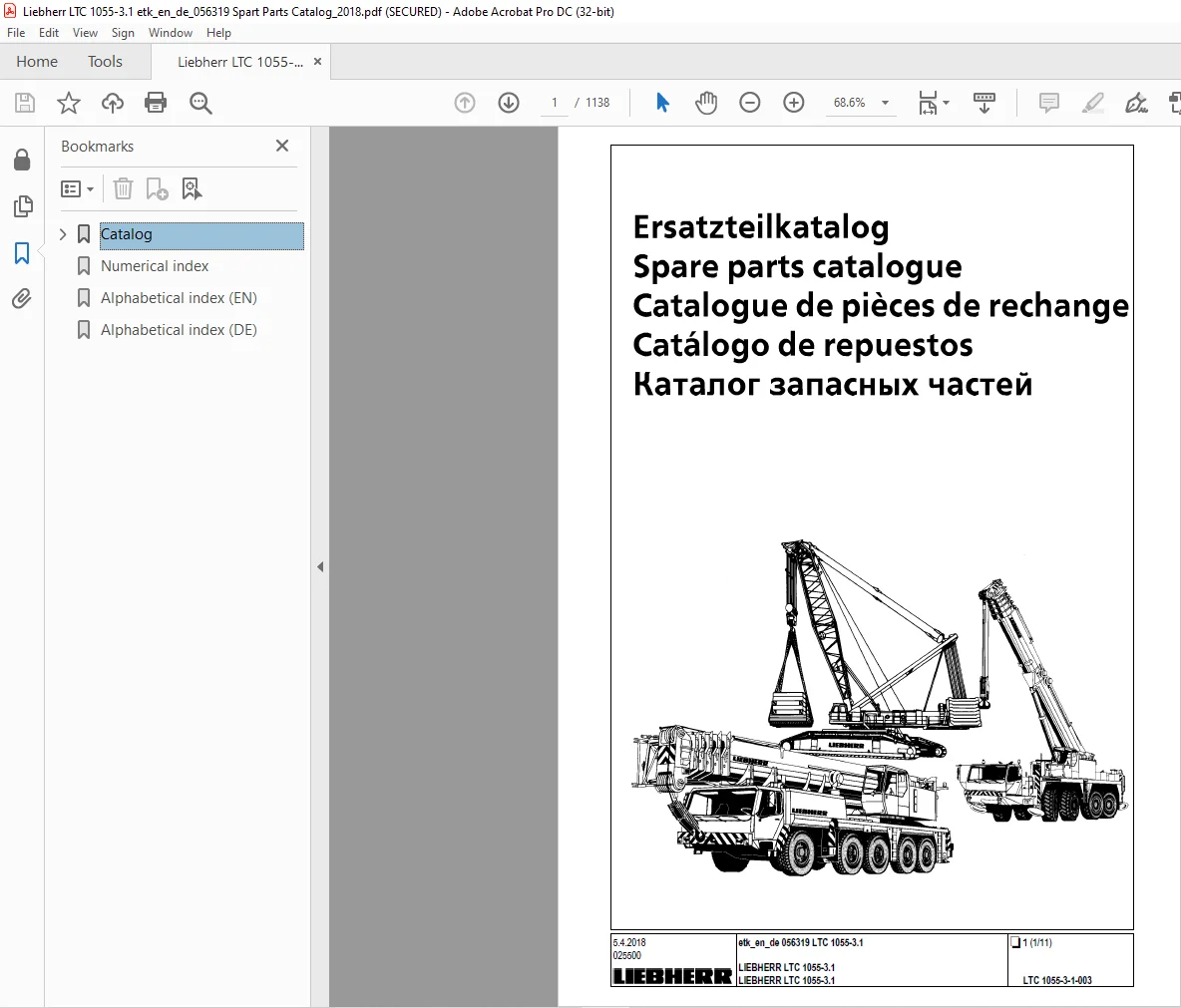

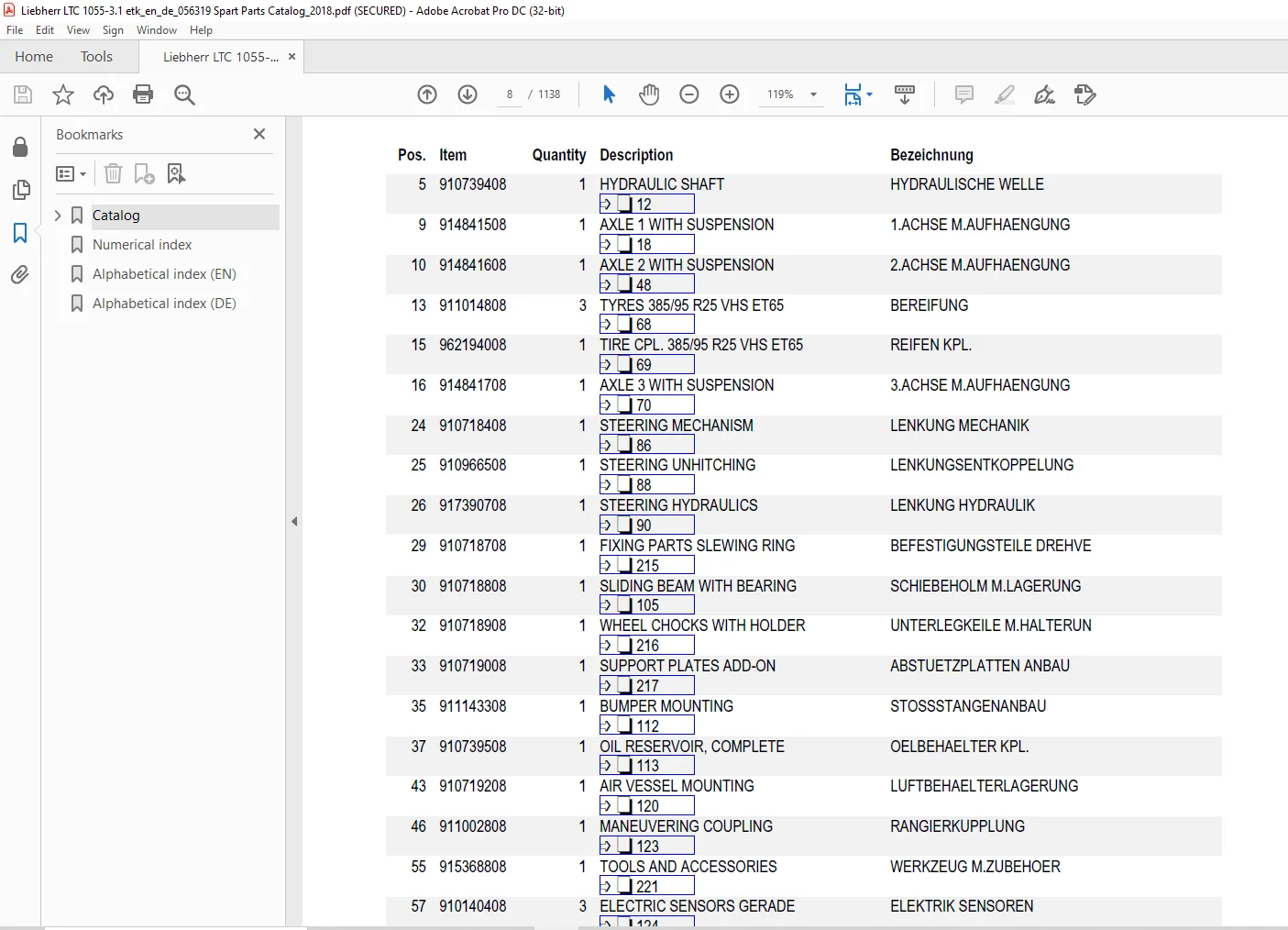

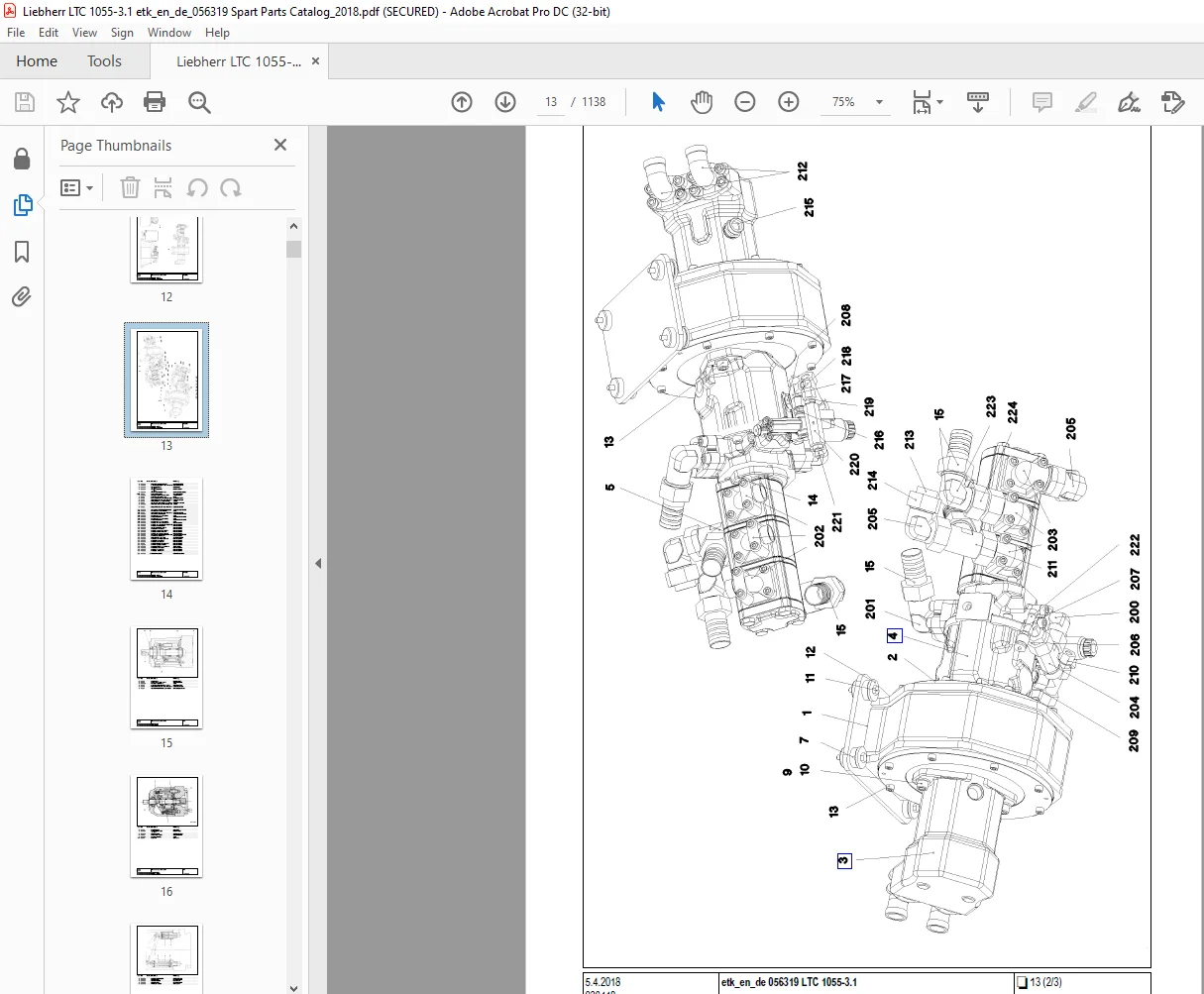

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Liebherr Crane LTC 1055-3.1 Spare Parts Catalogue Manual 056319 – PDF DOWNLOAD
PRELIMINARY :
This spare parts catalogue should make it easier for you to identify and order spare parts for the
maintenance and repair of your Liebherr crane.
In order to find the spare parts faster, the assemblies used in your crane are listed in the table of
contents.
Table of contents:
In the table of contents, the arrow (L)) in the second text row of the assembly article no. refers to the
article no.
Figure and text pages:
The figure and text pages for the assemblies and individual parts are sorted according to chassis,
superstructure and boom. An article can consist of one or multiple figure and/ or text pages.
The symbols on the corresponding figure pages refer to additional related articles. The symbol refers to
the pipelines and/ or hose lines in the respective crane partition, chassis, superstructure or boom.
Each additional arrow (c)) leads to a more detailed figure and / or text page of the article, if there are
position numbers between parentheses (x), then it is an individual part of the previous article.
Numerical index:
The numerical index is sorted according to the article no. with references to the assembly no. and the
position no.
Alphabetic index:
The alphabetic index is sorted according to the designation with references to the article no., position no.
and assembly no.
For the factual accuracy of the catalogue, only the German text is applicable.
TABLE OF CONTENTS:
Liebherr Crane LTC 1055-3.1 Spare Parts Catalogue Manual 056319 – PDF DOWNLOAD
Catalog........................................... 1 LTC 1055-3-1-003 / LIEBHERR LTC 1055-3.1...... 1 910739408 / HYDRAULIC SHAFT................... 12 510241508 / HYDRO MOTOR....................... 15 512143908 / VARIABLE PUMP..................... 16 570947108 / ADJUSTMENT PARTS.................. 17 914841508 / AXLE 1 WITH SUSPENSION............ 18 963408508 / AXLE 1, PRE-ASSEMBLED............. 19 519921908 / DRIVEN STEERING AXLE.............. 21 570424708 / TRACK ROD......................... 27 10286865 / BRAKE.............................. 28 571371008 / EXPANDING DEVICE.................. 31 10286866 / BRAKE.............................. 32 10036320 / STEERING CYLINDER.................. 35 521148808 / AXLE STRUT........................ 36 10122508 / HYDRAULIC DOUBLE MOTOR............. 37 10123944 / REPAIR KIT DRIVING MECHANISM....... 39 10123968 / REPAIR KIT DRIVING MECHANISM....... 40 10121823 / REPAIR KIT LOCK RING............... 41 962431208 / INST. PARTS ANGLE SENSOR.......... 42 963397508 / HYDRAULICS........................ 43 10020995 / CONNECTING PLATE................... 45 963374108 / SCREW COUPLING, CPL............... 46 10036308 / SUSPENSION CYLINDER................ 47 914841608 / AXLE 2 WITH SUSPENSION............ 48 963408708 / AXLE 2, PRE-ASSEMBLED............. 49 519922008 / DRIVEN STEERING AXLE.............. 51 10038050 / BRAKE.............................. 57 10215905 / BRAKE.............................. 60 10036315 / STEERING CYLINDER.................. 63 512393008 / STEERING CENTERING CYLINDER....... 64 521143408 / AXLE STRUT........................ 65 963397608 / HYDRAULICS........................ 66 911014808 / TYRES............................. 68 962194008 / TIRE CPL.......................... 69 914841708 / AXLE 3 WITH SUSPENSION............ 70 963408808 / AXLE 3, PRE-ASSEMBLED............. 71 519922108 / DRIVEN STEERING AXLE.............. 73 10041691 / VARIABLE PUMP...................... 79 511320008 / VALVE BLOCK....................... 81 510469908 / NON-RETURN VALVE.................. 83 963397708 / HYDRAULICS........................ 84 910718408 / STEERING MECHANISM................ 86 962268008 / REMOTE STEERING PRE-ASS........... 87 910966508 / STEERING UNHITCHING............... 88 962378808 / PREMOUNTED LOWER PART............. 89 917390708 / STEERING HYDRAULICS............... 90 962565008 / PRE-ASS.BLOCK-VALVES.............. 91 10021922 / COMPACT CONTROL BLOCK.............. 93 571634708 / DIRECTIONAL CONTROL VALVE......... 95 10878075 / EMERGENCY HAND OPERATION........... 96 570427108 / PRESSURE LIMITING VALVE........... 97 967974208 / PREMOUNT ASSEMB PLATE STEERING.... 98 967974408 / CONTROL BLOCK..................... 99 10032445 / CONTROL BLOCK...................... 100 10290986 / DIRECTIONAL CONTROL VALVE.......... 101 10290988 / DIRECTIONAL CONTROL VALVE.......... 102 510668108 / PRESSURE FILTER................... 103 510675308 / PRESSURE FILTER................... 104 910718808 / SLIDING BEAM WITH BEARING......... 105 962219008 / SLIDING BEAM, PRE-ASSEMBLED....... 106 512399908 / SUPPORT CYLINDER.................. 109 571934808 / NON-RETURN VALVE.................. 110 512400408 / EXTENSION RAM..................... 111 911143308 / BUMPER MOUNTING................... 112 910739508 / OIL RESERVOIR, COMPLETE........... 113 962301508 / OIL TANK PRE-ASS.................. 114 510670408 / RETURN FILTER..................... 116 570832008 / FILTER COVER...................... 117 510654508 / AERATION FILTER................... 118 704152208 / SHUTOFF VALVE..................... 119 910719208 / AIR VESSEL MOUNTING............... 120 962425708 / AIR RESERVOIR, PRE-ASSEMBLED...... 122 911002808 / MANEUVERING COUPLING.............. 123 910140408 / ELECTRIC SENSORS.................. 124 910140508 / ELECTRIC SENSORS.................. 125 914835508 / SWITCH CABINET UC................. 126 963416108 / PREMOUNT ERECTING PANEL PRE-AS.... 127 926891108 / GROUND RAIL....................... 129 963416208 / WIRES COMP.SWITCH CABINET UC...... 130 962237808 / INSERTION MODULE.................. 131 922648308 / TERMINAL BOARD PRE-ASS............ 132 962661108 / RELAY CONTROL SYSTEM.............. 133 962415008 / SWITCH CABINET PRE-ASS............ 134 911003208 / SWITCH CABINET EXTENSION.......... 135 914792608 / TIRE COVER PANELLING.............. 136 963566208 / PREMOUNTED ADJUSTABLE COVER....... 142 962317208 / RIGHT-HAND ACCESS CPL............. 143 963345708 / LEFT-HAND ACCESS CPL.............. 144 962317308 / DOOR.............................. 145 962431508 / PREMOUNTED FIXED COVER............ 146 915321008 / UNDERCARRIAGE ELEC. SYSTEM........ 147 910720008 / COLLECTING RING................... 148 962378208 / SLIP RING CONNECTOR PRE-ASSEM..... 149 10030425 / COLLECTING RING.................... 151 915103308 / LIGHTING GREAT BRITAN............. 153 962363708 / WIRING LIST FOR LIGHTING.......... 155 962450808 / LEAD.............................. 156 962450908 / LEAD.............................. 157 962152008 / LAMP CLAMP CPL.REAR LEFT.......... 158 607150708 / TAIL LAMP......................... 159 962152108 / LAMP CLAMP CPL.REAR RIGHT......... 160 962367408 / LEFT LAMP HOLDER CPL.............. 161 962363808 / RIGHT LAMP HOLDER CPL............. 162 10296538 / WORK LIGHT......................... 163 917390808 / COMPRESSED AIR PLANT.............. 164 502958408 / ADAPTER VALVE..................... 168 511308008 / SOLENOID VALVE.................... 169 915562608 / FILTER INSTALL. TRAVEL DRIVE...... 170 10429917 / PRESSURE FILTER.................... 171 912013908 / HYDR.TRAVEL DRIVE................. 172 962526508 / STANDARD BRACKET.................. 177 962619208 / STANDARD BRACKET.................. 178 962619608 / STANDARD BRACKET.................. 179 962620208 / STANDARD BRACKET.................. 180 962526608 / DOUBLE CLIP....................... 181 962617208 / DOUBLE CLIP....................... 182 962628208 / CLAMP BEARING..................... 183 962628308 / CLAMP BEARING..................... 184 962774708 / DOUBLE CLIP....................... 185 914666508 / HYDRAULIC AXLE SUSPENSION......... 186 511498308 / AXLE LOCKING VALVE................ 188 570933008 / AIR ACTUATION SECTION............. 189 511417708 / PRESSURE LIMITING VALVE........... 190 511315108 / AXLE LOCKING VALVE................ 191 915311808 / HYDRAULIC SUPPORT................. 192 10333692 / SLIDE VALVE BLOCK.................. 195 910720708 / HYDRAULIC SUPPORT ACTUATION....... 196 962301908 / SWITCH BOX CPL.................... 197 926819608 / HOUSING CPL....................... 198 926819708 / HOUSING CPL....................... 199 929138808 / OUTRIGGER CONTROL FROM ABOVE...... 200 962302208 / PLATE CPL......................... 201 914826308 / HOSE LINES UNDERCARRIAGE.......... 202 912663908 / PIPELINES UNDERCARRIAGE........... 205 911015708 / MONITORING SUPPORTING PRESSURE.... 207 910509708 / BACKING WARNING ACOUSTIC.......... 208 914925608 / TRAILER COUPLING.................. 209 911016408 / PNEUMATIC FOR TRAILER COUPLING.... 210 963182608 / PNEUMATIC FOR TRAILER COUPLING.... 211 914247608 / TRAILER PLUG SOCKET............... 212 911016708 / TRAILER PLUG SOCKET............... 213 910966608 / HOOK BLOCK REST................... 214 910718708 / FIXING PARTS SLEWING RING......... 215 910718908 / WHEEL CHOCKS WITH HOLDER.......... 216 910719008 / SUPPORT PLATES ADD-ON............. 217 962273408 / SUPPORT PLATE COMPL............... 218 963182308 / COTTER PIN........................ 219 963182408 / SPRING PLUG PRE-ASS............... 220 915368808 / TOOLS AND ACCESSORIES............. 221 963346508 / TOW BAR BEARING................... 223 962444908 / TOW BAR COMPLETE.................. 224 928569808 / MAIN TOOLS........................ 225 928620108 / ACCESSORIES....................... 226 914856708 / DISPATCH ASSY.MECH.PARTS.......... 227 912607608 / MOUNTING OF ANT-SLIP SURFACING.... 228 963427608 / ASSEMBLY SPLASHGUARD.............. 229 912683708 / LABELLING GREAT BRITAIN........... 230 913835108 / EL.COMP. DISPATCH ASSEMBLY........ 231 607144408 / ROTATING BEACON................... 232 910712408 / ASSEMBLY PARTS F.SLEWING PLTF..... 233 915425508 / DRIVE ASSEMBLY CPL................ 234 915429808 / DRIVE ASSEMBLY, PRE-ASSEMBLED..... 238 9739081 / DIESEL ENGINE....................... 245 10100755 / DIESEL ENGINE...................... 247 9739241 / CRANKCASE........................... 250 10222309 / CRANKCASE.......................... 251 9739096 / SCREW PLUG.......................... 253 9739132 / POWER UNIT SUPPORT.................. 254 9739133 / AGGREGATE SUPPORT PRE-ASS........... 255 9739243 / PISTON COOLING...................... 256 9739221 / CRANKCASE BREATHER.................. 257 9739386 / CRANKCASE BREATHER.................. 258 9739322 / REPAIR KIT PIPE LINE................ 259 9739362 / OIL SUMP............................ 260 9739361 / OIL SUMP............................ 261 9739211 / OIL DIPSTICK WITH PIPE.............. 262 9739242 / CYLINDER LINER...................... 263 9739102 / CRANKSHAFT BEARINGS................. 264 9739103 / DRIVING PARTS....................... 265 9739287 / CONROD.............................. 266 9739246 / PISTON.............................. 267 9739262 / CYLINDER HEAD....................... 268 9739263 / ROCKER ARM BEARING HOUSING.......... 269 9739261 / CYLINDER HEAD....................... 270 9739260 / CYLINDER HEAD....................... 271 9739266 / CYLINDER HEAD....................... 272 9739264 / ROCKER ARM BEARING HOUSING.......... 273 9739267 / CYLINDER HEAD COVER................. 274 9739245 / CAMSHAFT............................ 275 9739187 / CONTROL PARTS....................... 276 9739273 / OIL COOLER ADD-ON................... 277 9739122 / OIL COOLER.......................... 278 9739117 / LUBRICATING OIL PUMP................ 279 9739118 / OIL LINE............................ 280 9739277 / HIGH PRESSURE PUMP.................. 281 9739278 / ADD-ON PARTS........................ 282 9739248 / INJECTION NOZZLE W.FASTENING........ 283 9739259 / FUEL FILTER ATTACHMENT.............. 284 9739258 / FUEL FILTER......................... 285 9739292 / FUEL LINES.......................... 287 9739501 / FUEL LINES.......................... 288 9739369 / PRESSURE PIPE....................... 289 9739281 / OVERFLOW-OIL LINE................... 290 9739282 / OVERFLOW-OIL LINE................... 291 9739500 / OVERFLOW-OIL LINE................... 292 9739256 / AIR SUCTION PIPE.................... 293 9739209 / INTAKE STACK ASSEMBLY............... 294 9739269 / EXHAUST GAS RECIRCULATION........... 295 9739268 / EXHAUST GAS RECIRCULATION........... 296 10012394 / FLAP............................... 297 9739293 / CONNECTING LINE..................... 298 9739298 / FLAME STARTING SYSTEM............... 299 9739294 / FUEL LINE........................... 300 9739502 / FUEL LINE........................... 301 9739222 / INSTALLATION BRAKE COMPRESSOR....... 302 9739223 / AIR COMPRESSOR...................... 303 10012473 / CONROD............................. 305 9739167 / RS AIR COMPRESSOR................... 306 9739286 / END COVER........................... 307 9739224 / PIPELINE INSTALLATION............... 308 9739123 / WATER PUMP WITH FASTENING........... 311 9739196 / WATER PUMP.......................... 312 9739255 / CONNECTION F.WATER PIPE............. 313 9739127 / WATER BLEEDER PIPELINE.............. 314 9739210 / COOLING MEDIUM PIPELINE............. 315 9739212 / THERMOSTAT HOUSING.................. 316 9739276 / WATER CONNECTION.................... 317 9739275 / FAN DRIVE........................... 318 9739274 / FAN DRIVE........................... 319 9739295 / EXHAUST PIPE........................ 320 9739296 / HEAT PROTECTION..................... 321 9739297 / EXHAUST TC MOUNTING................. 322 9739202 / GENERATOR ADD-ON.................... 323 9739177 / GENERATOR DRIVE..................... 324 9739159 / STARTER............................. 325 9739249 / TRANSPORT STAND..................... 326 9739290 / FASTENING PIECES ASSEMBLY........... 327 9739318 / SENSOR ELEMENT...................... 328 9739219 / FLYWHEEL HOUSING.................... 329 9739220 / FLYWHEEL HOUSING PRE-ASS............ 330 9739250 / FLYWHEEL............................ 331 9739082 / INFORMATION SIGN.................... 332 9080702 / CONTROL BOX ANNEXE.................. 333 10116141 / FUEL HOSE.......................... 334 9739279 / CABLE HARNESS MOUNTING.............. 335 9739257 / ROTATIONAL SPEED SENSOR ATTACH...... 336 9079185 / ROTATIONAL SPEED SENSOR CPL......... 337 9079186 / ROTATIONAL SPEED SENSOR CPL......... 338 9739035 / LOCKING PIECES...................... 339 9739080 / ENGINE BRAKE CPL.................... 340 9739186 / ENGINE BRAKE CPL.................... 341 10222812 / SEAL KIT DIESEL ENGINE............. 342 10222817 / SEAL KIT CYLINDER HEAD............. 344 9078760 / MULTIPLE CIRCUIT AGGREGATE.......... 345 9078761 / PUMP DISTRIBUTION GEAR.............. 346 10121042 / COOLING CIRCUIT PUMP............... 349 5004624 / OIL DRAIN PLUG...................... 350 9076801 / HYDR.VARIABLE DISPLACEMEN PUMP...... 351 9079359 / REGULATING VALVE.................... 352 10122247 / REPAIR KIT DRIVING MECHANISM....... 353 10122257 / REPAIR KIT CONNECTING PLATE........ 354 10122262 / REGULATION REPAIR KIT.............. 355 9077055 / HYDR.VARIABLE DISPLACEMEN PUMP...... 356 9076900 / HYDR.VARIABLE DISPLACEMEN PUMP...... 358 10131053 / REPAIR KIT DRIVING MECHANISM....... 359 10131054 / RK CYL.+CONTROL PLATE+SHAFT........ 360 10131055 / REPAIR KIT CONNECTING PLATE........ 361 9077971 / HYDR.VARIABLE DISPLACEMEN PUMP...... 362 10122337 / REPAIR KIT CONNECTING PLATE........ 364 10021350 / VARIABLE PUMP...................... 365 10872247 / VARIABLE PUMP...................... 366 512128208 / VARIABLE PUMP..................... 368 571516408 / CONTROL VALVE..................... 369 570946908 / ADAPTOR........................... 370 571516608 / ADAPTOR........................... 371 10021351 / VARIABLE PUMP...................... 372 10022669 / TWO-STAGE PUMP..................... 373 963483508 / COMBINATION COOLER COMPLETE....... 374 963483608 / PREMOUNTED COMBINATION COOLER..... 376 10219388 / COMBINATED RADIATOR................ 379 10020816 / EQUALIZING RESERVOIR............... 380 96004429 / HOSES.............................. 381 963128608 / PREMOUNTED FUEL FILTER............ 382 10113184 / FUEL PREFILTER..................... 383 510682308 / BALL VALVE........................ 384 914814508 / BATTERY BOX CPL................... 385 962481808 / BATTERY BOX, PRE-ASSEMBLED........ 388 963418008 / ELECTRIC FOR BATTERY BOX.......... 389 606070908 / BATTERY MAIN SWITCH............... 390 913598708 / OIL AND FUEL TANK................. 391 962954908 / PREMOUNTED FUEL AND OIL TANK...... 392 10033073 / SHUT OFF DEVICE.................... 394 510669408 / RETURN FILTER..................... 395 914882708 / LUFFING RAM W. PIVOT.............. 396 10285795 / LUFFING CYLINDER................... 399 910713208 / BALL SLEWING RING................. 400 932304701 / BALL SLEWING RING................. 401 910714208 / SLEWING GEAR...................... 402 10023162 / SWING GEAR......................... 403 10342751 / POWER TAKE-OFF..................... 404 964024208 / PLANETARY GEARBOX................. 405 10342754 / MULTI-DISK BRAKE................... 406 964025808 / ADD-ON PARTS...................... 408 510230608 / HYDRO MOTOR....................... 409 570112908 / DRIVING GEAR...................... 410 570113308 / DRIVING GEAR...................... 411 915433708 / ANGLE THREADED BULKHEAD........... 412 512393108 / PNEUMATIC CYLINDER................ 414 961933808 / ADDITIONAL ELECTRICS.............. 415 912651708 / HOIST GEAR........................ 416 932921101 / COMPACT ROPE WINCH................ 417 932615601 / ROPE DRUM......................... 419 932607301 / PLANETARY GEARBOX................. 420 932617001 / OIL-GAUGING INSTRUMENT............ 422 10028233 / HYDRO MOTOR........................ 423 914839308 / CRANE DRIVER'S CABIN CPL.......... 424 914865708 / CRANE DRIVER'S CABIN,PRE-ASSY..... 427 914866708 / CABIN, GLAZED..................... 428 914946508 / DOOR CPL.......................... 438 961960008 / BASIC DOOR FRAME.................. 442 963632808 / MIRROR ATTACHMENT................. 444 921865108 / DOOR HINGE CPL.................... 445 963225108 / DOOR STOPPER COMPL................ 446 962900608 / INSULATION DOOR COMPLETE.......... 447 961960108 / FRONT WINDOW CPL.................. 448 911221708 / REAR DOOR CPL..................... 450 911976308 / HEATING CRANE DRIVER'S CABIN...... 452 553002608 / AIR CONDITIONING UNIT............. 454 962284908 / STEP PLATE, PRE-ASSEMBLED......... 456 963435108 / ADJUSTER UNIT..................... 457 963382308 / INSTALLATION CARDAN SHAFTS........ 458 963382408 / PREMOUNTED UPPER PART............. 459 963382508 / INTERLOCKING...................... 461 521004708 / ANGULAR GEAR...................... 463 962384308 / SENSOR FIXING..................... 464 10023148 / BOWDEN PULL SYSTEM................. 465 962424908 / PILLOW BLOCK PRE-ASS.............. 466 10027990 / PROPELLER SHAFT.................... 467 962344108 / BASE MATS......................... 468 962443408 / STEP PLATE, PRE-ASSEMBLED......... 470 965789908 / MODIFICATION...................... 471 963397908 / PREMOUNT.AXIAL FLOW FAN LOWER..... 473 911674208 / TACHOGRAPH........................ 474 910714708 / CONTROL STAND..................... 475 962282208 / ARM REST LEFT..................... 479 962282308 / ARM REST RIGHT.................... 480 10041336 / OPERATOR SEAT...................... 481 914813908 / TURNTABLE PANELLING............... 483 963497608 / SLEWING PLATFORM PANELLING RIG.... 484 962472108 / DOOR COMPL........................ 488 963502408 / PREMOUNTED LADDER SHAFT........... 489 962490208 / DOOR COMPL........................ 491 963505308 / SLEWING PLATFORM PANELLING LEF.... 492 963515308 / DOOR RIGHT PRE-ASS................ 496 963515408 / DOOR LEFT PRE-ASS................. 498 962463508 / PREMOUNTED UPPER FLAP............. 500 962463608 / PREMOUNTED AIR FILTER SHUTTER..... 501 962563208 / COVER PRE-ASSY.................... 502 962563308 / COVER PRE-ASSY.................... 503 963039708 / SOUND AND HEAT INSULATION LEFT.... 504 962178208 / SOUND AND HEAT INSULATION LEFT.... 506 914920508 / CONTROL PANEL CABIN............... 508 963791108 / LICCON CONSOLE LCD3............... 509 910470508 / LICCON CONSOLE LCD3............... 510 962059908 / FOIL KEYPAD PRE-ASS............... 512 962046008 / HOUSING PRE-ASSEMBLED............. 513 606194308 / IGNITION STARTER SWITCH........... 514 915046208 / ELECTR. FOR CONTROL STAND......... 515 606095008 / MASTER SWITCH..................... 516 915422508 / EL.INSTRUMENTS F.CRANE DRIV.CA.... 517 962473608 / DASHBOARD ROOF, PRE-ASSEMBLED..... 518 962473808 / ELECTRIC ADD-ON PARTS CABIN....... 520 914907108 / ADD HEATING SUPERSTRUCTURE........ 523 10042043 / WATER HEATING SYSTEM............... 525 914798208 / AUX.HEATING UPPERC.AIRTOP......... 526 571571608 / AIR HEATER........................ 529 10303150 / BURNER INSERT...................... 530 10303153 / SEAL KIT........................... 531 914883708 / HYDRAULIC BALLASTING.............. 532 9288215 / BALLAST EXTENSION RAM............... 535 963508408 / LIMIT SWITCH ADD-ON............... 536 914638708 / EXHAUST GAS SYSTEM................ 537 914638908 / AIR FILTER UNIT................... 538 551720308 / AIR FILTER........................ 539 915146308 / CENT. LUBRIC. SYSTEM SUPERST...... 540 10327065 / ELECTRIC PUMP...................... 542 11002914 / DISTRIBUTION BLOCK................. 544 915146508 / ELECTR. SYSTEM F.SLEWING PLATF.... 545 962463308 / EL.ADD-ON SET-LIMIT SWITCHES +.... 546 914339308 / ELECTRIC SLEWING SENSOR........... 547 921163508 / ELECTR.FOR SLEWING GEAR........... 548 928828008 / LIMIT SWITCH...................... 549 964188208 / CABLE LIST SLEWING PLATFORM....... 550 964063908 / WIRING HARNESS.................... 551 927868908 / TERMINAL BOX LIGHTING............. 553 962466508 / ELECTRIC FOR FLASHLIGHT........... 554 915276408 / SWITCHBOX MOUNTING PARTS.......... 555 964407308 / BASE ASSEMBLY..................... 556 963211908 / INSERTION MODULE.................. 560 922612908 / GROUND RAIL....................... 561 964418508 / CABLES, BASIC CONSTRUCTION CPL.... 562 910717008 / PNEUM. CRANE OPERATORS CABIN...... 563 502926208 / DIRECTIONAL CONTROL VALVE......... 565 502650008 / HANDBRAKE VALVE................... 566 915319208 / HYDRAULICS........................ 567 10300439 / CONTROL BLOCK...................... 581 10022242 / LINE FILTER........................ 582 511302008 / DIRECTIONAL CONTROL VALVE......... 583 511444408 / DIRECTIONAL CONTROL VALVE......... 584 10022236 / CONTROL BLOCK...................... 585 10280164 / SHEET.............................. 586 10032697 / PRESSURE LIMITING VALVE............ 588 10032696 / CARTRIDGE.......................... 589 10280165 / VALVE BLOCK........................ 590 511433908 / PRESSURE LIMITING VALVE........... 593 511311408 / PRETENSIONING VALVE............... 594 10343786 / CONTROL BLOCK...................... 595 571737808 / DIRECTIONAL CONTROL VALVE......... 596 510697608 / BALL VALVE........................ 597 511486908 / CONTROL PLATE..................... 598 571453708 / PRESSURE VALVE.................... 599 570527908 / DIRECTIONAL CONTROL VALVE......... 600 10022239 / LOWERING BRAKE VALVE............... 601 10022237 / SLEWING GEAR VALVE................. 602 571889508 / PRESSURE VALVE.................... 605 511306608 / CONTROL BLOCK..................... 606 11170276 / PRESSURE REDUCTION VALVE........... 607 10022296 / CONTROL BLOCK...................... 608 571892008 / DIRECTIONAL CONTROL VALVE......... 610 10022244 / CONTROL BLOCK...................... 611 963472108 / HOSE LINES SLEWING PLATFORM....... 612 962579308 / MECHANICAL AUXILIARIES............ 613 912847808 / OIL COOLER INSTALLATION........... 615 962814308 / OIL COOLER, PRE-ASSEMBLED......... 616 10041124 / OIL AIR COOLER..................... 617 910717408 / COMPRESSED-AIR SYST.SUPERSTR...... 618 502657308 / AIR DRYER......................... 620 915371408 / HOSE LINES SUPERSTRUCTURE......... 621 914795908 / PIPELINES SUPERSTRUCTURE.......... 625 914783608 / CAB AIR-CONDITIONING SYSTEM....... 627 962024408 / MOUNTING AIR CONDITION.COMPRES.... 629 9739169 / AIR COND. COMPRESSOR ADD-ON......... 630 9739170 / COMPRESSOR DRIVE.................... 631 914130308 / EMERGENCY CUT-OFF CRANE DRIVER.... 632 920674408 / LEAD.............................. 633 912847908 / HYDR. BRAKE TRAVEL DRIVE.......... 634 914826808 / QUTSIDE POWER SUPP.EQUIPT......... 635 912625008 / CONSOLE AUX. REPLENISHING......... 636 912616208 / EXTERNAL FEED..................... 637 914890508 / EL.COOLANT PREHEAT................ 638 912635808 / AUX. HYDR. FOLDING JIB SP......... 639 511320408 / CONTROL BLOCK..................... 641 571529608 / PRESSURE VALVE.................... 643 571130108 / PRESSURE LIMITING VALVE........... 644 571362608 / PILOT VALVE....................... 645 511459208 / DIRECTIONAL CONTROL VALVE......... 646 962627008 / HOSE LINES FOLDING JIB............ 647 962597908 / MECHANICAL AUXILIARIES............ 648 914827108 / ADDITIONAL HYDRAULICS............. 649 913978308 / ADDITIONAL ELECTRICS.............. 651 511417608 / PRESSURE LIMITING VALVE........... 652 912635308 / GSM MODULE LICCON 2............... 653 963523808 / GSM MODULE LICCON 2............... 654 962449808 / RADIO ANTENNA PRE-ASS............. 655 962578308 / GSM-MODULE PRE-ASS.LICCON 2....... 656 911035108 / CHARGER........................... 657 914826508 / FUEL CONTAINER.................... 658 963368608 / FUEL TANK CONTAINER PRE-ASS....... 659 773938008 / POUCH SOCKET...................... 660 910714508 / ROPE WITH ACCESSORIES 1........... 661 910715408 / COUNTERWEIGHT WITH CLAMP.......... 662 962324208 / COUNTERWEIGHT CPL................. 663 912651808 / ADDITIONAL BALLAST................ 664 962712608 / ADDNL.BALLAST/COUNTERWEIGHT CP.... 667 963133408 / BALLAST RETAINER.................. 668 916080308 / MIRROR ATTACHMENT................. 669 963278408 / ELECTRIC MIRROR RIGHT............. 672 963278508 / TERMINAL BOX CPL.................. 673 971273508 / MIRROR SUSPENSION RIGHT........... 674 963206708 / MIRROR MOUNTING UC................ 675 911035208 / DISPATCH ASSY.MECH.PARTS.......... 676 962617308 / HOSE GUIDE PRE-ASS................ 677 915760008 / TELESCOPIC BOOM CPL............... 678 910840008 / PIVOT SECTION, PRE-ASSEMBLED...... 679 910840308 / TELESCOPIC SECTION 1 PRE-ASSEM.... 685 910840408 / TELESCOPIC SECT.2 PRE-ASSEMBL..... 689 910840708 / TELESCOPIC SECT.3 PRE-ASSEMB...... 693 910840808 / TELESCOPIC SECT.IV PRE-ASSEMBL.... 697 910840908 / TELESCOPIC SECT.5 PRE-ASSEMBLE.... 701 910841008 / TELESCOPIC SECT.6 PRE-ASSEMBL..... 705 921489608 / ROPE PULLEY CPL................... 710 925547008 / ANTI-TWIST DEVICE................. 711 965703708 / HOIST LIM.SWITCH PLUMMET CPL...... 712 915763708 / MECHANICAL EXTENSION SYSTEM....... 713 10472997 / TELESCOPIC CYLINDER................ 714 11005490 / CYLINDER HEAD...................... 716 965404808 / ADD-ON PARTS CYLINDER............. 718 963601308 / HOSE GUIDE........................ 720 962016708 / SENSOR ASSEMBLY BASIC BOOM........ 721 692310108 / ROPE LENGTH INDICATOR............. 722 962093508 / SENSOR ASSEMBLY HEAD PIECE........ 724 914835808 / ELECTR. SYSTEM F. BOOM............ 725 963828408 / ELECTRIC F.BASE SECTION........... 726 963432408 / TERMINAL BOX CPL.................. 727 963828908 / CABLE DRUM COMPL.................. 728 10028003 / CABLE REEL......................... 729 963471308 / SNOW GUARD COMPLETE............... 730 962433308 / ELECTR. F.EXTENDING MECHANISM..... 731 963833208 / ELECTR. FOR HEAD SECTION.......... 732 963832308 / TERMINAL BOX CPL.................. 733 910721608 / HYDR.F.TELESCOPIC BOOM............ 734 911021908 / A-HEADL.SEARCHLIGHT PIVOT SEC..... 736 914363308 / ELECTR. FOR WORK AREA LIGHT....... 737 912638108 / MECH.AUXILIARIES FOR LIGHTING..... 738 962414708 / RETAINER RIGHT PRE-ASS............ 739 911031508 / STORAGE BOX....................... 740 962323908 / STORAGE BOX....................... 741 914662508 / PLATING........................... 743 910005108 / LOAD HOOK......................... 744 913590608 / HOOK BLOCK........................ 745 914681308 / HOOK BLOCK........................ 746 913360208 / ELECTRIC WIND WARNING TELE........ 747 926803808 / ELECTRIC WIND WARNING TELE........ 748 914987908 / BOLT EXTRACTION ATTACHMENT........ 749 963696208 / BOLT EXTRACTION ATTACHMENT........ 750 911081108 / LOAD HOOK SPECIAL FLAP TIP........ 751 910773008 / LOAD HOOK SPECIAL FLAP TIP........ 752 911017108 / TRANSPORT MOUNTING................ 753 962286708 / FOLDING BRACKET PRE-ASS........... 756 929582108 / MOUNTING PRE-ASS.................. 757 911017308 / DOUBLE FOLDING JIB MECH.COMP...... 758 912676708 / DOUBLE FOLDING JIB MECH. ASS...... 759 911385808 / MECH. DOUBLE FOLD JIB PREMOUNT.... 760 911387308 / MECH. ADAPTER PREMOUNTED.......... 761 962568408 / PREMOUNT TRANSPORT PROTECTION..... 764 911387908 / PIVOT SECTION, PRE-ASSEMBLED...... 765 911390908 / HEAD SECTION PRE-ASS.............. 767 924967508 / ROPE PULLEY CPL................... 770 962286508 / GUIDE PULLEY COMPL................ 771 962480808 / ELECTRICS ADAPTER................. 772 962436008 / ELECTRIC F.BASE SECTION........... 773 962343108 / ELECTR. FOR HEAD SECTION.......... 774 914942108 / ADD-ON UNIT LADDER................ 775 929954908 / HOLDER PRE-ASSEMBLY............... 776 911017608 / SET OF NAME PLATES FOLDING JIB.... 777 911147208 / PULLEY SET SPECIAL FOLDING JIB.... 779 961967108 / ROPE PULLEY CPL................... 780 962809308 / SUPPORT PULLEY CPL................ 781 961835908 / DRAW SHACKLE...................... 782 912326308 / INTERMEDIATE PART................. 783 914827208 / ADDITIONAL PARTS.................. 784 963422708 / ADDITIONAL PARTS.................. 785 914827708 / TEST EQUIP.DESIGN................. 786 914942408 / TOOLS............................. 787 962632408 / ATTACHMENT ASSEMBLY ROD........... 788 914942508 / TOOL WIRE HARNESS ELONGATION...... 789 962815808 / SUPPORT COMPL..................... 790 921706708 / GRIP BOLT CPL..................... 791 912847608 / SPARE PARTS HF 1-PULLEY........... 792 SK_Z56319 / SERVICE........................... 793 964015908 / FILTER PACKAGE.................... 795 964016008 / FILTER PACKAGE.................... 797 Numerical index................................... 799 Alphabetical index (EN)........................... 867 Alphabetical index (DE)...........................1003
