Liebherr Crane LTM 1400 Superstructure Wiring Diagram Manual – PDF DOWNLOAD

$28.95

Liebherr Crane LTM 1400 Superstructure Wiring Diagram Manual – PDF DOWNLOAD

Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Liebherr Crane LTM 1400 Superstructure Wiring Diagram Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr Crane LTM 1400 Superstructure Wiring Diagram Manual – PDF DOWNLOAD

Language : English
Pages : 218
Downloadable : Yes
File Type : PDF

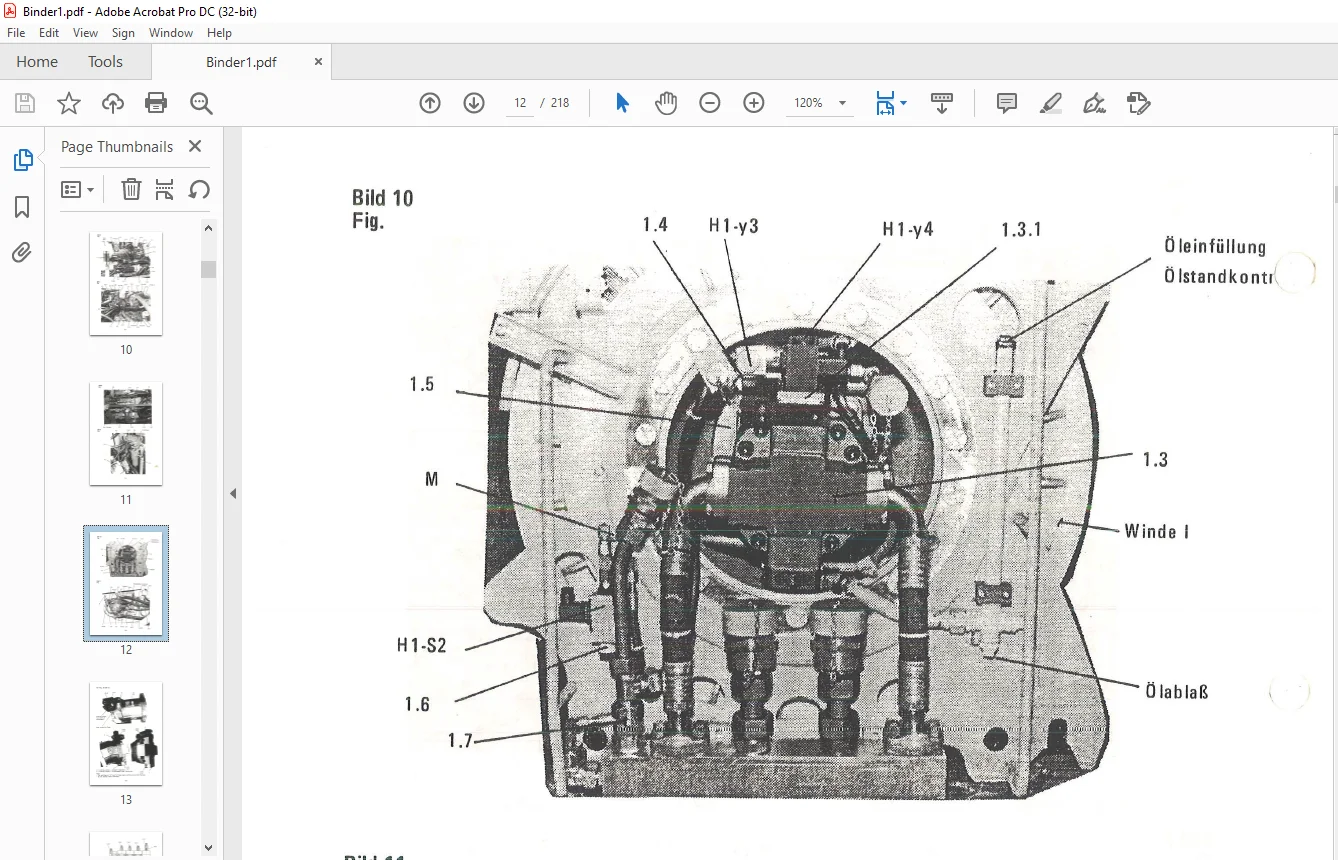

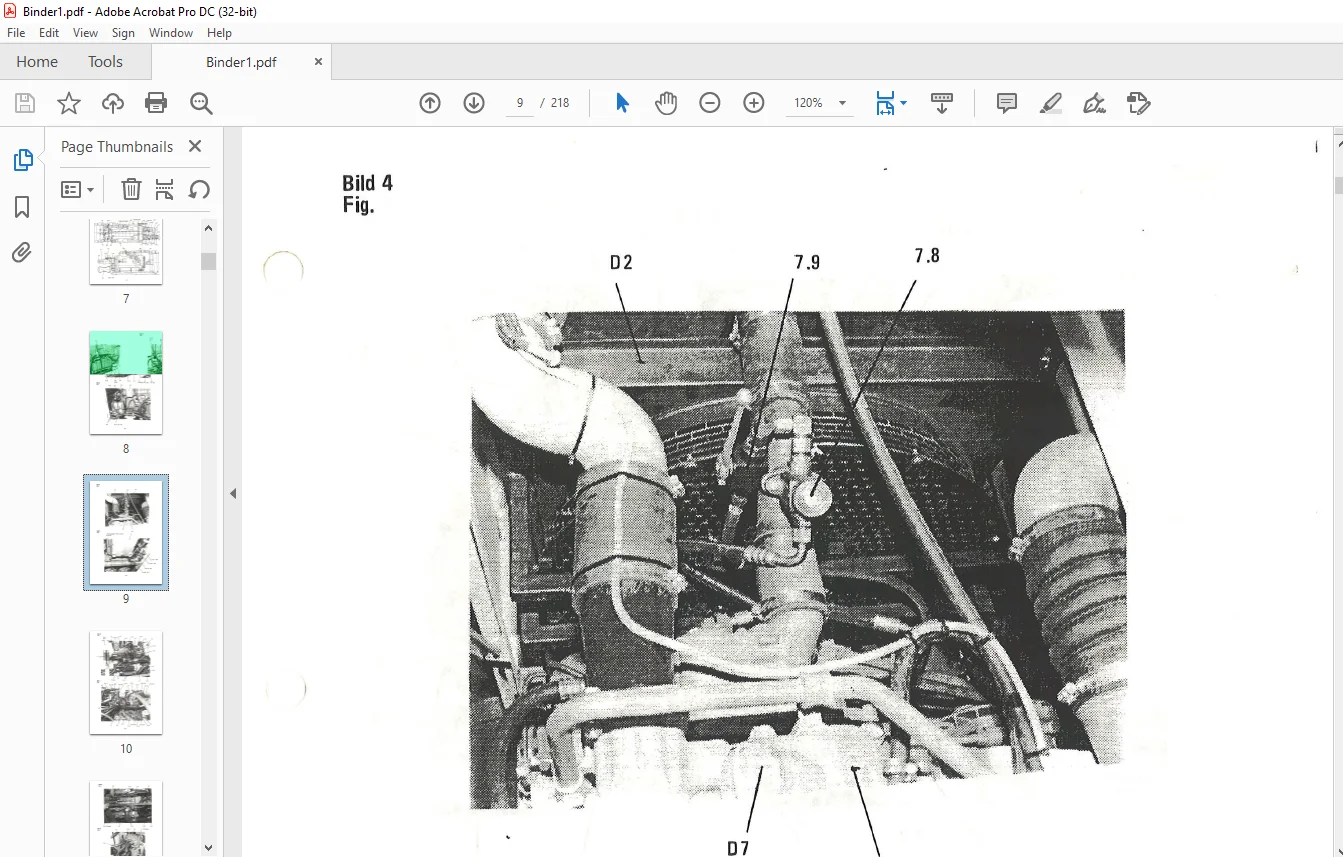

IMAGES PREVIEW OF THE MANUAL:

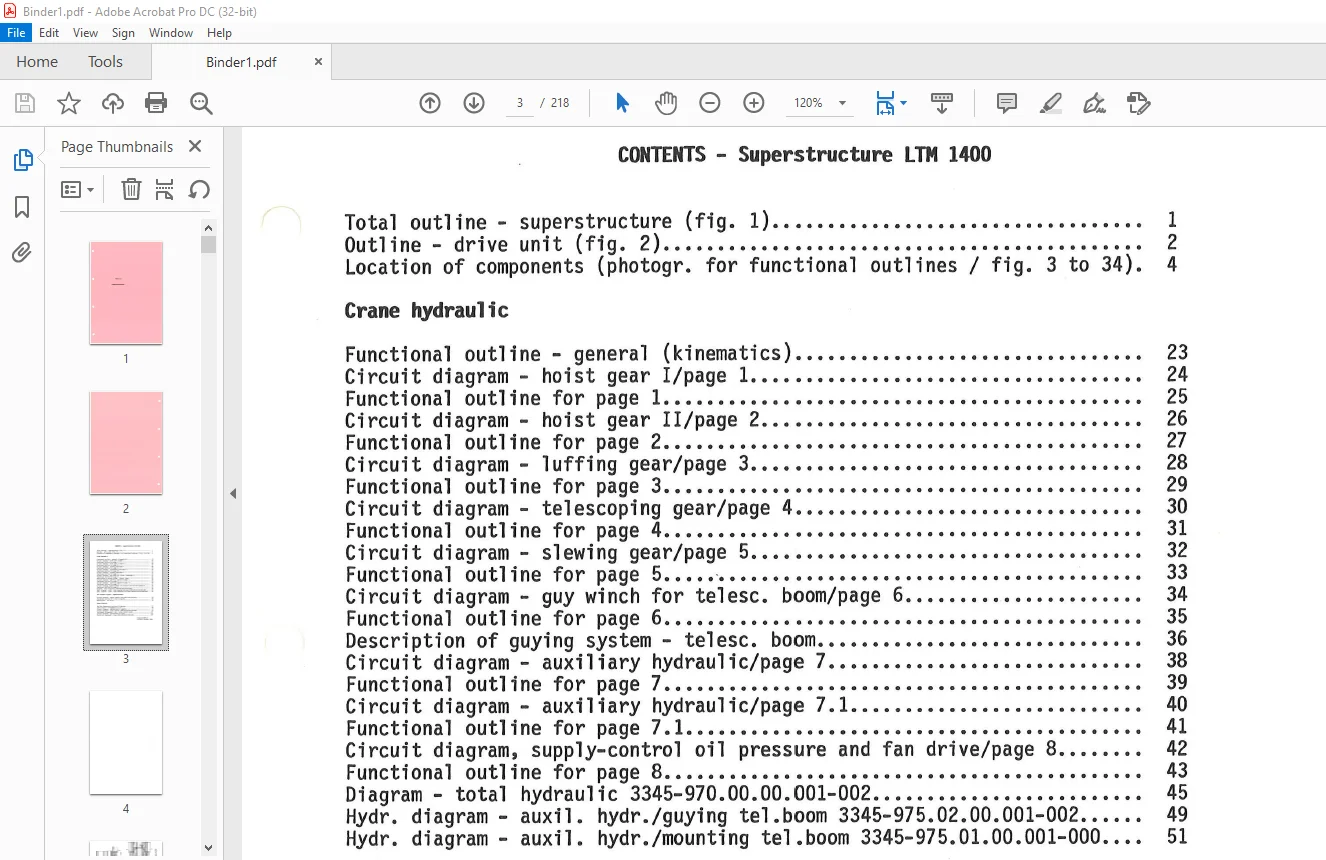

TABLE OF CONTENTS:

Liebherr Crane LTM 1400 Superstructure Wiring Diagram Manual – PDF DOWNLOAD

Total outline – superstructure (fig 1) 1
Outline – drive unit (fig 2) 2
Location of components (photogr for functional outlines/ fig 3 to 34) 4
Crane hydraulic
Functional outline – general (kinematics) 23
Circuit diagram – hoist gear I/page 1 24
Functional outline for page 1 25
Circuit diagram – hoist gear II/page 2 26
Functional outline for page 2 27
Circuit diagram – luffing gear/page 3 28
Functional outline for page 3 29
Circuit diagram – telescoping gear/page 4 30
Functional outline for page 4 31
Circuit diagram – slewing gear/page 5 32
Functional outline for page 5 ~ 33
Circuit diagram – guy winch for telesc boom/page 6 34
Functional outline for page 6 35
Description of guying system – telesc boom 36
Circuit diagram – auxiliary hydraulic/page 7 38
Functional outline for page 7 39
Circuit diagram – auxiliary hydraulic/page 7 1 40
Functional outline for page 7 1 41
Circuit diagram, supply-control oil pressure and fan drive/page 8 42
Functional outline for page 8 43
Diagram – total hydraulic 3345-970 00 00 001-002 45
Hydr diagram – auxil hydr /guying tel boom 3345-975 02 00 001-002 49
Hydr diagram – auxil hydr /mounting tel boom 3345-975 01 00 001-000 51
Air Pressure System – Superstructure
Circuit diagram – engine control and boom interlocking 54
Functional outline for circuit diagram 55
Description – air drier 56
Crane Electric
Outline diagram and switch-off diagrams 57
Limit switch – arrangement on jib 69
Circuit diagram – explanation of symbols 72
Circuit diagram – crane control 3345-932 00 00 001-000 75
Instrument arrangement, cab – below control panel 117
Circuit diagram – explanation of signs 119
Electrical equipment – boom 3345-930 00 00 001-000 120
