Description

Liebherr Crane UL30Li Battery Charger & Trickle-Charger Operating Instruction Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr Crane UL30Li Battery Charger & Trickle-Charger Operating Instruction Manual – PDF DOWNLOAD

Language : English
Pages : 15
Downloadable : Yes
File Type : PDF

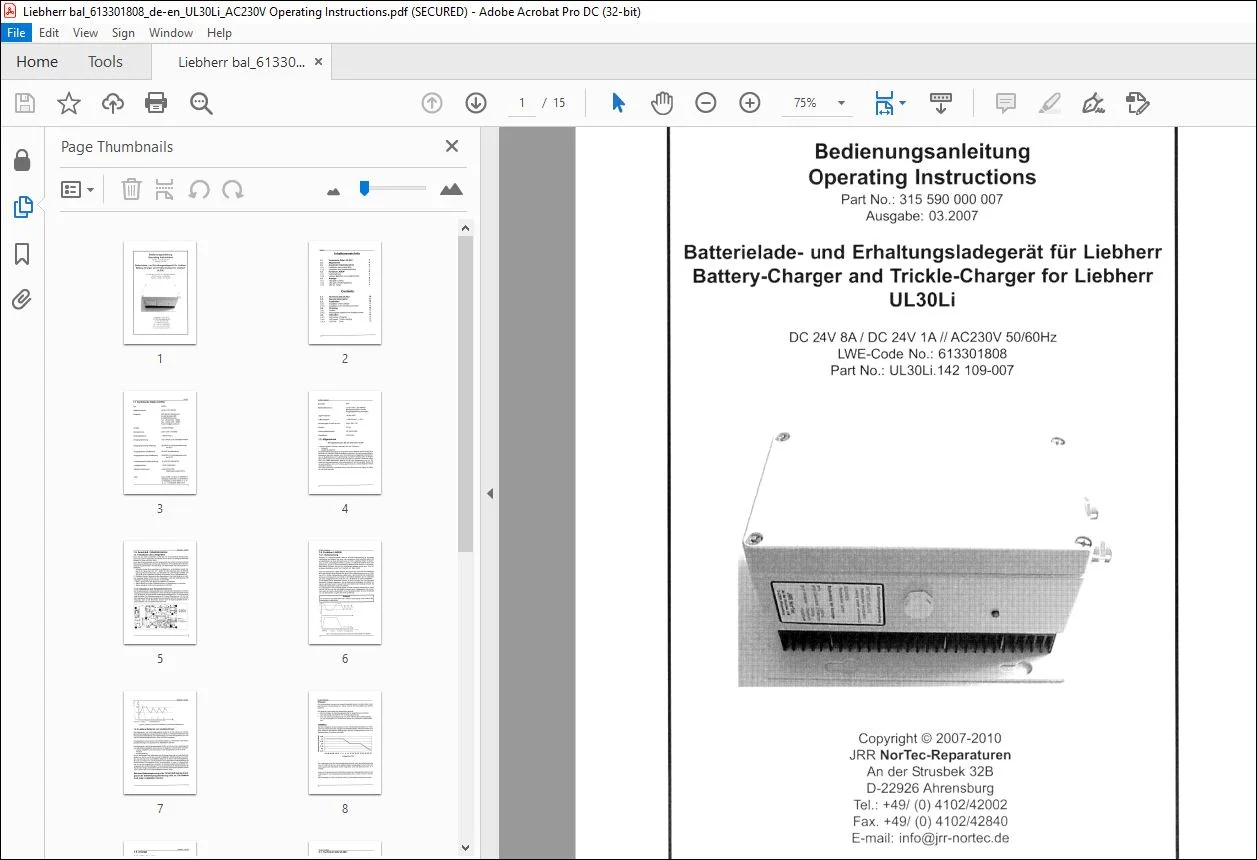

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Liebherr Crane UL30Li Battery Charger & Trickle-Charger Operating Instruction Manual – PDF DOWNLOAD

General information:

The housing contains two chargers:
• Battery-charger
• Trickle-charger

• Latest microprocessor technique is responsible for charging your battery according to UIUa-curve (recommended by the leading battery producers) which guarantees the maximum lifespan for the battery.
• Long-term experience in the German Army has shown that intermitting I-charge is superior to constant voltage trickle-charging.
• The vehicle parks of German Army show very convincing results even for vehicles which are not in use most of the time.
• A functioning deep discharged battery will be charged up to the highest possible
  capacity and kept at this level starting at a remaining voltage of about 16V.
• While charging it stays closed and connected to the vehicle.
• Batteries with failures will be recognized.
• One indication LED shows the status of the charging and the device at any time in three possible colours.

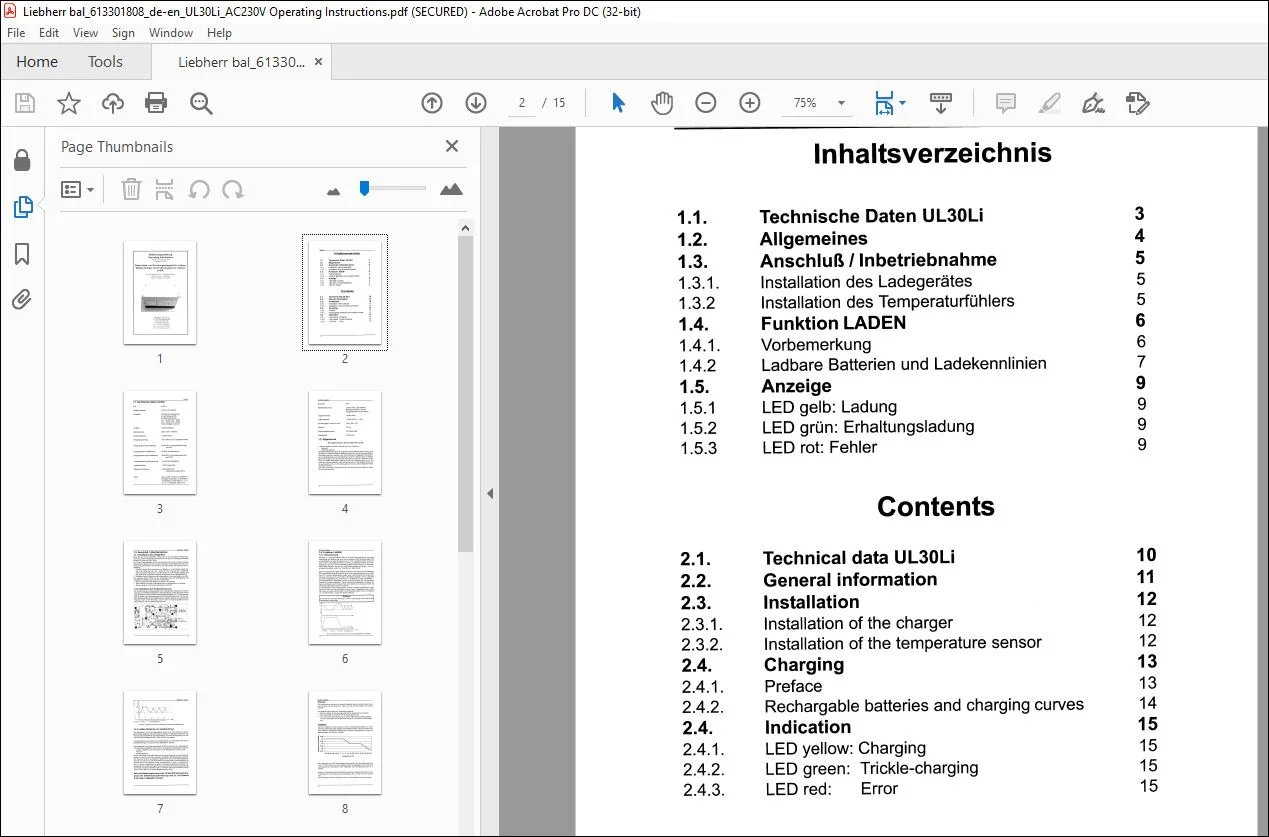

TABLE OF CONTENTS:

Liebherr Crane UL30Li Battery Charger & Trickle-Charger Operating Instruction Manual – PDF DOWNLOAD

lnhaltsverzeichnis

1.1. Technische Oaten UL30Li 3
1.2. Allgemeines 4
1.3. AnschluB / lnbetriebnahme 5
1.3.1. Installation des Ladegerates 5
1.3.2 Installation des Temperaturfuhlers 5
1.4. Funktion LADEN 6
1.4.1. Vorbemerkung 6
1.4.2 Ladbare Batterien und Ladekennlinien 7
1.5. Anzeige 9
1.5.1 LED gelb: Ladung 9
1.5.2 LED grun: Erhaltungsladung 9
1.5.3 LED rot: Fehler 9
Contents
2.1. Technical data UL30Li 10
2.2. General information 11
2.3. Installation 12
2.3.1. Installation of the charger 12
2.3.2. Installation of the temperature sensor 12
2.4. Charging 13
2.4.1. Preface 13
2.4.2. Rechargable batteries and charging curves 14
2.4. Indication 15
2.4.1. LED yellow: Charging 15
2.4.2. LED green: Trickle-charging 15
2.4.3. LED red: Error 15
