Liebherr Crawler Crane HS 885 HD Spare parts catalog Manual 187427 – PDF DOWNLOAD

Description

Liebherr Crawler Crane HS 885 HD Spare parts catalog Manual 187427 – PDF DOWNLOAD

FILE DETAILS:

Liebherr Crawler Crane HS 885 HD Spare parts catalog Manual 187427 – PDF DOWNLOAD

Language : English
Pages : 481
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Liebherr Crawler Crane HS 885 HD Spare parts catalog Manual 187427 – PDF DOWNLOAD

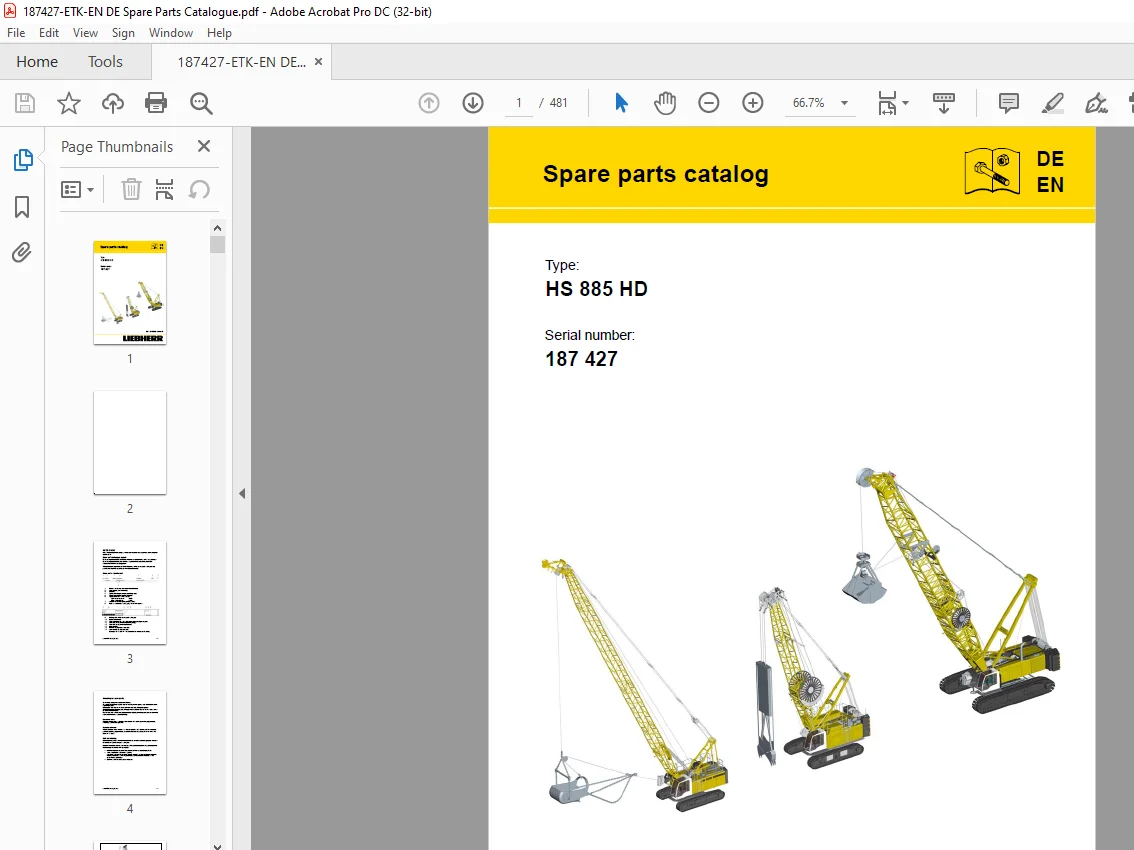

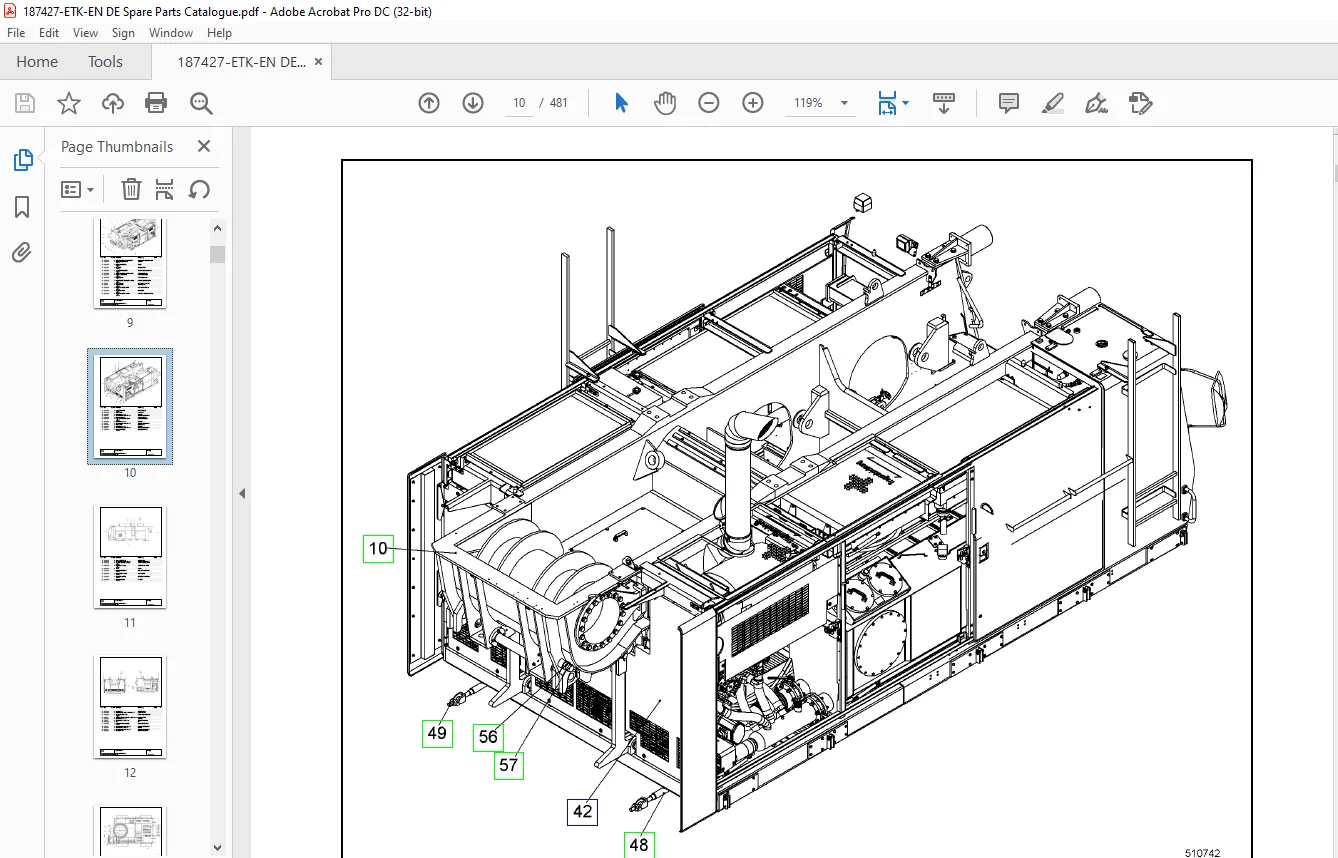

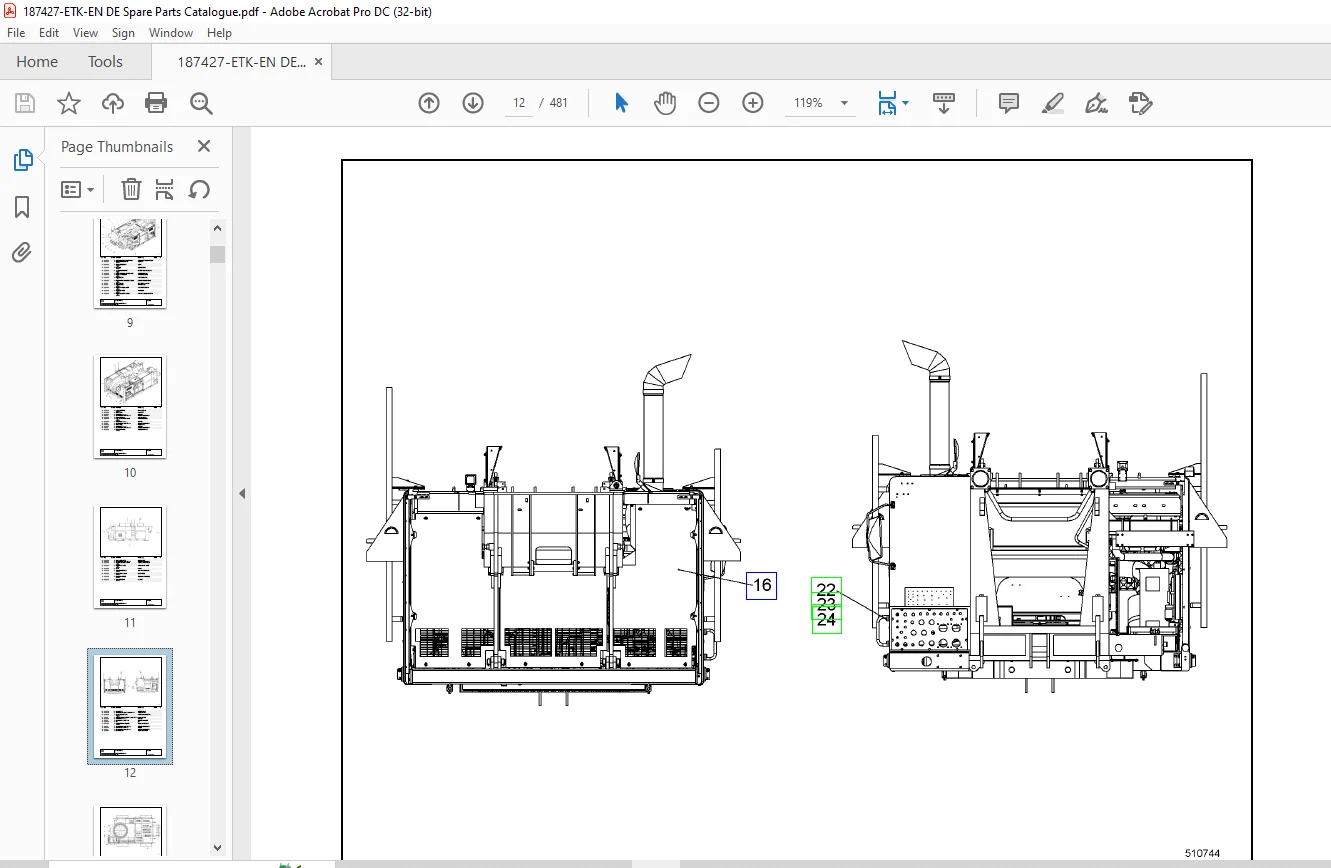

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Liebherr Crawler Crane HS 885 HD Spare parts catalog Manual 187427 – PDF DOWNLOAD

HS 885 HD 187 427 1
Catalog 5
01 87 427 14 / HS 885 HD 5
99 41 445 14 / SUPERSTRUCTURE CPL 9
99 18 827 14 / SUPERSTRUCTURE HYDR 15
10 22 388 9 / VALVE BLOCK 18
59 23 006 14 / SOLENOID VALVE 20
59 20 707 14 / RESTRICTOR VALVE 21
59 20 713 14 / PRESSURE BALANCE 22
10 34 971 1 / PISTON 23
59 20 715 14 / NON-RETURN VALVE 24
59 20 716 14 / PRESSURE VALVE 25
59 20 885 14 / VALVE 26
59 23 090 14 / PRESSURE LIMITING CARTRIDGE 27
10 34 971 4 / PISTON 28
10 34 971 3 / PISTON 29
10 34 971 5 / PISTON 30
10 34 971 6 / SEALING SET WASHER 31
51 22 527 14 / OIL MOTOR 32
99 39 244 14 / SUPERSTRUCTURE EL 33
99 20 780 14 / FUSE HOLDER 35
99 18 830 14 / HOSE LIST 36
99 23 336 14 / CABIN SUSPENSION CPL 39
99 26 367 14 / CENTRAL POWER UNIT 40
99 18 840 14 / HYDR POWER UNIT 41
59 22 364 14 / DOUBLE V-PUMP 46
10 09 797 2 / CONTROL UNIT INSERT 47
59 23 208 14 / V PUMP 48
51 24 147 14 / THROUGH DRIVE 49
10 50 373 7 / V PUMP 50
10 52 110 2 / DRIVING GEAR 51
10 52 110 3 / ADJUSTMENT 52
10 52 110 4 / ADJUSTING PISTON 53
10 52 111 0 / CONNECTING PLATE 54
10 28 914 5 / PRESSURE LIMITING VALVE 55
51 22 647 14 / LOCKING SET 56
51 16 087 14 / SHUTDOWN VALVE 57
10 52 111 3 / PUMP COVER 58
10 52 111 4 / CONTROL UNIT 59
10 52 111 5 / CONTROL UNIT 60
51 46 181 08 / PANEL SCREW 61
10 50 374 1 / V PUMP 62
10 51 720 0 / DRIVING GEAR 63
10 51 930 4 / ADJUSTMENT 64
10 51 930 8 / ADJUSTING PISTON 65
10 51 722 4 / CONNECTING PLATE 66
10 51 722 5 / CONTROL UNIT 67
10 51 931 4 / CONTROL UNIT 68
59 22 366 14 / DISTRIBUTOR GEARBOX 69
51 22 331 14 / THROUGH DRIVE 70
10 50 374 3 / V PUMP 71
10 51 803 5 / CONNECTING PLATE 72
59 21 776 14 / SHUTDOWN VALVE 73
10 51 930 5 / LID 74
59 21 460 14 / V PUMP 75
10 22 542 1 / COOLER MOTOR 76
55 09 453 14 / OIL MOTOR 77
55 09 413 14 / COOLER MOTOR 78
55 09 452 14 / COOLER CPL 79
51 16 377 14 / VALVE BLOCK FEED PRESSURE 80
10 22 358 1 / PRESSURE FILTER 81
91 72 583 14 / TEMPERATURE SWITCH 82
59 20 477 14 / COOLER MOTOR 83
99 20 924 14 / CENTRAL POWER UNIT EL 84
99 18 839 14 / HOSE LIST 85
99 26 368 14 / MOTOR ASSY 87
10 22 390 0 / DIESEL ENGINE 88
10 02 040 0 / DIESEL ENGINE 89
10 22 420 3 / CRANKCASE BREATHER 92
10 22 447 7 / FLYWHEEL 93
10 22 444 5 / SEALS 94
10 22 444 8 / SEALING SET MOTOR CPL 95
10 22 444 9 / CYL HEAD GRIME REMOVING KIT 96
10 22 421 6 / OIL-LEVEL GAUGE 97
10 22 448 3 / OIL DRAIN PLUG 98
10 22 424 4 / OIL COOLER 99
10 22 422 6 / OIL FILTER 101
10 22 428 7 / WATER PUMP 102
10 22 429 6 / AIR SUCTION PIPE 103
10 22 430 0 / CHARGE AIR PIPE 104
10 22 430 3 / FLAME STARTING SYSTEM 105
10 22 431 3 / OIL LINE 106
10 22 431 1 / EXHAUST GAS TURBOCHARGER 107
10 22 432 5 / EXHAUST GAS TURBOCHARGER 108
10 52 723 8 / INSTAL PARTS TURBOCHARGER 109
10 22 433 0 / OIL LINE 110
10 22 434 4 / INJECTION PUMP 111
10 22 512 4 / NOZZLE HOLDER CPL 112
10 22 436 9 / INJECTION LINES 113
10 44 535 4 / FUEL FILTER 114
10 22 436 4 / FUEL PRIMARY CLEANER 115
10 22 772 0 / FUEL FILTER CPL 116
10 22 437 0 / MOTOR SUPPORT 117
10 22 437 5 / THREE PHASE CURRENT GENERATOR 118
10 22 442 6 / STARTER 120
10 22 444 1 / MOTOR EL 121
10 22 443 1 / DIGITAL TACHO 122
10 22 444 2 / TEMP TRANSMITTER 123
10 22 512 3 / CYLINDER HEAD HOOD 124
99 34 581 14 / REPAIR KIT 125
48 55 827 14 / CYL HEAD ADD-ON 126
10 44 553 6 / FUEL LINE 127
10 44 568 6 / SHUT OFF DEVICE PRE-ASSEMBLY 128
10 44 641 6 / HOSE CLAMP 129
10 51 926 0 / SEALING 130
99 20 752 14 / MOTOR BEARING CPL 131
99 18 681 14 / COOLER INSTALLATION WATER 133
10 22 431 0 / COOLER MOTOR 136
51 22 501 14 / OIL MOTOR 137
99 18 682 14 / COOLER INSTALLATION CHARGE AIR 138
10 22 430 9 / COOLER MOTOR 139
99 20 925 14 / SUCTION PIPE OIL 140
99 27 115 14 / SUCTION UNIT AIR 141
10 03 630 2 / AIR FILTER 142
99 20 750 14 / EXHAUST SYSTEM 143
99 21 078 14 / FUEL SYSTEM 144
10 51 541 8 / HOSE LIST 146
55 09 286 14 / FUEL FILTER 147
99 20 781 14 / COVER 148
99 39 251 14 / PANELLING CPL 149
10 35 230 0 / PANELLING 152
10 35 230 1 / DOOR 154
10 22 428 5 / SCREEN BALLAST 155
10 22 464 7 / SCREEN BALLAST 156
10 35 232 5 / DOOR 157
10 35 232 2 / DOOR 158
99 34 766 14 / AIR DEFLECTION CPL 159
95 51 035 03 / ROTARY CONNECTION INSTALLATION 160
10 22 414 4 / TANK HYDR CPL 161
10 51 571 7 / RETURN FILTER 163
51 06 906 14 / AERATION FILTER 164
99 18 834 14 / OIL COOLER INSTALLATION 165
91 11 791 14 / LUG INSTALLATION 166
54 01 827 14 / WINCH 167
54 01 860 14 / PLANETARY STAGE CPL 168
54 01 871 14 / ROPE DRUM CPL 169
54 01 862 14 / POWER TAKE-OFF CPL 170
54 01 864 14 / DRIVE UNIT CPL 171
54 01 861 14 / ROCKING STANCHION CPL 172
54 01 876 14 / OIL LINE CPL 173
50 15 590 14 / OIL-LEVEL GAUGE 175
50 15 699 14 / CENTRAL GREASING 176
50 15 700 14 / BRAKE LINE CPL 177
98 22 784 14 / BRAKE MULTI-DISC ARRANGEMENT 178
95 49 889 03 / ROLLER BLOCK 179
95 54 484 03 / ROPE PULLEY CPL 180
91 55 237 14 / ROPE PULLEY CPL 181
95 54 485 03 / ROPE PULLEY CPL 182
96 72 524 03 / ROPE PULLEY CPL 183
92 97 925 14 / ROPE PULLEY CPL 184
95 36 097 03 / TILT-BACK SUPPORTS INSTAL 185
99 23 791 14 / LADDER MOUNTING 186
99 18 472 14 / SLEWING RING PROTECTION 187
95 36 531 03 / GREASE NIPPEL CPL 188
95 47 608 03 / COVER PLATE INSTALLATION 189
95 53 285 03 / CENTRAL GREASING 190
99 35 601 14 / SOUND PROOFING CPL 191
95 41 528 03 / COVER CPL 192
95 47 614 03 / ROLLER INSTALLATION 193
95 49 806 03 / HOT-WATER HEATING 194
99 24 347 14 / ATTACHING PARTS 195
99 03 863 14 / REFUELLING PUMP CPL 197
91 75 861 14 / MODULE REFUELLING SYSTEM 198
99 17 202 14 / BATTERY INSTALLATION CPL 199
99 21 076 14 / COVER UNDERSIDE 200
99 18 837 14 / OIL COOLER INSTALLATION 201
99 35 772 14 / HEAT SHIELD RFK 202
99 35 452 14 / HEAT PROTECTION SHEET 203
95 43 552 03 / CROSS MASTER SWITCH EL INSTAL 204
95 53 856 03 / COUNTERWEIGHT ARRANGEMENT 205
95 42 167 03 / ADD COUNTERW 1 ARRANGEMENT 206
10 52 539 7 / MOUNTING PARTS 207
95 42 168 03 / ADD COUNTERW 3 ARRANGEMENT 208
10 52 499 9 / COUNTERWEIGHT 209
10 52 641 8 / MOUNTING PARTS 210
99 41 285 14 / ADD COUNTERWEIGHT 211
95 49 997 03 / ROPES LUG 212
99 21 665 14 / SG 2 INSTALLATION 213
50 50 692 14 / SG 214
50 15 875 14 / PLANETARY STAGE 215
50 15 868 14 / LANTERN GEAR 216
50 15 869 14 / POWER TAKE-OFF 217
50 15 924 14 / DRIVE 218
50 15 925 14 / GEARBOX AERATION 219
50 15 870 14 / SCREW PLUG 220
98 22 804 14 / BRAKE MULTI-DISC ARRANGEMENT 221
99 24 722 14 / SG HYDR 222
51 22 577 14 / OIL MOTOR 223
95 44 161 03 / HOSE LIST 224
99 43 604 14 / CABIN CPL 225
99 45 694 14 / DRIVER STAND HYDR 228
99 43 783 14 / CABIN EL 229
99 17 510 14 / SWITCH CABINET X1 231
10 22 318 0 / CONTROL SYSTEM 233
99 20 811 14 / RESERVE FUSES 234
99 18 387 14 / CONTROL STAND LEFT 235
99 24 680 14 / KEYBOARD 236
99 45 058 14 / CONTROL STAND RIGHT 237
91 65 251 14 / CABLE DUCT CABINET 1 238
61 10 526 14 / FILTER BLOWER INSTALLATION 239
91 78 240 14 / CAN BUS CONNECTION PLUG 240
99 23 131 14 / HOSE LIST 241
10 22 322 3 / CABIN 242
10 22 645 4 / DOOR ACCESSORIES 244
10 22 646 9 / SLIDING DOOR 245
59 22 871 14 / FRONT WINDOW CPL 246
59 22 895 14 / FLAP CPL 247
59 22 905 14 / MIRROR + SUNN VISOR 248
59 22 914 14 / PLATFORM FIXATION CPL 249
59 22 930 14 / AIR CONDITIONER 250
97 07 857 03 / SPIRIT LEVEL ASSY 251
95 53 970 03 / CONNECTION SUPERSTR UC 252
95 53 878 03 / HOSE LIST 253
95 54 231 03 / LASHING SUPERSTRUCTURE 254
91 90 641 14 / UC CPL 255
91 90 639 14 / CRAWLER CARRIER RIGHT CPL 257
74 90 687 14 / GUIDE WHEEL UNIT CPL 258
74 90 688 14 / GUIDE WHEEL 259
74 90 568 14 / TENSION JACK HYDR CPL 260
74 90 566 14 / SPRING UNIT HYDR CPL 261
74 90 632 14 / PLUNGER BEARING CPL 262
94 44 240 03 / TRAVEL DRIVE 263
74 90 682 14 / RUNNING ROLLER CPL 266
91 90 640 14 / CRAWLER CARRIER LEFT CPL 267
91 90 644 14 / UC HYDR 268
59 20 628 14 / OIL MOTOR 270
51 17 036 14 / ROTARY FEED THROUGH HYDR 271
51 23 563 14 / POSITIONING CYL 272
95 52 057 03 / BRACKET 273
91 90 643 14 / HOSE LIST 274
95 45 378 03 / HOSE LIST 276
99 18 646 14 / UC CRAWLER OUTFIT 277
91 85 385 14 / CRAWLER CHAIN CPL 278
79 02 077 14 / CRAWLER CHAIN CPL 279
99 14 563 14 / ACCESS CPL 280
95 53 893 03 / LUBRICANT AND FUEL 281
10 35 085 9 / INTERNAL HOODS RFK 282
91 54 958 14 / TOOL EQUIPMENT 283
91 49 409 14 / TOOL 285
92 68 253 14 / DRAIN HOSE CPL 287
95 42 251 03 / OIL DRAIN HOSE 288
99 45 783 14 / PIVOT PIECE CPL 289
99 38 879 14 / PIVOT PIECE CPL 290
99 21 856 14 / PIVOT PIECE EL 291
99 21 858 14 / CABLE LOOM 1 PIVOT PIECE EL 292
91 95 787 14 / BOOM FRAME CPL 293
95 54 518 03 / ROLLER BLOCK 295
91 99 318 14 / TUBE BOOM INTERM SECTION CPL 296
95 54 632 03 / GUY ROPE RIGHT CPL 297
96 73 121 03 / BOOM INTERMEDIATE SECTION CPL 298
91 95 556 14 / BOOM HEAD CPL 299
91 90 853 14 / BOOM HEAD EL 300
92 75 218 08 / LIMIT SWITCH HOISTING ABOVE 301
91 95 563 14 / ROLLER SET 302
92 58 298 14 / ROPE PULLEY CPL 304
91 96 109 14 / GUY ROPE 305
99 38 374 14 / MODULE EL RFK 306
99 38 372 14 / MODULE EL RFK 307
99 20 453 14 / MODEM RFK 308
91 92 240 14 / HOLDER RFK 309
99 26 839 14 / SUBTERR CURTAIN CUTTER RFK 310
99 26 840 14 / SUBTERR CURTAINCUTTER HYDR RFK 311
59 22 794 14 / V PUMP 316
59 21 230 14 / THROUGH DRIVE 317
10 22 726 1 / V PUMP 318
10 44 563 1 / V PUMP 319
51 17 047 14 / PRESSURE FILTER 320
10 50 130 6 / PRESSURE FILTER 321
99 23 175 14 / SUBTERR CURTAIN CUTTER EL RFK 322
99 23 199 14 / MOUNTING PANEL X1 323
99 05 068 14 / SUPERSTRUCTURE REM EL 324
99 26 841 14 / HOSE LIST 325
99 26 891 14 / ADD OIL COOLER EL RFK 328
99 26 896 14 / LUDV BLOCK EXTENSION HYDR RFK 329
59 21 157 14 / VALVE BLOCK SINGLE DISK 330
92 65 477 14 / FIRE EXTINGUISHER RFK 331
10 50 913 5 / ANGLE INDICATION RFK 332
92 65 411 14 / ANGLE INDICATION RFK 333
99 34 708 14 / FOLDING PLATFORM CPL 334
99 40 790 14 / FOLDING PLATFORM CPL 335
95 41 089 03 / LIFTING LUG CPL RFK 337
95 37 536 03 / BALLAST TRANSPORT DEVICE RFK 338
95 36 748 03 / ROPES COUNTERWEIGHT 339
91 98 566 14 / ROOF GRID CABIN RFK 340
99 17 837 14 / AIR CONDITIONING UNIT RFK 341
10 22 334 7 / LIQUEFIER 342
99 09 834 14 / COMPRESSOR ASSY 343
99 26 957 14 / MEASURING POINT NAME HYDR RFK 344
Numerical index 347
Alphabetical index (EN) 375
Alphabetical index (DE) 429
