Liebherr Diesel Engine D934-D936-D946 Operating Manual 10115602-07 – PDF DOWNLOAD
FILE DETAILS:
Liebherr Diesel Engine D934-D936-D946 Operating Manual 10115602-07 – PDF DOWNLOAD
Language : English
Pages :90
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Liebherr Diesel Engine D934-D936-D946 Operating Manual 10115602-07 – PDF DOWNLOAD
SERIAL NUMBER:2009030001/2009040001
2 Safety regulations
- Working on the diesel engine is extremely hazardous to user, machine operator or maintenance technician. Dangers and accidents can be avoided if the various notes on safety are frequently read and adhered to. This applies in particular for personnel carrying out maintenance tasks opportunely on the diesel engine.
- Conscientious adherence of the safety guidelines, specified as follows, will guarantee the safety of yourself and others, as well as safeguarding against damage to the diesel engine.
- All necessary safety precautions relevant to the description of tasks which could cause injury to personnel, or damage to the diesel engine, are described in this book. They are indicated with the references Danger, Waming or Caution.
2.1 Introduction
1.The terms represent the following meaning throughout this book: “Danger” signifies an immediately dangerous situation which could result in fatalities or serious injury if it is not prevented. “Waming” signifies a dangerous situation which could result in fatalities or serious injury if it is not prevented. Cautionsignifies a dangerous situation which could result in minor or significant injury if it is not prevented. “Note” signifies useful notes and tips.
2.Observation of these points does not exempt you from the adherence of additional rules and regulations! All safety regulations valid for the application site are also to be adhered to.
2.2 General safety guidelines
1.Familiarise yourself with the operating and maintenance instructions before starting up the machine. Make sure that you possess, have read, and have understood any additional instructions relevant to the machine’s optional features. 2. Only expressly authorised personnel may operate, maintain or repair the diesel engine. Observe the legal, permissible minimum age! 3.Employ only trained or instructed personnel and allocate definitive responsibility for personnel regarding operation, setting up, maintenance and repair. 4.Personnel who are still undergoing training, or are involved with a general apprenticeship, should only be allowed to work on the diesel engine while under constant supervision of an experienced person.

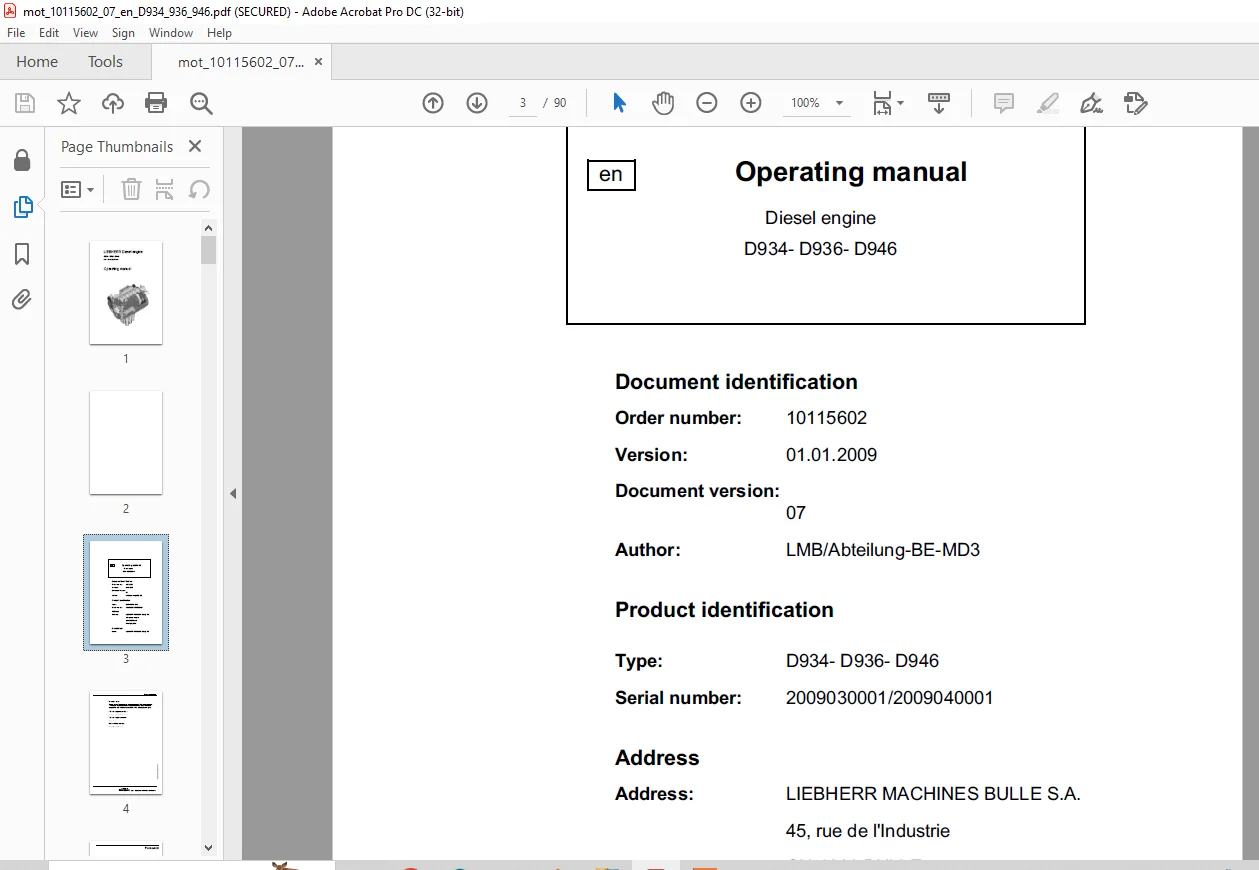

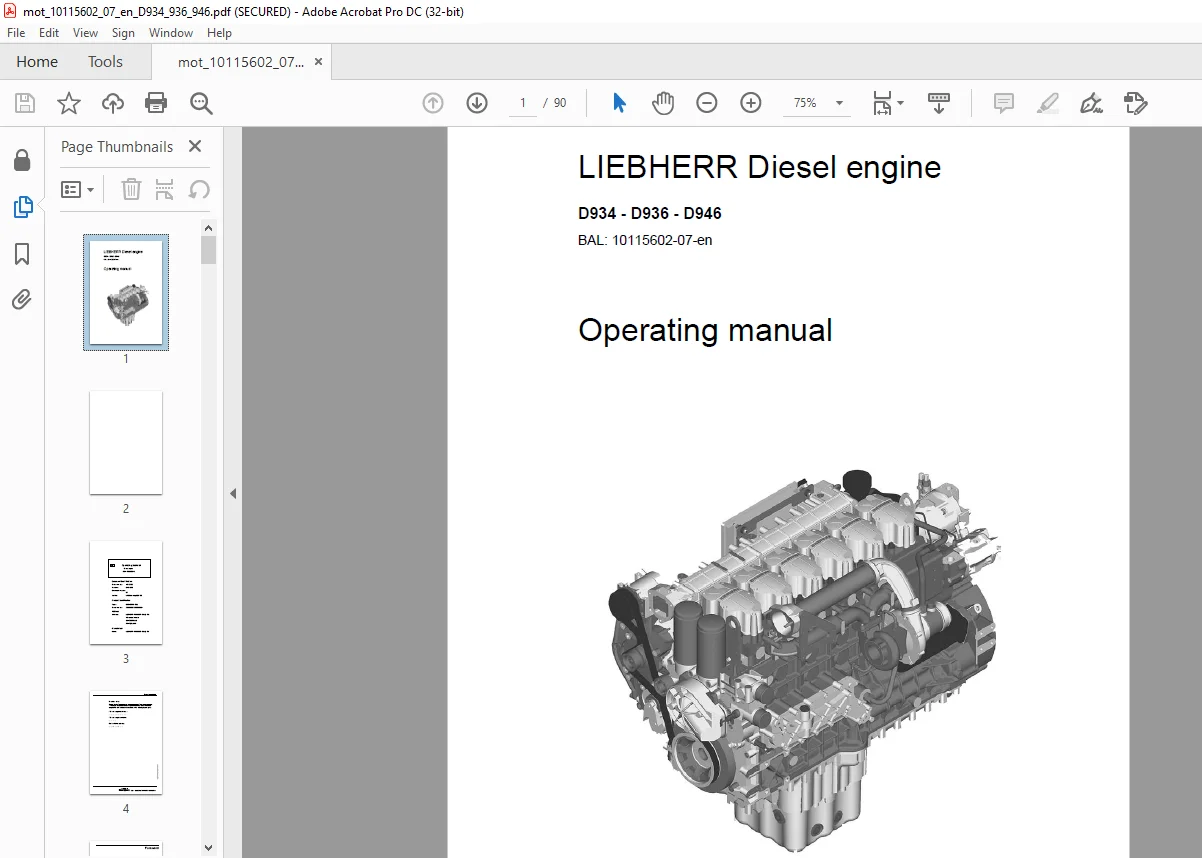

IMAGES PREVIEW OF THE MANUAL:

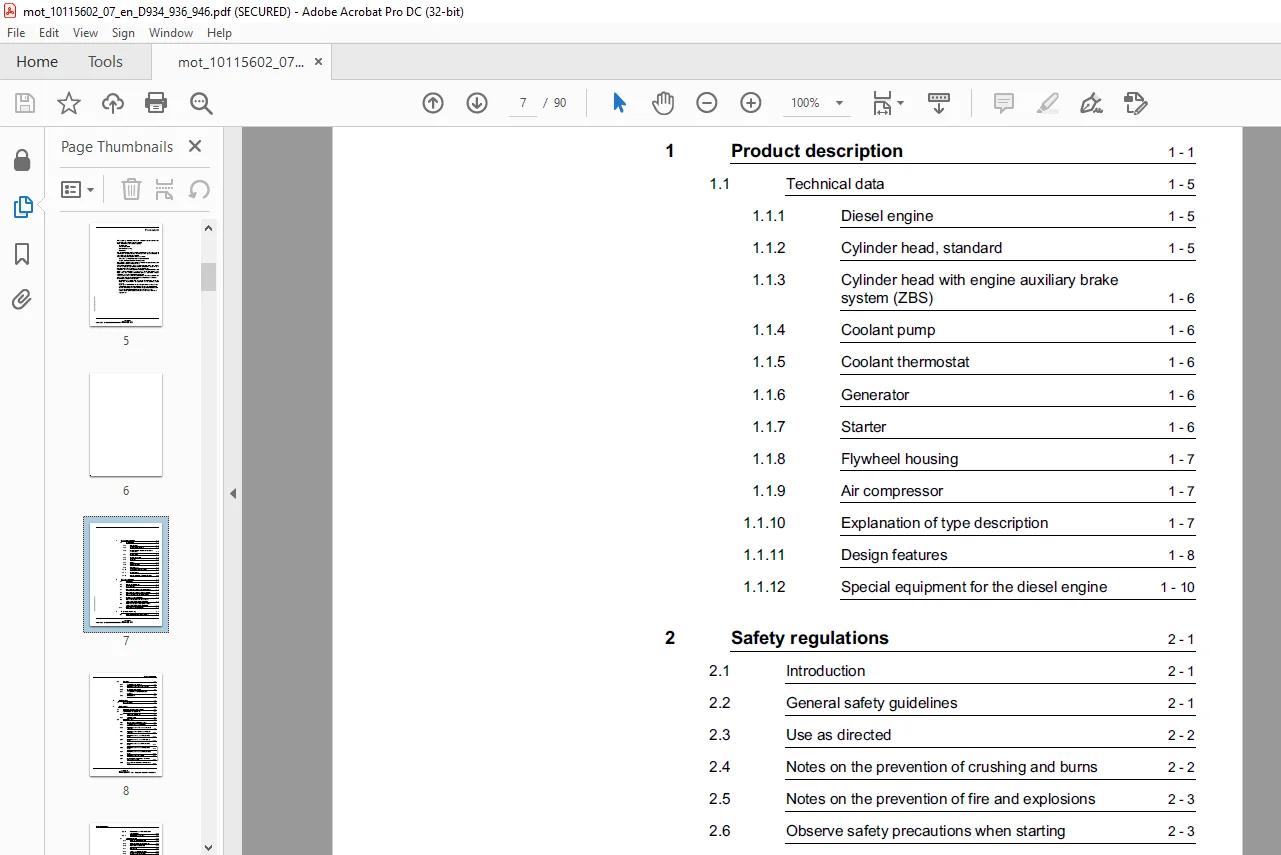

TABLE OF CONTENT
Liebherr Diesel Engine D934-D936-D946 Operating Manual 10115602-07 – PDF DOWNLOAD
Operating manual.................................................................................... 3 1 Product description...........................................................................11 1.1 Technical data..........................................................................15 1.1.1 Diesel engine.....................................................................15 1.1.2 Cylinder head, standard...........................................................15 1.1.3 Cylinder head with engine auxiliary brake system (ZBS)............................16 1.1.4 Coolant pump......................................................................16 1.1.5 Coolant thermostat................................................................16 1.1.6 Generator.........................................................................16 1.1.7 Starter...........................................................................16 1.1.8 Flywheel housing..................................................................17 1.1.9 Air compressor....................................................................17 1.1.10 Explanation of type description..................................................17 1.1.11 Design features..................................................................18 1.1.12 Special equipment for the diesel engine..........................................20 2 Safety regulations............................................................................21 2.1 Introduction............................................................................21 2.2 General safety guidelines...............................................................21 2.3 Use as directed.........................................................................22 2.4 Notes on the prevention of crushingand burns............................................22 2.5 Notes on the prevention of fire andexplosions...........................................23 2.6 Observe safety precautions whenstarting.................................................23 2.7 Measures for safe maintenance...........................................................23 2.8 Observe the safety precautions fordiesel engines featuring electroniccontrol units......25 2.9 Safety and emergency run program fordiesel engines featuring electroniccontrol units....25 2.10 Disposing of fuels and lubricants......................................................26 3 Operation, Handling...........................................................................27 3.1 Control elements and operatingelements..................................................27 3.2 Operation...............................................................................28 3.2.1 Preparing for initial start-up....................................................28 3.2.2 Maintenance tasks before daily start-up...........................................29 3.2.3 Starting the diesel engine........................................................29 3.2.4 Precautions for starting up in icy temperatures...................................30 3.2.5 Shutting down.....................................................................31 4 Malfunctions..................................................................................33 4.1 Error code tables.......................................................................33 5 Maintenance...................................................................................37 5.1 Maintenance and inspection schedule.....................................................37 5.2 Lubricant chart, Filling quantities.....................................................40 5.2.1 Table of filling quantities.......................................................40 5.2.2 Lubricant chart...................................................................40 5.3 Maintenance tasks.......................................................................42 5.3.1 Special tools for maintenance tasks...............................................42 5.3.2 Preparatory tasks for maintenance.................................................43 5.3.3 Maintenance Tasks (daily), every 10 operating hours...............................43 5.3.4 Maintenance tasks (daily) every 50 operating hours................................47 5.3.5 Maintenance Tasks, every 500 operating hours......................................48 5.3.6 Maintenance Tasks, every 1000 operating hours.....................................61 5.3.7 Maintenance tasks every 2000 operating hours......................................71 5.3.8 Maintenance Tasks every 3000 operating hours......................................71 5.3.9 Maintenance Tasks every 10000 operating hours.....................................73 5.3.10 Maintenance tasks as required....................................................74 5.3.11 Confirmation of maintenance tasks which have beenperformed.......................81 5.3.12 Every 500 operating hours / at least once a year.................................81 5.3.13 Additionally every 1000 / 2000 / 3000 operating hours............................82 5.3.14 Additionally every 2 years.......................................................83 5.4 Lubricants and fuels....................................................................84 5.4.1 Handling lubricants and fuels.....................................................84 5.4.2 Environmental-protection guidelines...............................................84 5.4.3 Disposal of used materials........................................................84 5.4.4 Diesel fuels......................................................................85 5.4.6 Coolant for the diesel engine.....................................................87
