Liebherr Diesel engine D936 A7-00 D946 A7-00 MCC Operator’s manual – PDF DOWNLOAD

Original price was: $78.00.Current price is: $25.95.

Liebherr Diesel engine D936 A7-00 D946 A7-00 MCC Operator’s manual – PDF DOWNLOAD

Product ID
Product type: Diesel engine
Product designation: D936 A7-00 / D946 A7-00 / MCC
From Serial no.: 2019040001

⚑
Instant PDF Download
Available immediately
πŸ’Ύ
Save to Your Device
Download & keep forever
πŸ›‘οΈ
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Liebherr Diesel engine D936 A7-00 D946 A7-00 MCC Operator’s manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr Diesel engine D936 A7-00 D946 A7-00 MCC Operator’s manual – PDF DOWNLOAD

Language : English
Pages :144
Downloadable : Yes
File Type : PDF
Size:5.50 MB

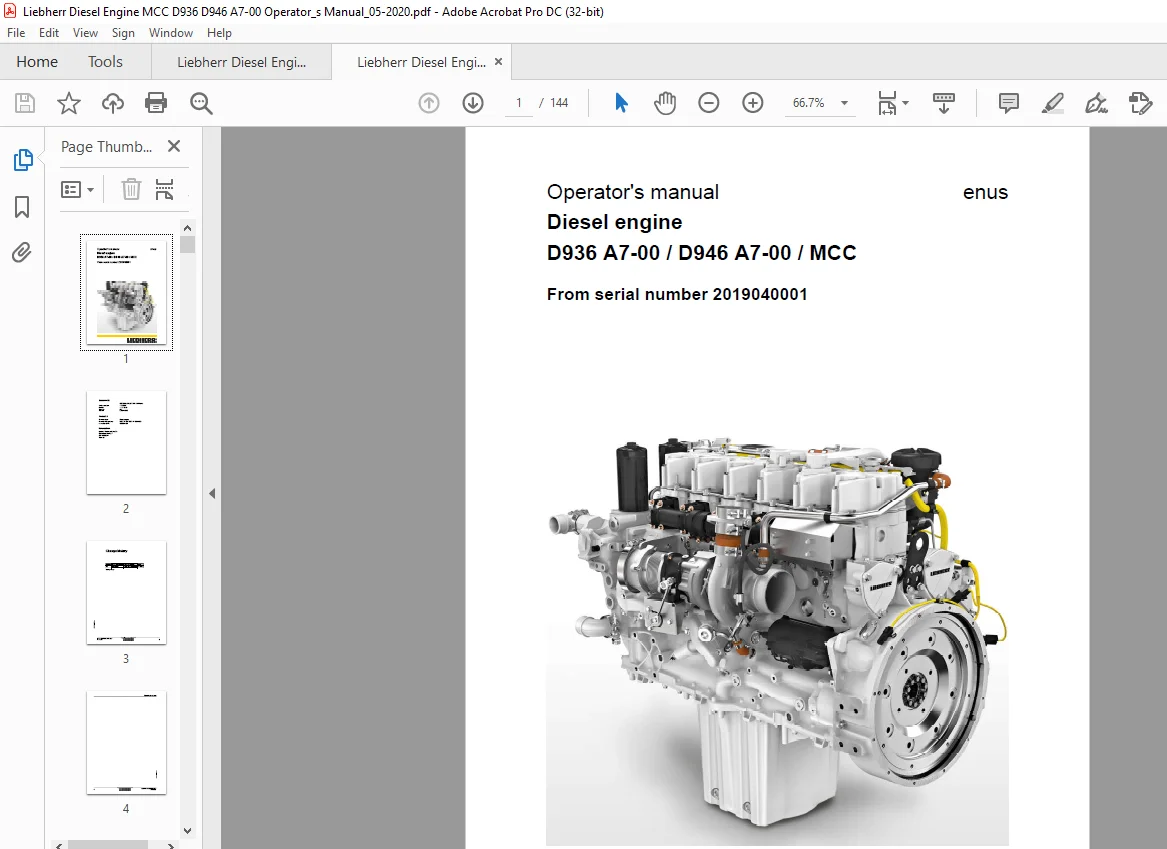

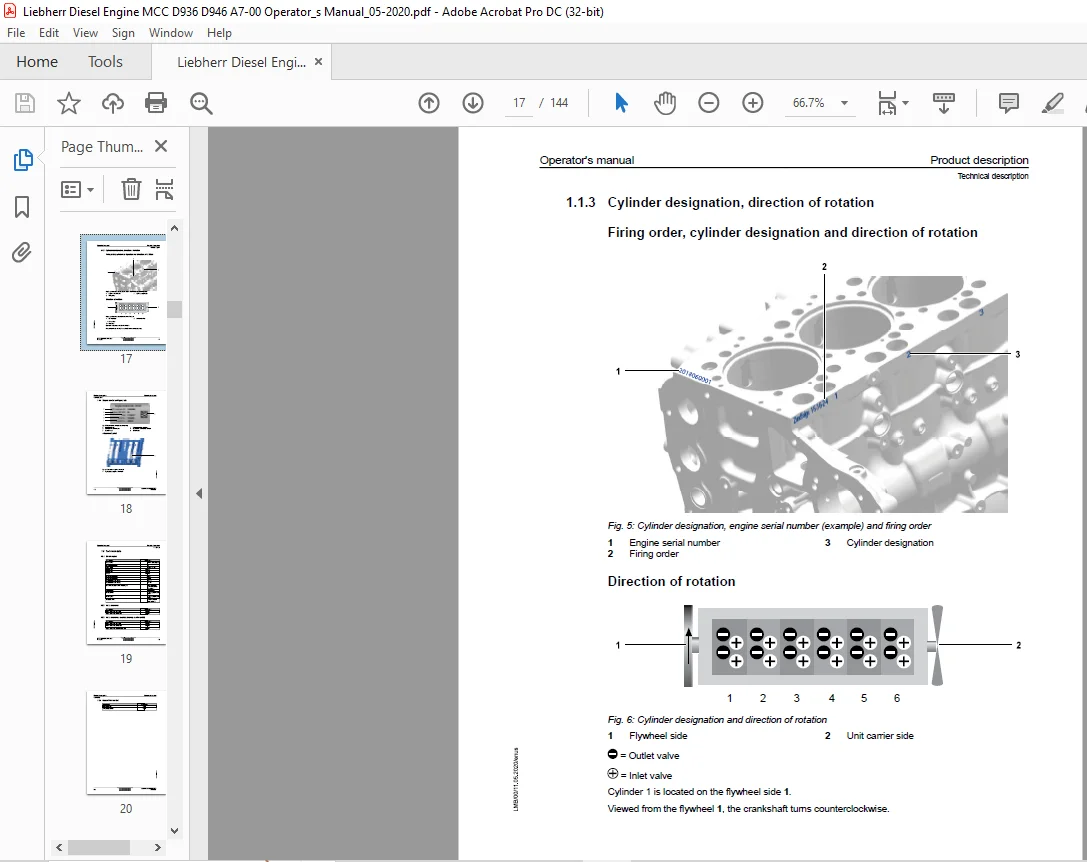

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Liebherr Diesel engine D936 A7-00 D946 A7-00 MCC Operator’s manual – PDF DOWNLOAD

Product ID
Product type: Diesel engine
Product designation: D936 A7-00 / D946 A7-00 / MCC
From Serial no.: 2019040001

Preface
About the Document
Contents

The descriptions for maintenance and care of the engine can be found in these operating instructions.

Work Instructions

A prerequisite for proper maintenance is a flawless and complete basic set of tools and the necessary devices and special tools.
Only use clean and undamaged tools. Replace damaged tools in a timely manner. Cleanliness and order contribute to safety at the workplace.
Clean the diesel engine, in particular connections and screw fittings, of oil, fuel, and care products at the start of the repair. Do not use any aggressive cleaning agents. Use lint-free cleaning cloths. Do not use any flammable liquids to clean the diesel engine.
Sealing material (e.g., O-rings, seals, etc.) must always be replaced.
Removed parts should always be checked for their reusability and replaced if necessary.
If no specific torques or tightening instructions are specified, screwed assemblies are to be tightened according to the standard torques; these are included in the β€œAppendix” section.

Spare Parts

Only original Liebherr parts or spare parts purchased from Liebherr may be used for maintenance of Liebherr diesel engines.
Liebherr will cancel all possible obligations undertaken by Liebherr and/or its dealers, such as guarantee commitments, service agreements, etc., without prior notice if parts other than original Liebherr parts or spare parts purchased from Liebherr are used for maintenance.
All part information in this operator’s manual, e.g., identification numbers, thread sizes, dimensions, etc., are only informational. Spare part orders may only be carried out by means of the spare parts catalog pertaining to the scope of delivery.

Lubricating and Operating Fluids

Only lubricating and operating fluids approved by Liebherr may be used for the operation of Liebherr diesel engines.
Liebherr will cancel all possible obligations undertaken by Liebherr and/or its dealers, such as guarantee commitments, service agreements, etc., without prior notice if lubricating and operating fluids other than those approved by Liebherr are used.

Usage Instructions

Illustrations in this operator’s manual may have details that differ from your diesel engine. The work concerned should then be performed analogously to the work description at hand.
Improvements that are carried out on the diesel engine may result in changes, which may not yet be mentioned in this operator’s manual.
If you require any further explanations or information, the customer service and customer service training departments of Liebherr are available to you. The operating instructions are not subject to an updating service. Depending on the technical requirements, the operating instructions are revised and are then published in the current version.
The service information released by Liebherr Machines. Machines Bulle serves as a supplement after the
publication of a version of the operator’s manual.

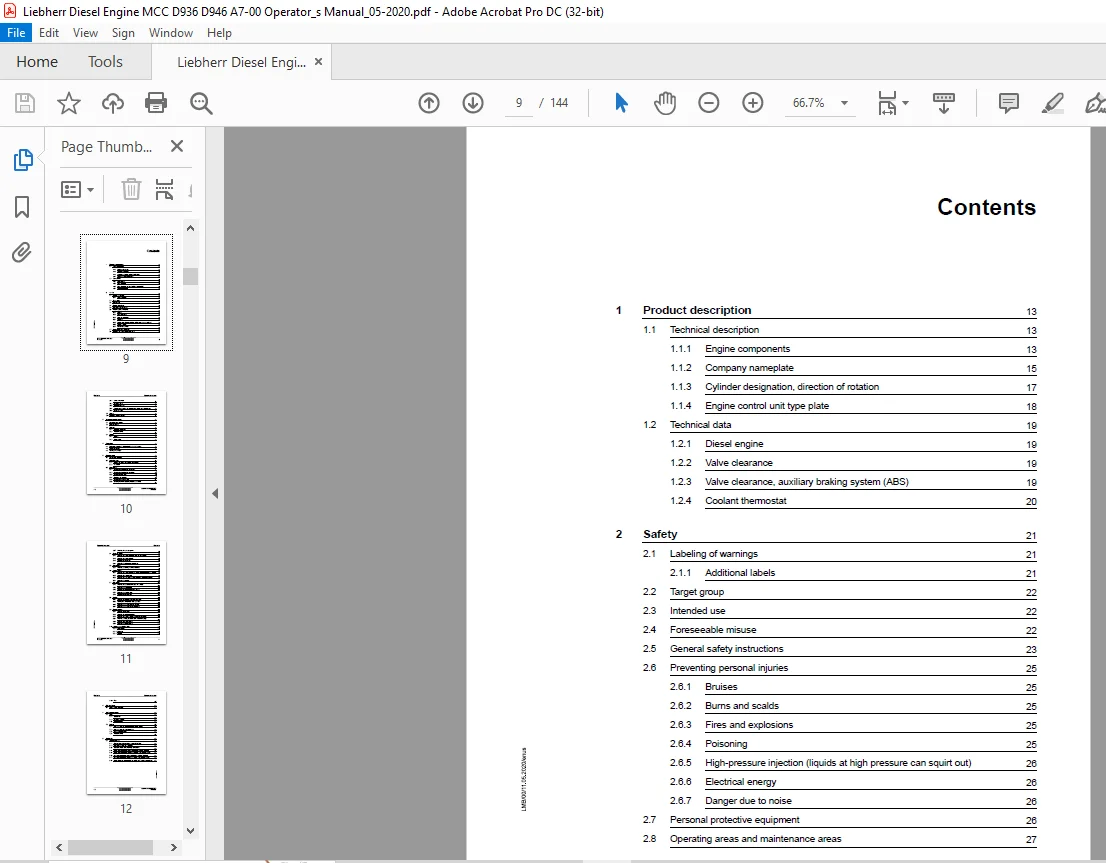

TABLE OF CONTENTS:

Liebherr Diesel engine D936 A7-00 D946 A7-00 MCC Operator’s manual – PDF DOWNLOAD

1 Product description 13
1.1 Technical description 13
1.1.1 Engine components 13
1.1.2 Company nameplate 15
1.1.3 Cylinder designation, direction of rotation 17
1.1.4 Engine control unit type plate 18
1.2 Technical data 19
1.2.1 Diesel engine 19
1.2.2 Valve clearance 19
1.2.3 Valve clearance, auxiliary braking system (ABS) 19
1.2.4 Coolant thermostat 20
2 Safety 21
2.1 Labeling of warnings 21
2.1.1 Additional labels 21
2.2 Target group 22
2.3 Intended use 22
2.4 Foreseeable misuse 22
2.5 General safety instructions 23
2.6 Preventing personal injuries 25
2.6.1 Bruises 25
2.6.2 Burns and scalds 25
2.6.3 Fires and explosions 25
2.6.4 Poisoning 25
2.6.5 High-pressure injection (liquids at high pressure can squirt out) 26
2.6.6 Electrical energy 26
2.6.7 Danger due to noise 26
2.7 Personal protective equipment 26
2.8 Operating areas and maintenance areas 27
2.8.1 Safety instructions 27
2.8.2 Operating areas 28
2.8.3 Maintenance areas 28
2.8.4 Securing and releasing the diesel engine against accidental start-up 29
2.8.5 Emergency stop 30
2.9 Signage 30
2.10 Preventing property damage 31
3 Transport and storage 33
3.1 Dimensions and weights 33
3.2 Lifting the engine 34
3.3 Transport 36
3.3.1 Transport attachment 36
3.3.2 Transport device 37
3.4 Storage 39
3.4.1 Storage 39
3.4.2 Storage time 43
4 Operation 45
4.1 Preliminary work for the initial commissioning of the engine 45
4.2 Starting the engine 46
4.3 Turning off the engine 48
5 Maintenance 49
5.1 Maintenance schedule 49
5.2 Preliminary work 52
5.2.1 Bringing the engine into maintenance position 52
5.2.2 As needed 52
5.3 Diesel engine 54
5.3.1 Checking the V-ribbed belt for damage 54
5.3.2 Checking the V-ribbed belt for tension 54
5.3.3 Checking the belt drive 55
5.3.4 Replacing the belt drive 58
5.3.5 Checking the engine mount 61
5.3.6 Checking the intake system for leaks and damage 62
Operator’s manual Contents
5.3.7 Checking the exhaust system 63
5.4 Engine oil system 64
5.4.1 Checking the engine oil system for leaks and damage 64
5.4.2 Checking the engine oil level 67
5.4.3 Changing the engine oil 68
5.4.4 Replacing the oil separator filter insert 74
5.5 Cylinder head 78
5.5.1 Checking and setting the valve clearance 78
5.6 Cooling system 95
5.6.1 Checking the cooling system and heating system for leaks and damage 95
5.6.2 Checking the coolant level 96
5.6.3 Checking the concentration of the antifreeze agent in the coolant 96
5.6.4 Replacing the coolant 97
5.7 Fuel system 101
5.7.1 Checking the fuel system for leaks and damage 101
5.7.2 Replacing the fuel prefilter 102
5.7.3 Reducing the pressure in the fuel system 102
5.7.4 Replacing the fuel fine filter 102
5.7.5 Ventilating the fuel system 105
5.8 Air filter 107
5.8.1 Checking the air filter low pressure indicator 107
5.8.2 Cleaning the air filter dust discharge valve 107
5.8.3 Replacing the dry air filter main element 107
5.8.4 Replacing the dry air filter safety element 107
5.9 Electrical system 108
5.9.1 Checking the batteries 108
5.9.2 Checking the cable connections 108
5.9.3 Checking the engine control unit bearings for damage 108
5.9.4 Checking sensors, actuators, cable holders and plugs 109
5.9.5 Checking the heating flange 110
5.9.6 Replacing the heating flange 113
5.10 Lubricants and operating fluids 115
5.10.1 Fill quantities 115
5.10.2 Engine oil 115
5.10.3 Coolant 116
5.10.4 Fuel 117
6 Malfunctions 119
6.1 Faults – Cause – Remedy 119
7 Tools and devices 125
7.1 Tools 125
7.1.1 Special tool 125
7.1.2 Operating material 126
7.1.3 Diagnostic tools 126
7.2 Devices 127
7.2.1 Lifting traverse with three-point-raising (basic version) 127
7.2.2 Lifting traverse with two-point-raising 129
7.2.3 Engine assembly stand 130
7.2.4 Transport device 131
8 Appendix 133
8.1 Tightening torques 133
8.1.1 For hex bolts / cylinder screws / external hex bolts 133
8.1.2 For locking screws and banjo bolts 135
8.1.3 Standard torques for metric flange connections 136
8.1.4 Metric screw connection series L (light) (up to 500 bar/7252 Psi) 137
8.1.5 Metric screw connection series S (heavy) (up to 800 bar/11603 Psi) 138
8.1.6 Inch screw connection series L (light) (up to 500 bar/7252 Psi) 138
8.1.7 Inch screw connection series S (heavy) (up to 800 bar/11603 Psi) 139
8.1.8 Metric thread unit series L (light) (up to 500 bar/7252 Psi) for aluminum 140
