Liebherr L 586 1761 (USA / CAN) Wheel Loader Operator’s Manual 48644 – PDF DOWNLOAD

Description

Liebherr L 586 1761 (USA / CAN) Wheel Loader Operator’s Manual 48644 – PDF DOWNLOAD

FILE DETAILS:

Liebherr L 586 1761 (USA / CAN) Wheel Loader Operator’s Manual 48644 – PDF DOWNLOAD

Language : English
Pages : 384
Downloadable : Yes
File Type : PDF
Size: 85.1 MB

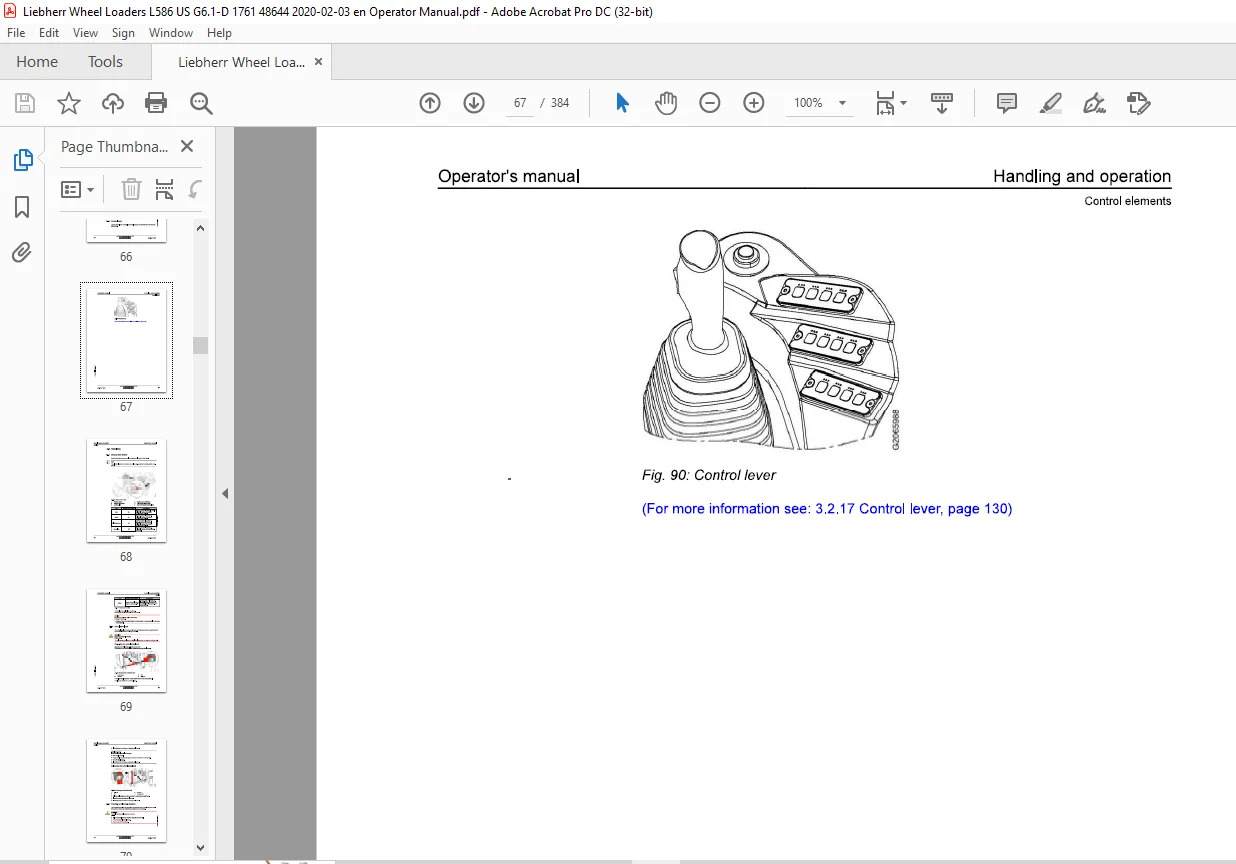

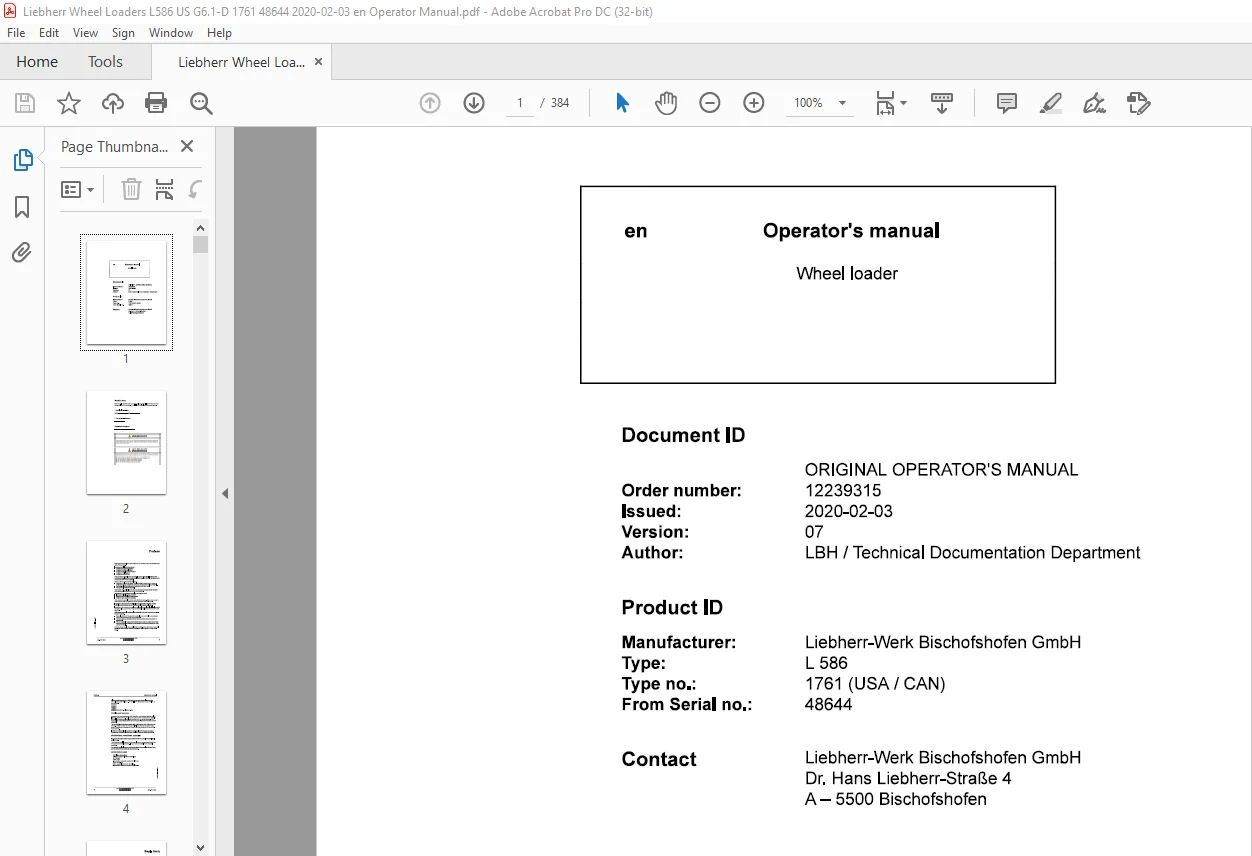

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Liebherr L 586 1761 (USA / CAN) Wheel Loader Operator’s Manual 48644 – PDF DOWNLOAD

Product ID
Manufacturer : Liebherr-Werk Bischofshofen GmbH
Type : L 586
Type no. : 1761 (USA / CAN)
From Serial no. : 48644

Preface:

This operator’s manual has been written for the operator and for the maintenance
staff of the machine.
It contains the following descriptions:
– Chapter 1 “Product description”
– Chapter 2 “Safety regulations”
– Chapter 3 “Handling and operation”
– Chapter 4 “Malfunctions”
– Chapter 5 “Maintenance”

This operator’s manual must be carefully read before initially putting into service and should be read and used later at regular intervals by anyone who carries out work on the machine.

Working with or on the machine includes:
– Operation including equipping, troubleshooting during operation, removing
production debris, maintenance, removing operating and auxiliary materials.
– Servicing including maintenance, inspection and repair work.
– Transport or loading the machine.

This operator’s manual helps the driver to become acquainted with the machine and prevents malfunctions due to incorrect operation.

Observation of the operator’s manual by maintenance staff:
– Increases reliability during operation
– Extends the service life of your machine
– Reduces repair costs and downtime

• This operator’s manual must be kept with the machine. Make sure a copy is kept in the storage compartment of the operator’s cab at all times.
• In addition to the operator’s manual, follow the instructions based on existing national accident prevention and environmental protection regulations.
• In addition to the operator’s manual and applicable national and local legal accident prevention rules, observe the recognised technical regulations for safe and correct operation.
• This operator’s manual contains all the information you need to operate and maintain your machine.

– Some illustrations in this operator’s manual may show details and equipment that are different from those on your machine.
– On some pictures, protective devices and covers have been removed for a better view.
– We are constantly making improvements to our machines, which means there may have been modifications to your machine which are not mentioned in this operator’s manual.

However, if you should require explanations or information, the Liebherr technical
information and customer services departments will be happy to provide assistance.

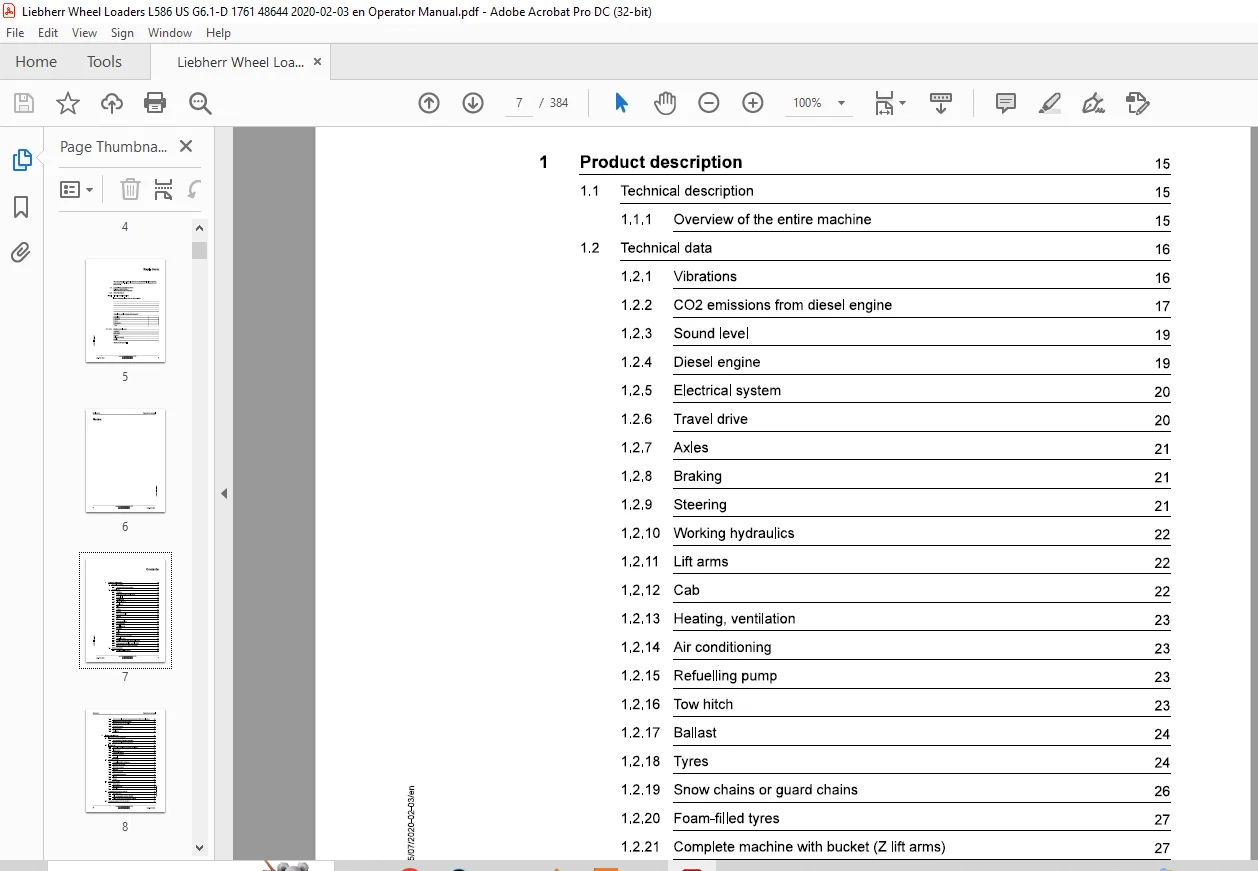

TABLE OF CONTENTS:
