DESCRIPTION:

Liebherr Litronic R942 Operation and Maintenance Manual – PDF DOWNLOAD

FOREWORD

This manual is primarily for the operator and the maintenance crew and contains information that is vital to the correct and secure operation and proper maintenance of the LIEBHERR excavator. It includes:

1. Accident Prevention Guidelines
2. Operating Instructions
3. Maintenance Instructions

This Operation and Maintenance manual should be given to the OPERATOR and any other person who might work on the machine. It is very important that they read the manual carefully before operating or working on the LIEBHERR excavator and at regular intervals thereafter. For example:

• Operation, including installing and removing attachments, troubleshooting during operation, removing production residue, care, disposing of operating and auxiliary fluids.
• Maintenance work (maintenance, inspection, repair)
• Transportation

The manual will make it easier for the operator to get accustomed to the hydraulic excavator and prevent any problems due to improper handling. All maintenance personnel should follow the operating and maintenance instructions, and your LIEBHERR excavator will give you constant and reliable service with excellent performance, reducing repair costs and downtime.

• In addition to the operating and maintenance guidelines in this manual, additional local and national accident prevention guidelines and environmental regulations might be applicable and must be observed.
• The Operation and Maintenance Manual is part of the machine and should be left in the glove compartment of the operator’s cab. Please take notice that we cannot honor any claims that could arise due to careless handling, improper operation, inadequate maintenance, use of unauthorized oils or lubricants, non-observance of the safety instructions, etc.
• LIEBHERR reserves the right to cancel any warranty claims, service contracts, etc. without prior notice if any parts other than Original LIEBHERR parts or parts sold by LIEBHERR are used for maintenance and repairs.
• This Operation and Maintenance manual contains all the necessary information to operate and maintain your Litronic track-type excavator. However, if you need additional information or explanations, please contact LIEBHERR’s Technical Documentation, Service School, or Customer Service Department.

TABLE OF CONTENTS:

Liebherr Litronic R942 Operation and Maintenance Manual – PDF DOWNLOAD

Foreword 01
Index 03
Information to the operation and maintenance manual 05
1/ MACHINE DESCRIPTION, TECHNICAL DATA
Machine desaiption, technical data 1 1
Digging envelope for backhoe attachment 16
Lift capacities 1 7
Dimensions, operating weights 110
2/ SAFETY INFORMATION
Destined use 21
General safety information 22
Crushing and burn prevention 23
Fire and explosion prevention 23
Machine start up safety 23
Engine start up and operating safety 24
Machine operating safety – 24
Machine parking safety 25
Machine transporting safety 25
Machine towing safety 26
Machine maintenance safety 26
3/ CONTROLS AND INSTRUMENTATION
The operator’s seat 31
Controls and instrumentation in the cab 32
Control and Instrument panel 34
4/ OPERA TING PROCEDURES
Pre starting inspection 41
Machine start up safety 43
Diesel engine operation 44
Stopping the engine 46
Machine operating safety 47
Travel functions 48
Location of the two joysticks 41 O
Control of the swing 4 10
Attachment control 4 12
The heater 4 16
The heater and air conditioner 4 18
Transporting the excavator on flatbed trailers or railway cars 419
Towing the excavator 420
Removal and installation of attachments 421
Guidelines for hydraulic excavators when they are used for lifting loads 428
The overload warning device 429
Changing the width of the undercarriage on machines with adjustable track gauge 433
5/ LUBRICATION
General safety information 5 1
Lubricant and fuel chart 52
Lubricant and fuel specifications 54
Lubrication chart 510
Diesel engine 511
Changing the oil in the splitterbox 514
Changing the oil in the travel gear 515
Changing the oil in the swing gear 515
Oil in the hydraulic system 516
Swing ring lubrication 517
Lubrication of attachment bearing points 518
Centralized lubricating system (Optional equipment) 519
6/ MAINTENANCE
Machine maintenance safety 61
The fuel system 64
The diesel engine 66
The track components 68
The hydraulic system 610
The swing and travel brakes 614
Checking mounting screws for tightness 615
The air filter 616
The electrical system 618
Replacing the bucket teeth 620
Replacing wear and tear items 621
Welding 621
Maintenance schedule 623
This chapter intentionnally blank
8/ OPTIONAL ATTACHMENT
Air cushioned driver’s seat 81

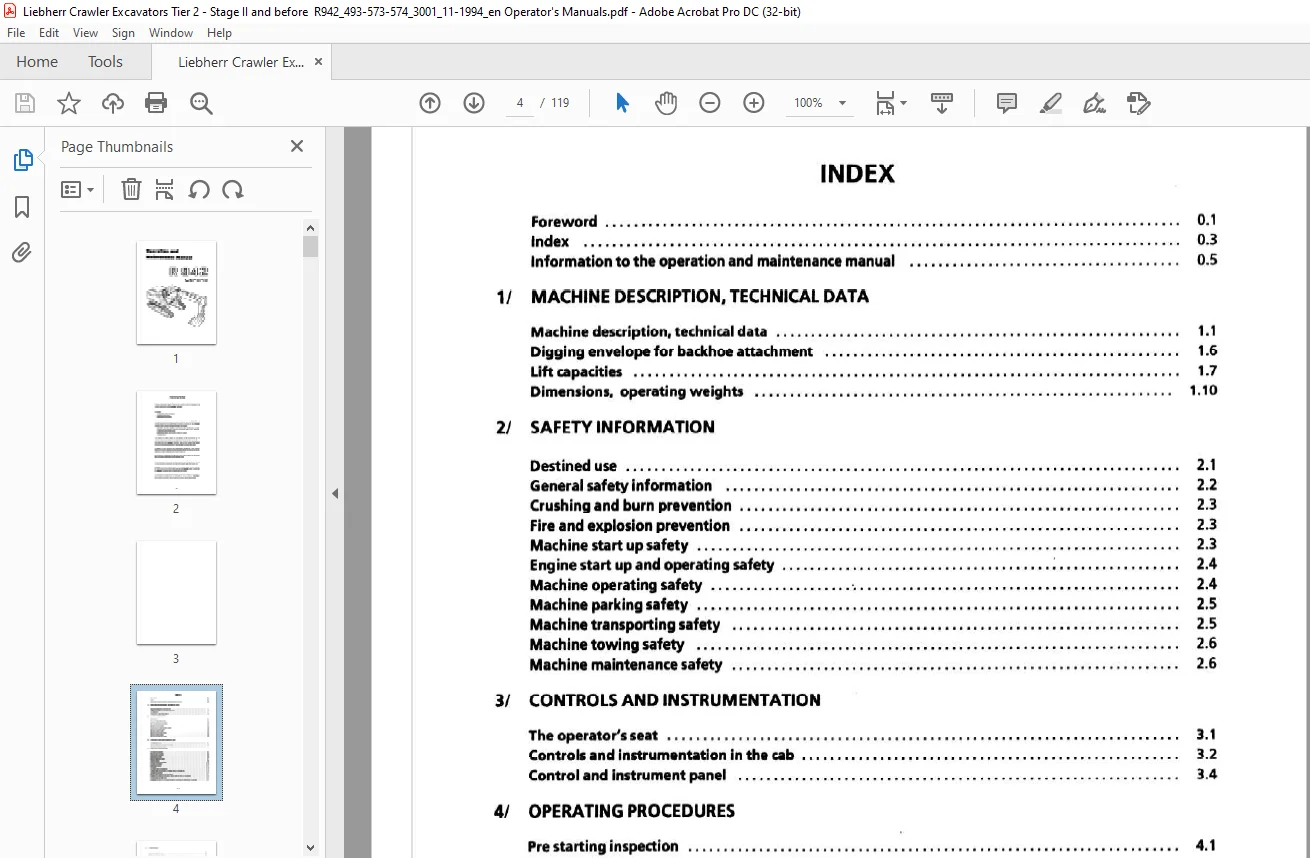

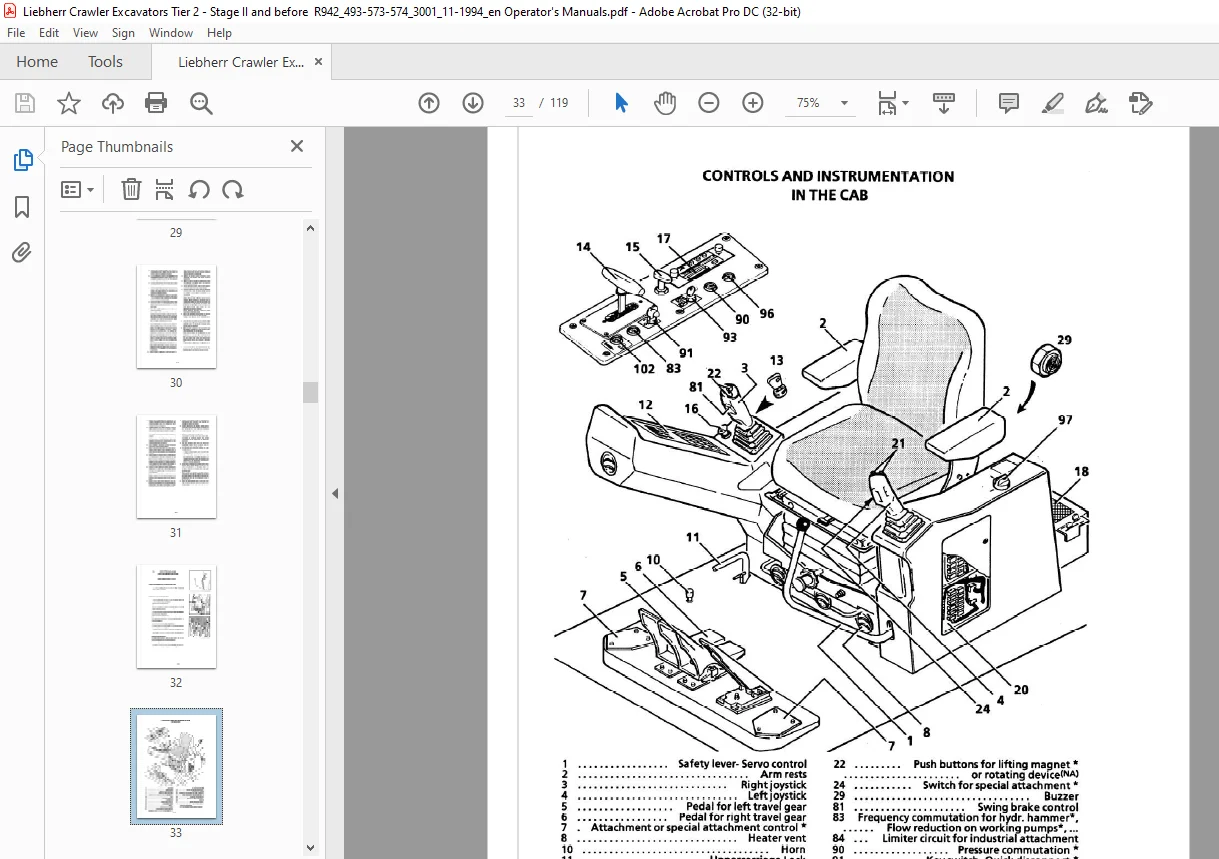

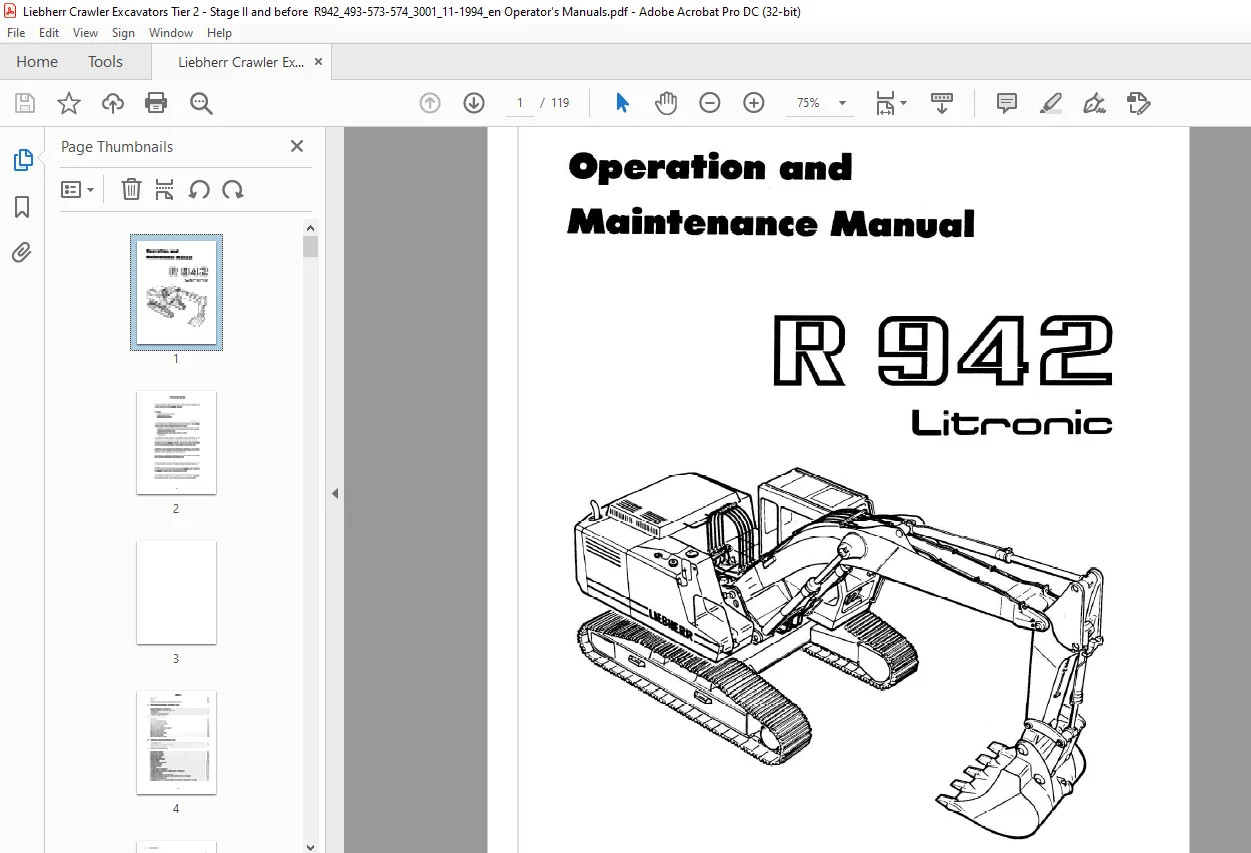

IMAGES PREVIEW OF THE MANUAL:
