Liebherr LTC 1055-3.1 Load Chart Manual 056319 – PDF DOWNLOAD
$28.95
Liebherr LTC 1055-3.1 Load Chart Manual 056319 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Liebherr LTC 1055-3.1 Load Chart Manual 056319 – PDF DOWNLOAD
FILE DETAILS:
Liebherr LTC 1055-3.1 Load Chart Manual 056319 – PDF DOWNLOAD
Language : English
Pages : 632
Downloadable : Yes
File Type : PDF

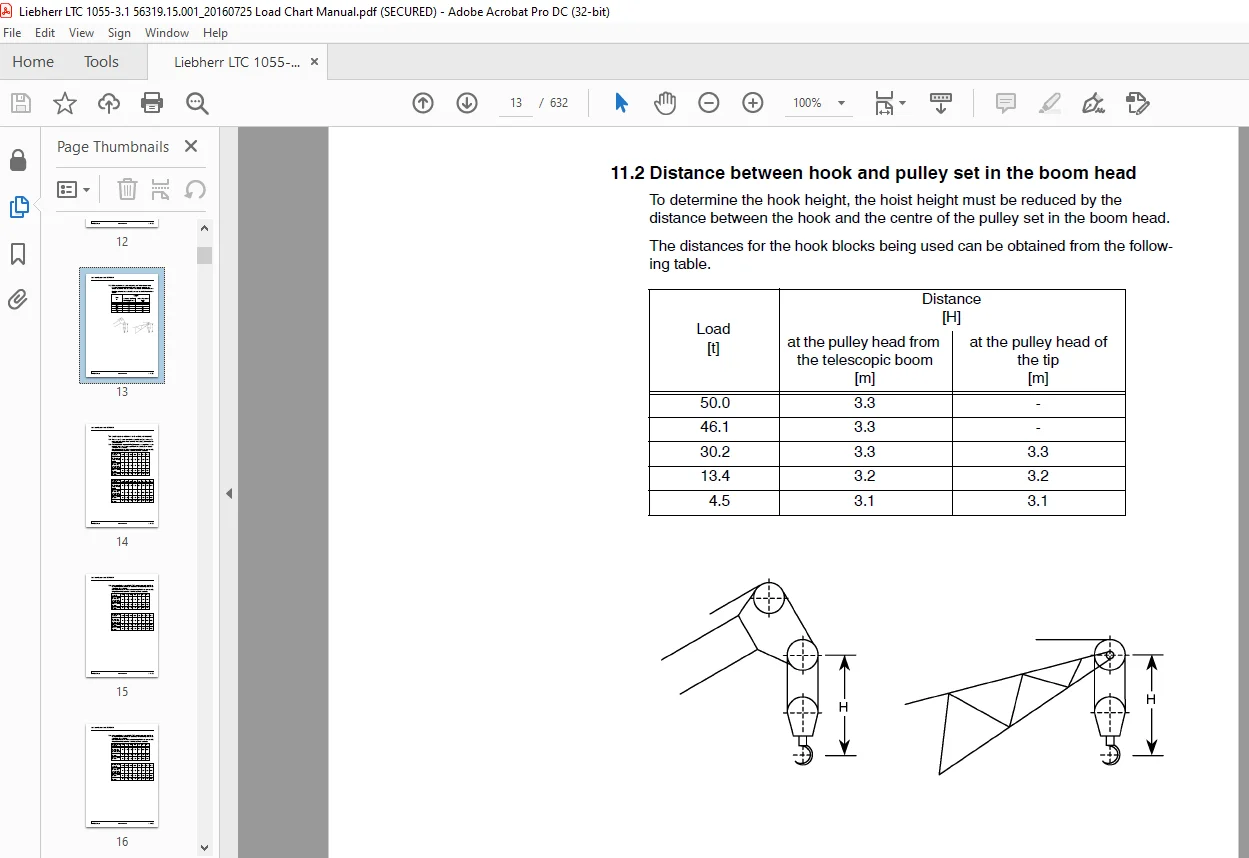

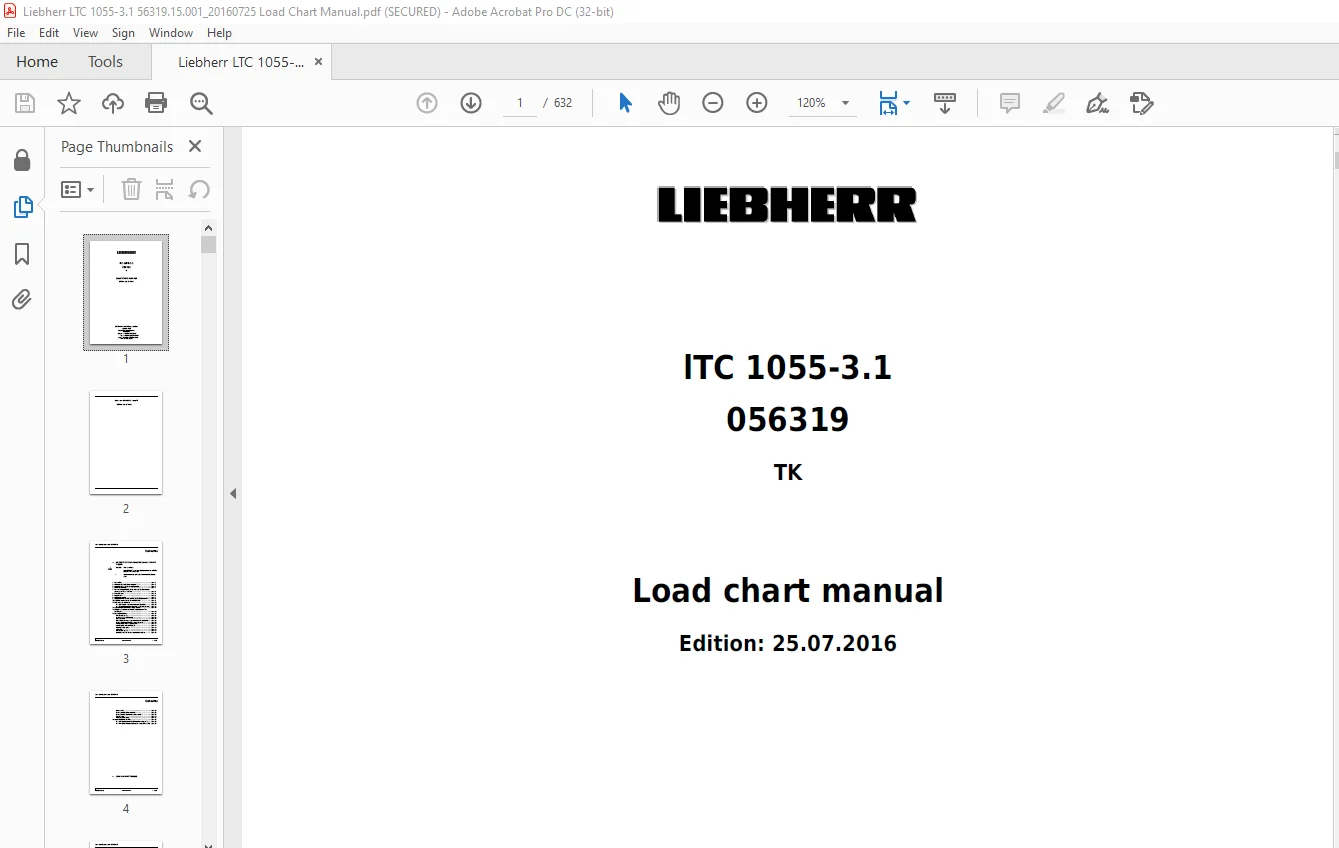

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Liebherr LTC 1055-3.1 Load Chart Manual 056319 – PDF DOWNLOAD
1. Explanations:
1.1 The load capacity values in the tables are stated in metric tons [t].
1.2 The working radius is the horizontal gravity center distance of the load from the rotational
axis of the crane superstructure measured at the ground. The radius stated is valid under load
conditions, i.e. including boom flexure.
1.3 The load capacity values are specified in fixed stages in the load charts, sub- ject to
reach and telescopic boom length. The load capacity value between two reach stages does not change
linear, but may be closer to the load capa- city value for the greater or smaller reach. For the
intermediate areas, the load capacities which are displayed in the LICCON operating screen apply.
1.4 Boom positions differing from those given in the load capacity tables are not permissible.
1.5 Even without a load, the boom may only be moved inside those areas for which load capacity
values are stated, otherwise there is a danger of tilting. In normal operation, this hazard is
prevented by the overload safety device. After switching to “Assembly” mode (with the “assembly”
key-operated switch), the boom must not be lowered or topped outside the range of the working
radius.
1.6 The stated load capacities contain the weights of the load bearing, lifting and slinging
tackle. The possible weight for the load to be lifted is therefore redu- ced according to the
weights of the afore-mentioned tackle.
1.7 If the boomnose is mounted on the jib head during crane operation, then the possible load is
reduced further corresponding the weight of the boomnose.
2. Crane operating mode “Crane supported”:
2.1 Before the crane is raised on its supports, the axle suspension must be blok- ked.
2.2 The sliding arms of the hydraulic support jack must be extended (to a uniform length on both
sides) to the extent stated in the applirope load capacity table.
2.3 The sliding arms must be secured by pins.
2.4 It is necessary to place stable underlay material under the support pads of the support
jacks over a large surface area according to ground conditions.
2.5 All wheels must be raised clear of the ground.
2.6 The crane is to be horizontally aligned via the support control unit. Additio- nally, the
horizontal position of the crane must be checked from time to time during crane operation and
adjusted as required.

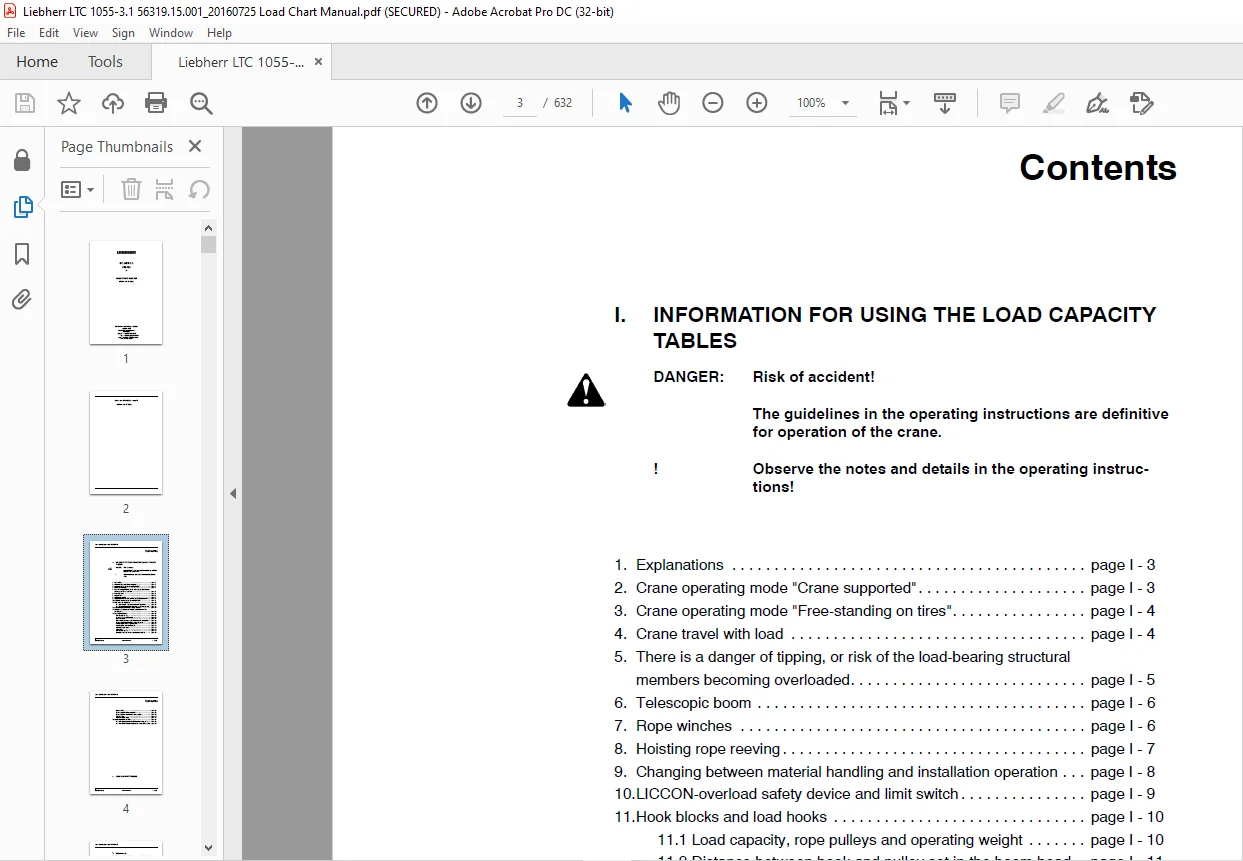

TABLE OF CONTENTS:
Liebherr LTC 1055-3.1 Load Chart Manual 056319 – PDF DOWNLOAD
I. INFORMATION FOR USING THE LOAD CAPACITY TABLES........................................................ 0 II. LOAD CAPACITY TABLES................................................................................. 0 1. Explanations.......................................................................................... 0 2. Crane operating mode "Crane supported"................................................................ 0 3. Crane operating mode "Free-standing on tires"......................................................... 0 4. Crane travel with load................................................................................ 0 5. There is a danger of tipping, or risk of the load- bearing structural members becoming overloaded:.... 0 6. Telescopic boom....................................................................................... 0 7. Rope winches.......................................................................................... 0 8. Hoisting rope reeving................................................................................. 0 9. Changing between material handling and installation operation......................................... 0 10. LICCON-overload safety device and limit switch....................................................... 0 11. Hook blocks and load hooks........................................................................... 0 11.1 Load capacity, rope pulleys and operating weight................................................ 0 11.2 Distance between hook and pulley set in the boom head........................................... 0 12. Load capacity reduction with folding jib mounted..................................................... 0 13. Maximum turning speed of the crane’s superstructure with a nominal load.............................. 0 14. Explanation of symbols............................................................................... 0 Hoisting rope reeving................................................................................ 0 Load capacity in metric tons [t]..................................................................... 0 Operating mode....................................................................................... 0 Operating types that can only be operated with accessories!.......................................... 0 Crane operation featuring lifting beam with hooks.................................................... 0 Working radius of the telescopic boom................................................................ 0 Working radius of the additional jib................................................................. 0 Telescopic boom length............................................................................... 0 Short code........................................................................................... 0 Hoisting rope reeving................................................................................ 0 Extension conditions of the telescopic boom sections................................................. 0 Counterweight........................................................................................ 0 Crane operations "Crane supported"................................................................... 0 Crane operation "Crane free-standing on tyres"....................................................... 0 Slewing range........................................................................................ 0 Permissible wind speed............................................................................... 0 15. Observation of wind conditions....................................................................... 0 15.1 Wind influence on the LICCON-overload safety device............................................. 0 15.2 Permissible wind speed and surface susceptibility to wind....................................... 0 [...] [...] ... | TK | ISO DIN....................................................................... 31 T K 0° 1.2m................................................................................. 36 4.4/ 0 t | 6.26 x 6.26 m | 360°............................................................. 36 4.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................. 52 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................ 60 10.4/ 0 t | 6.26 x 4.5 m | 360°............................................................. 76 4.4/ 0 t | 14I--I10 | !0°.................................................................... 92 10.4/ 0 t | 14I--I10 | !0°................................................................... 95 2.5/1.9 t | 14I--I10 | 360°.................................................................. 98 T K 0° 4.5m | 360°........................................................................ 99 4.4/ 0 t | 6.26 x 6.26 m...................................................................... 99 4.4/ 0 t | 6.26 x 4.5 m.......................................................................103 10.4/ 0 t | 6.26 x 6.26 m.....................................................................107 10.4/ 0 t | 6.26 x 4.5 m......................................................................111 T K 0° 7.8m | 360°........................................................................115 4.4/ 0 t | 6.26 x 6.26 m......................................................................115 4.4/ 0 t | 6.26 x 4.5 m.......................................................................119 10.4/ 0 t | 6.26 x 6.26 m.....................................................................123 10.4/ 0 t | 6.26 x 4.5 m......................................................................127 T K 0° 10.2m | 360°.......................................................................131 4.4/ 0 t | 6.26 x 6.26 m......................................................................131 4.4/ 0 t | 6.26 x 4.5 m.......................................................................135 10.4/ 0 t | 6.26 x 6.26 m.....................................................................139 10.4/ 0 t | 6.26 x 4.5 m......................................................................143 T K 0° 12.6m | 360°.......................................................................147 4.4/ 0 t | 6.26 x 6.26 m......................................................................147 4.4/ 0 t | 6.26 x 4.5 m.......................................................................151 10.4/ 0 t | 6.26 x 6.26 m.....................................................................155 10.4/ 0 t | 6.26 x 4.5 m......................................................................159 T K 0° 15.0m | 360°.......................................................................163 4.4/ 0 t | 6.26 x 6.26 m......................................................................163 4.4/ 0 t | 6.26 x 4.5 m.......................................................................167 10.4/ 0 t | 6.26 x 6.26 m.....................................................................171 10.4/ 0 t | 6.26 x 4.5 m......................................................................175 T K 20° 1.2m.................................................................................179 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................179 4.4/ 0 t | 6.26 x 4.5 m | 360°..............................................................195 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................211 10.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................227 4.4/ 0 t | 14I--I10 | !0°....................................................................243 10.4/ 0 t | 14I--I10 | !0°...................................................................246 2.5/1.9 t | 14I--I10 | 360°..................................................................249 T K 20° 4.5m | 360°........................................................................250 4.4/ 0 t | 6.26 x 6.26 m......................................................................250 4.4/ 0 t | 6.26 x 4.5 m.......................................................................254 10.4/ 0 t | 6.26 x 6.26 m.....................................................................258 10.4/ 0 t | 6.26 x 4.5 m......................................................................262 T K 20° 7.8m | 360°........................................................................266 4.4/ 0 t | 6.26 x 6.26 m......................................................................266 4.4/ 0 t | 6.26 x 4.5 m.......................................................................270 10.4/ 0 t | 6.26 x 6.26 m.....................................................................274 10.4/ 0 t | 6.26 x 4.5 m......................................................................278 T K 20° 10.2m | 360°.......................................................................282 4.4/ 0 t | 6.26 x 6.26 m......................................................................282 4.4/ 0 t | 6.26 x 4.5 m.......................................................................286 10.4/ 0 t | 6.26 x 6.26 m.....................................................................290 10.4/ 0 t | 6.26 x 4.5 m......................................................................294 T K 20° 12.6m | 360°.......................................................................298 4.4/ 0 t | 6.26 x 6.26 m......................................................................298 4.4/ 0 t | 6.26 x 4.5 m.......................................................................302 10.4/ 0 t | 6.26 x 6.26 m.....................................................................306 10.4/ 0 t | 6.26 x 4.5 m......................................................................310 T K 20° 15.0m | 360°.......................................................................314 4.4/ 0 t | 6.26 x 6.26 m......................................................................314 4.4/ 0 t | 6.26 x 4.5 m.......................................................................318 10.4/ 0 t | 6.26 x 6.26 m.....................................................................322 10.4/ 0 t | 6.26 x 4.5 m......................................................................326 T K 40° 1.2m.................................................................................330 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................330 4.4/ 0 t | 6.26 x 4.5 m | 360°..............................................................346 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................362 10.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................378 4.4/ 0 t | 14I--I10 | !0°....................................................................394 10.4/ 0 t | 14I--I10 | !0°...................................................................397 2.5/1.9 t | 14I--I10 | 360°..................................................................400 T K 40° 4.5m | 360°........................................................................401 4.4/ 0 t | 6.26 x 6.26 m......................................................................401 4.4/ 0 t | 6.26 x 4.5 m.......................................................................405 10.4/ 0 t | 6.26 x 6.26 m.....................................................................409 10.4/ 0 t | 6.26 x 4.5 m......................................................................413 T K 40° 7.8m | 360°........................................................................417 4.4/ 0 t | 6.26 x 6.26 m......................................................................417 4.4/ 0 t | 6.26 x 4.5 m.......................................................................421 10.4/ 0 t | 6.26 x 6.26 m.....................................................................425 10.4/ 0 t | 6.26 x 4.5 m......................................................................429 T K 40° 10.2m | 360°.......................................................................433 4.4/ 0 t | 6.26 x 6.26 m......................................................................433 4.4/ 0 t | 6.26 x 4.5 m.......................................................................437 10.4/ 0 t | 6.26 x 6.26 m.....................................................................441 10.4/ 0 t | 6.26 x 4.5 m......................................................................445 T K 40° 12.6m | 360°.......................................................................449 4.4/ 0 t | 6.26 x 6.26 m......................................................................449 4.4/ 0 t | 6.26 x 4.5 m.......................................................................453 10.4/ 0 t | 6.26 x 6.26 m.....................................................................457 10.4/ 0 t | 6.26 x 4.5 m......................................................................461 T K 40° 15.0m | 360°.......................................................................465 4.4/ 0 t | 6.26 x 6.26 m......................................................................465 4.4/ 0 t | 6.26 x 4.5 m.......................................................................469 10.4/ 0 t | 6.26 x 6.26 m.....................................................................473 10.4/ 0 t | 6.26 x 4.5 m......................................................................477 T K 60° 1.2m.................................................................................481 4.4/ 0 t | 6.26 x 6.26 m | 360°.............................................................481 4.4/ 0 t | 6.26 x 4.5 m | 360°..............................................................497 10.4/ 0 t | 6.26 x 6.26 m | 360°............................................................513 10.4/ 0 t | 6.26 x 4.5 m | 360°.............................................................529 4.4/ 0 t | 14I--I10 | !0°....................................................................545 10.4/ 0 t | 14I--I10 | !0°...................................................................548 2.5/1.9 t | 14I--I10 | 360°..................................................................551 T K 60° 4.5m | 360°........................................................................552 4.4/ 0 t | 6.26 x 6.26 m......................................................................552 4.4/ 0 t | 6.26 x 4.5 m.......................................................................556 10.4/ 0 t | 6.26 x 6.26 m.....................................................................560 10.4/ 0 t | 6.26 x 4.5 m......................................................................564 T K 60° 7.8m | 360°........................................................................568 4.4/ 0 t | 6.26 x 6.26 m......................................................................568 4.4/ 0 t | 6.26 x 4.5 m.......................................................................572 10.4/ 0 t | 6.26 x 6.26 m.....................................................................576 10.4/ 0 t | 6.26 x 4.5 m......................................................................580 T K 60° 10.2m | 360°.......................................................................584 4.4/ 0 t | 6.26 x 6.26 m......................................................................584 4.4/ 0 t | 6.26 x 4.5 m.......................................................................588 10.4/ 0 t | 6.26 x 6.26 m.....................................................................592 10.4/ 0 t | 6.26 x 4.5 m......................................................................596 T K 60° 12.6m | 360°.......................................................................600 4.4/ 0 t | 6.26 x 6.26 m......................................................................600 4.4/ 0 t | 6.26 x 4.5 m.......................................................................604 10.4/ 0 t | 6.26 x 6.26 m.....................................................................608 10.4/ 0 t | 6.26 x 4.5 m......................................................................612 T K 60° 15.0m | 360°.......................................................................616 4.4/ 0 t | 6.26 x 6.26 m......................................................................616 4.4/ 0 t | 6.26 x 4.5 m.......................................................................620 10.4/ 0 t | 6.26 x 6.26 m.....................................................................624 10.4/ 0 t | 6.26 x 4.5 m......................................................................628
Need help? Contact: [email protected]
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
