Liebherr LTM 1070-4.1 Spare Parts Catalogue Manual – PDF DOWNLOAD

Description

Liebherr LTM 1070-4.1 Spare Parts Catalogue Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr LTM 1070-4.1 Spare Parts Catalogue Manual – PDF DOWNLOAD

Language : English
Pages : 1046
Downloadable : Yes
File Type : PDF

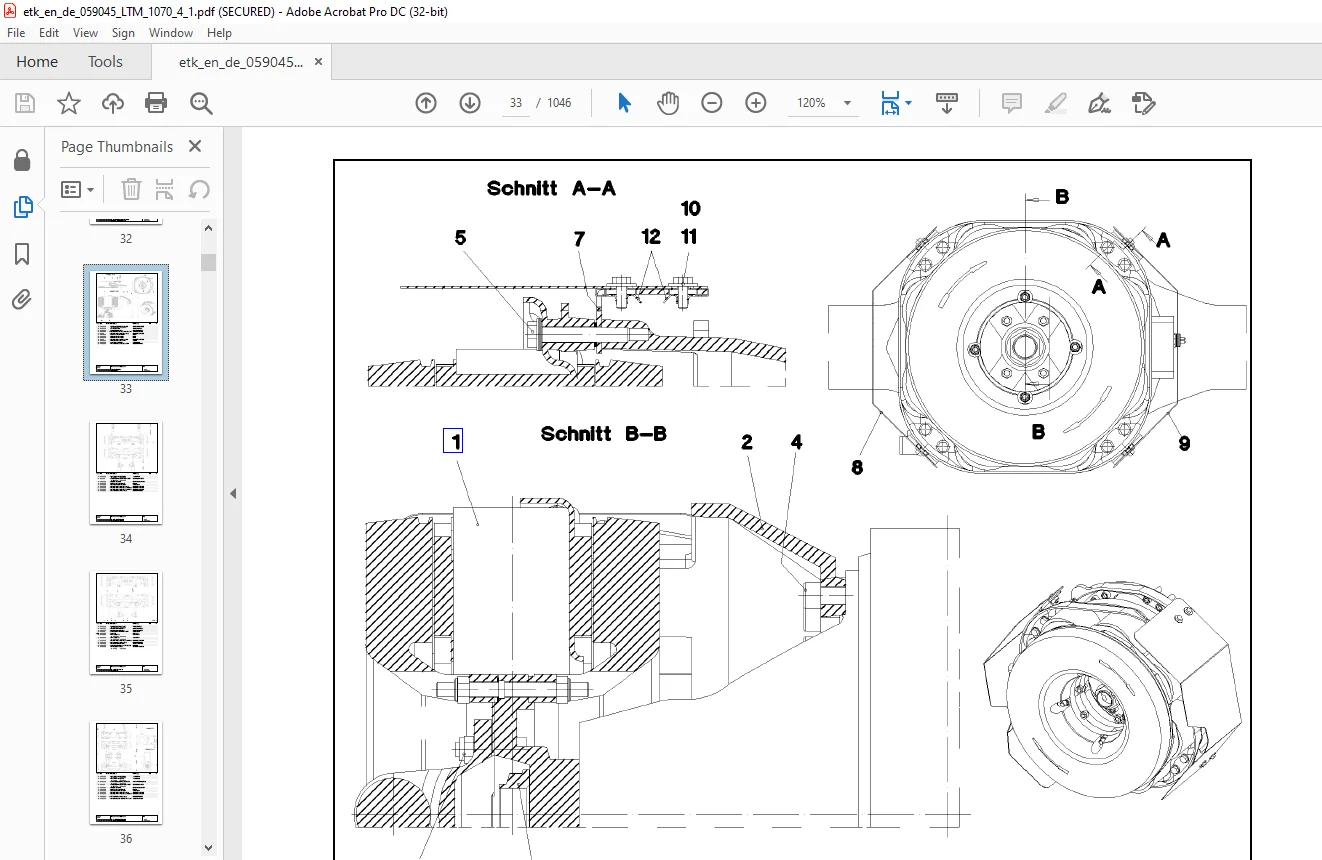

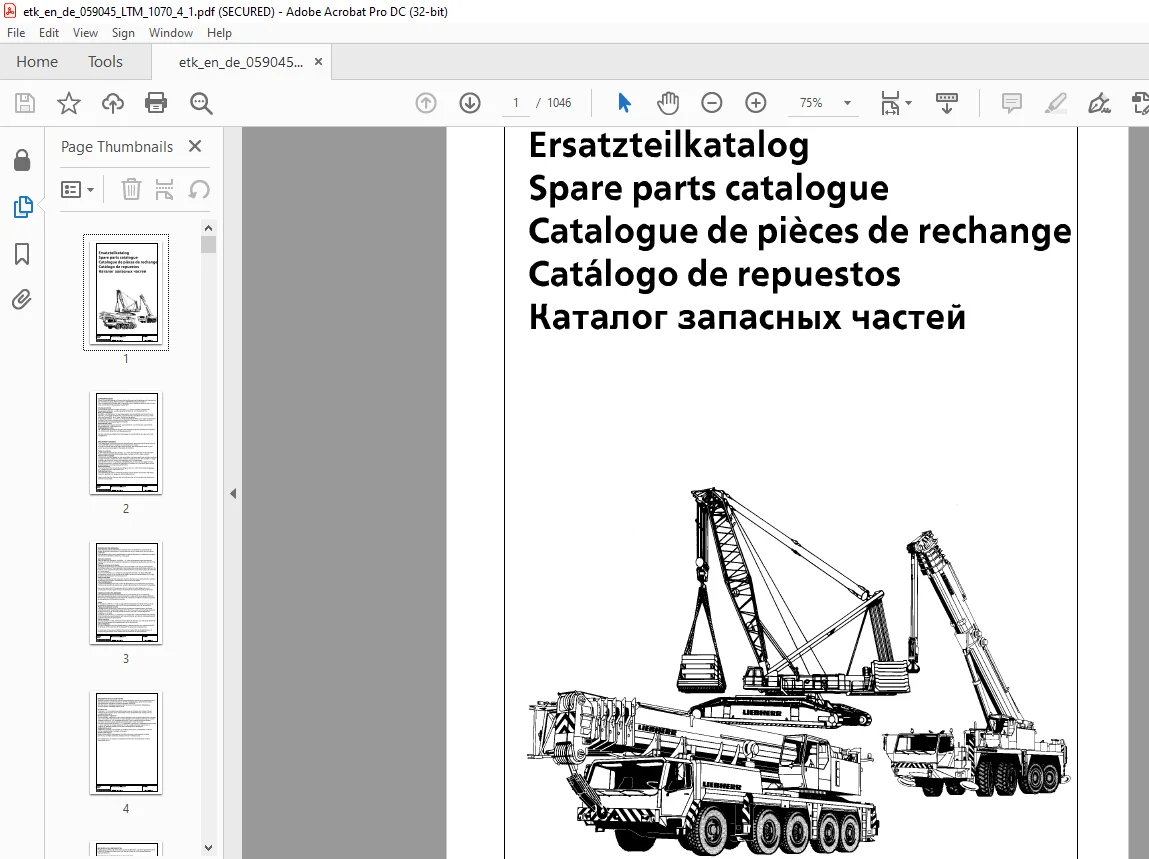

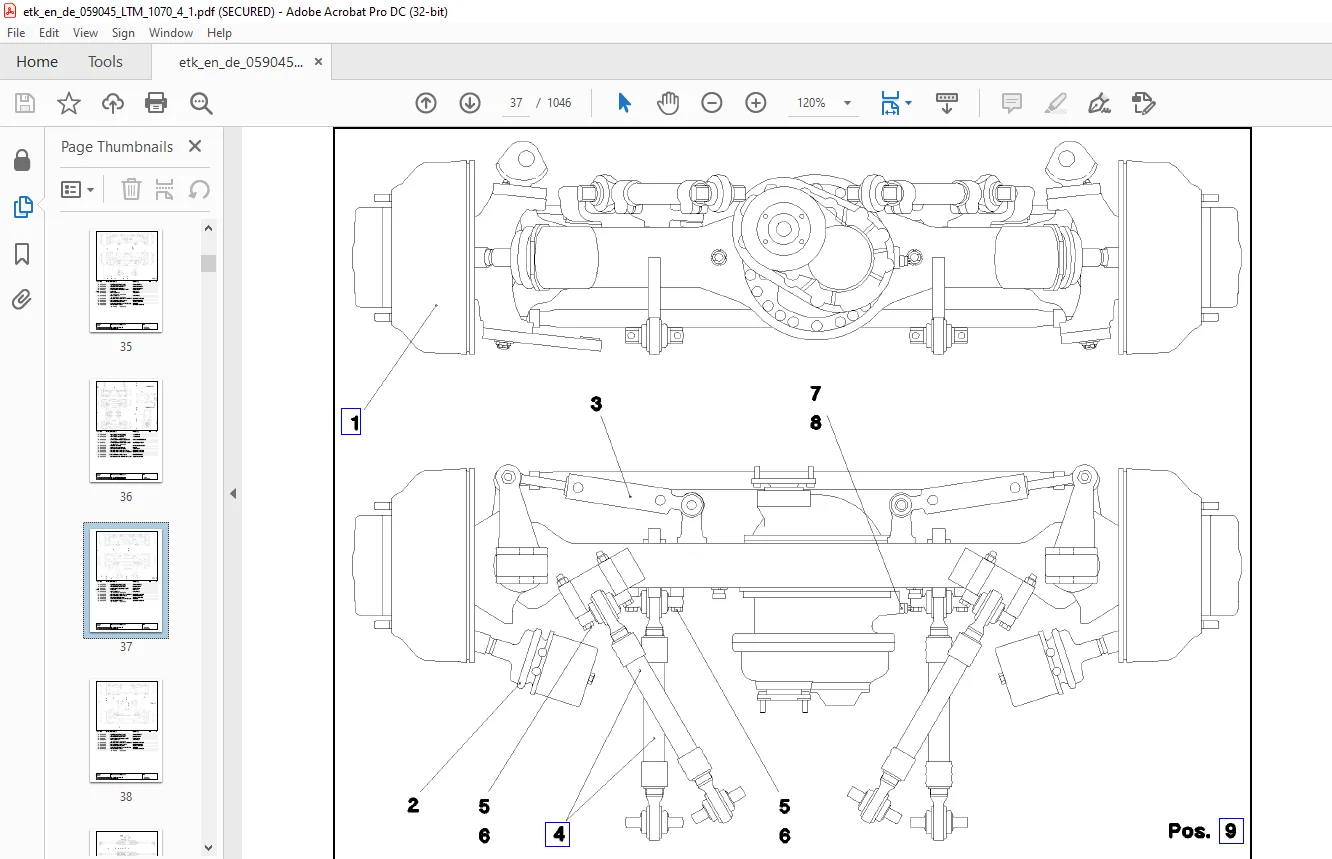

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Liebherr LTM 1070-4.1 Spare Parts Catalogue Manual – PDF DOWNLOAD

Catalog..............................................  1
	LTM 1070-4-1-001.................................  1
	91 07 433 08 / COOLER INSTALLATION............... 12
	96 19 533 08 / RADIATOR, PRE-ASSEMBLED........... 15
	91 07 499 08 / DIESEL ENGINE INSTALLATION........ 17
	96 19 532 08 / DIESEL ENGINE, PRE-ASSEMBLED...... 20
	91 25 867 08 / GEAR BOX INSTALLATION............. 23
	96 26 132 08 / ON-LOAD SHIFT GEARBOX PRE-ASS..... 27
	91 44 133 08 / ADD-ON UNIT TELMA................. 33
	91 26 838 08 / AXLE 1 WITH SUSPENSION............ 34
	96 27 426 08 / AXLE 1, PRE-ASSEMBLED............. 35
	91 26 846 08 / AXLES 3+4 WITH SUSPENSION......... 36
	96 27 438 08 / AXLE 3, PRE-ASSEMBLED............. 37
	96 27 439 08 / AXLE 4, PRE-ASSEMBLED............. 38
	92 43 720 08 / STEERING LOCKING,PRE-ASSEMBLED.... 39
	91 18 102 08 / TYRES 16.00 R25................... 40
	96 23 460 08 / TIRE CPL.16.00 R25................ 41
	91 26 848 08 / AXLE 2 WITH SUSPENSION............ 42
	96 27 435 08 / AXLE 2, PRE-ASSEMBLED............. 43
	92 46 450 08 / HYDRAULICS........................ 44
	92 46 451 08 / HYDRAULICS........................ 45
	92 46 452 08 / HYDRAULICS........................ 46
	92 46 453 08 / HYDRAULICS........................ 47
	91 09 664 08 / STEERING MECHANISM................ 48
	92 38 356 08 / STEERING LEVER, PRE-ASSEMBLED..... 50
	91 26 674 08 / STEERING HYDRAULICS............... 51
	92 95 244 08 / STEERING, PRE-ASSEMBLED........... 55
	91 43 772 08 / REMOTE CONTROL.................... 56
	92 52 674 08 / MOTOR SUPPORT (ELECTR.MOTOR)...... 57
	91 43 773 08 / DRIVE SHAFT FITTING............... 58
	91 10 659 08 / ADDITIONAL HEATING................ 59
	96 28 308 08 / ADDNL.HEATING, PRE-ASSEMBLED...... 61
	91 34 666 08 / FIXING PARTS SLEWING RING......... 63
	91 36 895 08 / SLIDING BEAM WITH BEARING......... 64
	96 30 093 08 / SLIDING BEAM FRONT,PRE-ASSEMB..... 66
	96 30 094 08 / SLIDING BEAM REAR, PRE-ASSEMBL.... 68
	91 25 870 08 / WHEEL CHOCKS WITH HOLDER.......... 70
	91 40 658 08 / SUPPORT PLATES W.FAST.ADD-ON...... 71
	92 52 733 08 / SUPPORT PLATE COMPL............... 72
	96 31 823 08 / COTTER PIN........................ 73
	96 31 824 08 / SPRING PLUG PRE-ASS............... 74
	91 43 778 08 / BOOM JIB SUPPORT CPL.............. 75
	91 43 779 08 / TOOL BOX ADD-ON................... 76
	91 26 103 08 / ROPE BOX WITH SUSPENSION.......... 77
	92 79 689 08 / STORAGE BOX....................... 78
	96 22 012 08 / ROPE BOX PRE-ASSEMBLY............. 79
	91 04 526 08 / STOW AWAY BOX F. TIMBER LOGS...... 81
	91 43 780 08 / OIL TANK ASSEMBLAGE............... 82
	92 41 614 08 / OIL TANK PRE-ASS.................. 83
	91 43 781 08 / AIR VESSEL MOUNTING............... 85
	91 45 929 08 / EXHAUST TAIL PIPE................. 86
	91 00 628 08 / EXHAUST GAS SYSTEM................ 87
	91 43 784 08 / AIR FILTER SYSTEM................. 88
	96 65 122 08 / SENSOR COMPL...................... 89
	91 40 088 08 / MOVABLE COUPLING.................. 90
	91 43 787 08 / COUNTERWEIGHT SUPPORT............. 91
	91 43 788 08 / TOOLS AND ACCESSORIES............. 93
	92 85 698 08 / MAIN TOOLS........................ 94
	92 86 201 08 / ACCESSORIES....................... 95
	91 26 765 08 / RADIO PREPARATION LOWER CARRIA.... 96
	91 28 360 08 / EL.EQUIPMENT TELMA................ 97
	96 27 767 08 / WIRING LIST EDDY CURRENT BRAKE.... 98
	91 01 405 08 / EL.F. 2ND HOIST LIMIT SWITCH T.... 99
	91 43 790 08 / DISPATCH ASSY.MECH.PARTS..........100
	92 51 415 08 / HOSE GUIDE PRE-ASS................101
	91 09 600 08 / DRIVER'S CABIN CPL................102
	91 00 871 08 / SEATS DRIVER'S CAB STANDARD.......105
	91 09 016 08 / MIRROR ATTACHMENT.................106
	91 29 196 08 / HOOK BLOCK MIRROR.................107
	91 09 919 08 / DRIVER'S CABIN PRE-ASS............108
	96 25 932 08 / HOOK BLOCK MIRROR.................109
	97 12 732 08 / MIRROR SUSPENSION LEFT............110
	97 12 735 08 / MIRROR SUSPENSION RIGHT...........111
	91 22 886 08 / DRIVER'S CABIN, GLAZED............112
	96 25 788 08 / SCREEN WHIPING SYSTEM COMPL.......120
	96 17 715 08 / BASE MATS.........................121
	96 28 389 08 / REWORK STEERING COLUMN............122
	96 25 789 08 / SCREEN WHIPING SYS. PRE-ASS.......123
	96 25 166 08 / CLADDING REAR PANEL...............124
	92 18 651 08 / DOOR HINGE CPL....................125
	96 19 315 08 / STEERING COLUMN SHEATHING.........126
	96 17 731 08 / LEATHER CLADDING..................127
	96 25 236 08 / ROOF COVERING COMPL...............128
	96 25 286 08 / COVER. PROFILES COMPL.............129
	96 31 015 08 / AIR GUIDE SYSTEM..................130
	96 24 248 08 / INSTRUMENT BOX CPL................131
	96 25 405 08 / COVER/LID/CAP, PRE-ASSEMBLED......133
	96 25 404 08 / VALVE PLATE, PRE-ASSEMBLED........134
	91 26 925 08 / DOOR LEFT, CPL....................136
	92 75 169 08 / DOOR LEFT BASIC FRAME.............140
	92 68 355 08 / DOOR STOPPER COMPL................142
	97 08 131 08 / SLIDING WINDOW....................143
	91 26 926 08 / DOOR RIGHT, CPL...................145
	92 75 175 08 / DOOR RIGHT BASIC FRAME............149
	97 08 132 08 / SLIDING WINDOW....................151
	91 19 258 08 / TACHOGRAPH........................153
	91 46 431 08 / DRIVER'S CABIN CONTROLS...........154
	96 25 532 08 / DASHBOARD CENTER CONSOLE PRE-A....155
	92 26 483 08 / TERMINAL BOARD PRE-ASS............156
	96 30 822 08 / WIRES COMPL. INSTRUMENTS..........157
	96 30 836 08 / CENTRE BRACKET PRE-ASS............158
	96 30 819 08 / WIRES PRE-ASS.INSTRUMENTS.........161
	96 25 760 08 / INSERTION MODULE..................162
	91 25 765 08 / ELECTRIC FOR DRIVER'S CABIN.......163
	96 31 923 08 / ELECTRICAL SYSTEM BATTERY.........164
	91 45 263 08 / NOISE INSULATION FOR FRAME........165
	91 09 603 08 / TIRE COVER PANELLING..............166
	92 62 961 08 / COVER/LID/CAP, PRE-ASSEMBLED......171
	92 71 292 08 / HOOD/BONNET PRE-ASS...............172
	91 43 794 08 / ENGINE COWLING CPL................173
	92 53 599 08 / COVER PRE-ASS. INSULATED..........175
	92 53 627 08 / COVER PRE-ASS. INSULATED..........176
	92 52 951 08 / PLATE, INSULATED IN FRONT.........177
	92 52 952 08 / PLATE, INSULATED IN FRONT RIGH....178
	92 52 967 08 / PLATE, INSULATED IN FRONT LEFT....179
	92 52 968 08 / PLATE, INSULATED REAR.RIGHT.......180
	92 52 976 08 / PLATE, INSULATED IN FRONT LEFT....181
	92 53 226 08 / PLATE, INSULATED CROSS............182
	92 53 365 08 / PLATE, INSULATED REAR CROSS.......183
	92 53 367 08 / PLATE, INSULATED REAR DOWN........184
	92 53 562 08 / PLATE, INSULATED REAR.RIGHT.......185
	92 53 633 08 / PLATE, INSULATED..................186
	92 69 001 08 / PLATE, INSULATED..................187
	92 69 002 08 / PLATE, INSULATED..................188
	91 43 797 08 / ADDITIONAL F.TIRE COVER PANELL....189
	91 43 795 08 / PLATING GERMAN....................191
	92 19 268 08 / DOUBLE HORN.......................193
	91 46 432 08 / UNDERCARRIAGE ELEC. SYSTEM........194
	96 30 856 08 / CABLE LIST ELECTRICAL SYSTEM......195
	91 00 064 08 / INSTALLAT.ROTOR+SLIPRING ASSY.....196
	92 10 735 08 / ROTOR AND SLIPRING ASSEMBLY.......197
	91 47 226 08 / LIGHTING GERMAN...................199
	96 32 287 08 / WIRING LIST FOR LIGHTING..........201
	96 32 288 08 / LEAD..............................202
	96 18 521 08 / LAMP CLAMP CPL.REAR LEFT..........203
	96 18 522 08 / LAMP CLAMP CPL.REAR RIGHT.........204
	96 32 289 08 / LEAD..............................205
	96 25 270 08 / BUMPER COMPL. W. COVERING.........206
	91 38 351 08 / EL.COMP. DISPATCH ASSEMBLY........207
	91 36 642 08 / COMPRESSED AIR PLANT..............208
	92 89 618 08 / AIR DREIER, PRE-ASSEMBLED.........214
	91 26 042 08 / PNEUMAMATIC DRIVER'S CABIN........215
	96 25 134 08 / PRE-ASSEMBLY MOUNTING UNIT........217
	96 26 439 08 / BULKHEAD PLATE CPL................219
	96 25 136 08 / BRAKE VALVE PRE-ASS...............221
	96 25 659 08 / PLATE PRE-ASS.....................222
	91 26 675 08 / HYDRAULIC SUPPORT.................223
	91 36 648 08 / HYDRAULIC AXLE SUSPENSION.........228
	91 45 084 08 / EMERGENCY OPERATION...............231
	91 45 468 08 / EL.OPERATION OF HYDR. VALVES......232
	92 68 196 08 / HOUSING CPL.......................233
	92 68 197 08 / HOUSING CPL.......................234
	92 91 388 08 / OUTRIGGER CONTROL FROM ABOVE......235
	92 91 387 08 / SWITCH BOX CPL....................236
	92 55 098 08 / PLATE CPL.........................237
	91 36 652 08 / HOSE LINES UNDERCARRIAGE..........238
	91 36 664 08 / PIPELINES UNDERCARRIAGE...........241
	91 46 931 08 / ASSEMBLY PARTS F.SLEWING PLTF.....244
	92 87 359 08 / CABIN ARM W.TANKS.................246
	91 46 002 08 / FUEL TANK ADD-ON UNIT.............247
	92 73 136 08 / FUEL TANK, PRE-ASSEMBLED..........248
	91 26 851 08 / LUFFING RAM W. PIVOT..............249
	91 43 814 08 / ROLLER BEARING SLEWING RING.......250
	91 02 510 08 / SLEWING GEAR......................251
	91 00 066 08 / ANGLE THREADED BULKHEAD...........253
	91 29 796 08 / MAIN HOIST GEAR...................254
	92 71 275 08 / HOISTING GEAR PRE-ASS.............255
	91 09 048 08 / ROPE WITH ACCESSORIES 1...........256
	91 47 691 08 / CRANE DRIVER'S CABIN CPL..........257
	92 10 666 08 / PILLOW BLOCK PRE-ASS..............259
	92 10 661 08 / PILLOW BLOCK PRE-ASS..............260
	92 10 663 08 / PILLOW BLOCK PRE-ASS..............261
	91 47 955 08 / CRANE DRIVER'S CABIN,PRE-ASSY.....262
	91 44 649 08 / HEATING CRANE DRIVER'S CABIN......264
	92 68 987 08 / LID...............................266
	96 21 965 08 / CLOSING DEVICE....................267
	91 01 533 08 / CONTROL STAND.....................268
	91 43 819 08 / SLEWING PLATFORM PANELLING CPL....270
	92 51 173 08 / SLEWING PLATFORM PANELLING RIG....271
	92 71 129 08 / TURNTABLE PANELLING...............274
	91 26 804 08 / CABIN, GLAZED.....................275
	92 48 796 08 / FRONT WINDOW CPL..................281
	92 68 891 08 / FRONT WINDOW GLUED................283
	92 13 430 08 / INSTRUMENT BOX CPL................284
	92 50 859 08 / INSIDE ROOF LINING CPL............285
	92 17 203 08 / INSTRUMENT BOX DELIVERY SCOPE.....286
	72 40 148 08 / LOCKING CABLE.....................287
	91 10 037 08 / DOOR CPL..........................288
	91 39 126 08 / ROLLER-BLIND......................291
	91 23 958 08 / VENTILATOR ASSY...................292
	91 10 310 08 / CABIN SHEET METAL SECTIONS........293
	91 41 903 08 / CRANE OPERATOR CAB INSTRUMENTS....294
	92 10 963 08 / DASHBOARD FRONT, PRE-ASSEMBLED....295
	91 46 745 08 / ELECTR. FOR CONTROL STAND.........296
	96 21 253 08 / ELECTRIC FOR ARMREST LEFT.........297
	96 31 049 08 / ELECTRIC FOR ARMREST RIGHT........298
	91 30 916 08 / EL.INSTRUMENTS F.CRANE DRIV.CA....299
	96 30 488 08 / DASHBOARD ROOF, PRE-ASSEMBLED.....300
	96 29 907 08 / CABLE LIST DRIVER'S CABIN.........302
	96 28 388 08 / ELECTRIC ADD-ON PARTS CABIN.......303
	91 30 913 08 / ADD HEATING SUPERSTRUCTURE........304
	91 48 797 08 / COUNTERWEIGHT MOUNTING............306
	91 39 443 08 / ADD COUNTERWEIGHT.................308
	91 43 823 08 / ADD.BALLAST F.HOISTING GEAR 2.....310
	91 29 749 08 / HYDRAULIC BALLASTING..............311
	91 47 306 08 / CENT. LUBRIC. SYSTEM SUPERST......312
	91 37 531 08 / RADIO PREPARATION UPPER CARRIA....313
	91 43 827 08 / MIRROR ATTACHM.AT SLEW.PLATFOR....314
	91 40 573 08 / LICCON CONSOLE LCD1...............315
	91 30 917 08 / ELECTR. SYSTEM F.SLEWING PLATF....317
	96 29 898 08 / CABLE LIST ELECTRICAL SYSTEM......318
	91 27 889 08 / ELECTRIC FOR WINCH 1..............319
	96 29 900 08 / WIRING HARNESS....................320
	92 78 689 08 / TERMINAL BOX LIGHTING.............322
	91 27 894 08 / EL. FOR SUPPLEMENTARY HEATING.....323
	92 11 635 08 / ELECTR.FOR SLEWING GEAR...........324
	96 34 524 08 / EL.ADD-ON SET-LIMIT SWITCHES +....325
	92 88 280 08 / LIMIT SWITCH......................326
	92 08 459 08 / COMPLEMENT ELECTR., CAB...........327
	91 01 520 08 / ELECTRIC FOR FLASHLIGHT...........328
	91 43 633 08 / ELECTR. FOR WORK AREA LIGHT.......329
	91 31 045 08 / SWITCHBOX MOUNTING PARTS..........330
	92 87 071 08 / FAN UNIT..........................331
	96 29 893 08 / BASIC SET-UP CABLING COMPL........332
	96 29 892 08 / RELAY CONTROL SYSTEM..............333
	96 29 891 08 / BASE ASSEMBLY.....................334
	91 33 510 08 / ASSEMBLY FRAME....................336
	92 68 911 08 / GROUND RAIL.......................337
	92 68 284 08 / TERMINAL STRIP....................338
	96 29 894 08 / CABLES, BASIC CONSTRUCTION CPL....339
	96 29 895 08 / BASIC SET-UP CABLING MATERIAL.....340
	96 29 897 08 / PLUG MOUNTING PLATE...............341
	92 26 129 08 / GROUND RAIL.......................342
	91 31 270 08 / PNEUM. CRANE OPERATORS CABIN......343
	91 47 784 08 / HYDR..............................345
	96 32 402 08 / MECHANICAL AUXILIARIES............353
	91 47 017 08 / HYDR.F.TELESCOPIC BOOM............354
	91 29 816 08 / ADDNL.HYDR. FOLDING JIB...........355
	91 35 325 08 / EMERGENCY OPERATION CRANE HYDR....356
	96 30 057 08 / HOSE LINES EMERGENCY CONTROL......361
	96 21 932 08 / MECHANICAL AUXILIARIES............363
	91 46 925 08 / OIL COOLER INSTALLATION...........364
	91 48 800 08 / HOSE LINES SUPERSTRUCTURE.........365
	91 48 799 08 / PIPELINES SUPERSTRUCTURE..........368
	91 28 381 08 / TELESCOPIC UNIT CPL...............369
	91 28 411 08 / PIVOT SECTION, PRE-ASSEMBLED......370
	91 28 412 08 / TELESCOPIC SECTION 1 PRE-ASSEM....374
	91 28 413 08 / TELESCOPIC SECT.2 PRE-ASSEMBL.....378
	91 28 414 08 / TELESCOPIC SECT.3 PRE-ASSEMB......382
	91 28 415 08 / TELESCOPIC SECT.IV PRE-ASSEMBL....386
	92 95 291 08 / ROPE PULLEY CPL...................390
	92 49 675 08 / ROPE PULLEY CPL...................391
	96 57 037 08 / HOIST LIM.SWITCH PLUMMET CPL......392
	91 28 416 08 / TELESCOPIC SECT.5 PRE-ASSEMBLE....393
	91 28 417 08 / MECHANICAL EXTENSION SYSTEM.......397
	96 28 633 08 / ADD-ON PARTS CYLINDER.............398
	91 29 969 08 / DOUBLE FOLDING JIB MECH.COMP......400
	91 32 304 08 / DOUBLE FOLDING JIB MECH. ASS......401
	92 54 383 08 / ROPE PULLEY CPL...................402
	91 29 831 08 / TRANSPORT MOUNTING................403
	92 52 800 08 / CONSOLE PRE-ASS...................406
	96 30 942 08 / MOUNTING PRE-ASS..................407
	92 17 972 08 / FOLDING BRACKET PRE-ASS...........408
	96 30 487 08 / MOUNTING PRE-ASS..................409
	91 30 143 08 / PULLEY SET SPECIAL FOLDING JIB....410
	96 30 957 08 / ROPE PULLEY CPL...................412
	91 49 879 08 / BOLT EXTRACTION ATTACHMENT........413
	96 36 962 08 / BOLT EXTRACTION ATTACHMENT........414
	91 32 305 08 / MECH. DOUBLE FOLD JIB PREMOUNT....415
	96 28 637 08 / PIVOT SECTION, PRE-ASSEMBLED......417
	96 28 634 08 / MECH. ADAPTER PREMOUNTED..........419
	96 28 639 08 / HEAD SECTION PRE-ASS..............421
	96 25 023 08 / GUIDE PULLEY COMPL................423
	96 28 643 08 / TENSION PLATE PRE-ASS.............424
	96 28 636 08 / PREMOUNTED ADAPTER FRAME..........425
	91 05 780 08 / TOOLS.............................426
	91 05 781 08 / ADD-ON UNIT LADDER................427
	92 51 440 08 / HOLDER PRE-ASSEMBLY...............428
	96 21 010 08 / MOUNTING HOOK ROD.................429
	96 21 012 08 / ASSEMBLY REMOTE CONTROL...........430
	91 32 043 08 / A-HEADL.SEARCHLIGHT PIVOT SEC.....431
	96 31 001 08 / LEAD..............................432
	96 31 002 08 / LEAD..............................433
	96 22 376 08 / RETAINER LEFT PRE-ASS.............434
	96 24 147 08 / RETAINER RIGHT PRE-ASS............435
	91 38 032 08 / MECH.AUXILIARIES FOR LIGHTING.....436
	91 13 525 08 / SET OF NAME PLATES FOLDING JIB....437
	91 29 792 08 / ELECTR. SYSTEM F. BOOM............438
	96 32 111 08 / ELECTR. FOR HEAD SECTION..........439
	96 32 110 08 / ELECTRIC F.BASE SECTION...........440
	96 32 112 08 / CABLE DRUM COMPL..................441
	96 32 104 08 / TERMINAL BOX CPL..................442
	96 20 157 08 / SENSOR ASSEMBLY BASIC BOOM........443
	96 20 935 08 / SENSOR ASSEMBLY HEAD PIECE........444
	96 32 269 08 / TERMINAL BOX CPL..................445
	96 30 837 08 / ELECTR. F.EXTENDING MECHANISM.....446
	96 29 659 08 / ELECTRIC F.BASE SECTION...........447
	96 29 660 08 / ELECTR. FOR HEAD SECTION..........448
	96 29 658 08 / EL.SYSTEM ADAPTER.................449
	91 42 226 08 / LOAD HOOK.........................450
	91 26 377 08 / HOOK BLOCK........................451
	50 00 634 08 / SLEWING GEAR......................452
	50 04 624 23 / VALVE.............................454
	50 20 304 08 / EDDY CURRENT BRAKE................455
	50 20 415 01 / SPRING LOADED MULTI-DISC BRAKE....456
	50 26 397 08 / AIR SUPPLY/VENT VALVE.............457
	50 26 500 08 / HANDBRAKE VALVE...................458
	50 26 573 08 / AIR DRYER.........................459
	50 26 575 08 / RELAY VALVE.......................460
	50 29 262 08 / DIRECTIONAL CONTROL VALVE.........461
	50 29 552 08 / DIRECTIONAL CONTROL VALVE.........462
	50 29 688 08 / BRAKE VALVE.......................463
	50 29 929 08 / BRAKE VALVE.......................464
	51 02 328 08 / HYDRO MOTOR.......................465
	51 04 650 08 / PILOT CONTR DOUBLE CHECK VALVE....466
	51 06 545 08 / AERATION FILTER...................467
	51 06 694 08 / RETURN FILTER.....................468
	51 06 708 08 / LINE FILTER.......................469
	51 06 753 08 / PRESSURE FILTER...................470
	51 13 018 08 / VALVE BLOCK.......................471
	51 13 022 08 / DIRECTIONAL CONTROL VALVE.........472
	51 13 039 08 / COMPACT CONTROL BLOCK.............473
	51 13 047 08 / CONTROL BLOCK.....................474
	51 13 052 08 / PRESSURE LIMITING VALVE...........477
	51 13 080 08 / SOLENOID VALVE....................478
	51 13 081 08 / SOLENOID VALVE....................479
	51 13 114 08 / PRETENSIONING VALVE...............480
	51 13 178 08 / SLIDE VALVE BLOCK.................481
	51 13 180 08 / SLIDE VALVE BLOCK.................482
	51 14 177 08 / PRESSURE LIMITING VALVE...........483
	51 14 444 08 / DIRECTIONAL CONTROL VALVE.........484
	51 14 794 08 / LOAD HOLDING VALVE................485
	51 14 869 08 / CONTROL PLATE.....................487
	51 14 915 08 / CONTROL BLOCK.....................488
	51 14 934 08 / CONTROL BLOCK.....................489
	51 21 438 08 / VARIABLE PUMP.....................490
	51 23 195 08 / HYDRO CYLINDER....................491
	51 23 537 08 / HYDRO CYLINDER....................492
	51 23 786 08 / EXTENSION RAM.....................493
	51 30 050 08 / RADIAL PISTON PUMP................494
	51 30 128 08 / VANE CELL MOTOR...................495
	51 99 088 08 / DRIVEN STEERING AXLE..............496
	51 99 089 08 / STEERING AXLE.....................501
	51 99 112 08 / DRIVEN STEERING AXLE..............503
	51 99 113 08 / DRIVEN STEERING AXLE..............508
	52 10 050 08 / STEERING GEAR.....................513
	52 11 034 08 / ANGULAR GEAR......................515
	52 11 434 08 / AXLE STRUT........................517
	52 11 488 08 / AXLE STRUT........................518
	53 01 107 08 / TRACK ROD.........................519
	55 06 380 08 / RADIATOR UNIT.....................520
	55 06 383 08 / OIL AIR COOLER....................521
	55 17 159 08 / COMBINATION FILTER................522
	55 30 022 08 / WATER HEATING SYSTEM..............523
	55 30 854 08 / THREE-WAY TAP.....................525
	57 00 161 23 / AIR COMPRESSOR....................526
	57 00 322 23 / ENGINE BRAKE CPL..................528
	57 03 422 08 / TRACK ROD.........................529
	57 04 271 08 / PRESSURE LIMITING VALVE...........530
	57 05 279 08 / DIRECTIONAL CONTROL VALVE.........531
	57 08 320 08 / FILTER COVER......................532
	57 09 330 08 / AIR ACTUATION SECTION.............533
	57 13 056 08 / DIRECTIONAL CONTROL VALVE.........534
	57 14 118 08 / DRIVING GEAR......................535
	57 14 537 08 / PRESSURE VALVE....................536
	57 16 347 08 / DIRECTIONAL CONTROL VALVE.........537
	57 17 382 08 / BRAKE.............................538
	57 17 383 08 / BRAKE.............................540
	57 17 543 08 / DRIVING GEAR......................542
	57 17 545 08 / PUMP SUPPORT......................543
	57 18 142 08 / DIRECTIONAL CONTROL VALVE.........544
	57 18 143 08 / DIRECTIONAL CONTROL VALVE.........545
	57 18 145 08 / DIRECTIONAL CONTROL VALVE.........546
	57 18 346 08 / BRAKE.............................547
	57 18 895 08 / PRESSURE VALVE....................549
	59 10 672 08 / WIPER MOTOR.......................550
	59 10 685 08 / MAIN MIRROR.......................551
	59 10 686 08 / MAIN MIRROR.......................552
	60 60 516 08 / GEAR CAM LIMITSWITCH..............553
	60 60 709 08 / BATTERY MAIN SWITCH...............554
	60 60 950 08 / MASTER SWITCH.....................555
	60 61 943 08 / IGNITION STARTER SWITCH...........556
	60 71 444 08 / ROTATING BEACON...................557
	61 61 425 08 / CABLE REEL........................558
	62 90 070 23 / GENERATOR.........................559
	62 90 106 23 / STARTER...........................560
	69 09 005 08 / COLLECTING RING...................562
	69 18 843 08 / KEYBOARD UNIT.....................563
	69 23 101 08 / ROPE LENGTH INDICATOR.............564
	70 41 517 08 / SHUTOFF VALVE.....................566
	70 41 522 08 / SHUTOFF VALVE.....................567
	73 00 043 08 / SHUT OFF DEVICE...................568
	77 41 076 08 / DRIVERS SEAT......................569
	77 41 078 08 / CO-DRIVER'S SEAT..................571
	77 41 079 08 / DRIVERS SEAT......................573
	77 43 568 08 / ELECTRIC PUMP.....................575
	79 00 391 08 / HAND PUMP.........................576
	90 72 124 23 / FLYWHEEL..........................577
	90 72 142 23 / FLYWHEEL HOUSING..................578
	90 72 451 23 / EXHAUST GAS TURBOCHARGER..........579
	90 72 875 23 / HEATING FLANGE....................580
	90 73 690 23 / ADD-ON PARTS......................581
	90 73 952 23 / CONSOLE...........................582
	90 74 797 23 / DIESEL ENGINE.....................583
	90 77 153 / FUEL FILTER..........................587
	90 77 637 / RK WATER PUMP PRE-ASS................588
	90 77 729 / CRANKSHAFT...........................589
	90 77 781 / SEAL KIT CYLINDER BUSHING............590
	90 78 063 / RK FIX.F.TURBOCHARGER................591
	90 78 444 / MANIFOLD FOR WATER PRE-ASS...........592
	90 78 445 / MANIFOLD FOR WATER CPL...............593
	90 78 858 / RK INJECTION NOZZLE..................594
	90 78 859 / RK INJECTION NOZZLE..................595
	90 78 969 / MAIN ROD.............................596
	91 42 744 23 / FINAL CONTROL VALVE...............597
	91 43 636 23 / END COVER.........................598
	91 44 281 23 / LOCKING PIECES....................599
	91 47 512 / LOCKING PIECE........................600
	91 77 487 23 / CRANKSHAFT SEALING................601
	91 77 488 23 / CRANKSHAFT SEALING................602
	91 77 489 23 / CRANKSHAFT SEALING................603
	91 78 172 23 / LOCKING PIECES....................604
	92 68 118 23 / SEAL KIT..........................605
	92 70 382 23 / LUBE OIL FILTER...................606
	92 71 317 23 / SEAL KIT..........................607
	92 73 234 23 / ROTATIONAL SPEED SENSOR...........608
	92 73 517 23 / FAN INSTALLATION..................609
	92 74 562 23 / CRANKCASE.........................610
	92 74 589 23 / INTERMEDIATE WHEEL................611
	92 75 212 01 / OIL MEASURING DEVICE..............612
	92 75 379 23 / OIL COOLER, PRE-ASSEMBLED.........613
	92 75 380 23 / OIL COOLER........................614
	92 75 415 23 / EARTH CABLE.......................615
	92 75 751 23 / AIR COMPRESSOR....................616
	92 78 139 23 / STARTER...........................617
	92 79 471 23 / OIL SUMP..........................618
	92 79 614 23 / OVERFLOW-OIL LINE.................619
	93 85 875 01 / COMPACT ROPE WINCH................620
	93 85 877 01 / PLANETARY GEARBOX.................621
	96 21 834 08 / ENGINE RACCORDEMENT...............622
	96 21 835 08 / DRIVE.............................623
	96 21 836 08 / GEARBOX HOUSING...................625
	96 21 837 08 / JACKSHAFT.........................627
	96 21 839 08 / COUPLING..........................628
	96 21 842 08 / POWER TAKE-OFF....................631
	96 21 843 08 / POWER TAKE-OFF....................632
	96 21 844 08 / POWER TAKE-OFF....................634
	96 21 845 08 / OIL PRESSURE PUMP.................635
	96 21 846 08 / FILTER............................636
	96 21 848 08 / EMERGENCY STEERING PUMP...........637
	96 21 849 08 / FILLER NECK.......................638
	96 28 852 08 / CONTROL...........................639
	96 28 853 08 / OIL LINE..........................642
	96 28 854 08 / LOOSE PARTS.......................644
	96 28 983 08 / COUPLING..........................645
	96 28 984 08 / COUPLING..........................647
	96 28 985 08 / POWER TAKE-OFF....................649
	96 28 986 08 / CONTROL...........................655
	96 28 987 08 / INDUCTIVE TRANSMITTER.............656
	96 53 334 08 / BRAKE.............................657
	96 53 335 08 / BRAKE.............................658
	98 80 232 23 / SEAL KIT..........................659
	98 81 818 23 / VENTILATION.......................660
	98 82 554 23 / PIPELINE..........................661
	98 82 604 23 / WATER PUMP........................662
	98 82 650 23 / GEARWHEELS........................663
	98 82 940 23 / ROCKER LEVER BLOCK................664
	98 82 941 23 / ROCKER LEVER......................665
	98 82 971 23 / CYLINDER HEAD.....................666
	98 82 972 23 / CYLINDER HEAD.....................667
	98 82 973 23 / CYLINDER HEAD.....................668
	98 83 076 23 / CAMS SHAFT........................669
	98 83 227 23 / SEAL KIT CYLINDER HEAD............670
	98 83 228 23 / SEAL KIT CYLINDER HEAD............671
	98 83 271 23 / ADD-ON PARTS......................672
	98 84 017 23 / FAN DRIVE.........................673
	98 84 019 23 / FAN DRIVE.........................674
	98 84 255 23 / REPAIR KIT........................675
	98 84 458 23 / OIL LINE..........................676
	98 84 509 23 / PISTON COOLING....................677
	98 84 510 23 / CRANKSHAFT BEARINGS...............678
	98 84 512 23 / PISTON............................679
	98 84 661 23 / PISTON............................680
	98 84 737 23 / SENSOR ELEMENT....................681
	98 84 739 23 / SEAL KIT..........................682
	98 84 742 23 / AIR SUCTION PIPE..................683
	98 84 761 23 / GENERATOR.........................684
	98 85 646 23 / POWER UNIT SUPPORT................685
	98 85 647 23 / POWER UNIT SUPPORT................686
	98 85 658 23 / LUBRICATING OIL PUMP..............687
	98 85 727 23 / INTAKE NOZZLE.....................688
	98 85 772 23 / OIL FILLER INLET..................689
	98 85 775 23 / OIL-LEVEL GAUGE...................690
	98 85 830 23 / PIPELINE..........................691
	98 85 854 23 / DRIVE.............................692
	98 85 992 23 / PIPELINE..........................693
	98 86 976 23 / EXHAUST PIPE......................694
	98 86 977 23 / EXHAUST PIPE PRE-ASS..............695
	98 87 060 23 / THERMOSTAT HOUSING................696
	98 87 127 23 / CONNECTING LINE...................697
	98 87 350 23 / INJECTOR..........................698
	98 87 351 23 / INJECTION PUMP....................699
	98 87 551 23 / CRANKCASE.........................700
	98 87 943 23 / FLANGE............................701
	98 87 944 23 / WATER PUMP, PRE-ASSEMBLED.........702
	98 88 184 23 / INJECTOR..........................703
	98 88 639 23 / LUBRICATING OIL PUMP..............704
	98 88 646 23 / LUBRICATING OIL PUMP..............705
	98 88 651 23 / OIL LINE..........................706
	98 88 697 23 / DRIVING PIECES....................707
	98 88 727 23 / CYLINDER..........................708
	98 88 855 23 / DRIVE.............................709
	98 88 866 23 / SUPPORT SYSTEM....................710
	98 89 125 23 / INJECTION LINE....................711
	98 89 126 23 / INJECTION LINE....................712
	98 89 248 23 / PIPELINE..........................713
	98 89 288 23 / GENERATOR.........................714
	98 89 521 23 / CONTROL PARTS.....................715
	98 89 640 23 / STEP PLATE........................716
	98 89 742 23 / FUEL LINE.........................717
	10 02 271 6 / WATER HEATING SYSTEM...............718
	10 02 444 6 / ADAPTER VALVE......................719
	10 02 819 2 / GEAR SHIFT CPL.....................720
	10 03 076 7 / AXLE LOCKING VALVE.................721
	10 03 264 1 / POWER SHIFT GEAR...................722
	10 03 630 8 / SUSPENSION CYLINDER................723
	10 04 123 7 / TELESCOPIC CYLINDER................724
	10 04 204 3 / WATER HEATING SYSTEM...............726
	10 04 411 0 / BALLAST EXTENSION RAM..............727
	10 04 442 1 / SLEWING GEAR VALVE.................729
	10 04 541 6 / STRUT CYLINDER.....................732
	10 04 541 8 / STRUT CYLINDER.....................733
	10 10 109 3 / SLEWING GEAR VALVE.................734
	10 29 189 9 / REGULATOR..........................735
	10 29 190 1 / REGULATOR ELEMENT..................736
	51 13 187 08 / LOWERING BRAKE VALVE..............737
	51 13 188 08 / LOWERING BRAKE VALVE..............738
	52 11 486 08 / STEERING ROD......................739
Numerical index......................................741
Alphabetical index (EN)..............................803
Alphabetical index (DE)..............................925

Customer Support: [email protected]

S.M
