Service Manual
General operating instructions:
Gearshifting and operation off lock is effected by dog type clutches and hence gearshifting
should only be undertaken with the vehicle stationary. Very occasionally the teeth on the
selector sleeve and gear may be directly in line thereby preventing engagement. In this situation
the vehicle should be moved as slowly as possible at low enggine revs until engagement
occurs.

• The differential pawl must only be used in case of lacking traction. Use it only for a short period. Use on nonskid ground and in case of turning curves may quickly lead to damages because of restraints arising.
• Towing the vehicle in neutral position of the power divider is only allowed for a short time and only in case of slow travelling speed, but by no means over longer distances!
  (max.travelling distance of 30 km with max.speed of 30 km/h allowed)
• In case of standstill of feed shaft the lube oil pump in the power divider doesn’t work. Danger of failure because of insufficient lubrication.
• Avoid longer reverse travelling: (lube oil pump in the power divider doesn’t work!)

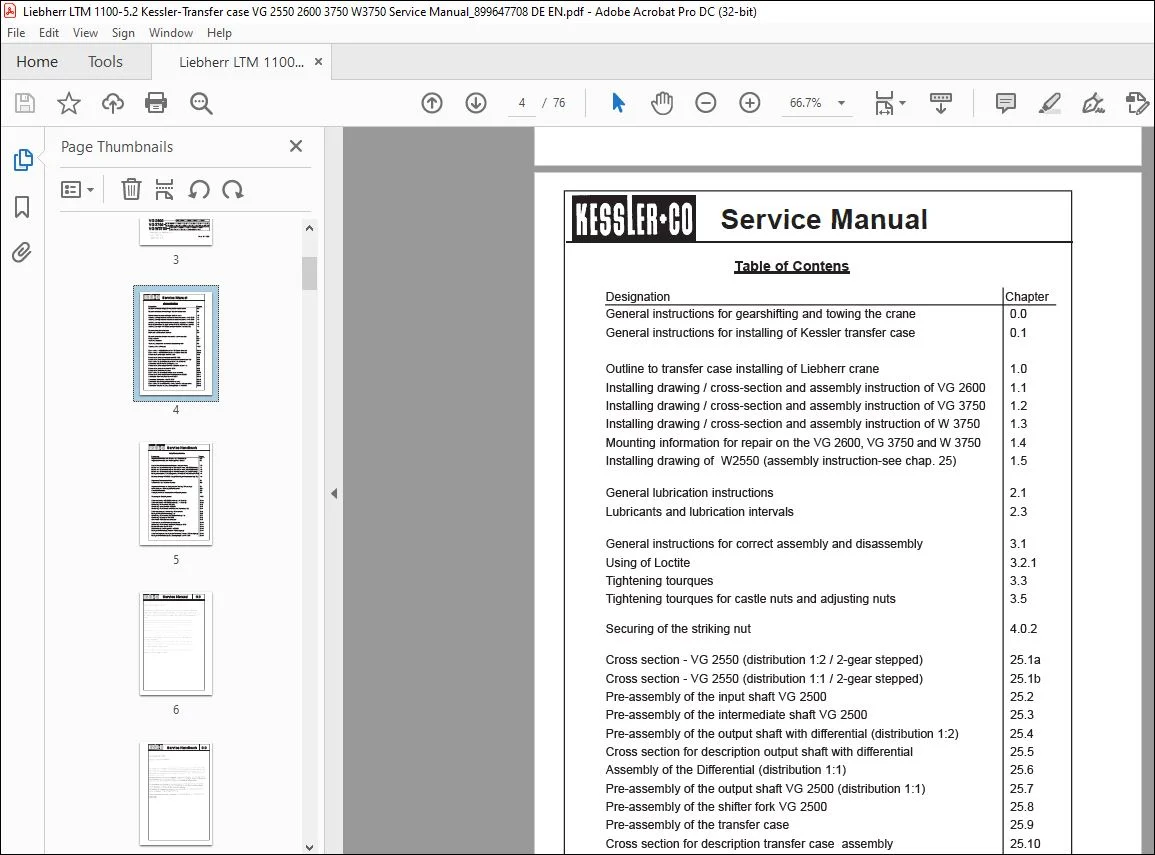

TABLE OF CONTENTS:

Liebherr LTM 1100-5.2 Kessler-Transfer case VG 2550 VG 2600 VG 3750 W3750 Service Manual 899647708 – PDF DOWNLOAD

General instructions for gearshifting and towing the crane 0.0
General instructions for installing of Kessler transfer case 0.1
Outline to transfer case installing of Liebherr crane 1.0
Installing drawing / cross-section and assembly instruction of VG 2600 1.1
Installing drawing / cross-section and assembly instruction of VG 3750 1.2
Installing drawing / cross-section and assembly instruction of W 3750 1.3
Mounting information for repair on the VG 2600, VG 3750 and W 3750 1.4
Installing drawing of W2550 (assembly instruction-see chap. 25) 1.5
General lubrication instructions 2.1
Lubricants and lubrication intervals 2.3
General instructions for correct assembly and disassembly 3.1
Using of Loctite 3.2.1
Tightening tourques 3.3
Tightening tourques for castle nuts and adjusting nuts 3.5
Securing of the striking nut 4.0.2
Cross section – VG 2550 (distribution 1:2 / 2-gear stepped) 25.1a
Cross section – VG 2550 (distribution 1:1 / 2-gear stepped) 25.1b
Pre-assembly of the input shaft VG 2500 25.2
Pre-assembly of the intermediate shaft VG 2500 25.3
Pre-assembly of the output shaft with differential (distribution 1:2) 25.4
Cross section for description output shaft with differential 25.5
Assembly of the Differential (distribution 1:1) 25.6
Pre-assembly of the output shaft VG 2500 (distribution 1:1) 25.7
Pre-assembly of the shifter fork VG 2500 25.8
Pre-assembly of the transfer case 25.9
Cross section for description transfer case assembly 25.10
Pre-assembly of the output shaft with differential lock 2500 25.11
Assembly of the intermediate shaft VG 2500 25.12
Assembly of the transfer case VG 2500 25.13
Assembly of the shifting (on-road / off road ratio) 25.14
Cross section for assembly of the shifting (on-road / off road ratio) 25.15
Assembly of the gear oil pump (Sichelpumpe) on VG 2500 25.16
