Liebherr LTM 1100-5.2 LICCON 2 Working Area limitation LABB_L2 for TELE & Lattice Crane Operation Manual 393202-02-02 – PDF DOWNLOAD

Description

Liebherr LTM 1100-5.2 LICCON 2 Working Area limitation LABB_L2 for TELE & Lattice Crane Operation Manual 393202-02-02 – PDF DOWNLOAD

FILE DETAILS:

Liebherr LTM 1100-5.2 LICCON 2 Working Area limitation LABB_L2 for TELE & Lattice Crane Operation Manual 393202-02-02 – PDF DOWNLOAD

Language : English
Pages : 20
Downloadable : Yes
File Type : PDF

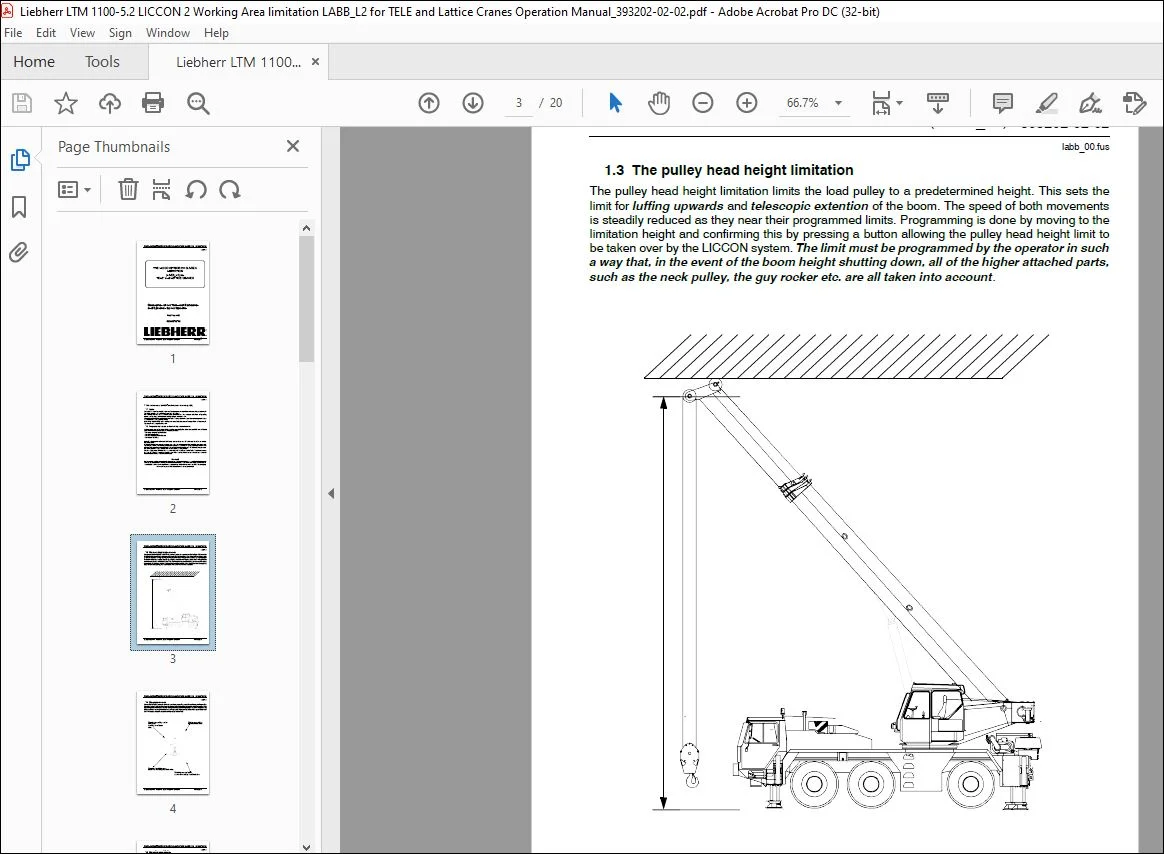

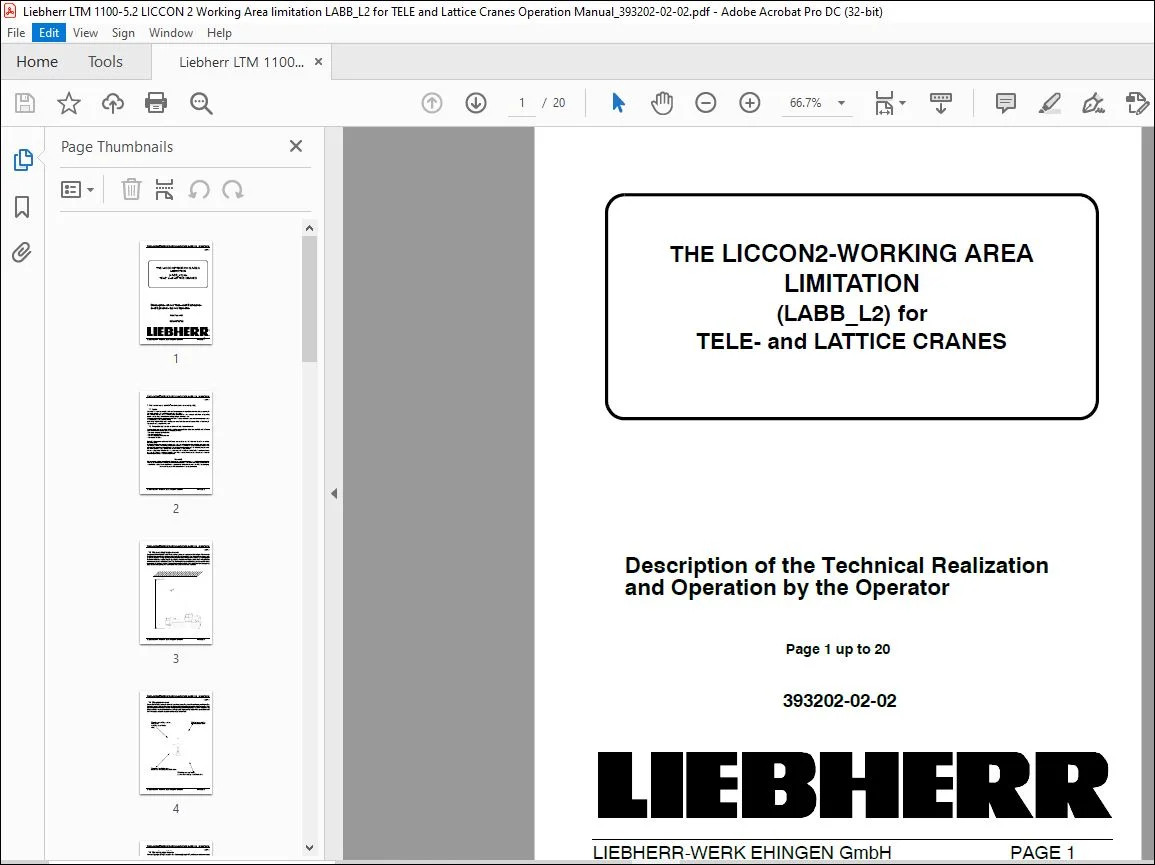

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Liebherr LTM 1100-5.2 LICCON 2 Working Area limitation LABB_L2 for TELE & Lattice Crane Operation Manual 393202-02-02 – PDF DOWNLOAD

1 The automatically LICCON-working area limitation (LABB)
1.1 Tasks

• The LICCON-working area limitation assists the operator, especially when handling a load requiring
  all his attention by monitoring work area limitations.
• His working area can be impeded in many different ways, for example, buildings, neighboring
  cranes, power lines, structural conduiting, bridges, hall roofs, etc.
• The automatic LICCON-working area limitation is easy and understandable for the operator, both
  in programming and actual handling.
• It allows for high flexibility when setting work area limitations due to its capabilities, without requiring
  complicated programming work.

1.2 Programming basics of the working area limitation
On the whole, the automatic LICCON working area limitation offers the possibility of 4 different
types of limitation functions and overlapping of these:
– The pulley head height limitation,
– The radius limitation,
– The slewing angle limitation and
– The border limitation.

• Each limitation can be activated individually, so that either one limitation only is active, or all four
  simultaneously.
• All four limitation types can be overlapped making it possible to describe relatively complex working
  area limitations. The activated limitation cannot be over-ridden by the mounting switch. If an
  area limitation requires over-riding then it must be deactivated. If a new limitation is programmed,
  the old limitation is automatically over-ridden and is no longer valid.
• Programming a new limitation can be done at any time, whether the limitation is activated or not.
• If a new limitation is programmed which over-rides one that has already been programmed, the
  first limitation function must be deactivated.

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
