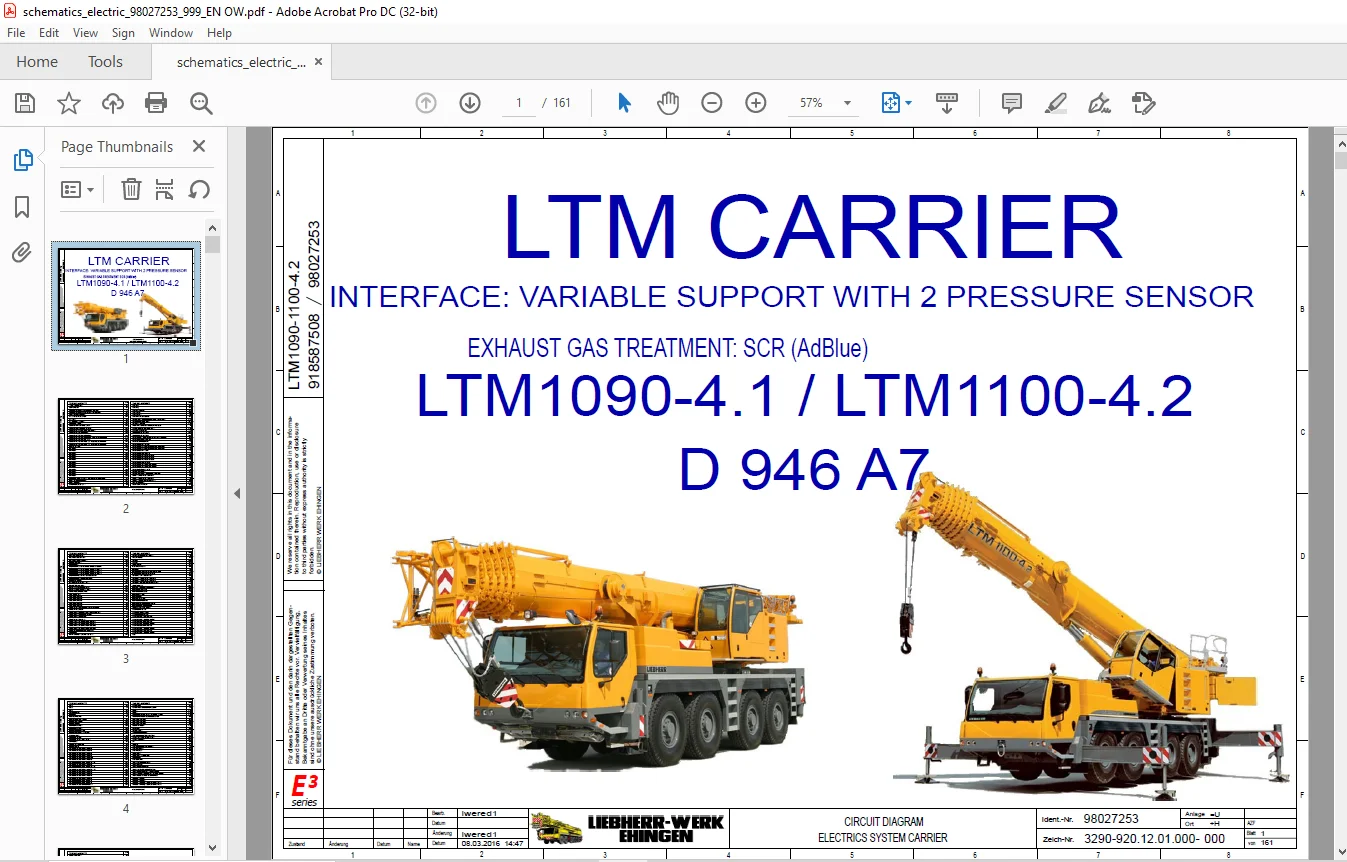

Liebherr LTM1090-4.1 LTM1100-4.2 D 946 A7 LTM Carrier Electric Schematic Manual – PDF DOWNLOAD

Description

Liebherr LTM1090-4.1 LTM1100-4.2 D 946 A7 LTM Carrier Electric Schematic Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr LTM1090-4.1 LTM1100-4.2 D 946 A7 LTM Carrier Electric Schematic Manual – PDF DOWNLOAD

Language : English
Pages : 164
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

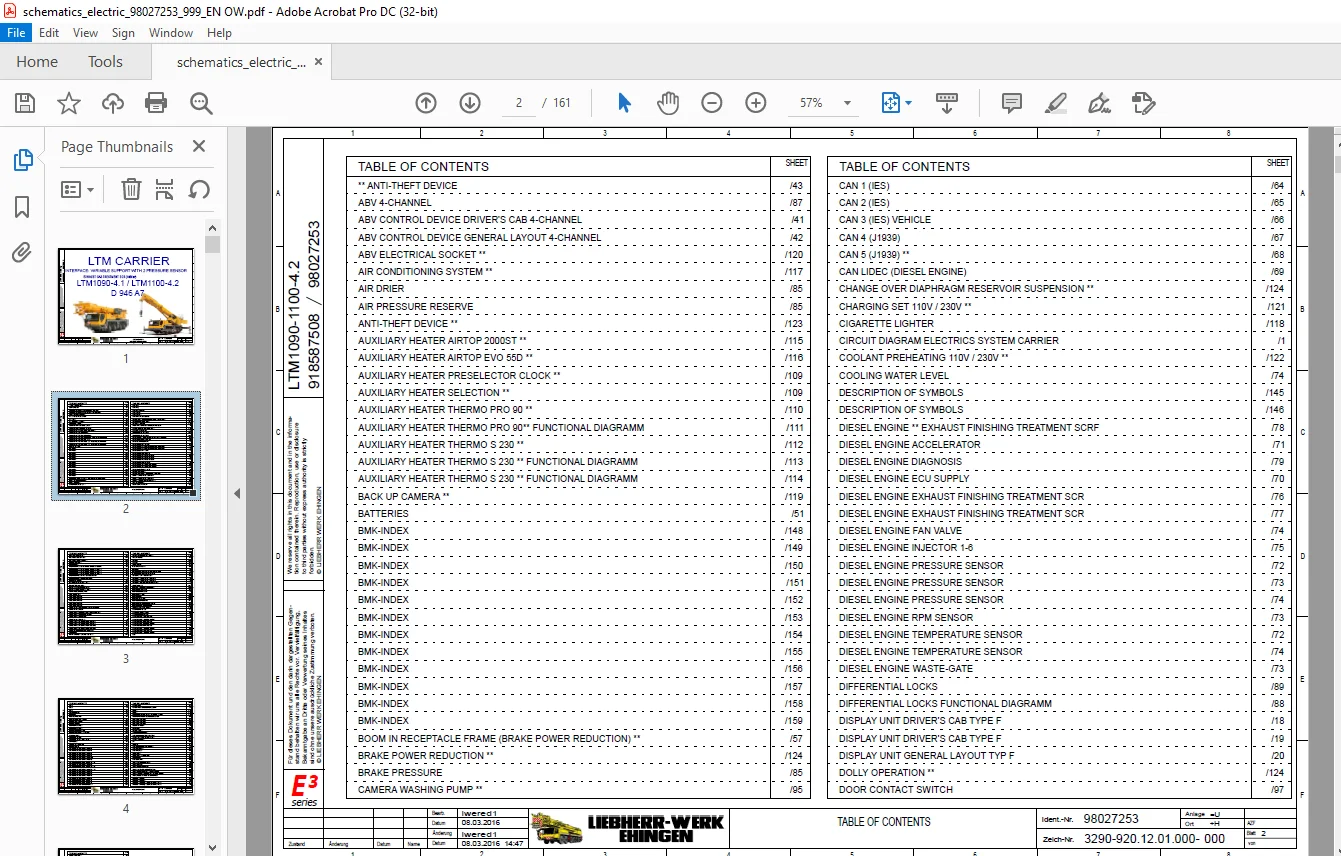

TABLE OF CONTENTS:

Liebherr LTM1090-4.1 LTM1100-4.2 D 946 A7 LTM Carrier Electric Schematic Manual – PDF DOWNLOAD

LTM1090-1100-4.2 | 98027253....................................................  1
	1 =U +H | CIRCUIT DIAGRAM..................................................  1
	2 =U +H | TABLE OF CONTENTS................................................  2
	3 =U +H | TABLE OF CONTENTS................................................  3
	4 =U +H | TABLE OF CONTENTS................................................  4
	5 =U +H | TABLE OF CONTENTS................................................  5
	6 =U +H | GENERAL LAYOUT...................................................  6
	7 =U +H | GENERAL LAYOUT...................................................  7
	8 =U +H | GENERAL LAYOUT...................................................  8
	9 =U +H | GENERAL LAYOUT...................................................  9
	10 =U +H | GENERAL LAYOUT.................................................. 10
	11 =U +H | GENERAL LAYOUT.................................................. 11

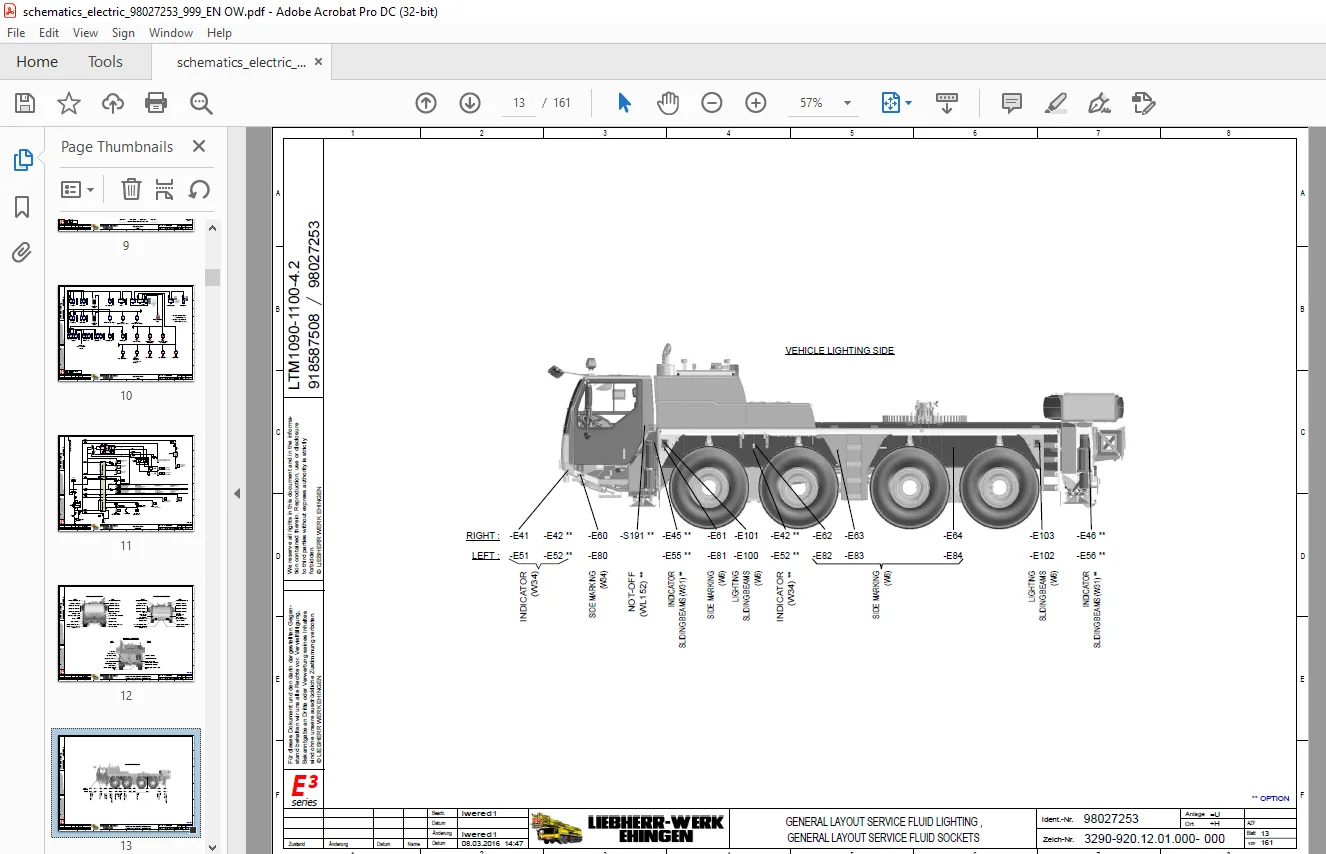

	12 =U +H | GENERAL LAYOUT SERVICE FLUID LIGHTING ,......................... 12
	13 =U +H | GENERAL LAYOUT SERVICE FLUID LIGHTING ,......................... 13
	14 =U +H | GENERAL LAYOUT.................................................. 14
	15 =U +H | KEY BOARD UNIT DRIVER'S CAB..................................... 15
	16 =U +H | KEY BOARD UNIT DRIVER'S CAB..................................... 16
	17 =U +H | KEY BOARD UNIT GENERAL LAYOUT................................... 17
	18 =U +H | DISPLAY UNIT DRIVER'S CAB....................................... 18
	19 =U +H | DISPLAY UNIT DRIVER'S CAB....................................... 19
	20 =U +H | DISPLAY UNIT GENERAL LAYOUT..................................... 20
	21 =U +H | LSB-BTB DRIVER'S CAB............................................ 21
	22 =U +H | LSB-BTB GENERAL LAYOUT.......................................... 22
	23 =U +H | LSB-I/O-MODULE 1 DRIVER'S CAB................................... 23
	24 =U +H | LSB-I/O-MODULE 1 GENERAL LAYOUT................................. 24
	25 =U +H | LSB-I/O-MODULE 2 DRIVER'S CAB................................... 25
	26 =U +H | LSB-I/O-MODULE 2 GENERAL LAYOUT................................. 26
	27 =U +H | LSB-I/O-MODULE 3 DRIVER'S CAB................................... 27
	28 =U +H | LSB-I/O-MODULE 3 GENERAL LAYOUT................................. 28
	29 =U +H | LSB-I/O-MODULE 4 DRIVER'S CAB................................... 29
	30 =U +H | LSB-I/O-MODULE 4 GENERAL LAYOUT................................. 30
	31 =U +M | ENGINE CONTROL UNIT............................................. 31
	32 =M +M | ENGINE CONTROL UNIT............................................. 32
	33 =U +M | ENGINE CONTROL UNIT GENERAL LAYOUT  X1 CODE A................... 33
	34 =U +M | ENGINE CONTROL UNIT GENERAL LAYOUT  X2 CODE B................... 34
	35 =M +M | ENGINE CONTROL UNIT GENERAL LAYOUT  X3 CODE C................... 35
	36 =M +M | ENGINE CONTROL UNIT GENERAL LAYOUT  X4 CODE D................... 36
	37 =U +F | TRANSMISSIONCONTROL DEVICE...................................... 37
	38 =U +F | TRANSMISSIONCONTROL DEVICE GENERAL LAYOUT....................... 38
	39 =U +F | INTARDER CONTROL DEVICE VEHICLE................................. 39
	40 =U +H | INTARDER CONTROL DEVICE GENERAL LAYOUT.......................... 40
	41 =U +H | ABV CONTROL DEVICE DRIVER'S CAB................................. 41
	42 =U +H | ABV CONTROL DEVICE GENERAL LAYOUT............................... 42
	43 =U +H | ** ANTI-THEFT DEVICE............................................ 43
	44 =U +H | MASS DISTRIBUTION............................................... 44
	45 =U +H | MASS DISTRIBUTION............................................... 45
	46 =U +H | FUSES DRIVER'S CAB.............................................. 46
	47 =U +H | FUSES DRIVER'S CAB.............................................. 47
	48 =U +H | FUSES DRIVER'S CAB.............................................. 48
	49 =U +H | FUSES DRIVER'S CAB.............................................. 49
	50 =U +H | FUSES DRIVER'S CAB.............................................. 50
	51 =U +H | BATTERIES, GENERATOR,........................................... 51
	52 =U +H | LSB-BTB VOLTAGE SUPPLY,......................................... 52
	53 =U +H | RADIO REMOTE CONTROL............................................ 53
	54 =U +H | WORK CAGE **.................................................... 54
	55 =U +H | VOLTAGE SUPPLY SPECIAL FUNCTIONS,............................... 55
	56 =U +H | VOLTAGE SUPPLY DISPLAY-/KEY BOARD UNIT,......................... 56
	57 =U +H | LSB1, INCLINATION SENSOR, BOOM.................................. 57
	58 =U +H | LSB 5 DIAGNOSIS................................................. 58
	59 =U +H | SLIDING BEAM MONITOR VARIATIONS,................................ 59
	60 =U +H | LSB 5, SLIDING BEAM MONITOR **,................................. 60
	61 =U +F | LSB 5, VARIABLE SUPPORT;; **.................................... 61
	62 =U +F | LSB 5, VARIABLE SUPPORT;; **.................................... 62
	63 =U +H | SPI,............................................................ 63
	64 =U +H | CAN 1 (IES),.................................................... 64
	65 =U +H | CAN 2 (IES),.................................................... 65
	66 =U +H | CAN 3 (IES)..................................................... 66
	67 =U +H | CAN 4 (J1939),.................................................. 67
	68 =U +H | CAN 5 (J1939) **,............................................... 68
	69 =U +M | CAN LIDEC (DIESEL ENGINE) ,..................................... 69
	70 =U +H | DIESEL ENGINE ECU SUPPLY,....................................... 70
	71 =U +H | DIESEL ENGINE ACCELERATOR....................................... 71
	72 =U +H | DIESEL ENGINE PRESSURE SENSOR, TANK CONTENTS,................... 72
	73 =U +M | DIESEL ENGINE PRESSURE SENSOR, DIESEL ENGINE.................... 73
	74 =U +M | DIESEL ENGINE PRESSURE SENSOR, DIESEL ENGINE FAN VALVE,......... 74
	75 =U +M | DIESEL ENGINE INJECTOR 1-6...................................... 75
	76 =U +H | DIESEL ENGINE................................................... 76
	77 =U +F | DIESEL ENGINE................................................... 77
	78 =U +F | DIESEL ENGINE................................................... 78
	79 =U +F | DIESEL ENGINE DIAGNOSIS,........................................ 79
	80 =U +H | STEERING COLUMN SWITCH RIGHT , ENGINE BRAKE,.................... 80
	81 =U +H | TRANSMISSION ECU VOLTAGE SUPPLY, TRANSMISSION................... 81
	82 =U +H | INTARDER........................................................ 82
	83 =U +H | TRANSFER CASE, ROAD GEAR,....................................... 83
	84 =U +H | PARKING BRAKE, STEERING MOTOR................................... 84
	85 =U +H | BRAKE PRESSURE, AIR PRESSURE RESERVE,........................... 85
	86 =U +F | MONITORING BRAKE PADS........................................... 86
	87 =U +H | ABV 4-CHANNEL................................................... 87
	88 =U +H | POWER TRAIN  FUNCTIONAL DIAGRAMM,............................... 88
	89 =U +H | DIFFERENTIAL LOCKS.............................................. 89
	90 =U +H | SUSPENSION...................................................... 90
	91 =U +H | SUSPENSION EQUALIZATION......................................... 91
	92 =U +H | OUTRIGGERS...................................................... 92
	93 =U +H | REAR AXLE STEERING,............................................. 93
	94 =U +H | REAR AXLE STEERING.............................................. 94
	95 =U +H | LIGHTING STEERING COLUMN SWITCH,................................ 95
	96 =U +H | LIGHTING STOSSSTANGE FRONT...................................... 96
	97 =U +H | LIGHTING DRIVER'S CAB ,......................................... 97
	98 =U +H | LIGHTING DRIVER'S CAB **........................................ 98
	99 =U +H | LIGHTING LEFT SIDE.............................................. 99
	100 =U +H | LIGHTING RIGHT SIDE............................................100
	101 =U +H | LIGHTING SLIDING BEAMS.........................................101
	102 =U +H | LIGHTING REAR,.................................................102
	103 =U +H | LIGHTING  ADDITIONAL PROJECTOR **..............................103
	104 =U +H | SOCKETS TRAILER **.............................................104
	105 =U +H | SOCKETS LIGHTING WARNING TAG **,...............................105
	106 =U +H | MIRROR HEATING, MIRROR ADJUSTMENT..............................106
	107 =U +H | WINDOW LIFTER..................................................107
	108 =U +H | HEATING........................................................108
	109 =U +H | AUXILIARY HEATER SELECTION **,.................................109
	110 =U +H | AUXILIARY HEATER THERMO PRO 90 **,.............................110
	111 =U +H | AUXILIARY HEATER THERMO PRO 90**...............................111
	112 =U +H | AUXILIARY HEATER THERMO S 230 **,..............................112
	113 =U +F | AUXILIARY HEATER THERMO S 230 **...............................113
	114 =U +H | AUXILIARY HEATER THERMO S 230 **...............................114
	115 =U +H | AUXILIARY HEATER AIRTOP 2000ST **,.............................115
	116 =U +H | AUXILIARY HEATER AIRTOP EVO 55D **,............................116
	117 =U +H | AIR CONDITIONING SYSTEM **,....................................117
	118 =U +H | CIGARETTE LIGHTER, RADIO PREPARATION 24V.......................118
	119 =U +H | VOLTAGE SUPPLY 12V **, BACK UP CAMERA **,......................119
	120 =U +H | ABV ELECTRICAL SOCKET **,......................................120
	121 =U +H | CHARGING SET 110V / 230V **....................................121
	122 =U +H | EXTERNAL FEEDING 110V / 230V **, FAN HEATER 110V / 230V **,....122
	123 =U +H | RECOVERY WINCH **,.............................................123
	124 =U +H | DOLLY OPERATION **, BRAKE POWER REDUCTION **,..................124
	125 =U +H | OUTLINE OF DEVICE..............................................125
	126 =U +H | OUTLINE OF DEVICE..............................................126
	127 =U +H | LOOM OF CABLES.................................................127
	128 =U +H | PLUG GROUPING..................................................128
	129 =U +H | PLUG GROUPING..................................................129
	130 =U +H | PLUG GROUPING..................................................130
	131 =U +H | PLUG GROUPING..................................................131
	132 =U +H | PLUG GROUPING..................................................132
	133 =U +F | PLUG GROUPING..................................................133
	134 =U +H | PLUG GROUPING..................................................134
	135 =U +H | PLUG GROUPING..................................................135
	136 =U +H | PLUG GROUPING..................................................136
	137 =U +H | PLUG GROUPING..................................................137
	138 =U +H | PLUG GROUPING..................................................138
	139 =U +H | PLUG GROUPING..................................................139
	140 =U +H | PLUG GROUPING..................................................140
	141 =U +H | PLUG GROUPING..................................................141
	142 =U +H | PLUG GROUPING..................................................142
	143 =U +H | PLUG GROUPING..................................................143
	144 =U +H | PLUG GROUPING..................................................144
	145 =U +H | DESCRIPTION OF SYMBOLS.........................................145
	146 =U +H | DESCRIPTION OF SYMBOLS.........................................146
	147 =U +H | KEY OF SYMBOLS.................................................147
	148 =U +H | BMK-INDEX......................................................148
	149 =U +H | BMK-INDEX......................................................149
	150 =U +H | BMK-INDEX......................................................150
	151 =U +H | BMK-INDEX......................................................151
	152 =U +H | BMK-INDEX......................................................152
	153 =U +H | BMK-INDEX......................................................153
	154 =U +H | BMK-INDEX......................................................154
	155 =U +H | BMK-INDEX......................................................155
	156 =U +H | BMK-INDEX......................................................156
	157 =U +H | BMK-INDEX......................................................157
	158 =U +H | BMK-INDEX......................................................158
	159 =U +H | BMK-INDEX......................................................159
	160 =U +H | MODIFICATION SHEET.............................................160
	161 =U +H | MODIFICATION SHEET.............................................161

Need help? Contact: [email protected]

https://vimeo.com/851173557?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
