Liebherr LTM1220-5.2 Parts Manual

FILE DETAILS:

Liebherr LTM1220-5.2 Parts Manual

Language: English
Size: 34.6 MB
Pages: 1582
Format: PDF
Downloadable: YES
Serial No : 045789

TABLE OF CONTENTS :

Liebherr LTM1220-5.2 Parts Manual

Catalog..............................................   1
	LTM 1220-5-2-006.................................   1
	91 38 753 08 / COOLER INSTALLATION...............  14
	96 32 385 08 / RADIATOR, PRE-ASSEMBLED...........  16
	96 27 479 08 / HYDR. COOLER DRIVE................  18
	91 71 847 08 / DIESEL ENGINE INSTALLATION........  20
	96 74 670 08 / DIESEL ENGINE, PRE-ASSEMBLED......  22
	96 18 981 08 / CLUTCH ASSEMBLY...................  28
	96 71 682 08 / PUMP ASSEMBLY.....................  29
	96 32 074 08 / HYDRAULIK PUMP ASSEMBLY...........  31
	96 31 491 08 / FUEL FILTER PRE-ASS...............  32
	91 38 755 08 / INTERM.GEARBOX....................  33
	96 35 416 08 / INTERMEDIATE GEAR,PRE-ASSEMBLE....  34
	96 35 414 08 / HYDRAULICS........................  36
	91 33 714 08 / ADD-ON UNIT TELMA.................  38
	91 46 547 08 / AXLE 1 WITH SUSPENSION............  39
	96 30 900 08 / AXLE 1, PRE-ASSEMBLED.............  40
	96 24 312 08 / INST. PARTS ANGLE SENSOR..........  41
	96 32 359 08 / HYDRAULICS........................  42
	91 38 843 08 / AXLE 2 WITH SUSPENSION............  43
	96 30 902 08 / AXLE 2, PRE-ASSEMBLED.............  44
	96 32 361 08 / HYDRAULICS........................  45
	91 49 726 08 / TYRES.............................  46
	96 36 884 08 / TIRE CPL..........................  47
	91 56 975 08 / AXLE 3 WITH SUSPENSION............  48
	96 52 878 08 / AXLE 3, PRE-ASSEMBLED.............  49
	96 32 362 08 / HYDRAULICS........................  50
	91 38 932 08 / AXLES 4+5 WITH SUSPENSION.........  51
	96 30 904 08 / AXLE 4, PRE-ASSEMBLED.............  52
	96 30 905 08 / AXLE 5, PRE-ASSEMBLED.............  53
	96 32 363 08 / HYDRAULICS........................  54
	96 32 364 08 / HYDRAULICS........................  55
	91 38 976 08 / STEERING MECHANISM................  56
	91 74 877 08 / STEERING HYDRAULICS...............  58
	96 83 056 08 / STEERING PIPEWORK.................  59
	96 83 057 08 / MECHANICAL AUXILIARIES............  63
	91 47 186 08 / DRIVE SHAFT FITTING...............  64
	96 30 082 08 / BEARING ISUPPORT..................  66
	91 71 501 08 / AUX.HEATING UNDERC.AIRTOP.........  67
	91 00 480 08 / FIXING PARTS SLEWING RING.........  69
	91 48 323 08 / SLIDING BEAM WITH BEARING.........  70
	96 31 164 08 / SLIDING BEAM FRONT,PRE-ASSEMB.....  72
	96 34 169 08 / SLIDING BEAM REAR, PRE-ASSEMBL....  75
	96 32 768 08 / HYDRAULICS SLIDING BEAM PRE-AS....  78
	91 50 452 08 / HOSE LINES SLIDING ROD............  79
	91 46 327 08 / STOP WEDGES D.....................  80
	91 18 242 08 / SUPPORT PLATES W.FAST.ADD-ON......  81
	96 23 434 08 / SUPPORT PLATE COMPL...............  82
	96 31 824 08 / SPRING PLUG PRE-ASS...............  84
	91 45 303 08 / FITTING BOOM SUPPORTING FRAME.....  85
	96 36 149 08 / BOOM JIB SUPPORT BLOCK PRE-ASS....  86
	91 51 722 08 / TOOL BOX CPL......................  87
	91 71 341 08 / MARKER CARRIER....................  88
	91 71 345 08 / FUEL TANK CPL.....................  89
	96 32 369 08 / FUEL TANK PREMOUNTED LEFT.........  91
	96 32 372 08 / FUEL TANK PRE-ASS.RIGHT...........  92
	91 39 041 08 / OIL RESERVOIR, EXTENSION..........  93
	96 27 289 08 / OIL TANK PRE-ASS..................  94
	91 39 057 08 / AIR VESSEL MOUNTING...............  96
	91 57 746 08 / EXHAUST GAS SYSTEM................  98
	91 39 127 08 / AIR FILTER ASSY. W. AIR FLAP...... 100
	96 33 668 08 / CONTROL SYSTEM.................... 102
	96 65 122 08 / SENSOR COMPL...................... 103
	91 42 690 08 / MANEUVERING COUPLING IN FRONT..... 104
	91 74 382 08 / TRAILER COUPLING.................. 105
	91 53 695 08 / TOOLS AND ACCESSORIES............. 106
	92 85 698 08 / MAIN TOOLS........................ 107
	92 86 200 08 / ACCESSORIES....................... 108
	91 54 406 08 / MONITORING SUPPORTING PRESSURE.... 109
	91 26 161 08 / EXTERNAL FEED..................... 110
	91 52 266 08 / EXTERNAL FEED..................... 111
	92 01 827 08 / ELECTR. FOR AIR-CONDITIONING...... 112
	91 51 005 08 / TELESC.OUTRIGGER MONITORING....... 113
	91 26 763 08 / ELECTRIC TIME SWITCH.............. 114
	91 26 765 08 / RADIO PREPARATION LOWER CARRIA.... 115
	96 39 879 08 / MECHANICAL AUXILIARIES............ 116
	91 56 750 08 / EL.EQUIPMENT TELMA................ 117
	91 26 704 08 / TRAILER PLUG SOCKET............... 118
	91 48 945 08 / EL.COOLANT PREHEAT................ 119
	91 05 097 08 / BACKING WARNING ACOUSTIC.......... 120
	91 57 641 08 / ELECTRICAL RELEASE DOLLY.......... 121
	96 24 626 08 / ADDNL.F.DASHBOARD CENTER CONSO.... 122
	91 43 393 08 / ELECTRIC SLEWING SENSOR........... 123
	91 35 359 08 / ADAPTOR........................... 124
	96 31 244 08 / LIMIT SWITCH ADD-ON UNIT.......... 125
	91 42 476 08 / TRAILER PLUG SOCKET............... 126
	91 56 546 08 / FAN HEATER DRIVERS CABIN.......... 127
	91 56 543 08 / FAN HEATER DRIVERS CABIN.......... 128
	91 54 986 08 / EL.ADD-ON CAMERA.................. 129
	96 47 513 08 / EL.SYST. F.CAMERA,DRIVER'S CAB.... 130
	96 45 389 08 / ELECTR.SYSTEM F.CAMERA F.TRUCK.... 131
	91 46 372 08 / MOTOR PRE-HEATING................. 132
	96 32 808 08 / ENGINE PREHEATER PRE-ASS.......... 136
	96 41 505 08 / HOSE LINES ENGINE FRONT CH........ 138
	91 51 727 08 / COOLING WATER PRE-HEATING......... 139
	96 26 433 08 / EL.COOLANT PREHEAT................ 140
	91 46 523 08 / FUEL TANK LOWER CARRIAGE.......... 141
	96 20 590 08 / FUEL TANK CONTAINER PRE-ASS....... 142
	96 33 686 08 / FUEL TANK CONTAINER PRE-ASS....... 143
	91 69 999 08 / ADD-ON PARTS FOLLOWER AXLE........ 144
	91 26 247 08 / CONSOLE AUX. REPLENISHING......... 145
	91 28 207 08 / TEST EQUIP.DESIGN................. 147
	91 28 206 08 / COUPLING HEADS.................... 148
	91 51 394 08 / DISC WHEEL........................ 149
	91 46 329 08 / DISPATCH ASSY.MECH.PARTS.......... 150
	92 51 415 08 / HOSE GUIDE PRE-ASS................ 151
	91 69 598 08 / PERSONAL PROTECTION EQUIPMENT..... 152
	91 46 330 08 / DRIVER'S CABIN CPL................ 153
	91 08 613 08 / SEATS DRIVER'S CABIN W.HEATING.... 156
	91 43 920 08 / COVERING HEATING OPENING.......... 157
	91 49 122 08 / MIRROR ATTACHMENT................. 158
	91 23 508 08 / ROOF CONSOLE DRIVERS CABIN........ 160
	91 36 311 08 / LAP BELT INSTALLATION............. 161
	91 46 879 08 / OPERATOR CAB ACCESSORIES.......... 162
	91 46 382 08 / DRIVER'S CABIN PRE-ASS............ 163
	91 26 490 08 / DRIVER'S CABIN, GLAZED............ 164
	96 28 389 08 / REWORK STEERING COLUMN............ 172
	92 18 651 08 / DOOR HINGE CPL.................... 173
	96 19 315 08 / STEERING COLUMN SHEATHING......... 174
	96 19 627 08 / ROOF COVERING COMPL............... 175
	96 26 210 08 / ROOF CONSOLE COMPL................ 176
	96 19 628 08 / ROOF CONSOLE PRE-ASS.............. 177
	96 30 108 08 / ANTI-SWAY GEAR.................... 178
	96 31 015 08 / AIR GUIDE SYSTEM.................. 179
	96 49 660 08 / STEERING COLUMN PRE-ASS........... 180
	96 22 404 08 / INSTRUMENT BOX CPL................ 182
	96 25 682 08 / SCREEN WHIPING SYSTEM COMPL....... 184
	96 23 925 08 / VALVE PLATE, PRE-ASSEMBLED........ 186
	96 25 683 08 / SCREEN WHIPING SYS. PRE-ASS....... 188
	96 22 361 08 / COVER PRE-ASS..................... 189
	96 23 840 08 / BATTERY COVER PRE-ASS............. 190
	96 19 612 08 / BACK AND SIDE WALL COVER, CPL..... 191
	96 22 117 08 / BASE MATS......................... 192
	96 22 118 08 / LEATHER CLADDING.................. 193
	96 23 836 08 / COVER. PROFILES COMPL............. 194
	91 07 689 08 / DOOR LEFT, CPL.................... 195
	97 20 900 08 / WINDOW, CRANK, LEFT............... 200
	92 68 355 08 / DOOR STOPPER COMPL................ 201
	91 07 690 08 / DOOR RIGHT, CPL................... 202
	97 21 240 08 / WINDOW, CRANK, RIGHT.............. 207
	91 47 548 08 / TACHOGRAPH........................ 208
	91 75 702 08 / DRIVER'S CABIN CONTROLS........... 209
	96 27 551 08 / DASHBOARD CENTER CONSOLE PRE-A.... 210
	96 45 108 08 / CENTRE BRACKET PRE-ASS............ 211
	92 26 483 08 / TERMINAL BOARD PRE-ASS............ 214
	96 44 966 08 / WIRES COMPL. INSTRUMENTS.......... 215
	96 25 760 08 / INSERTION MODULE.................. 216
	91 47 126 08 / AIR CONDITIONING UNDERCARRIAGE.... 217
	96 20 244 08 / MOUNTING AIR CONDITION.COMPRES.... 219
	96 38 148 08 / HOSE LINES AIR CONDITIONING....... 220
	91 57 784 08 / ELECTRIC FOR DRIVER'S CABIN....... 221
	96 54 437 08 / ELECTRICAL SYSTEM BATTERY......... 222
	96 40 904 08 / CAB WIRING LIST................... 223
	91 26 702 08 / CHARGER........................... 224
	91 60 382 08 / TIRE COVER PANELLING.............. 225
	96 37 304 08 / STORAGE BOX....................... 230
	96 37 307 08 / DOOR CPL.......................... 231
	96 31 483 08 / ACCESS LADDER REAR.LEFT........... 232
	96 32 708 08 / ACCESS LADDER REAR.RIGHT.......... 233
	96 32 211 08 / DOOR.............................. 234
	96 32 681 08 / SPALSH PLATE REAR.RIGHT........... 235
	96 32 680 08 / SPLASH PLATE REAR L............... 236
	96 32 677 08 / HOLDER PRE-ASSEMBLY............... 237
	96 37 422 08 / STORAGE BOX....................... 238
	96 32 186 08 / PROTECTION PLATE PRE-ASSEMBLED.... 239
	91 46 336 08 / ENGINE COVERING................... 240
	96 32 471 08 / COVER/LID/CAP, PRE-ASSEMBLED...... 243
	91 48 325 08 / ADDITIONAL F.TIRE COVER PANELL.... 244
	91 60 001 08 / LABELLING GREAT BRITAIN........... 246
	91 62 835 08 / PLATING........................... 248
	91 69 272 08 / CONSPICUOUS MARKING............... 249
	91 74 879 08 / UNDERCARRIAGE ELEC. SYSTEM........ 251
	96 31 378 08 / DOUBLE HORN PRE-ASS............... 252
	96 30 673 08 / WIRING HARNESS.................... 253
	91 49 061 08 / EMERGENCY STOP CABIN.............. 254
	91 53 083 08 / ADD-ON CAMERA..................... 255
	91 48 326 08 / COLLECTING RING................... 256
	92 17 296 08 / SLIP RING CONNECTOR PRE-ASSEM..... 257
	91 52 474 08 / LIGHTING CANADA................... 258
	96 26 463 08 / WIRING LIST FOR LIGHTING.......... 260
	96 17 787 08 / LEAD.............................. 261
	96 18 521 08 / LAMP CLAMP CPL.REAR LEFT.......... 262
	96 18 522 08 / LAMP CLAMP CPL.REAR RIGHT......... 263
	96 17 781 08 / LEAD.............................. 264
	96 23 209 08 / BUMPER COMPL. W. COVERING......... 265
	91 38 351 08 / EL.COMP. DISPATCH ASSEMBLY........ 266
	91 74 893 08 / COMPRESSED AIR PLANT.............. 267
	91 49 012 08 / PNEUMATIC FOR TRAILER COUPLING.... 269
	92 08 051 08 / PNEUMATIC FOR TRAILER COUPLING.... 270
	91 06 248 08 / PNEUMAMATIC DRIVER'S CABIN........ 272
	96 22 760 08 / BULKHEAD PLATE CPL................ 274
	91 68 647 08 / HYDRAULIC AXLE SUSPENSION......... 275
	91 53 123 08 / HYDRAULIC SUPPORT................. 278
	91 48 873 08 / EMERGENCY OPERATION CRANE HYDR.... 281
	96 35 041 08 / HOSES LINES EMERGENCY CONTROL..... 283
	91 45 468 08 / EL.OPERATION OF HYDR. VALVES...... 284
	92 68 196 08 / HOUSING CPL....................... 285
	92 68 197 08 / HOUSING CPL....................... 286
	92 91 388 08 / OUTRIGGER CONTROL FROM ABOVE...... 287
	92 91 387 08 / SWITCH BOX CPL.................... 288
	92 55 098 08 / PLATE CPL......................... 289
	91 69 290 08 / HOSE LINES UNDERCARRIAGE.......... 290
	91 69 292 08 / PIPELINES UNDERCARRIAGE........... 294
	91 23 639 08 / ASSEMBLY PARTS F.SLEWING PLTF..... 297
	91 71 849 08 / DRIVE ASSEMBLY CPL................ 299
	96 32 140 08 / EXPANSION TANK PRE-ASS............ 302
	96 84 070 08 / EXPANSION TANK PRE-ASS............ 303
	91 72 090 08 / DRIVE ASSEMBLY, PRE-ASSEMBLED..... 304
	96 36 151 08 / PILLOW BLOCK PRE-ASS.............. 315
	96 57 361 08 / RADIATOR, PRE-ASSEMBLED........... 316
	91 60 196 08 / PUMP HOISTING GEAR 2.............. 319
	91 51 558 08 / BATTERY STORAGE................... 320
	96 31 147 08 / BATTERY BOX, PRE-ASSEMBLED........ 322
	91 23 710 08 / FUEL TANK ADD-ON UNIT............. 323
	96 27 193 08 / FUEL TANK, PRE-ASSEMBLED.......... 325
	91 23 721 08 / OIL RESERVOIR, COMPLETE........... 326
	96 26 795 08 / OIL TANK PRE-ASS.................. 328
	91 74 161 08 / LUFFING RAM W. PIVOT.............. 329
	91 23 748 08 / ROLLER BEARING SLEWING RING....... 331
	91 23 749 08 / SLEWING GEAR...................... 332
	91 23 750 08 / ANGLE THREADED BULKHEAD........... 333
	91 23 985 08 / AUXILIARY HOISTING GEAR 2......... 334
	92 14 441 08 / CENTRAL LUBRICATING SYSTEM........ 335
	92 18 272 08 / WINCH 2 PRE-ASS................... 336
	91 08 858 08 / AUXILIARY HOIST.ROPE W.ACCESSO.... 338
	91 23 751 08 / MAIN HOIST GEAR................... 339
	91 47 142 08 / ROPE WITH ACCESSORIES 1........... 342
	91 75 919 08 / CRANE DRIVER'S CABIN CPL.......... 343
	92 10 661 08 / PILLOW BLOCK PRE-ASS.............. 345
	92 10 663 08 / PILLOW BLOCK PRE-ASS.............. 346
	91 34 728 08 / CRANE DRIVER'S CABIN,PRE-ASSY..... 347
	92 50 001 08 / COVER COMPL....................... 350
	96 21 965 08 / CLOSING DEVICE.................... 351
	91 01 537 08 / OPERATOR'S CABIN SEAT HEATING..... 352
	91 53 982 08 / TURNTABLE PANELLING............... 354
	96 44 670 08 / SLEWING PLATFORM PANELLING RIG.... 355
	96 44 672 08 / FLAP RIGHT PRE-ASS................ 361
	96 44 673 08 / SOUND PROOFING/SOUND INSULAT...... 362
	96 29 034 08 / SOUND PROOFING/SOUND INSULAT...... 363
	96 26 991 08 / INTERIOR BLIND PRE-ASS............ 364
	96 27 010 08 / TAPERED PLATE PRE-ASS............. 365
	96 26 961 08 / TRIANGLE PLATE PRE-ASS............ 366
	96 44 671 08 / COOLER COVER CPL.................. 367
	96 29 641 08 / INTERIOR BLIND PRE-ASS............ 368
	96 26 958 08 / SLEWING PLATFORM PANELLING LEF.... 369
	96 26 694 08 / FLAP PRE-ASS...................... 373
	92 19 346 08 / SHUTTER PRE-ASS................... 374
	91 26 937 08 / FALL PROTECTION................... 375
	96 27 912 08 / RAIL PRE-ASS. LEFT................ 379
	96 29 555 08 / RAIL PRE-ASS. RIGHT............... 380
	91 26 804 08 / CABIN, GLAZED..................... 381
	92 48 796 08 / FRONT WINDOW CPL.................. 387
	92 13 430 08 / INSTRUMENT BOX CPL................ 389
	92 50 859 08 / INSIDE ROOF LINING CPL............ 390
	92 17 203 08 / INSTRUMENT BOX DELIVERY SCOPE..... 391
	96 55 767 08 / LOUDSPEAKER CPL................... 392
	72 40 148 08 / LOCKING CABLE..................... 393
	96 84 504 08 / ATTACHMENT GRIP................... 394
	96 49 682 08 / SPRAY NOZZLE...................... 395
	91 10 037 08 / DOOR CPL.......................... 396
	91 10 310 08 / CABIN SHEET METAL SECTIONS........ 399
	91 23 834 08 / ELECTR. INSTRUMENTS CABIN......... 400
	92 68 095 08 / ELECTR.FOR SLEWING GEAR........... 401
	92 03 949 08 / DASHBOARD FRONT, PRE-ASSEMBLED.... 402
	91 15 761 08 / ELECTR. FOR CONTROL STAND......... 403
	96 23 170 08 / ELECTRIC FOR ARMREST LEFT......... 404
	96 26 954 08 / ELECTRIC FOR ARMREST RIGHT........ 405
	91 39 126 08 / ROLLER-BLIND...................... 406
	91 60 638 08 / EL.INSTRUMENTS F.CRANE DRIV.CA.... 407
	96 32 678 08 / DASHBOARD ROOF, PRE-ASSEMBLED..... 408
	96 28 388 08 / ELECTRIC ADD-ON PARTS CABIN....... 410
	91 45 984 08 / HEATING, CRANE CABIN.............. 411
	91 72 038 08 / AUX.HEATING UPPERC.AIRTOP......... 414
	91 61 602 08 / COUNTERWEIGHT WITH CLAMP.......... 416
	96 62 101 08 / COUNTERWEIGHT CPL................. 418
	91 23 837 08 / ADDITIONAL BALLAST................ 419
	91 23 849 08 / BALLASTING........................ 420
	91 47 290 08 / EXHAUST SYSTEM W. SPARK TRAP...... 421
	91 47 292 08 / AIR FILTER ASSY. W. AIR FLAP...... 423
	96 35 046 08 / CONTROL SYSTEM.................... 424
	91 51 498 08 / CENTRAL LUBRICATING SYSTEM........ 425
	91 26 162 08 / EXTERNAL FEED..................... 426
	91 49 756 08 / EL.COOLANT PREHEAT................ 427
	91 37 531 08 / RADIO PREPARATION UPPER CARRIA.... 428
	91 52 281 08 / EXTERNAL FEED..................... 429
	91 39 783 08 / ADDITIONAL ELECTRICS.............. 430
	91 02 649 08 / ELECTRIC FOR WINCH 2.............. 431
	91 70 947 08 / CHARGE VOLTAGE REGULATOR.......... 432
	91 68 736 08 / ADAPTER DATA LOGGER............... 433
	96 67 851 08 / PLATING........................... 434
	91 49 360 08 / COOLING WATER PRE-HEATING......... 435
	91 51 660 08 / MOTOR PRE-HEATING................. 436
	96 33 066 08 / HEATING, PRE-ASSEMBLED............ 440
	96 41 421 08 / HOSE LIN.ENG.PREHEAT.SLEW.PLAT.... 444
	91 51 813 08 / FUEL TANK CONTAINER UPPER CARR.... 445
	91 68 708 08 / MIRROR ATTACHM.AT SLEW.PLATFOR.... 447
	91 60 499 08 / MIRROR ATTACHM.IN CRANE CABIN..... 448
	91 52 145 08 / CONSOLE AUX. REPLENISHING......... 449
	96 67 077 08 / MIRROR  RETAINER PRE-ASS.......... 450
	91 48 836 08 / ACCUMUL.MOUNT LUFF.RAM PRETEN..... 451
	91 51 555 08 / DISPATCH ASSY.MECH.PARTS.......... 452
	91 61 219 08 / AIR COND. UNIT SUPERSTRUCTURE..... 453
	96 60 761 08 / HOSE LINES AIR CONDITIONING....... 455
	91 32 850 08 / LICCON CONSOLE LCD2............... 456
	96 20 599 08 / FOIL KEYPAD PRE-ASS............... 458
	96 20 460 08 / HOUSING PRE-ASSEMBLED............. 459
	96 28 696 08 / INTERIOR HOUSING PRE-ASS.......... 460
	96 20 732 08 / FAN PLATE PRE-ASS................. 462
	91 23 538 08 / ASSEMBLY FRAME.................... 463
	92 32 870 08 / FAN UNIT.......................... 464
	91 56 887 08 / ELECTR. SYSTEM F.SLEWING PLATF.... 465
	96 69 304 08 / CABLE LIST SLEWING PLATFORM....... 466
	96 40 322 08 / ELECTRIC FOR BATTERY BOX.......... 467
	92 06 744 08 / LEAD.............................. 468
	92 90 866 08 / ELECTRIC FOR WINCH 1.............. 469
	91 27 894 08 / EL. FOR SUPPLEMENTARY HEATING..... 470
	91 02 901 08 / HEATING ELECTRICAL SYSTEM......... 471
	96 31 865 08 / ELECTR. FOR WORK AREA LIGHT....... 472
	92 11 635 08 / ELECTR.FOR SLEWING GEAR........... 473
	92 88 280 08 / LIMIT SWITCH...................... 474
	92 08 459 08 / COMPLEMENT ELECTR., CAB........... 475
	91 01 520 08 / ELECTRIC FOR FLASHLIGHT........... 476
	96 40 589 08 / EL.ADD-ON SET-LIMIT SWITCHES +.... 477
	91 43 633 08 / ELECTR. FOR WORK AREA LIGHT....... 478
	96 52 814 08 / LIMIT SWITCH ADD-ON............... 479
	91 41 303 08 / EMERGENCY CUT-OFF CRANE DRIVER.... 480
	92 01 592 08 / FOOT SWITCH CPL................... 481
	91 35 086 08 / ELECTR.F.AIRCRAFT WARNING LIGH.... 482
	92 84 311 08 / BUS PCB........................... 483
	91 50 138 08 / MASTER CRANE SWITCH CABINET....... 484
	91 56 895 08 / SWITCHBOX MOUNTING PARTS.......... 485
	96 59 114 08 / SWING FRAME RELAY CONTROL SYST.... 486
	96 59 111 08 / BASE ASSEMBLY..................... 487
	96 59 112 08 / CABLES, BASIC CONSTRUCTION CPL.... 491
	92 68 911 08 / GROUND RAIL....................... 492
	96 45 373 08 / SWING FRAME FUSE AND RELAY........ 493
	96 32 977 08 / TERMINAL STRIP.................... 495
	96 28 366 08 / INPUT BOARD CPL................... 496
	92 26 129 08 / GROUND RAIL....................... 497
	91 48 853 08 / COMPRESSED-AIR SYST.SUPERSTR...... 498
	91 23 955 08 / PNEUM. CRANE OPERATORS CABIN...... 500
	91 71 132 08 / HYDRAULICS........................ 502
	91 71 135 08 / HYDR.AUXILIARY HOISTING........... 512
	96 35 236 08 / HOSE LINES HOISTING GEAR.......... 515
	92 97 879 08 / MECHANICAL AUXILIARIES............ 516
	91 68 666 08 / ADD. HYDR. DOLLY.................. 517
	91 24 755 08 / ADDNL.HYDR. FOLDING JIB........... 524
	96 49 876 08 / HOSE LINES DOLLY.................. 526
	91 44 662 08 / ADDITIONAL HYDRAULICS............. 528
	92 91 393 08 / HOSE LINES TRANSFORMER............ 530
	96 36 176 08 / MECHANICAL AUXILIARIES............ 531
	96 36 580 08 / MECHANICAL AUXILIARIES............ 532
	91 45 089 08 / HYDRAULICS TRANSFORMER............ 534
	91 23 972 08 / OIL COOLER CPL.................... 535
	96 27 473 08 / OIL COOLER, PRE-ASSEMBLED......... 536
	91 75 920 08 / HOSE LINES SUPERSTRUCTURE......... 537
	91 48 847 08 / PIPELINES SUPERSTRUCTURE.......... 540
	91 60 889 08 / TELESCOPIC UNIT CPL............... 541
	91 57 167 08 / PIVOT SECTION, PRE-ASSEMBLED...... 542
	91 26 044 08 / TELESCOPIC SECTION 1 PRE-ASSEM.... 547
	91 26 045 08 / TELESCOPIC SECT.2 PRE-ASSEMBL..... 551
	91 26 046 08 / TELESCOPIC SECT.3 PRE-ASSEMB...... 555
	92 52 034 08 / ROPE PULLEY CPL................... 559
	91 26 047 08 / TELESCOPIC SECT.IV PRE-ASSEMBL.... 560
	92 14 561 08 / ROPE PULLEY CPL................... 564
	96 57 037 08 / HOIST LIM.SWITCH PLUMMET CPL...... 565
	91 26 048 08 / TELESCOPIC SECT.5 PRE-ASSEMBLE.... 566
	92 50 020 08 / ROPE PULLEY CPL................... 570
	91 00 408 08 / 2nd NECK PULLEY INSTALLATION...... 571
	91 57 929 08 / MECHANICAL EXTENSION SYSTEM....... 572
	96 54 504 08 / ADD-ON PARTS CYLINDER............. 573
	91 62 004 08 / DOUBLE FOLDING JIB MECH.COMP...... 576
	92 32 855 08 / FOLDING BRACKET PRE-ASS........... 577
	92 38 798 08 / CONSOLE PRE-ASS................... 578
	91 62 460 08 / DOUBLE FOLDING JIB MECH. ASS...... 579
	92 95 821 08 / MOUNTING PRE-ASS.................. 580
	92 55 753 08 / ROPE PULLEY CPL................... 581
	91 24 694 08 / TRANSPORT RETAINER  SKS........... 582
	91 49 338 08 / TRANSPORT MOUNTING................ 584
	91 06 985 08 / WHIP LINE 2-FALL.................. 587
	91 62 009 08 / SPECIAL AUXILIARY JIB............. 589
	91 47 157 08 / SPECIAL AUXILIARY JIB............. 590
	91 62 459 08 / SPECIAL AUXILIARY JIB MOUNTED..... 594
	91 62 150 08 / INTERMEDIATE PIECE MONTADO........ 595
	91 44 036 08 / INTERMEDIATE PART................. 596
	91 59 754 08 / TELE.EXT.MECH.CPL................. 597
	91 62 457 08 / TELE EXT. PRE-ASS.MECH............ 598
	96 49 758 08 / TELE EXTENSION PRE-ASS............ 599
	91 20 393 08 / MECH. DOUBLE FOLD JIB PREMOUNT.... 600
	91 20 237 08 / ADAPTER PRE-ASS................... 601
	91 20 242 08 / PIVOT SECTION, PRE-ASSEMBLED...... 606
	91 20 457 08 / REDUCER PRE-ASS................... 607
	91 20 484 08 / HEAD SECTION PRE-ASS.............. 609
	91 26 753 08 / GUIDE PULLEY COMPL................ 612
	91 20 537 08 / TENSION PLATE PRE-ASS............. 613
	91 24 508 08 / TOOLS............................. 614
	92 51 440 08 / HOLDER PRE-ASSEMBLY............... 615
	96 27 953 08 / MOUNTING HOOK ROD................. 616
	91 24 509 08 / ADD-ON UNIT LADDER................ 617
	96 64 086 08 / ELECTR.SPECIAL AUXILIARY JIB...... 618
	91 71 738 08 / AIR-CRAFT & WIND WARNING TELE..... 619
	91 25 018 08 / EL.2 HOISTING LIMIT SWITCH........ 620
	96 70 515 08 / WIND WARNING PREASSEMBLED......... 621
	91 46 875 08 / A-HEADL.SEARCHLIGHT PIVOT SEC..... 622
	96 31 001 08 / LEAD.............................. 623
	96 31 002 08 / LEAD.............................. 624
	96 18 268 08 / FIXING DEVICE 2.LIFT TOP.......... 625
	96 28 087 08 / ELECTRIC AIRCRAFT PROTECTION...... 626
	96 79 749 08 / MECH.AUXILIARIES FOR LIGHTING..... 627
	96 22 376 08 / RETAINER LEFT PRE-ASS............. 628
	96 24 147 08 / RETAINER RIGHT PRE-ASS............ 629
	91 51 698 08 / BRACKET FOLLOWER AXLE CPL......... 630
	96 61 669 08 / SET OF NAME PLATES................ 631
	96 61 778 08 / SET OF NAME PLATES................ 632
	96 62 413 08 / SET OF NAME PLATES................ 633
	96 62 436 08 / SET OF NAME PLATES................ 634
	96 57 223 08 / LIMIT SWITCH ADD-ON............... 635
	91 60 701 08 / ELECTR. SYSTEM F. BOOM............ 636
	96 60 374 08 / ELECTRIC F.BASE SECTION........... 637
	96 57 404 08 / TERMINAL BOX...................... 638
	92 95 081 08 / SENSOR INSTALL.TELESCOP.MECHAN.... 639
	96 19 833 08 / SENSOR ASSEMBLY BASIC BOOM........ 640
	96 59 364 08 / SENSOR ASSEMBLY HEAD PIECE........ 641
	92 19 255 08 / ELECTR. F.EXTENDING MECHANISM..... 642
	92 34 781 08 / CABLE DRUM COMPL.................. 643
	96 46 267 08 / CABLE DRUM COMPL.................. 644
	96 27 995 08 / ELECTR. FOR HEAD SECTION.......... 645
	96 27 996 08 / TERMINAL BOX CPL.................. 646
	96 64 076 08 / ELECTR. FOR HEAD SECTION.......... 647
	96 64 075 08 / ELECTRIC F.BASE SECTION........... 648
	91 23 978 08 / HYDR.F.TELESCOPIC BOOM............ 649
	91 46 928 08 / HOOK BLOCK........................ 651
	91 08 368 08 / HOOK BLOCK........................ 652
	91 44 013 08 / HOOK BLOCK........................ 653
	50 00 648 08 / DISTRIBUTOR GEARBOX............... 654
	50 04 624 / OIL DRAIN PLUG....................... 657
	50 20 280 08 / EDDY CURRENT BRAKE................ 658
	50 20 367 01 / SPRING LOADED MULTI-DISC BRAKE.... 659
	50 26 126 08 / SOLENOID VALVE.................... 660
	50 26 500 08 / HANDBRAKE VALVE................... 661
	50 26 573 08 / AIR DRYER......................... 662
	50 29 246 08 / LOADED/EMPTY VALVE................ 663
	50 29 262 08 / DIRECTIONAL CONTROL VALVE......... 664
	50 29 929 08 / BRAKE VALVE....................... 665
	51 02 319 08 / HYDRO MOTOR....................... 666
	51 02 380 08 / HYDRO MOTOR....................... 667
	51 02 386 08 / VARIABLE DISPLACEMENT MOTOR....... 668
	51 02 403 08 / VARIABLE DISPLACEMENT MOTOR....... 669
	51 06 545 08 / AERATION FILTER................... 670
	51 06 672 08 / FILTER............................ 671
	51 06 681 08 / PRESSURE FILTER................... 672
	51 06 704 08 / RETURN FILTER..................... 673
	51 06 753 08 / PRESSURE FILTER................... 674
	51 06 987 08 / BALL VALVE STRIP.................. 675
	51 10 647 08 / BALL VALVE COMBINATION............ 676
	51 13 005 08 / CONTROL BLOCK..................... 677
	51 13 018 08 / VALVE BLOCK....................... 678
	51 13 020 08 / DIRECTIONAL CONTROL VALVE......... 679
	51 13 080 08 / SOLENOID VALVE.................... 680
	51 13 081 08 / SOLENOID VALVE.................... 681
	51 13 125 08 / CONTROL BLOCK..................... 682
	51 13 211 08 / COMPACT CONTROL BLOCK............. 684
	51 13 226 08 / VALVE BLOCK....................... 685
	51 14 177 08 / PRESSURE LIMITING VALVE........... 686
	51 14 196 08 / PRESSURE LIMITING VALVE........... 687
	51 14 338 08 / AXLE LOCKING VALVE................ 688
	51 14 339 08 / PRESSURE LIMITING VALVE........... 690
	51 14 444 08 / DIRECTIONAL CONTROL VALVE......... 691
	51 14 525 08 / AXLE LOCKING VALVE................ 692
	51 14 608 08 / PRESSURE LIMITING VALVE........... 694
	51 14 794 08 / LOAD HOLDING VALVE................ 695
	51 21 380 08 / VARIABLE PUMP..................... 697
	51 21 429 08 / TWO-STAGE PUMP.................... 698
	51 21 435 08 / VARIABLE PUMP..................... 699
	51 23 637 08 / HYDRO CYLINDER.................... 700
	51 23 930 08 / STEERING CENTERING CYLINDER....... 701
	52 11 034 08 / ANGULAR GEAR...................... 702
	52 11 434 08 / AXLE STRUT........................ 704
	52 11 488 08 / AXLE STRUT........................ 705
	55 06 383 08 / OIL AIR COOLER.................... 706
	55 30 022 08 / WATER HEATING SYSTEM.............. 707
	55 30 534 90 / WATER HEATING SYSTEM.............. 709
	55 30 535 90 / CIRCULATING PUMP.................. 712
	55 30 854 08 / THREE-WAY TAP..................... 713
	55 31 879 08 / AIR COND. EVAPORATOR RFK.......... 714
	55 31 882 08 / AIR COND. EVAPORATOR RFK.......... 715
	57 00 161 / AIR COMPRESSOR....................... 717
	57 04 271 08 / PRESSURE LIMITING VALVE........... 719
	57 08 320 08 / FILTER COVER...................... 720
	57 09 330 08 / AIR ACTUATION SECTION............. 721
	57 14 150 08 / DIRECTIONAL CONTROL VALVE......... 722
	57 15 142 08 / CONNECTING PLATE.................. 723
	57 15 164 08 / CONTROL VALVE..................... 724
	57 16 347 08 / DIRECTIONAL CONTROL VALVE......... 725
	57 17 378 08 / DIRECTIONAL CONTROL VALVE......... 726
	57 17 811 08 / IT AS-TRONIK...................... 727
	57 17 821 08 / GV CIRCUIT........................ 728
	57 17 823 08 / PLANETARY GEAR IT................. 729
	57 17 824 08 / SYNCHROMESH....................... 731
	57 17 826 08 / COUPLING.......................... 732
	57 17 885 08 / SYNCHRONIZATION COMPL............. 733
	57 18 016 08 / HOUSING........................... 734
	57 18 017 08 / PUMP.............................. 736
	57 18 018 08 / CONTROL........................... 737
	57 18 088 08 / STORAGE........................... 739
	57 18 727 08 / GEARBOX HOUSING................... 740
	57 18 728 08 / GEARBOX HOUSING................... 741
	57 18 729 08 / DRIVE SHAFT....................... 742
	57 18 737 08 / COUPLING.......................... 744
	57 18 767 08 / CLUTCH ACTUATOR................... 745
	57 18 989 08 / CONNECTING PLATE.................. 746
	57 19 074 08 / PUMP SUPPORT...................... 747
	57 19 109 08 / PUMP SUPPORT...................... 748
	57 19 285 08 / CYLINDER HEAD CPL................. 749
	59 10 672 08 / WIPER MOTOR....................... 751
	59 10 804 08 / WATER BASIN....................... 752
	60 60 522 08 / GEAR CAM LIMITSWITCH.............. 753
	60 60 709 08 / BATTERY MAIN SWITCH............... 754
	60 60 950 08 / MASTER SWITCH..................... 755
	60 61 943 08 / IGNITION STARTER SWITCH........... 756
	60 71 444 08 / ROTATING BEACON................... 757
	60 71 507 08 / TAIL LAMP......................... 758
	69 09 009 08 / COLLECTING RING................... 759
	69 23 099 08 / ROPE LENGTH INDICATOR............. 760
	70 29 305 / PRESSURE LIMITING VALVE.............. 762
	77 39 393 08 / POCKET LOCK....................... 763
	77 41 080 08 / OPERATOR SEAT..................... 764
	77 41 081 08 / CO-DRIVER'S SEAT.................. 766
	77 41 082 08 / OPERATOR SEAT..................... 768
	79 00 391 08 / HAND PUMP......................... 770
	90 72 596 / BALANCER PRE-ASS..................... 771
	90 72 879 / BALANCER PRE-ASS..................... 772
	90 72 906 / INTERMEDIATE GEAR CPL................ 773
	90 73 083 / CYLINDER............................. 774
	90 73 767 / POWER TAKE-OFF....................... 775
	90 73 795 / PISTON COOLING....................... 776
	90 74 165 / BALANCER ASSEMBLY.................... 777
	90 74 505 / ROCKER ARM BRACKET PRE-ASS........... 778
	90 74 507 / ROCKER ARM PRE-ASS................... 779
	90 75 368 / LUBE OIL FILTER ASSEMBLY............. 780
	90 75 395 / PRESSURE ADAPTER..................... 781
	90 75 483 / CRANKCASE BREATHER................... 782
	90 75 540 / LUBRICATING OIL PUMP................. 783
	90 75 541 / LUBE OIL PUMP PREASS................. 784
	90 75 678 / THERMOSTAT HOUSING ASSEMBLY.......... 785
	90 76 457 / SET MAIN BEARINGS.................... 786
	90 76 459 / MAIN ROD............................. 787
	90 77 238 / FLYWHEEL ASSEMBLY.................... 788
	90 77 279 / CONNECTING BRANCH ADD-ON............. 789
	90 78 233 / VALVE................................ 790
	90 78 249 / LOCKING PIECES....................... 791
	90 78 250 / LOCKING PIECES....................... 792
	90 78 314 / HEATING FLANGE ADD-ON................ 793
	90 78 680 / FUEL PUMP ASSEMBLY................... 794
	90 78 832 / CRANKSHAFT WITH GEAR................. 795
	90 78 962 / AUXILIARY DRIVE PRE-ASS.............. 796
	90 79 092 / PIPELINE INSTALLATION................ 797
	90 79 185 / ROTATIONAL SPEED SENSOR CPL.......... 798
	90 79 186 / ROTATIONAL SPEED SENSOR CPL.......... 799
	90 79 468 / TRANSPORT DEVICE ATTACHEMENT......... 800
	90 79 472 / COOLANT PIPE BEND ADD-ON............. 801
	90 79 480 / POWER UNIT SUPPORT ATTACHMENT........ 802
	90 79 560 / GENERATOR ADD-ON..................... 803
	90 79 812 / OIL DIPSTICK WITH PIPE............... 804
	90 79 823 / TRANSPORT DEVICE ATTACHEMENT......... 805
	90 79 850 / CYLINDER HEAD ASSEMBLY............... 806
	90 79 870 / CONTROL PARTS........................ 807
	90 79 890 / HEATER CONNECTION.................... 808
	90 79 893 / LOCKING PIECES....................... 809
	90 80 086 / RETAINER PRE-ASS..................... 810
	90 80 087 / ROCKER ARM BRACKET CPL............... 811
	90 80 280 / LOCKING PIECES....................... 812
	90 80 294 / AIR COMPRESSOR PRE-ASS............... 813
	90 80 345 / AT-WATER PUMP WITH FASTENING......... 814
	90 80 525 / ADDITIONAL KIT....................... 815
	90 80 556 / CONTROL BOX ANNEXE................... 816
	90 80 591 / CRANKSHAFT ADD-ON PARTS.............. 817
	90 80 687 / PISTON............................... 818
	90 80 719 / CAMSHAFT CPL......................... 819
	90 80 853 / OIL LINE PRE-ASSEMBLY................ 820
	91 47 512 / LOCKING PIECE........................ 821
	91 62 969 08 / LOAD HOOK......................... 822
	92 75 543 01 / VENTILATION CONNECTING PIECE...... 823
	93 28 612 01 / COMPACT ROPE WINCH................ 824
	93 29 169 01 / ROPE DRUM......................... 826
	93 30 747 01 / SLEWING GEAR DRIVE................ 827
	93 91 596 01 / ROLLER BEARING SLEWING RING....... 829
	93 91 972 01 / COMPACT ROPE WINCH................ 830
	93 92 922 01 / PLANETARY GEARBOX................. 832
	93 92 940 01 / ROPE DRUM......................... 834
	93 92 942 01 / PLANETARY GEARBOX................. 836
	93 92 944 01 / OIL-GAUGING INSTRUMENT............ 838
	93 93 684 01 / OIL-GAUGING INSTRUMENT............ 839
	96 21 813 08 / ADD-ON PARTS...................... 840
	96 28 994 08 / GEARBOX........................... 841
	96 29 005 08 / GB-CASE........................... 842
	96 40 241 08 / RK TEMPERATURE SENSOR............. 843
	96 40 247 08 / REP.TRANSMISSION ACTUATOR......... 844
	96 40 285 08 / RK BRAKE.......................... 845
	96 53 364 08 / HOUSING........................... 846
	96 53 365 08 / CONTROL........................... 848
	96 53 366 08 / HEAT EXCHANGER.................... 849
	96 53 367 08 / POWER TAKE-OFF.................... 851
	97 39 015 / FAN ATTACHMENT....................... 852
	97 39 035 / LOCKING PIECES....................... 853
	97 39 096 / SCREW PLUG........................... 854
	97 39 099 / FLYWHEEL HOUSING..................... 855
	97 39 100 / FLYWHEEL HOUSING PRE-ASS............. 856
	97 39 102 / CRANKSHAFT BEARINGS.................. 857
	97 39 103 / DRIVING PARTS........................ 858
	97 39 117 / LUBRICATING OIL PUMP................. 859
	97 39 118 / OIL LINE............................. 860
	97 39 122 / OIL COOLER........................... 861
	97 39 123 / AT-WATER PUMP WITH FASTENING......... 862
	97 39 126 / THERMOSTAT HOUSING................... 863
	97 39 127 / WATER BLEEDER PIPELINE............... 864
	97 39 132 / POWER UNIT SUPPORT................... 865
	97 39 133 / AGGREGATE SUPPORT PRE-ASS............ 866
	97 39 135 / CONNECTING LINE...................... 867
	97 39 159 / STARTER.............................. 868
	97 39 164 / AUX. STEERING PUMP................... 869
	97 39 165 / INSTALLATION BRAKE COMPRESSOR........ 870
	97 39 166 / AIR COMPRESSOR....................... 871
	97 39 167 / RS AIR COMPRESSOR.................... 874
	97 39 168 / PIPELINE INSTALLATION................ 875
	97 39 169 / AIR CONDITIONING COMPRESSOR.......... 878
	97 39 170 / COMPRESSOR DRIVE..................... 879
	97 39 175 / SUCTION NOZZLE ADD-ON................ 880
	97 39 177 / GENERATOR DRIVE...................... 881
	97 39 186 / ENGINE BRAKE CPL..................... 882
	97 39 187 / CONTROL PARTS........................ 883
	97 39 189 / POWER TAKE-OFF ADD-ON................ 884
	97 39 190 / POWER TAKE-OFF DRIVE................. 885
	97 39 196 / WATER PUMP........................... 886
	97 39 202 / GENERATOR ADD-ON..................... 887
	97 39 237 / AUX. STEERING PUMP................... 888
	97 39 241 / CRANKCASE............................ 889
	97 39 242 / CYLINDER BUSHING..................... 890
	97 39 243 / PISTON COOLING....................... 891
	97 39 244 / OIL DIPSTICK WITH PIPE............... 892
	97 39 245 / CAMS SHAFT........................... 893
	97 39 246 / PISTON............................... 894
	97 39 248 / INJECTOR............................. 895
	97 39 249 / TRANSPORT DEVICE..................... 896
	97 39 250 / FLYWHEEL............................. 897
	97 39 251 / HEAT PROTECTION...................... 898
	97 39 252 / EXHAUST PIPE......................... 899
	97 39 253 / EXHAUST TC MOUNTING.................. 900
	97 39 255 / CONNECTION F.WATER PIPE.............. 901
	97 39 256 / AIR SUCTION PIPE..................... 902
	97 39 257 / ROTATIONAL SPEED SENSOR ATTACH....... 903
	97 39 258 / FUEL FILTER.......................... 904
	97 39 259 / FUEL FILTER ATTACHMENT............... 906
	97 39 260 / CYLINDER HEAD........................ 907
	97 39 261 / CYLINDER HEAD........................ 908
	97 39 262 / CYLINDER HEAD........................ 909
	97 39 263 / ROCKER ARM BEARING HOUSING........... 910
	97 39 264 / ROCKER ARM BEARING HOUSING........... 911
	97 39 266 / CYLINDER HEAD........................ 912
	97 39 267 / CYLINDER FAIRING..................... 913
	97 39 268 / EXHAUST GAS RECIRCULATION............ 914
	97 39 269 / EXHAUST GAS RECIRCULATION............ 915
	97 39 271 / CONNECTING LINE...................... 916
	97 39 273 / OIL COOLER ADD-ON.................... 917
	97 39 275 / FAN DRIVE............................ 918
	97 39 276 / WATER CONNECTION..................... 919
	97 39 277 / HIGH PRESSURE PUMP................... 920
	97 39 278 / ADD-ON PARTS......................... 921
	97 39 279 / CABLE HARNESS MOUNTING............... 922
	97 39 280 / PRESSURE PIPE........................ 923
	97 39 281 / OVERFLOW-OIL LINE.................... 924
	97 39 286 / END COVER............................ 925
	97 39 287 / MAIN ROD............................. 926
	97 39 290 / FASTENING PIECES ASSEMBLY............ 927
	97 39 298 / FLAME STARTING SYSTEM................ 928
	97 39 318 / SENSOR ELEMENT....................... 929
	97 39 322 / REPAIR KIT PIPE LINE................. 930
	97 39 361 / OIL SUMP............................. 931
	97 39 362 / OIL SUMP............................. 932
	97 39 387 / CRANKCASE BREATHER................... 933
	97 39 500 / OVERFLOW-OIL LINE.................... 934
	97 39 501 / FUEL LINES........................... 935
	97 39 503 / FUEL LINE............................ 936
	97 39 617 / DIESEL ENGINE........................ 937
	10 01 239 4 / FLAP............................... 938
	10 01 247 3 / MAIN ROD........................... 939
	10 01 313 0 / LOAD HOLDING VALVE................. 940
	10 01 532 4 / FAN PRE-ASS........................ 941
	10 02 177 6 / DISTRIBUTOR GEARBOX................ 942
	10 02 240 0 / FUSE BOX SMALL..................... 946
	10 02 241 0 / VARIABLE PUMP...................... 947
	10 02 271 6 / WATER HEATING SYSTEM............... 948
	10 02 369 1 / CONTROL ELEMENT.................... 949
	10 03 076 7 / AXLE LOCKING VALVE................. 950
	10 03 631 4 / STEERING CYLINDER.................. 951
	10 03 631 5 / STEERING CYLINDER.................. 952
	10 03 824 9 / BALLAST EXTENSION RAM.............. 953
	10 03 825 0 / BALLAST EXTENSION RAM.............. 954
	10 04 082 3 / STEERING GEAR...................... 955
	10 04 169 4 / STEERING CENTERING CYLINDER........ 957
	10 04 305 2 / CONTROL BLOCK...................... 958
	10 04 307 7 / AIR FILTER......................... 959
	10 04 437 5 / BALL VALVE STRIP................... 960
	10 09 722 1 / SWITCHGEAR......................... 961
	10 10 075 7 / DIESEL ENGINE...................... 962
	10 11 286 1 / DRIVEN STEERING AXLE............... 965
	10 11 286 2 / DRIVEN STEERING AXLE............... 970
	10 11 286 4 / DRIVEN STEERING AXLE............... 978
	10 11 286 5 / DRIVEN STEERING AXLE............... 985
	10 11 318 4 / FUEL PREFILTER..................... 990
	10 11 363 9 / SUSPENSION CYLINDER................ 991
	10 11 497 5 / CONTROL VALVE...................... 992
	10 11 550 2 / COOLING WATER AIR BLEEDING......... 993
	10 11 553 9 / STARTER INSTALLATION............... 994
	10 11 566 4 / LOCKING PIECES..................... 995
	10 11 569 6 / LEAK OIL RETURN LINE............... 996
	10 11 573 6 / FUEL HOSE.......................... 997
	10 11 573 7 / FUEL LINES......................... 998
	10 11 577 6 / CRANKCASE..........................1000
	10 11 577 7 / CRANKCASE CPL......................1001
	10 11 582 9 / FLYWHEEL HOUSING MOUNTING..........1002
	10 11 584 9 / SEALING SET OIL COOLER.............1003
	10 11 585 1 / SEAL KIT CYLINDER HEAD.............1004
	10 11 585 2 / SEAL KIT ZYLINDER HEAD CPL.........1006
	10 11 585 3 / SEAL KIT ZYLINDER HEAD CPL.........1008
	10 11 585 4 / SEAL KIT INJECTION NOZZLE..........1010
	10 11 585 9 / SEAL KIT CYLINDER HEAD.............1011
	10 11 599 3 / CONTROL GEAR.......................1013
	10 11 611 0 / LOCKING PIECES.....................1014
	10 11 614 6 / CONNECTING PIECE PRE-ASS...........1015
	10 11 659 1 / INJECTOR...........................1016
	10 11 676 8 / AIR CONDITIONING COMPRESSOR........1017
	10 11 683 9 / INJECTION PUMP.....................1018
	10 11 693 9 / RS CRANKSHAFT BEARING KPL..........1019
	10 11 707 2 / AIR INTAKE PIPE ASS................1020
	10 11 709 3 / RK INJECTION NOZZLE................1021
	10 11 722 8 / WATER CONNECTION...................1022
	10 11 725 5 / ROCKER ARM PRE-ASS.................1023
	10 11 725 6 / ROCKER ARM BRACKET PRE-ASS.........1024
	10 11 739 7 / OIL COOLER, PRE-ASSEMBLED..........1025
	10 11 739 8 / OIL COOLER ADD-ON..................1026
	10 11 766 5 / PIPELINE...........................1027
	10 11 793 0 / ACCESSORIES AIR COMPRESSOR.........1028
	10 11 795 1 / FINAL CONTROL VALVE................1029
	10 11 801 3 / SEAL KIT AGGREGATE CARRIER.........1030
	10 11 801 4 / SEAL KIT AGGREGATE CARRIER.........1032
	10 11 810 1 / EXHAUST PIPE ASSEMBLY..............1034
	10 11 811 0 / BASIC ENGINE.......................1035
	10 11 816 1 / CONNECTING LINE ADD-ON.............1036
	10 11 826 6 / EXHAUST TC MOUNTING................1037
	10 11 864 6 / GENERATOR, PRE-ASSEMBLED...........1038
	10 11 883 9 / OIL FILLER INLET...................1039
	10 11 912 7 / CLAMP - ADD-ON UNIT................1040
	10 11 912 8 / LOCKING PIECES.....................1041
	10 11 914 1 / CRANKCASE BREATHER ASSEMBLY........1042
	10 11 919 7 / HEAT PROTECTION W.FASTENING........1043
	10 11 961 0 / CYLINDER HEAD COVER ASSEMBLY.......1044
	10 11 963 6 / CYLINDER HEAD COVER ASSEMBLY.......1045
	10 11 969 7 / PRESSURE TRANSMITTER ATTACH........1046
	10 11 969 8 / ENGINE CONTROL SENSORS.............1047
	10 11 989 1 / FUEL-PREFILTER ASS.................1049
	10 11 989 7 / RK OIL RETURN PIPE.................1050
	10 11 997 6 / POWER TAKE-OFF ADD-ON..............1051
	10 11 998 0 / CABLE HARNESS MOUNTING.............1052
	10 12 006 9 / OIL SUMP WITH FASTENING............1053
	10 12 036 4 / CYLINDER HEAD PRE-ASS..............1054
	10 12 038 4 / CYLINDER HEAD......................1055
	10 12 069 8 / OIL SUMP PRE-ASS...................1056
	10 12 134 5 / RK CRANKSHAFT SEAL.................1057
	10 12 166 7 / CONNECTING PIECE W.O-RING..........1058
	10 12 500 7 / FUEL FINE-FILTER ASSEMBLY..........1059
	10 12 580 1 / FUEL FINE FILTER...................1060
	10 13 561 6 / DIESEL ENGINE......................1061
	10 21 636 4 / SUSPENSION CYLINDER................1066
	10 21 682 7 / RADIATOR UNIT......................1067
	10 21 770 6 / SUPPORT CYLINDER...................1068
	10 21 770 7 / SUPPORT CYLINDER...................1069
	10 21 801 6 / EXTENSION RAM......................1070
	10 21 873 6 / AIR FILTER.........................1071
	10 21 888 5 / TRIPLE-STOP CYLINDER...............1072
	10 22 230 9 / CRANKCASE..........................1073
	10 22 281 7 / SEAL KIT CYLINDER HEAD.............1075
	10 22 282 0 / FUEL PREFILTER.....................1076
	10 28 018 1 / TRANSPARENT CONTAINER..............1077
	10 28 634 3 / ELECTRIC PUMP UNIT.................1078
	10 29 098 6 / DIRECTIONAL CONTROL VALVE..........1079
	10 29 098 8 / DIRECTIONAL CONTROL VALVE..........1080
	10 29 279 1 / VARIABLE PUMP......................1081
	10 29 279 3 / VARIABLE PUMP......................1082
	10 29 280 1 / REGULATOR..........................1083
	10 29 281 5 / REGULATOR ELEMENT..................1084
	10 29 445 7 / BRAKE..............................1085
	10 29 445 8 / BRAKE..............................1086
	10 32 706 5 / ELECTRIC PUMP......................1087
	10 33 288 2 / CONTROL BLOCK......................1089
	10 34 282 3 / PRESSURE CONTROL VALVE.............1090
	10 34 652 3 / SLIDE VALVE BLOCK..................1091
	10 35 580 0 / CABLE REEL.........................1092
	10 41 310 6 / CONTROL BLOCK......................1093
	10 42 347 5 / PRESSURE LIMITING VALVE............1095
	10 42 993 3 / GEAR WHEEL MOTOR...................1096
	10 45 016 5 / VARIABLE PUMP......................1097
	10 46 759 1 / VARIABLE PUMP......................1098
	10 46 759 2 / VARIABLE PUMP......................1099
	10 47 078 2 / STEERING AXLE......................1100
	10 47 291 7 / EXHAUST SILENCER...................1102
	10 47 300 8 / TELESCOPIC CYLINDER................1103
	10 48 973 4 / PRESSURE LIMITING VALVE............1105
	10 49 279 8 / VARIABLE PUMP......................1106
	10 49 280 2 / TWO-STAGE PUMP.....................1107
	10 49 335 0 / VARIABLE PUMP......................1108
	10 49 384 5 / ADD-ON PARTS.......................1109
	10 66 305 0 / DRIVING GEAR.......................1110
	11 00 291 6 / DISTRIBUTION BLOCK.................1111
	11 06 600 1 / WIND VELOCITY TRANSMITTER..........1112
	11 06 716 9 / PUMP SUPPORT.......................1113
	11 08 023 0 / AIR HEATER.........................1114
	11 17 100 3 / PUMP SUPPORT.......................1115
	55 30 025 08 / AIR HEATER........................1116
Numerical index......................................1117
Alphabetical index (EN)..............................1211
Alphabetical index (DE)..............................1397

DESCRIPTION:

Liebherr LTM1220-5.2 Parts Manual

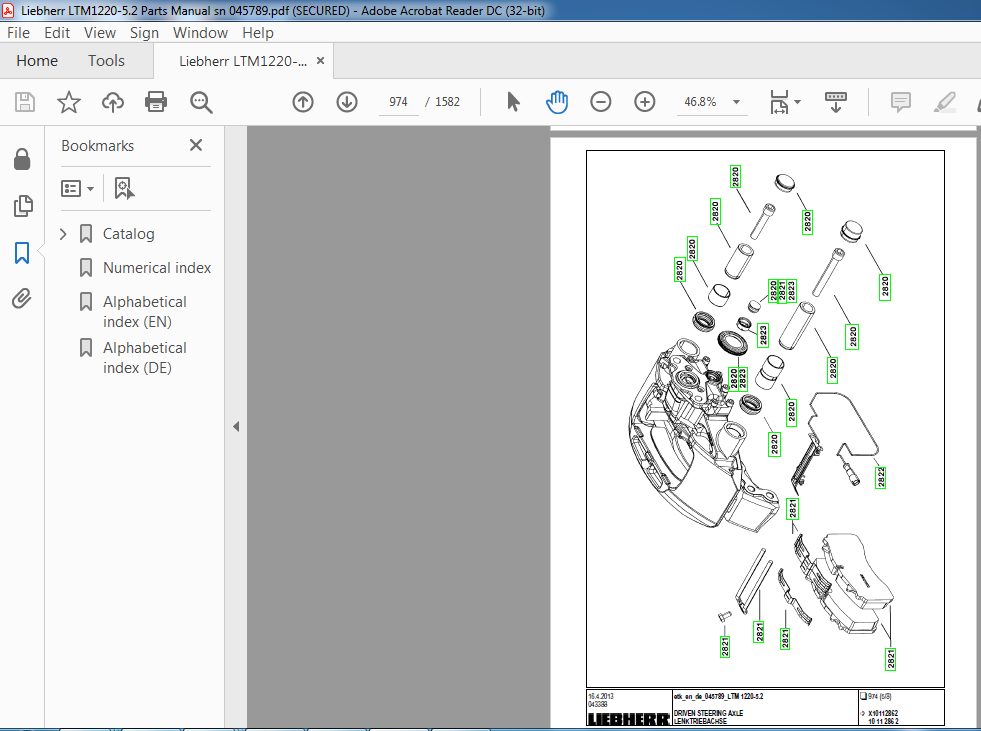

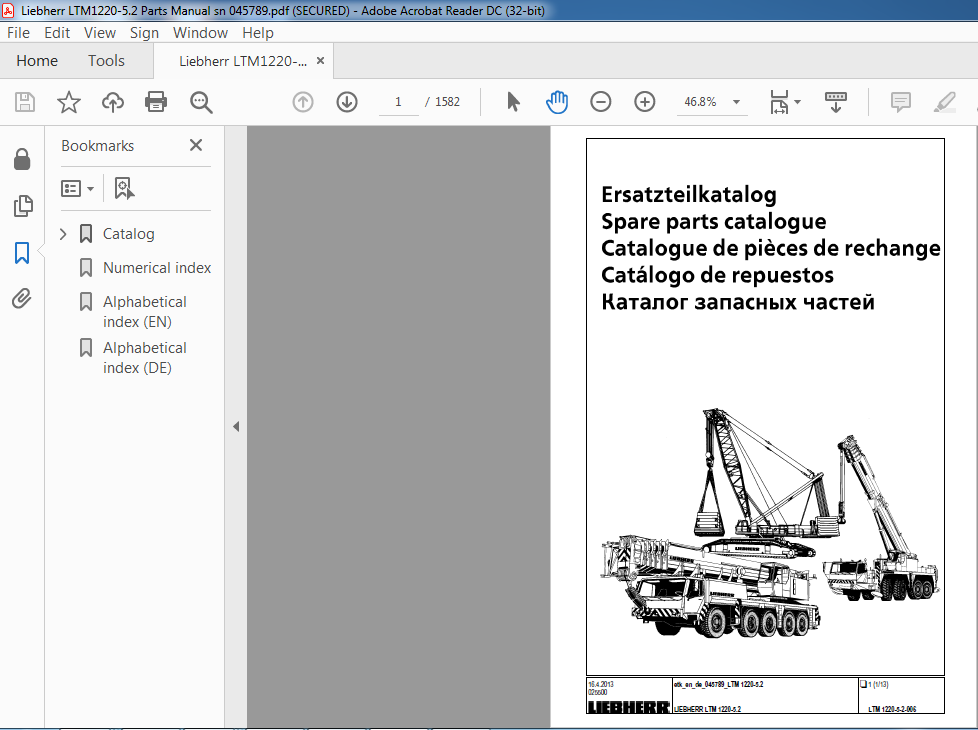

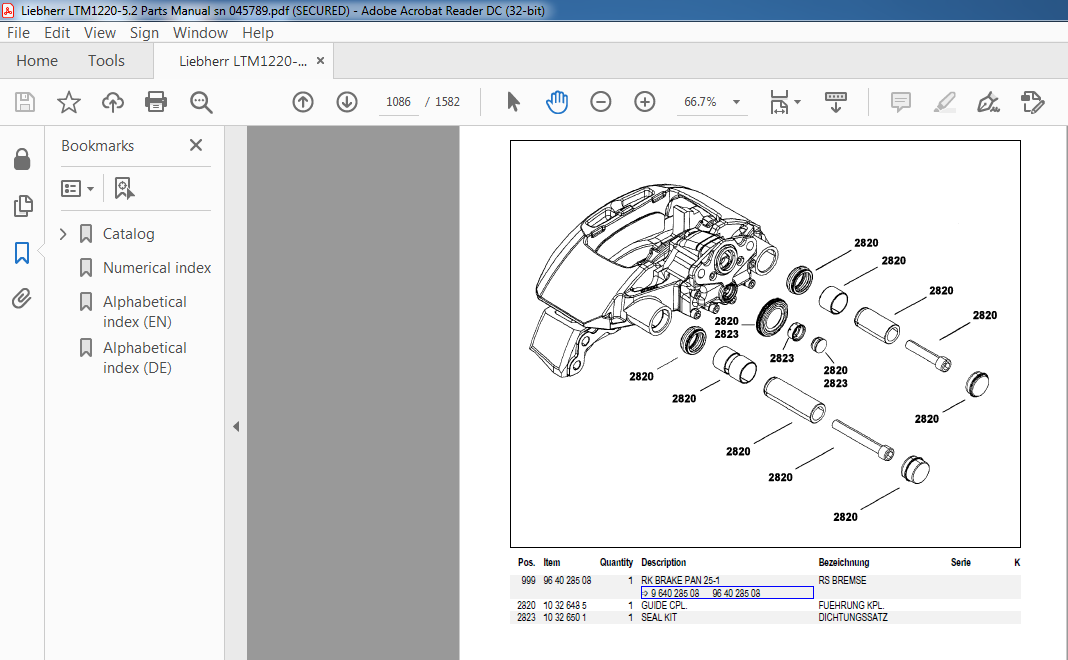

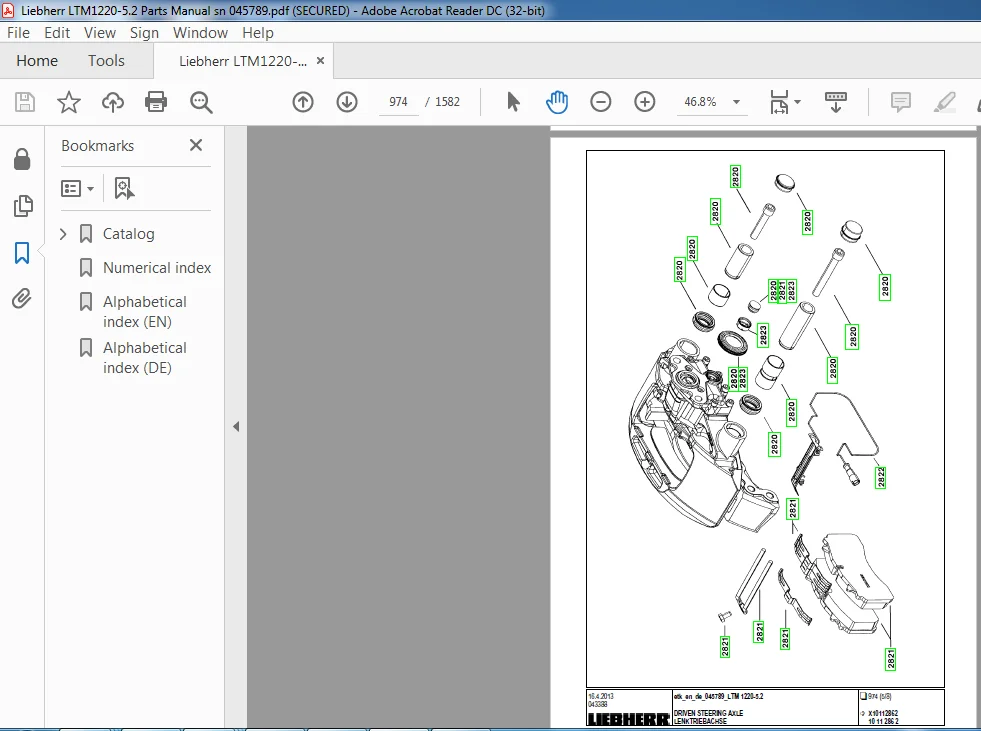

SAMPLE PAGES FROM THE MANUAL:

PRELIMINARY REMARKS:

This spare parts catalog should ease identification and ordering of spare parts of your LIEBHERR crane in respect to maintenance or repair. In order to locate the spare-parts more quickly, the components used in your crane have been arranged in the table of contents.

• Table of contents In the table of contents the arrow( 🙂 ) in the second text line of the assembly item number indicates the detailed plate number with the item number. Picture and text pages The picture and text ages for the assemblies and spare parts are sorted according to page number; witfiin the plate number according to the item number.
• A page number can consist of one or more picture and I or text pages. Each further arrow ( CD ) leads to a detailed icture and l or text page of item. Should the position number be displayed in brackets (x), individual parts of the preceding item are now being referred to. Numerical index The numerical index is sorted according to item no. with notes indicating page no.. component no. and oosition no.

LIEBHERR LTM1220-5.2 PARTS MANUAL SN 045789 – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
