DESCRIPTION:

Liebherr Material handling machine LH 30 M Litronic Operator’s Manual – PDF DOWNLOAD

Preface

• This operator’s manual is intended for you as the operator or maintenance staff. It contains warnings, important information, and tips for working with the machine. It simplifies the process of familiarization and getting to know the machine and helps to avoid malfunctions caused by incorrect operation. Compliance with the operator’s manual increases the reliability and service life of the machine.
• The operator’s manual must be kept with the machine. Make sure that a copy is always kept close at hand in the workplace. Read the operator’s manual before putting it into service for the first time and subsequently at regular intervals. Everyone who carries out work with or on the machine must be familiar with and use this operator’s manual.
• Examples of this work include:
• Operation, including setup and fitting attachments, elimination of malfunctions, care, disposal of lubricants and fuels.
• Service, including maintenance, inspection, and repair work.
• Transporting or loading the machine.
• The owner is responsible for supplementing the operator’s manual with instructions based on existing national regulations on accident prevention and environmental protection. In addition to this operator’s manual and the regulations on accident prevention applicable in the user’s country and at the place of use, it is also necessary to comply with the recognized technical rules on safety and technically proficient working.
• Some sections of this operator’s manual do not apply to all machines. Some illustrations in this operator’s manual may show details and implements that are different from your machine. In some illustrations, protective devices and covers have been removed to provide a clearer representation.
• Liebherr machines are subject to continuous improvement, which may result in changes to your machine that are not referred to in this operator’s manual yet. If you require further explanations or information, please contact Liebherr customer service. All documentation purchased for this machine, including the operator’s manual, maintenance manual, spare parts catalog, etc., is available from MyLiebherr for the entire service life of the machine.

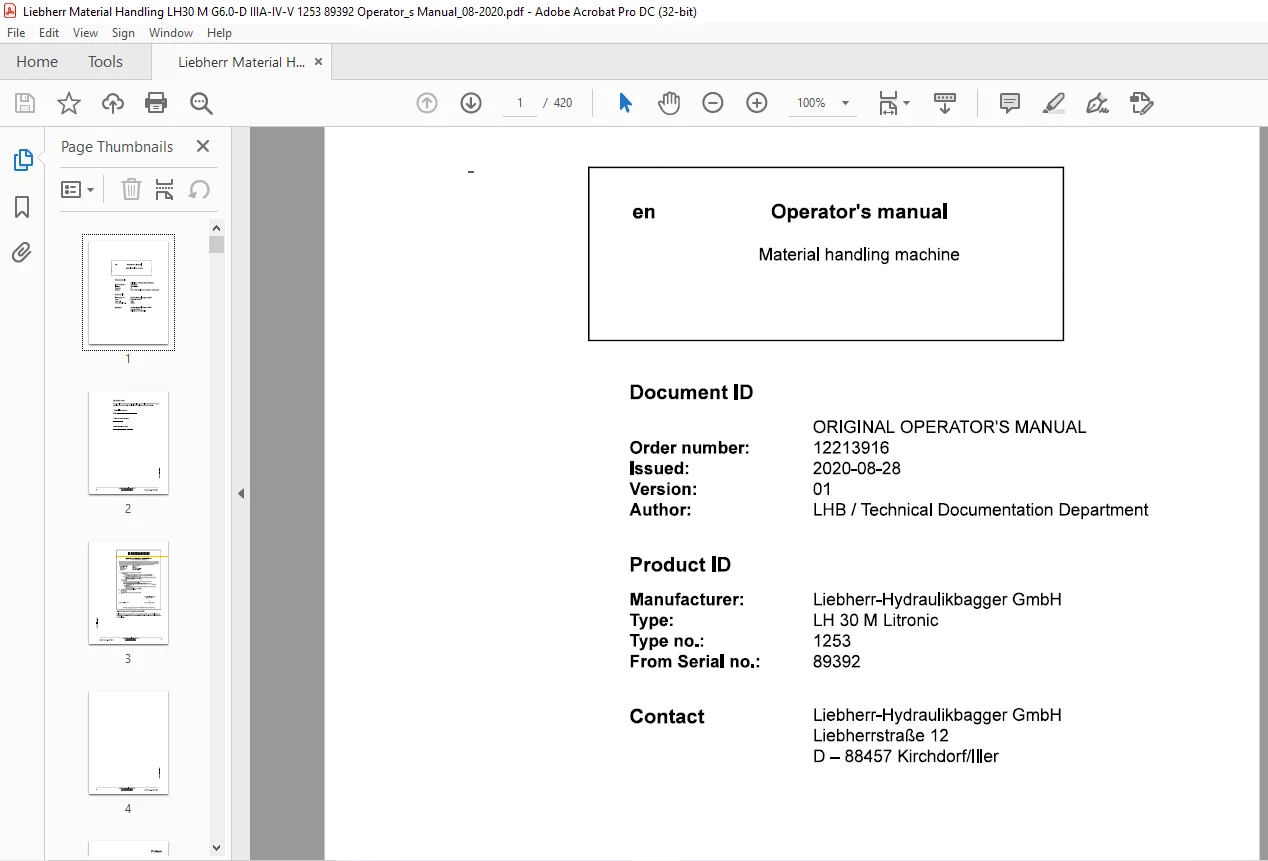

IMAGES PREVIEW OF THE MANUAL:
