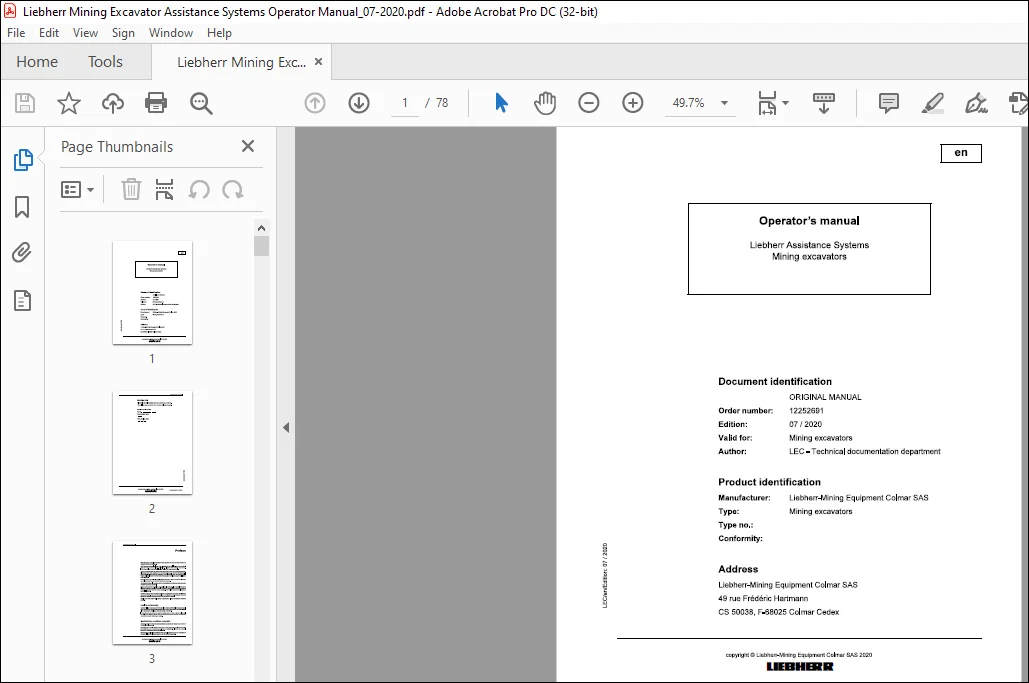

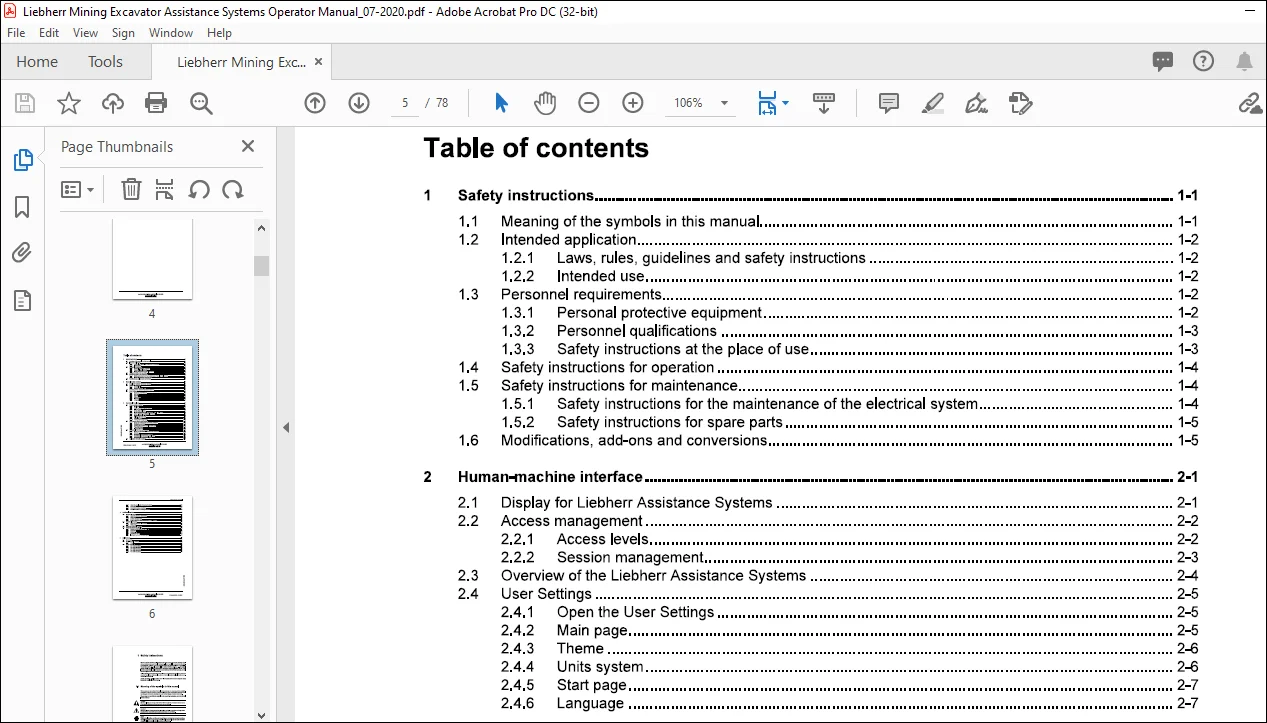

IMAGES PREVIEW OF THE MANUAL:

 FILE DETAILS:

LIEBHERR Mining excavators Assistance Systems Operator’s Manual – PDF DOWNLOAD

Language : English
Pages :78
Downloadable : Yes
File Type : PDF
Size: 14.4 MB

DESCRIPTION:

LIEBHERR Mining excavators Assistance Systems Operator’s Manual – PDF DOWNLOAD

Product identification
Manufacturer: Liebherr-Mining Equipment Colmar SAS
Type:Mining excavators
Type no.:
Conformity:

Preface

• This Operator’s manual is intended for the operator who uses a machine that has Liebherr Assistance Systems. The Operator’s manual belongs to the machine for the full lifetime of the machine. Make sure that a copy is always available in a location of the cab with easy access.
• lf this copy is lost, damaged or illegible, replace this copy immediately. Before starting or doing the maintenance of a machine that has assistance systems, all persons who start, operate or do the maintenance of a machine that has assistance systems must read the Operator’s manual carefully and understand it fully.
• This is applicable before the first start of the machine but also during the full lifetime of the machine. The Operator’s manual helps familiarization with the Liebherr Assistance Systems and helps prevent incorrect operation of these systems. The Operator’s manual contains operating instructions and important data about the Liebherr Assistance Systems. Some sections of this manual do not apply to all machines.
• lt is possible that some illustrations in this manual show details, devices or configurations which are different from the assistance systems or your machine. The values given in the illustrations are only illustrative. Liebherr machines and assistance systems are subject to continuous development and improvement.
• This may have resulted in modifications to your machine and your assistance systems which are not yet referred to in this manual. Should you need further explanations or information, please contact the Customer Service.
