Liebherr Mining Excavators R9200 en backoe Assembly Manuals – PDF DOWNLOAD

Description

Liebherr Mining Excavators R9200 en backoe Assembly Manuals – PDF DOWNLOAD

FILE DETAILS:

Liebherr Mining Excavators R9200 en backoe Assembly Manuals – PDF DOWNLOAD

Size: 20.7 MB
Format : PDF
Language : English
Brand: Liebherr
Number of page: 114 page
Type of machine: Liebherr Mining Excavator
Type of document: Assembly Manual
Model: Liebherr Mining Hydraulic Excavators R9200 backoe

DESCRIPTION:

Liebherr Mining Excavators R9200 en backoe Assembly Manuals – PDF DOWNLOAD

Hydraulic excavator R9200 Backoe attachment

GENERAL:

• Please familiarize yourself with the operating instructions before starting up the machine. Ensure that you have obtained. read and understood any additional instructions relating to specie accessories for the machine. Only specifically authorized persons may operate. maintain or repair the machine. The legal min imum age is to be adhered to. Only employ trained or appropriately instructed personnel. Clearly establish which personnel ar- responsiblo for operating. setting up. maintaining and repairing the machine. GWO personnel th- power to refuse to carry out unsafe instructions.
• This also applies In relation to traffic regulations Only permit apprentices and personnel who are in training or who have only general training t- operate on the machine under the constant supervision of an experienced member of staff. As far as possible. monitor personnel to ensure that they are adhering to safe working practices are aware of risks and are observing the operating instructions. Always wear safe work clothes when you are working on orwith the machine. Avoid wearing rings wrist watches. ties. scarves. open jackets. baggy clothing etc… There is a risk of injury from, to example. getting caught up or being drawn in.
• Wear individual protective equipment (protective goggles, safety helmets. safety shoes an gloves. reflective vests and ear protection etc….). Ensure that you obtain information on any special safety regulations for the job site from the sit foreman. Always tilt up the safety lever before leaving the operator’s seat. When getting in and out, do not hold on to the steering column. control panel or joystick. Doing this could cause unintentional movement. which could result in an accident. Neverjump from the maciune; use the steps. ladders, gangplanks and supporting straps provided for this purpose.
• Face the machine when getting in or out and always use three-point support. i.e. two hands and one foot or two feet and one hand must always be in contact with the access system at the same time. Familiarize yourself with the location of the emergency exit. in the absence of any otherinstruczions, proceed as follows for all maintenance and repair work: ‘ park the machine on firm, level ground – align the uppercarriage with the undercarriage so that the sprockets locate at the back-end – anchorthe bucket in the ground. – place all operating levers into neutral and tilt the safety lever up. – swatch off the engine and remove the start key. Before touching any parts of the hydraulic circuits.
• you must also operate all pilot control deVices Goystick and pedals) in all directions with the start key in contact position and with the security lever lowered. in order to reduce the actuating and dynarrfic pressures in the work circuits. You must then reduce the internal tank pressure as described in these operating instructions. Secure all loose parts on the machine. Never operate a machine before carrying out a careful inspection tour and checking whether any warning signs are missing or illegible. Respect all danger and safety instructions. For special applications the machine must be equipped with specific safety equipments.
• Work only if they are mounted and functional. Do not carry out any modifications. alterations or conversions to the machine which may affect safety without the express permission of the manufacturer. This also applies for the installation of safety devices and valves and for welding work on load-bearing parts. it is forbidden to repair or alter any operator protective structure (for example. structure of the cab. FOPS. ROPS. TOPS). Ensure that any damaged operator protective structure is immediately replaced. Not original equipment and component parts or such kind. which has generally not been validated by Llebherr for installation or extension. has not to be installed or added onto the excavator without previous written agreement of Liebherr. Wherefore the necessary technical documentations has to be at Liebherr’s tfisposal.

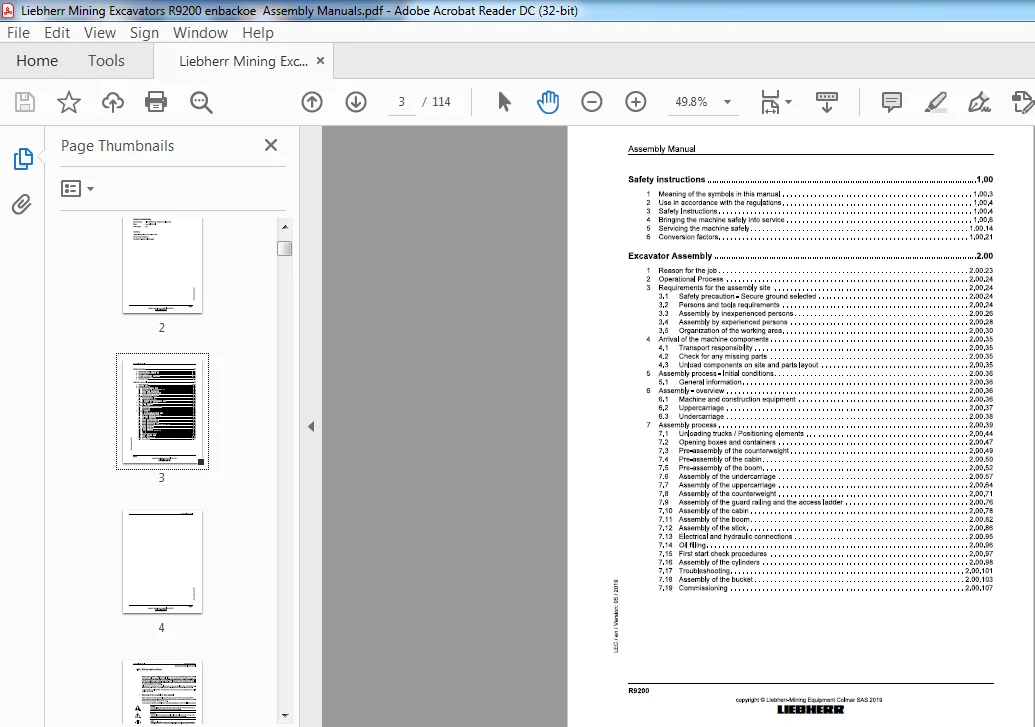

TABLE OF CONTENTS:

Liebherr Mining Excavators R9200 en backoe Assembly Manuals – PDF DOWNLOAD

Meaning of the symbols in this manual
Use in accordance with the regulations
Saietylnslructions
Bringing the machine safely into service
Servicing the mach‘rie safely
Conversionfactors
Reasonforthejob
OperationalProcess
Requirementsfortheassembiysite
31 Safety precaution – Secure ground selected
32 Persons andtoolsrcqu’rements
33 Assemblybylnexpenenced persons
34 Assemblybyexperienced persons
35 Organizafionoftheworkingarea
Arrival ofthe machine components
41 Transportresponsibility
42 Checkforanymissingparts
43 Unload components on site and parts layout
Assembly process-Inittalconditlons”
51 Generaliniormation
Assembly-overview
61 Machine and construction equipment
62 Uppercarnage
63 Undercarriage
Assemblyprocess
71 Unloading trucks] Positioning elements
72 Opening boxesandcontoiners
73 Pre-assembly ofthe counterweight”
74 Pre-assemblyofthecabin
75 Pre-assemblyoitheboom
76 Assemblyoftheundercarriage
77 Assemblyofthe uppercarriage
78 Assembly ofthe counterweight
79 Assembly oi the guard railing and the access ladder
710 Assemblyofthecabin
711Assemblyoftheboom
712 Assomblyoithesttck
713 Electrical and hydraulic connections
714 Oiifilling
715 Firststartcheckprocedures
718 Assemblyoithecylinders
717 Troubleshooting
718 Assemblyofthebucket
719 Commissioning

LIEBHERR MINING EXCAVATORS R9200 EN BACKOE ASSEMBLY MANUALS – PDF DOWNLOAD:

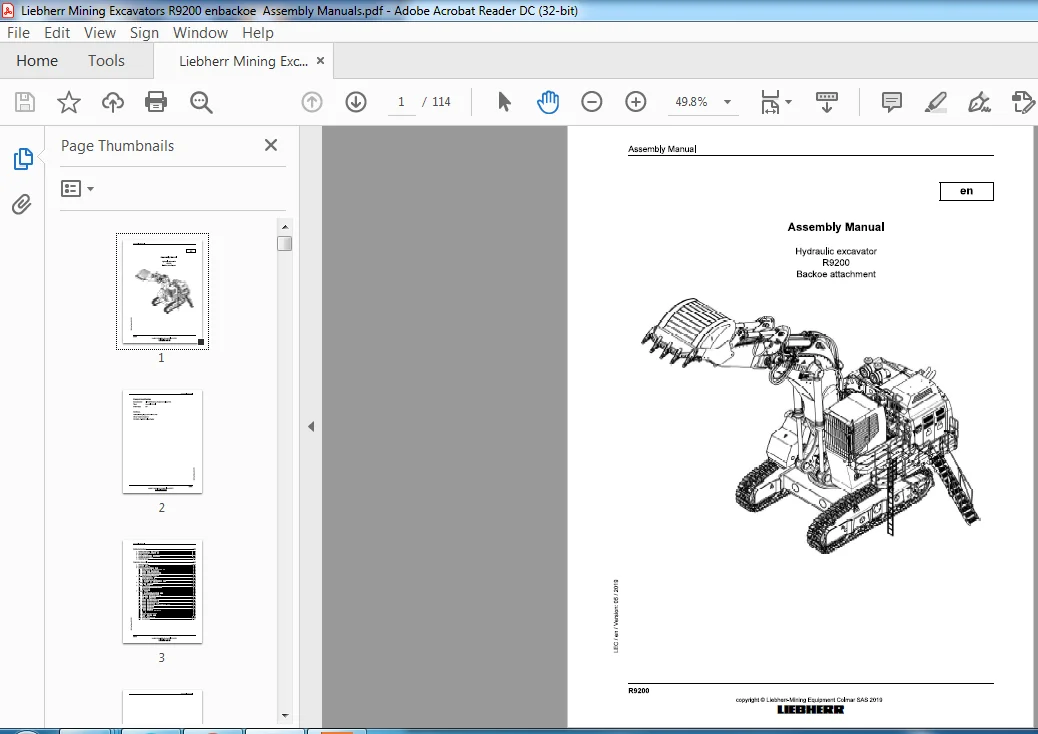

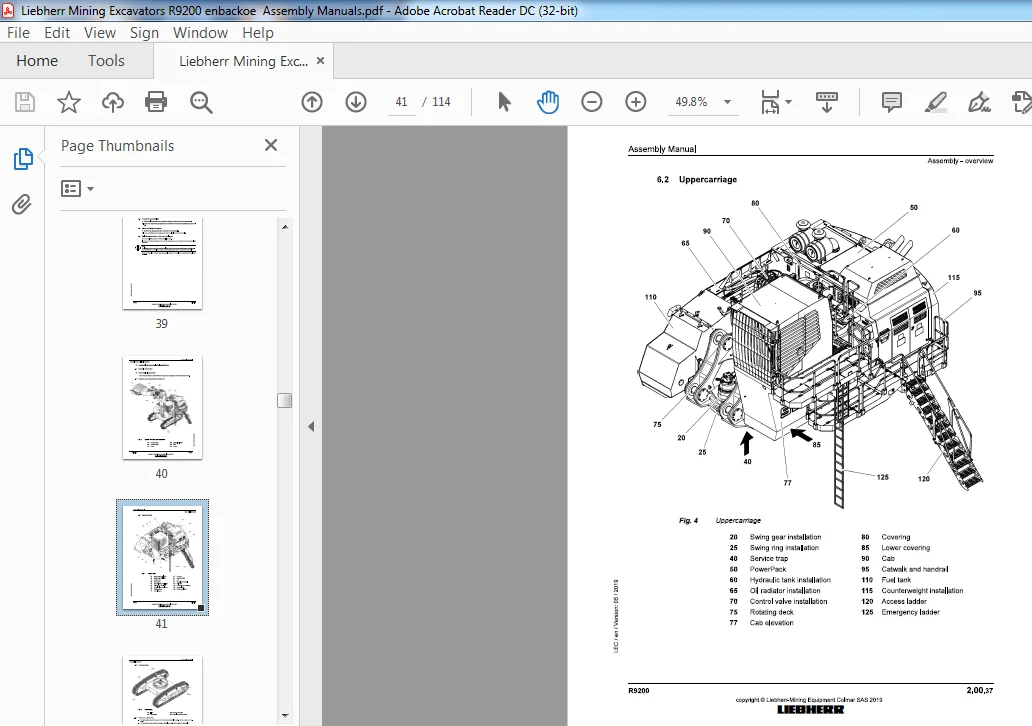

IMAGES PREVIEW OF THE MANUAL:
