Liebherr Mining Excavators R9400 Shovel – Assembly Manual (PDF Download)

Hydraulic Excavator R9400 Shovel Attachment – General Information

Before starting up the machine, carefully read and familiarize yourself with the operating instructions. Ensure that you have obtained, read, and understood any additional instructions related to special accessories.

• Only authorized and trained personnel may operate, maintain, or repair the machine.

• The legal minimum age for operating machinery must always be adhered to.

• Assign clear responsibilities for operation, setup, maintenance, and repairs.

• Personnel must have the authority to refuse unsafe instructions.

This also applies to traffic regulations. Apprentices or personnel in training may only operate the machine under constant supervision of an experienced staff member. As far as possible, monitor personnel to ensure they follow safe working practices, are aware of risks, and are observing the operating instructions.

Safety Precautions

• Always wear protective clothing when working with the machine. Avoid wearing rings, watches, ties, scarves, loose jackets, or baggy clothing that could get caught.

• Use personal protective equipment (PPE) such as safety goggles, helmets, safety shoes, gloves, reflective vests, and ear protection.

• Obtain information about any special site safety regulations from the site foreman.

• Always lift the safety lever before leaving the operator’s seat.

• When entering or exiting the cab:
  • Never hold on to the steering column, control panel, or joystick.
  • Never jump from the machine; always use steps, ladders, or gangplanks.
  • Face the machine and use three-point support (two hands + one foot, or two feet + one hand).

• Familiarize yourself with the emergency exit location.

Maintenance & Repair Guidelines

When performing maintenance or repair work, always:

1. Park the machine on firm, level ground.

2. Align the uppercarriage with the undercarriage so sprockets are positioned at the back.

3. Anchor the bucket in the ground.

4. Place all operating levers in neutral and tilt the safety lever up.

5. Switch off the engine and remove the start key.

6. Before touching hydraulic circuits:

   • Operate all pilot control devices (joysticks and pedals) in all directions with the start key in contact position and the safety lever lowered.

   • This reduces actuating and dynamic pressures in the circuits.

   • Release internal tank pressure as described in the operating instructions.

Secure all loose parts on the machine before operation. Never operate without first carrying out a complete inspection and ensuring all warning signs are intact.

Important Restrictions

• For special applications, the machine must be fitted with specific safety equipment.

• Work only if all required safety devices are mounted and functional.

• Do not carry out unauthorized modifications, alterations, or conversions to the machine that may affect safety.

• Repairs or alterations to operator protective structures (cab, FOPS, ROPS, TOPS) are strictly forbidden. Any damaged protective structure must be replaced immediately.

• Only use original equipment and validated components. Parts or accessories not approved by Liebherr must not be installed without written authorization.

✅ This official assembly manual ensures that your Liebherr R9400 Mining Excavator (Shovel Attachment) is operated, maintained, and serviced in strict accordance with factory safety and engineering standards.

TABLE OF CONTENTS:

Liebherr Mining Excavators R9400 Shovel – Assembly Manual (PDF Download)

The Liebherr R9400 Mining Excavator Assembly Manual is a complete step-by-step guide to assembling, servicing, and commissioning the R9400 shovel. This official PDF manual provides detailed instructions, safety guidelines, technical requirements, and troubleshooting procedures for professional assembly teams and service engineers.

📑 Contents of the Manual

• Symbols & Safety
  • Meaning of symbols
  • Use in accordance with regulations
  • Safety instructions
  • Bringing the machine safely into service
  • Servicing the machine safely
  • Conversion factors

• Preparation & Requirements
  • Reason for the job
  • Operational process
  • Requirements for the assembly site
  • Safety precaution – secure ground selected
  • Persons and tools requirements

• Transport & Arrival
  • Transport responsibility
  • Checking for missing parts
  • Unloading components on site and layout

• Assembly Process
  • Initial conditions & general information
  • Unloading trucks / positioning elements
  • Opening boxes and containers
  • Pre-assembly of cabin elevation, counterweight, valve bank, cabin, and boom
  • Assembly of undercarriage and uppercarriage
  • Installation of fuel tank, power pack, hydraulic tank, counterweight, guard railing, cabin, boom, and stick
  • Electrical & hydraulic connections
  • Oil filling and first start check procedures
  • Assembly of cylinders and bucket
  • Troubleshooting and commissioning

⚙️ Key Features

• Original OEM assembly instructions for Liebherr R9400 Mining Excavator (Shovel version).

• Step-by-step procedures for assembly, servicing, and commissioning.

• Covers safety guidelines, transport, pre-assembly, hydraulic & electrical systems.

• Includes troubleshooting and commissioning procedures.

• Delivered instantly as a downloadable PDF for quick access.

✅ Why Choose This Manual?

• Save time with accurate factory procedures.

• Ensure safe and correct assembly of the R9400 excavator.

• Essential for maintenance crews, service engineers, and operators.

📥 Download Information

• Format: PDF (instant download)

• Compatibility: Viewable on PC, tablet, or mobile

• Printable: Yes

LIEBHERR MINING EXCAVATORS R9400 EN SHOVEL ASSEMBLY MANUALS – PDF DOWNLOAD:

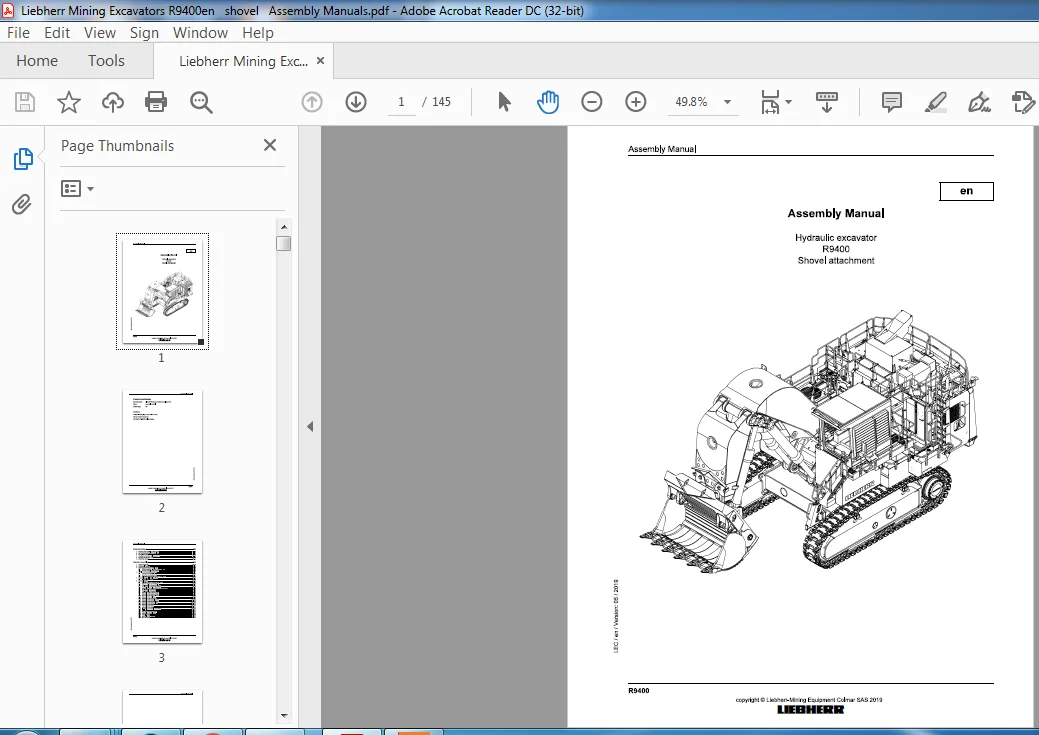

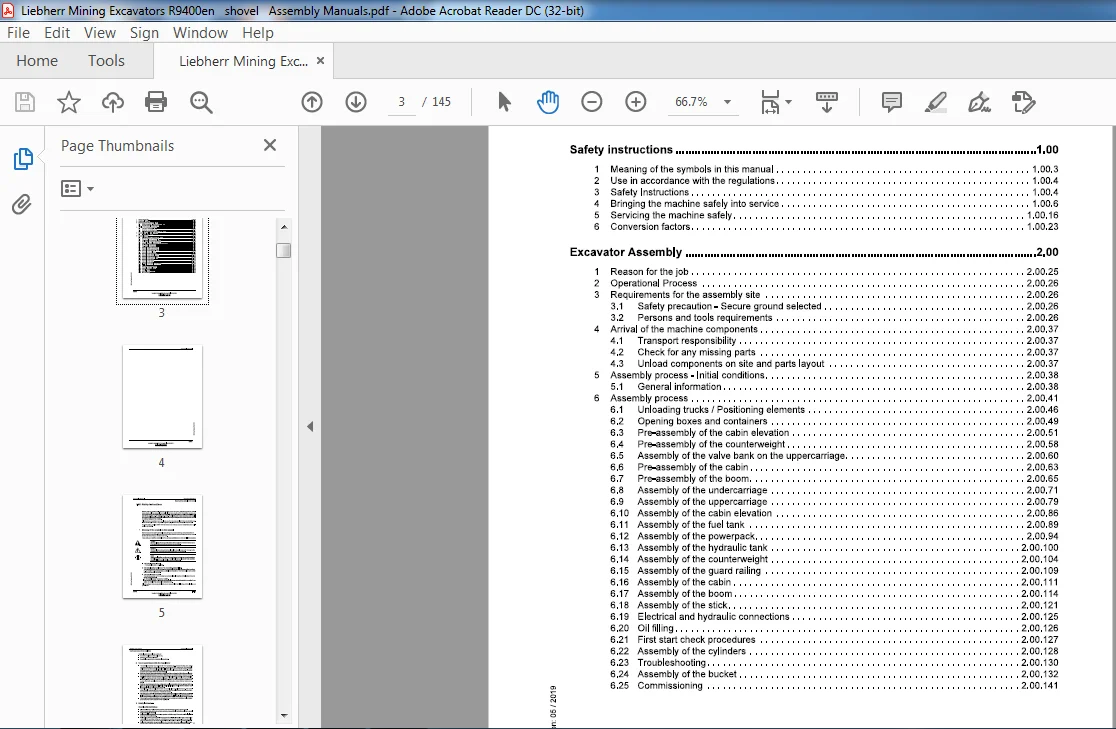

IMAGES PREVIEW OF THE MANUAL:
