Liebherr R 9200 E 1409 Hydraulic Excavator Service Manual 40022 – PDF DOWNLOAD
Original price was: $86.95.$37.95Current price is: $37.95.
Liebherr R 9200 E 1409 Hydraulic Excavator Service Manual 40022 – PDF DOWNLOAD

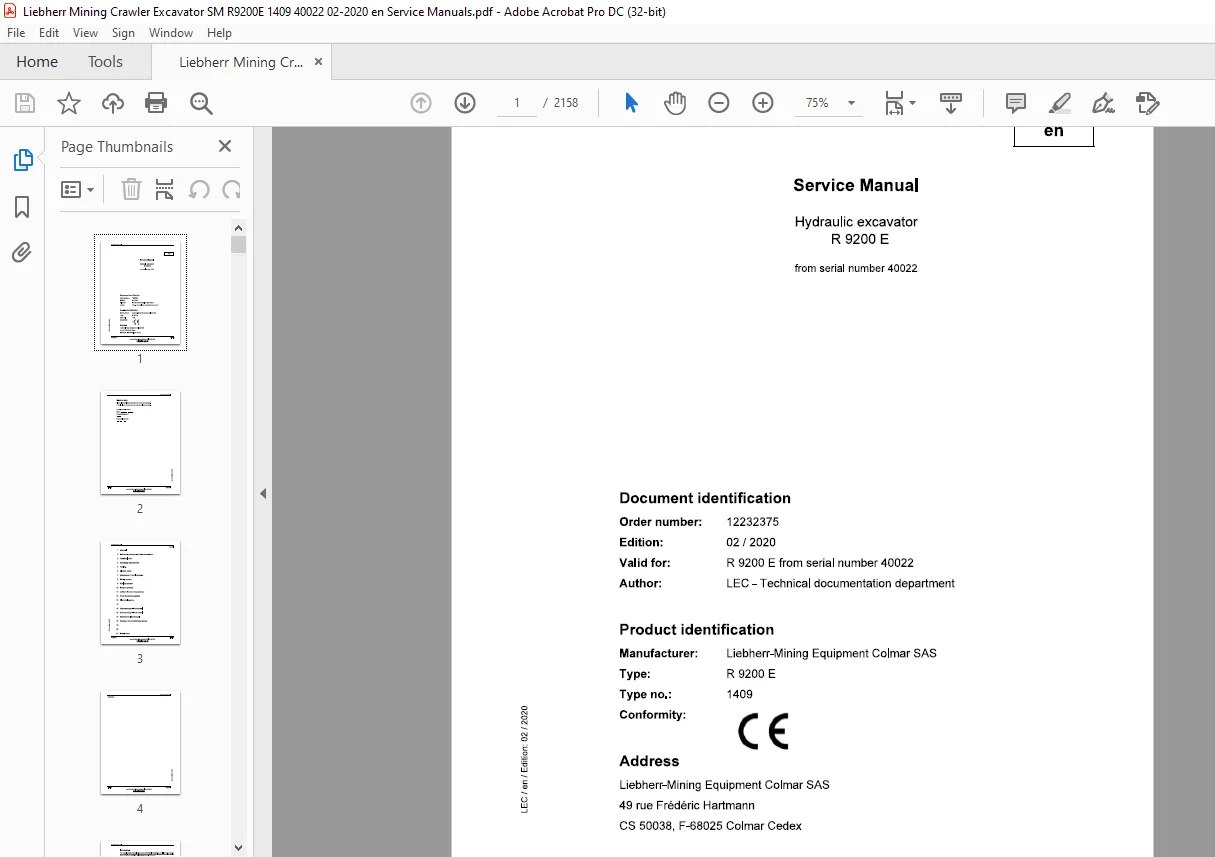

Product identification
Manufacturer: Liebherr-Mining Equipment Colmar SAS
Type: R 9200 E
Type no.: 1409Β
Description
Liebherr R 9200 E 1409 Hydraulic Excavator Service Manual 40022 – PDF DOWNLOAD
FILE DETAILS:
Liebherr R 9200 E 1409 Hydraulic Excavator Service Manual 40022 – PDF DOWNLOAD
Language : English
Pages : 2158
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Liebherr R 9200 E 1409 Hydraulic Excavator Service Manual 40022 – PDF DOWNLOAD
Product identification
Manufacturer: Liebherr-Mining Equipment Colmar SAS
Type: R 9200 E
Type no.: 1409Β
General:
1 Safety instructions:
Obey all safety instructions given in the Operating manual (which is included in the chapter “Operating
maintenance” of this Service manual).
Tightening:

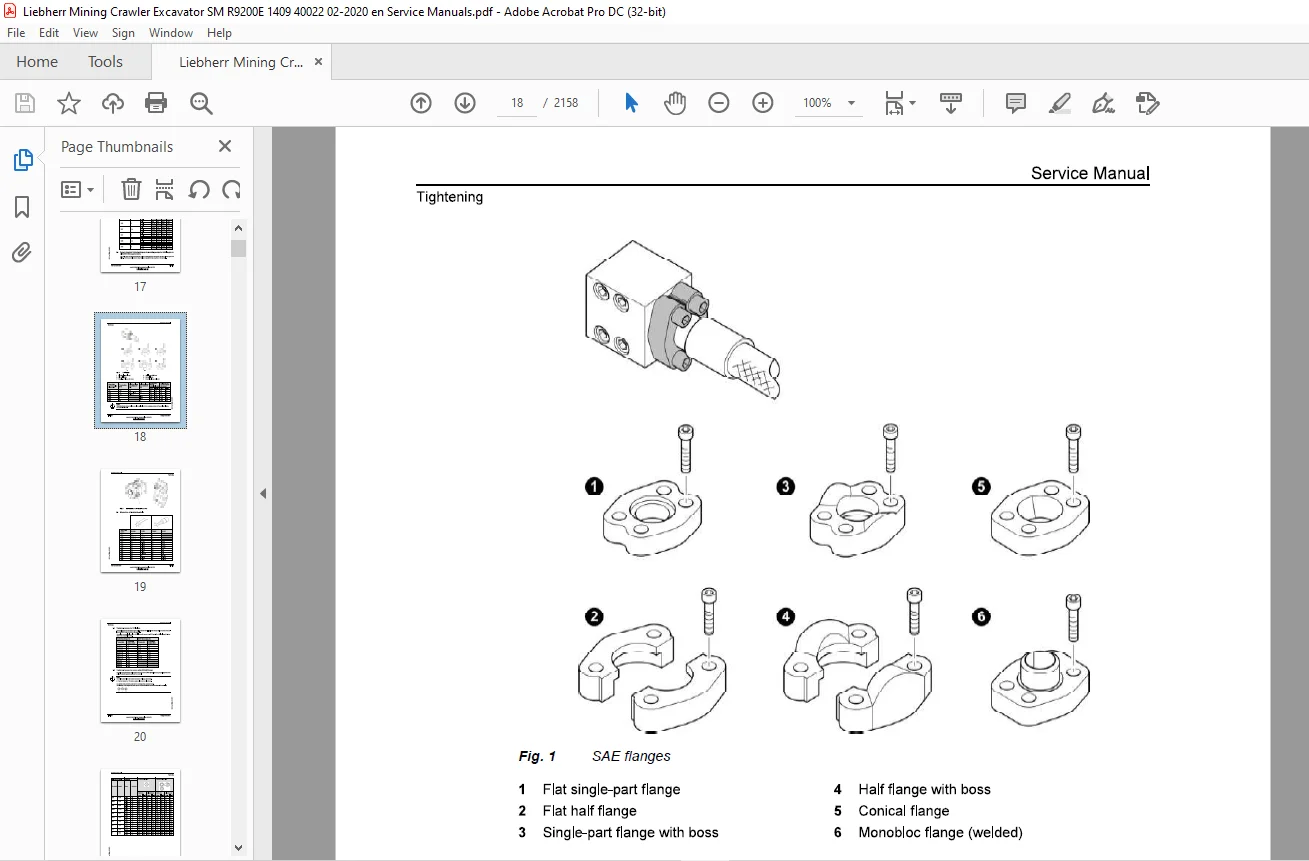

3.1 Factory standard: tightening torques for screws on LIEBHERR Mining excavators
This section gives the torque values for screws in dry or greased condition. These torque tables must
be used unless a specific torque is given in the manual.
Use the 8.8 torque values from the tables that follow when:
Β Tightening an aluminium part without tapping insert
Β Tightening a welded nut
Β Tightening in GL grey cast iron (flake graphite cast iron), e.g. by splitterboxes, engine blocks or
cast counterweights (in addition with “medium strength” thread locker like Loctite 243)
Β Tightening of stainless steel screws (in addition with special stainless steel mounting oil/grease).
From screw size M20 and larger (except for screws with corrosion protective coating), grease must
be applied on the thread and under the screw head (use swing teeth grease):
Β Use a paintbrush or similar tool to apply the grease
Β Do not put grease inside the thread but on the screw
Β Do not put grease in excess on the screw.
IMAGES PREVIEW OF THE MANUAL:

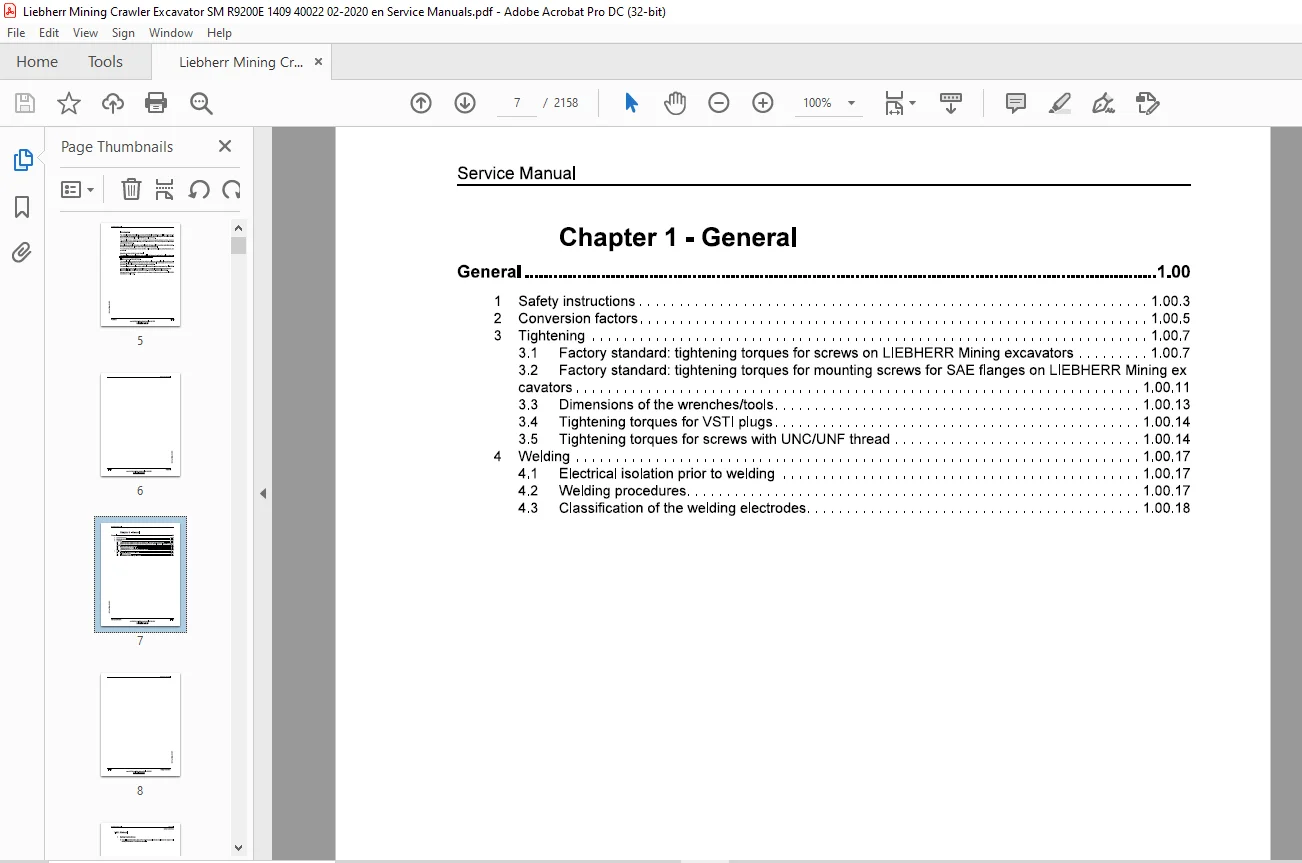

TABLE OF CONTENTS:
Liebherr R 9200 E 1409 Hydraulic Excavator Service Manual 40022 – PDF DOWNLOAD
2 Safe work procedures/ Risk assessment
3 Technical data
4 Operating maintenance
5 Tooling
6 Electric motor
7 Attachment/ Travel systems
8 Swing system
9 Cooling system
10 Grease systems
11 Ladder / Service trap systems
12 Track tensioning system
13 Electrical system
14
15 Uppercarriage – Mechanical
16 Undercarriage – Mechanical
17 Attachment – Mechanical
18 Heating/ Air conditioning system CN
21 Schematics
