Liebherr R 926 Compact 1565 1827 (USA / CAN) Hydraulic Excavator Operator’s Manual 36183 – PDF DOWNLOAD

Description

Liebherr R 926 Compact 1565 1827 (USA / CAN) Hydraulic Excavator Operator’s Manual 36183 – PDF DOWNLOAD

FILE DETAILS:

Liebherr R 926 Compact 1565 1827 (USA / CAN) Hydraulic Excavator Operator’s Manual 36183 – PDF DOWNLOAD

Language : English
Pages : 358
Downloadable : Yes
File Type : PDF

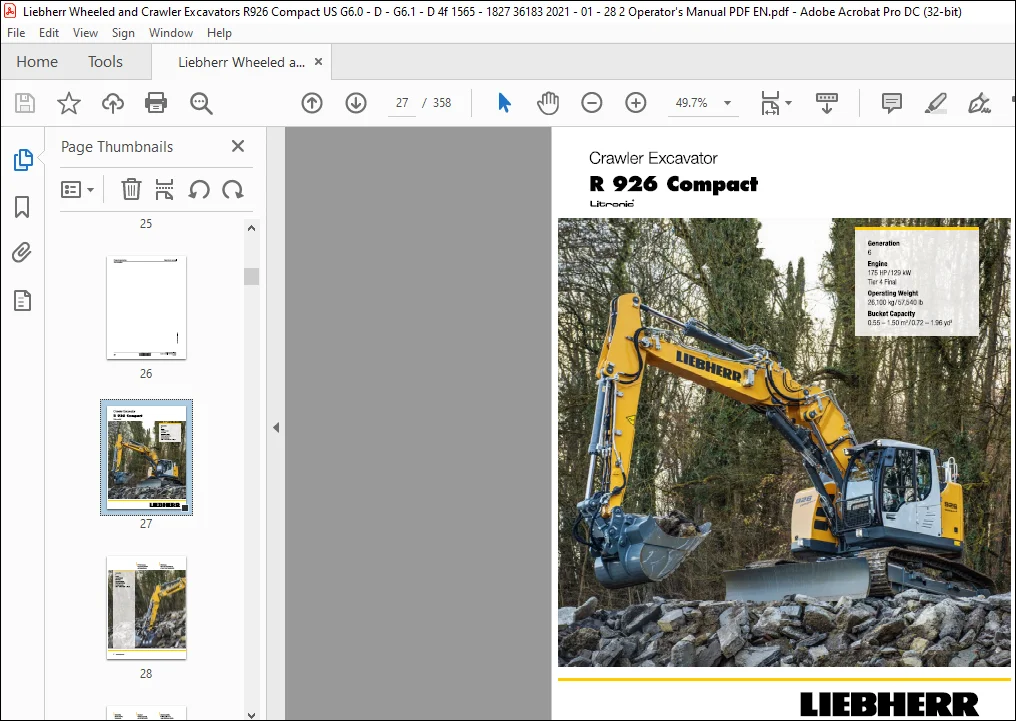

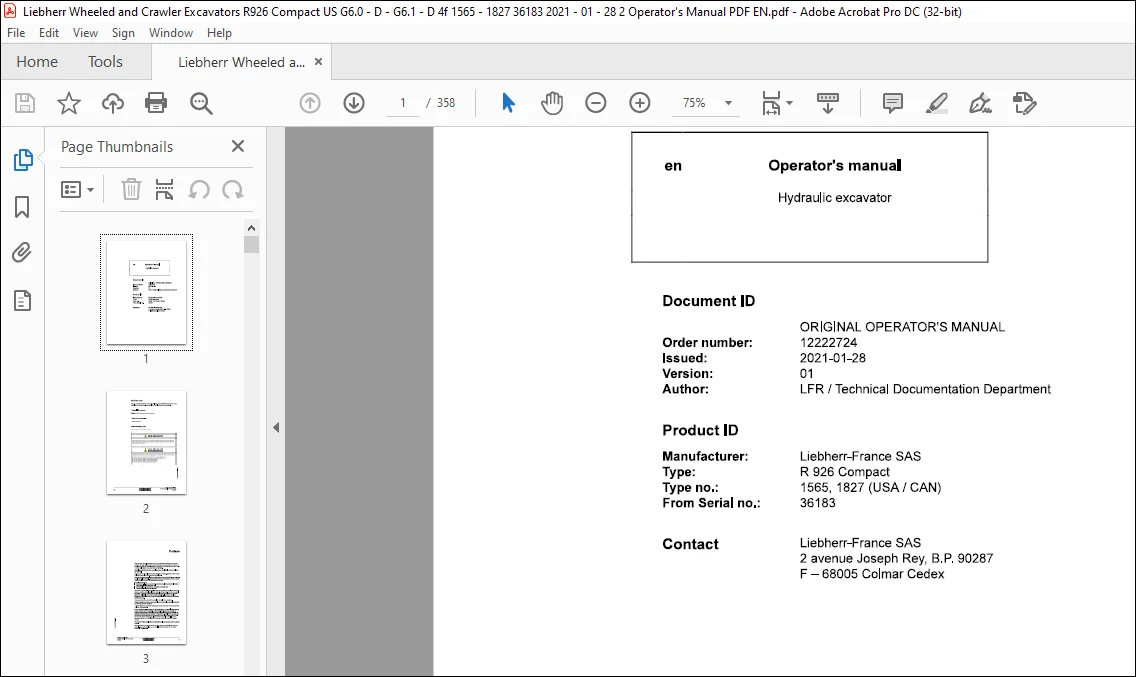

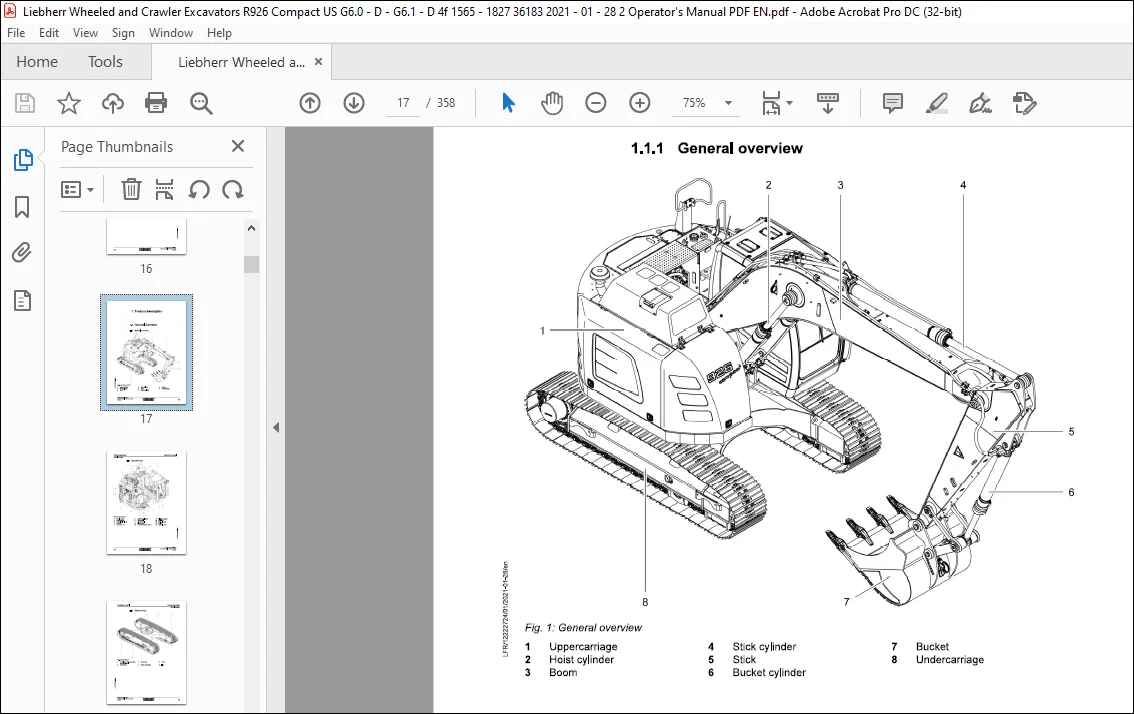

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Liebherr R 926 Compact 1565 1827 (USA / CAN) Hydraulic Excavator Operator’s Manual 36183 – PDF DOWNLOAD

Product ID:
Manufacturer : Liebherr-France SAS
Type : R 926 Compact
Type no. : 1565 1827 (USA / CAN)
From Serial no. : 36183

Preface:

• This operator’s manual is intended for you as operator or maintenance staff. It
  contains warnings, important information and tips for working with the machine. It
  simplifies the process of familiarisation and getting to know the machine, and helps
  to avoid malfunctions caused by incorrect operation.
• Compliance with the operator’s manual increases the reliability and service life of
  the machine.
• The operator’s manual must be kept with the machine. Make sure that a copy
  is always kept close to hand at the workplace.
• Read the operator’s manual before putting into service for the first time and subsequently
  at regular intervals. Everyone who carries out work with or on the machine
  must be familiar with and use this operator’s manual.

Examples of this work:
Operation including setup and fitting attachments, elimination of malfunctions,
care, disposal of lubricants and fuels
Service including maintenance, inspection and repair work
Transporting or loading the machine

• The owner is responsible for supplementing the operator’s manual with instructions
  based on existing national regulations on accident prevention and environmental
  protection. In addition to this operator’s manual and the regulations on accident
  prevention applicable in the user’s country and at the place of use, it is also
  necessary to comply with the recognised technical rules on safety and technically
  proficient working.
• Some sections of this operator’s manual do not apply to all machines.
• Some illustrations in this operator’s manual may show details and implements that
  are different from your machine.
• In some illustrations, protective devices and covers have been removed to provide
  a clearer representation.
• Due to continuous improvements to Liebherr machines, it is possible that changes
  to your machine are not contained in this operator’s manual. The continuous
  updating of the operator’s manual considers only the latest software version. For
  optimum interaction between machine and operator’s manual, it is necessary that
  the software version described in the operator’s manual corresponds to the software
  version of the machine. The latest operator’s manual is available on the
  Myliebherr portal. For updating of the machine, contact the Liebherr customer
  service.
• If you require further explanations or information, please contact Liebherr customer
  service.
• All documentation purchased for this machine (operator’s manual, maintenance
  manual, spare parts catalogue,… )is available from Myliebherr for the entire
  service life of a machine.

TABLE OF CONTENTS:

Liebherr R 926 Compact 1565 1827 (USA / CAN) Hydraulic Excavator Operator’s Manual 36183 – PDF DOWNLOAD

1 Product description 17
1.1 Technical description 17
1.1.1 General overview 17
1.1.2 Uppercarriage 18
1.1.3 Undercarriage 19
1.2 Technical data 21
1.2.1 Vibration emission 21
1.2.2 Sound level 21
1.2.3 Specifications 22
1.3 Warranty conditions 23
1.3.1 Additional information, USA 23
1.3.2 Warranty declaration, emission limits, warranty rights and obligations 23
1.3.3 Warranty coverage from manufacturer 23
1.3.4 Warranty obligations of the owner 24
1.3.5 Warranty 24
1.3.6 Warranty parts 24
1.3.7 Exclusions 25
2 Safety warnings 27
2.1 Information on these instructions 27
2.1.1 Representation of warning messages 27
2.1.2 Graphic symbols in these instructions 27
每忌,
2.2 Intended use 28
苔 2.2.1 Laws, rules, guidelines and safety regulations 28
;目;; 2.2.2 Intended use 28
圣[ $ 2.2.3 Foreseeable misuse 29
匡2.2.4 Operating conditions 29
2.2.5 Disposal 30
2.3 Description of staff 31
Contents Operator’s manual
2.3.1 Personal protective equipment 31
2.3.2 Requirements for staff 31
2.3.3 Operating company 32
2.3.4 Operator 32
2.3.5 Maintenance staff 33
2.3.6 Electrical engineer 34
2.3.7 Refrigeration technician 35
2.3.8 Slinger 35
2.3.9 Spotter 36
2.4 Signs on the machine 37
2.4.1 Location of signs 37
2.4.2 Safety signs 38
2.4.3 Information signs 41
2.4.4 Identification plates 45
2.5 Protective devices on the machine 45
2.5.1 Safety lever or folding console 45
2.5.2 Operator’s cab 46
2.5.3 Height-adjustable operator’s cab 46
2.5.4 Tip over protective structure (TOPS) 47
2.5.5 Roll over protective structure (ROPS) 47
2.5.6 Falling object protective structures (FOPS and FGPS) 48
2.6 Emergency equipment on the machine 48
2.6.1 Emergency exit (standard) 48
2.6.2 Fire extinguisher (option) 48
2.6.3 Emergency command devices of machine 48
2.6.4 Emergency stop function of machine 49
2.7 Safe operation 49
2.7.1 Intoxicants 49
2.7.2 Dangerous fuels and operating fluids 50 每品
苔
2.7.3 Transporting machine 50 5`~
2.7.4 Access to machine 51 ~圣甘
2.7.5 Machine danger zone 5 2 亡匡
2.7.6 Visibility 52
2.7.7 Protection against vibration 53
2.7.8 Operation of machine 54
Operator’s manual Contents
2.7.9 Load-lifting work 56
2.8 Safe maintenance 57
Spare parts 57
Heavy parts 57
Regular checks 57
2.9 Modifications to the machine 58
2.9.1 Modifications, add-ons and retrofittings 58
Control and operation 59
3.1 Control and operating elements 59
Display
Overview of operator’s platform 59
Control unit A 61
Control unit B 62
Display 63
Status symbols 64
Start page menu 71
Camera menu 72
Air conditioning 72
Operating status menu 74
Diesel particulate filter submenu (option) 75
Sensor-controlled low idle automatic and automatic engine stop
submenu (option) 76
Measurement displays submenu 77
System settings menu 77
Operating hour meter submenu 79
Windscreen wiper interval submenu 80
Radio remote control submenu 81
Display brightness and display volume submenu 82
Camera image contrast submenu 83
Camera return time submenu 83
Unit selection submenu 84
Time zone submenu 84
Time format and date format submenu 85
Language selection submenu 85
Control
Test system submenu 86
Brightness of LED headlights submenu (option) 86
Electrical outputs submenu 87
Electrical inputs submenu 87
Function settings menu 88
Central lubrication system submenu (option) 90
Maintenance submenu 90
SF submenu 92
Hoist cylinder shut-off and stick cylinder shut-off submenu (option) 95
Automatic reversible fan drive submenu (option) 95
Priority between lifting boom and turning uppercarriage submenu 96
Priority between working tool and working attachment submenu 96
Stick priority submenu (option) 97
Information menu 97
Operating hours submenu 98
Fuel consumption submenu 99
CodingKey submenu 100
Tool Control menu 100
Tool Control symbols 101
Service codes menu 102
Battery main switch 104
Entering and exiting machine 105
Emergency exit 106
Fire extinguisher (option) 107
Folding console 107
Operator’s seat 109
Safety belt 116
Confirmation button 118
Horn 119
Tilting operator’s cab (option) 120
Windscreen 120
Sun blinds 123
uoKE,KO,EOaky 寸ZUaazzu 工LLT
Side windows 125
Viewing devices 125
Lighting 130
Cab lighting system 132
Windscreen wipers 133
Auxiliary heater (option) 133
3.4 Operation 135
Inspection tour before putting into service 135
Refuelling 136
Refuelling with electric refuelling pump (option) 137
Refuelling diesel exhaust fluid 139
Immobiliser (option) 140
Preparing machine for dust intensive application 141
Preparing machine for use in biologically sensitive areas 142
Starting diesel engine 142
Bringing machine to operating temperature 143
Engine speed and operating mode 144
After starting 145
Sensor-controlled low idle automatic 146
Automatic engine shut-off after idling (option) 147
Shutting off diesel engine 147
Travelling and braking 149
Travel alarm (option) 153
Controlling dozer blade 154
Controlling working attachment 155
Turning and braking uppercarriage 157
Turning alarm (option) 159
Hoist cylinder protection (option) 160
Stick cylinder protection 162
Controlling special working attachment without mini-joystick (option) 163
Controlling special working attachment with mini-joystick (option) 166
Tiltrotator (option) 169
Control changeover (option) 170
Changing over control of right mini-joystick (option) 172
Changing over control of left double pedal (option) 173
Changing over control of joystick control (option) 175
Grapple priority (option) 176
Contents Operator’s manual
3.4.31 Reversing fan drive for radiator cleaning (option) 176
3.5 Shut-off functions 178
Stick cylinder shut-off and hoist cylinder shut-off (option) 178
Overload warning system (option) 181
3.6 General working methods 183
Working without damaging machine 183
Putting machine in working position 185
Travelling on slopes 185
Travelling under obstacles 187
Working on slope 187
Working with backhoe bucket 188
Ground surface grading 189
Working with hydraulic hammer 190
Working with the grapple 192
Working with clamshell 192
Handling loads 194
Loading transport vehicle 195
Lifting loads 195
Lifting loads with quick coupler 196
Lifting loads with load lift hook (option) 199
3.7 Installing and removing working attachment 200
Installing and removing working attachment pins 200
Installing and removing bucket 200
Installing and removing bucket with special seal 202
Using quick coupler 203
Installing and removing grapple on the stick 203
Installing and removing grapple on industrial stick 205
Installing and removing stick 207
Installing and removing boom
3.8 Parking machine
Parking machine on level ground
Parking machine on a slope 209
3.9 Transport 210
Driving machine onto low-loader 210
Lifting machine 212
Tying down machine 216
After transport 217
3.10 Emergency operation 219
Using emergency mode 219
Jump starting 220
Lowering working attachment when engine is shut off 221
Lowering operator’s cab in an emergency (option) 222
Central lubrication system 223
Towing 223
Malfunctions 225
4.1 Service code tables 225
Warning symbols 225
SCR system 229
4.2 Fault – Cause – Remedy 231
Diesel engine and fuel system 231
Hydraulic system 234
Travel gear 235
Electrical system 235
Heating, ventilation and air conditioning unit 235
Working attachment 236
4.3 Problem remedy 237
4.3.1 Fuses and relays 237
Maintenance 245
Inspection and maintenance schedule 245
Filling quantities and lubrication chart 250
Filling quantities 250
Lubrication chart 251
5.3 Fuels, lubricants and operating fluids 253
Diesel fuels 253
Diesel exhaust fluids 253
Engine oils 254
Refrigerant 255
Coolant 255
Operator’s manual
5.3.6 Hydraulic oils 256
5.3.7 Slewing gearbox oils 258
5.3.8 Greases 259
5.3.9 Windscreen washer fluid 259
5.3.10 Lubricants and care products for electrical and mechanical systems 259
Access points for maintenance work 261
5.4.1 Access points on uppercarriage 261
5.4.2 Access points under the uppercarriage 262
5.4.3 Access points on undercarriage 263
Preparing for maintenance 264
5.5.1 Maintenance procedures 264
5.5.2 Safety instructions 265
5.5.3 Putting machine in maintenance position 266
General maintenance 268
5.6.1 Welding 268
5.6.2 Bleeding hydraulic cylinders 268
5.6.3 Applying corrosion protection to piston rods 269
5.6.4 Cleaning the machine 270
5.6.5 Cleaning travel gear 271
5.6.6 Cleaning fan and radiator 272
5.6.7 Corrosion protection 272
Complete machine 283
5.7.1 Checking machine for proper condition and tightness 283
5.7.2 Lubricating bearings on machine and working attachment 283
5.7.3 Checking components for cracks 284
Drive group 287
Diesel engine: Putting in maintenance position 287
Diesel engine: Checking oil level 287
Fuel pre-filter: Draining water 289 每品
苔
Fuel tank: Draining water and sediments 290 5`~
Air filter: Emptying dust collecting tank 291 ~圣甘
Air filter: Replacing main filter cartridge
Diesel particulate filter (option): Activating and deactivating
2 9 1 亡匡
regeneration
R 926 Compact – 1565,
R 926 Compact – 1827 (USA / CAN)
Operator’s manual Contents
5.9 Cooling system 296
Checking coolant level 296
Coolant: Checking concentration 297
Working hydraulics 301
Depressurising hydraulic system 301
Hydraulic tank: Checking oil level 302
Hydraulic tank: Draining water and sediments 304
Return filter: Checking and cleaning magnetic rod 305
Bypass filter (option): Checking level of contamination of filter cartridge 305
Electrical system 307
5.11.1 General information 307
Travel gear 308
Checking track tension 308
Tightening track 309
Slackening track 310
Determining track type 311
Working attachment 312
Lubricating dozer blade 312
Lubricating working tool 312
Checking pin bearings for wear 313
Operator’s cab, heating and air conditioning 314
Filling with windscreen washer fluid 314
Heating: Checking function 314
Auxiliary heater (option): Checking function 315
Switching on air conditioning unit 316
Cleaning pre-filter 316
Lubrication system 318
Lubrication system: Topping up grease 318
Checking lubrication of bearings (grease collar) 318
Slewing gearbox and slewing ring 319
5.16.1 Slewing gearbox: Checking oil level 319
Appendix 321
Index 323

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
