Liebherr R 932 E Litronic Excavator Operation & Maintenance Manual – PDF DOWNLOAD

Description

Liebherr R 932 E Litronic Excavator Operation & Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr R 932 E Litronic Excavator Operation & Maintenance Manual – PDF DOWNLOAD

Language : English
Pages : 155
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Liebherr R 932 E Litronic Excavator Operation & Maintenance Manual – PDF DOWNLOAD

FOREWORD:
This manual is primarily for the operator and the maintenance crew and
contains information which is vital to the correct and secure operation and
proper maintenance of the LIEBHERR excavator.

It includes:

Accident Prevention Guidelines
Operating Instructions
Maintenance Instructions.

This Operation and Maintenance manual should be given to the OPERATOR and any other person, who might work on the machine. It is very important that should read the manual carefully before operating or working on the LIEBHERR
excavator and at regular intervals thereafter, for example:
– Operation, including installing and removing the attachments, trouble
shooting during operation, removing production residue, care, disposing
of operating and auxiliary fluids,
– Maintenance work (maintenance, inspection, repair),
– Transportation.

The manual will make it easier for the operator to get accustomed to the hydraulic excavator and to prevent any problems due to improper handling. All maintenance personnel should follow the operating and maintenance instruct ions and your LIEBHERR excavator will give you constant and reliable service with excellent performance, reducing repair costs and down t ime.

• In addition to the operating and maintenance guidelines is this manual, additional local and national accident prevention guidelines and environment al regulations might be applicable and must be observed. The Operation and Maintenance Manual is part of the machine and should be left in the glove compartment of the operator’s cab.
• Please take notice that we cannot honor any claims which could arise due to careless handling, improper operation, inadequate maint enance, use of unauthorized oils or lubricant s, non-observance of the safety instructions, etc. LIEBHERR reserves the right to cancel any warranty claims, service contracts etc. without prior not ice if any other than Original LIEBHERR parts or parts sold by LIEBHERR are being used for maintenance and repairs.
• This Operation and Maintenance manual contains all necessary information to operate and maintain your Litronic track type excavator. However, should you need additional information or explanations. please contact LIEBHERR’s Technical Document ation, Service school or Customer Service Department.

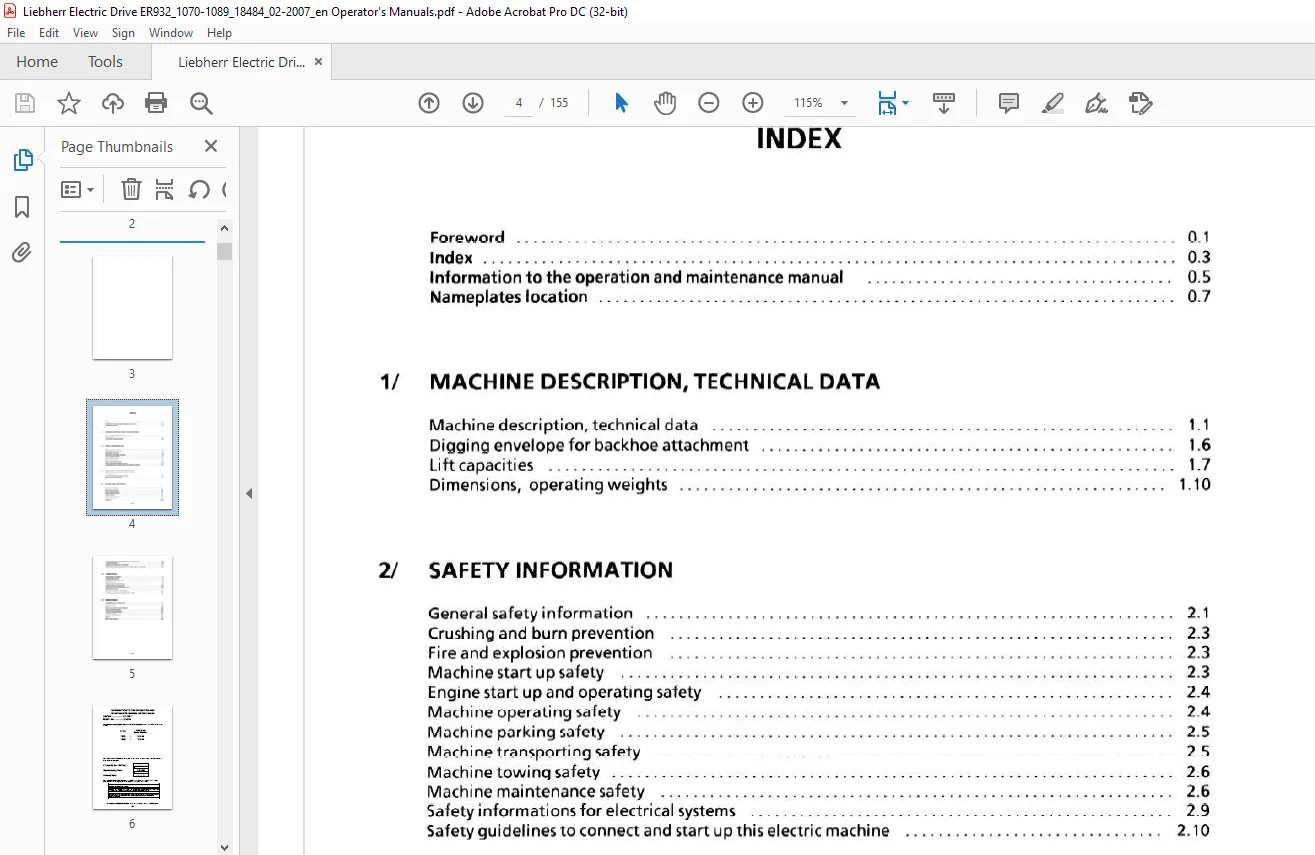

TABLE OF CONTENTS:

Liebherr R 932 E Litronic Excavator Operation & Maintenance Manual – PDF DOWNLOAD

Foreword 0 1
Index 0 3
Information to the operation and maintenance manual 0 5
Nameplates location 0 7
1/ MACHINE DESCRIPTION, TECHNICAL DATA
Machine descri ption, technical data 1 1
Digging envelope for backhoe attachment 1 6
Lift capacities 1 7
Dimensions, operating weights 1 1 O
2/ SAFETY INFORMATION
General safety information 2 1
Crushing and burn prevention 2 3
Fire and explosion prevention 2 3
Machine start up safety 2 3
Engine start up and operating safety 2 4
Machine operating safety 2 4
Machine parking safety 2 5
Machine t ransporting safety 2 5
Machine towing safety 2 6
Machine maintenance safety 2 6
Safety informations for electrical systems 2 9
Safety guidelines to connect and start up this elect ric machine 2 10
3/ CONTROLS AND INSTRUMENTATION
The operator’s seat 3 1
Controls and instrumentation in the cab 3 2
Cont rol and instrument panel 3 4
4/ OPERATING PROCEDURES
Before initial start up 4 1
Pre starting inspection 4 2
Machine start up safety 4 3
Electric motor operation 4 4
Machine operating safety 4 7
Travel functions 4 8
Locat ion of the two joysticks 4 10
Control of the sw ing 4 10
Attachment cont rol 4 11
The heater 4 14
0 3
Transporting the excavator on flatbed trailers or railway cars 4 17
Towingtheexcavator 4 18
Removal and installation of attachments 4 19
Guidelines for hydraulic excavators when they are used for Ii fting loads 4 26
The overload warning device 4 27
5/ LUBRICATION
General safety information 5 1
Lubricant and fuel chart 5 2
Lubricant and fuel specifications 5 4
Lubrication chart 5 6
The electric motor 5 7
Changing the oil in the travel gear 5 9
Changing the oil in the swing gear 5 10
Checking the oil level in the hydraulic tank 5 10
Swing ring lubrication 5 11
Lubrication of attachment bearing points 5 11
Changing the oil in the splitterbox 5 12
Centralized lubricating system (Optional equipment) 5 13
6/ MAINTENANCE
Safety guidelines for maintenance 6 1
The electric motor 6 4
The track components 6 8
The hydraulic system 6 10
Checking mounting screws for tightness 6 14
The swing and travel brakes 6 15
The electric rotary connection 6 16
The electrical system 6 18
Replacing the bucket teeth 6 20
Replacing wear and tear items 6 21
Welding 6 21
Maintenance schedule 6 23

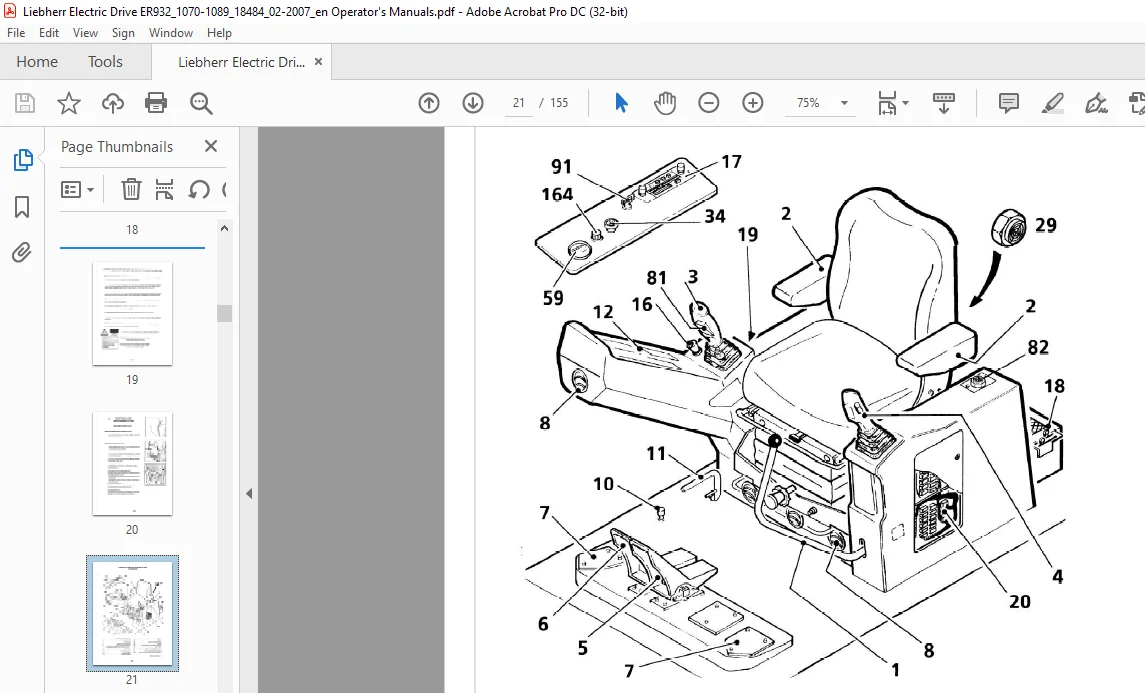

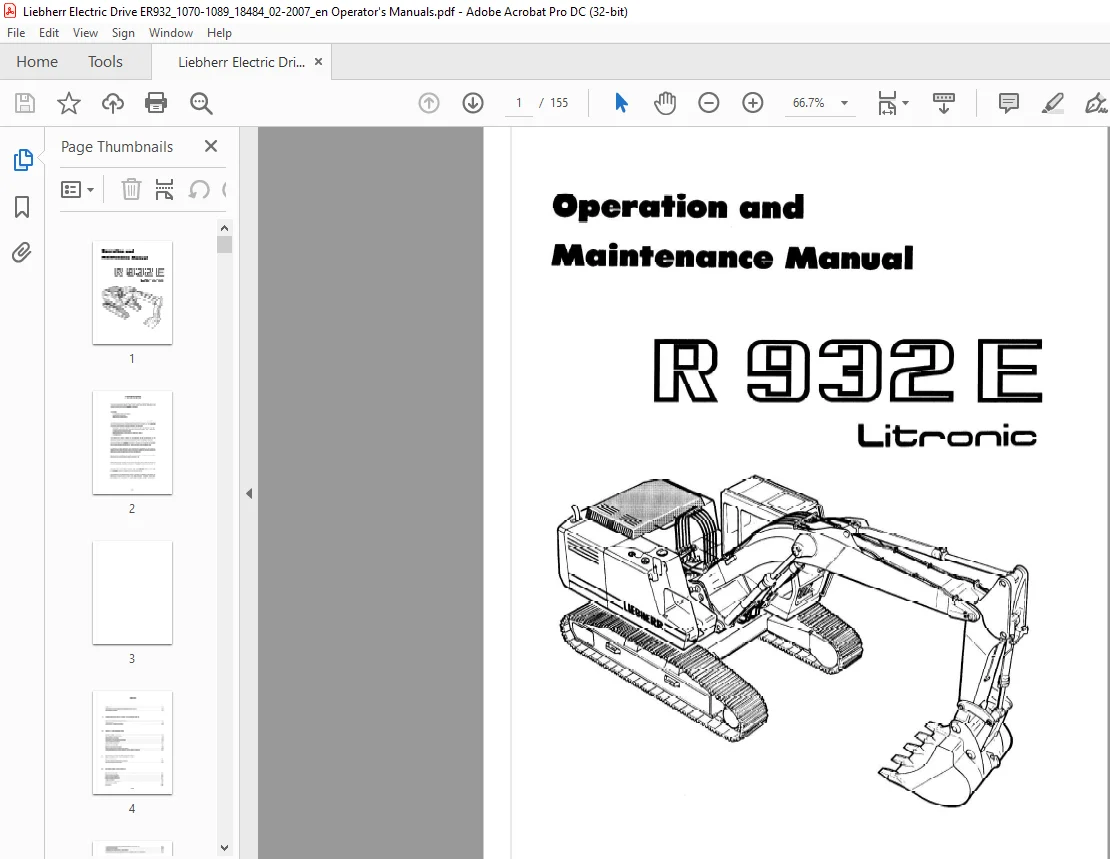

IMAGES PREVIEW OF THE MANUAL:
