Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

Description

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

FILE DETAILS:

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

Language : English
Pages : 2924
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

General:
1 Safety instructions:
Obey all safety instructions given in the Operating manual (which is included in the chapter “Operating
maintenance” of this Service manual).

Tightening:
3.1 Factory standard: tightening torques for screws on LIEBHERR Mining excavators
This section gives the torque values for screws in dry or greased condition. These torque tables must
be used unless a specific torque is given in the manual.
Use the 8.8 torque values from the tables that follow when:
– Tightening an aluminium part without tapping insert
– Tightening a welded nut
– Tightening in GL grey cast iron (flake graphite cast iron), e.g. by splitterboxes, engine blocks or
cast counterweights (in addition with “medium strength” thread locker like Loctite 243)
– Tightening of stainless steel screws (in addition with special stainless steel mounting oil/grease).
From screw size M20 and larger (except for screws with corrosion protective coating), grease must
be applied on the thread and under the screw head (use swing teeth grease):
– Use a paintbrush or similar tool to apply the grease
– Do not put grease inside the thread but on the screw
– Do not put grease in excess on the screw.

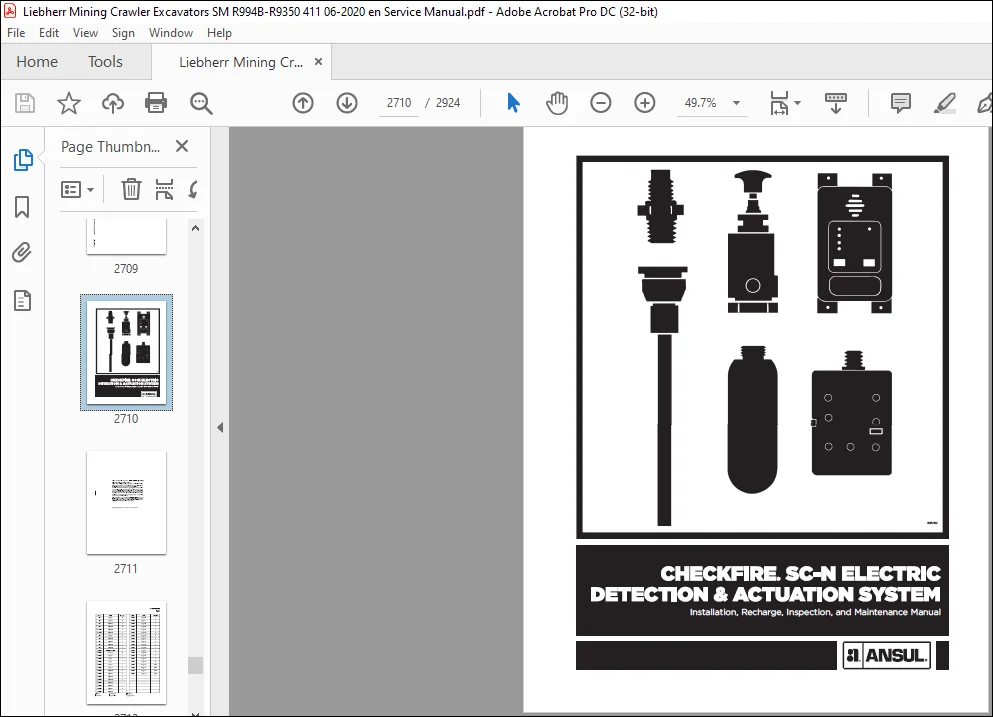

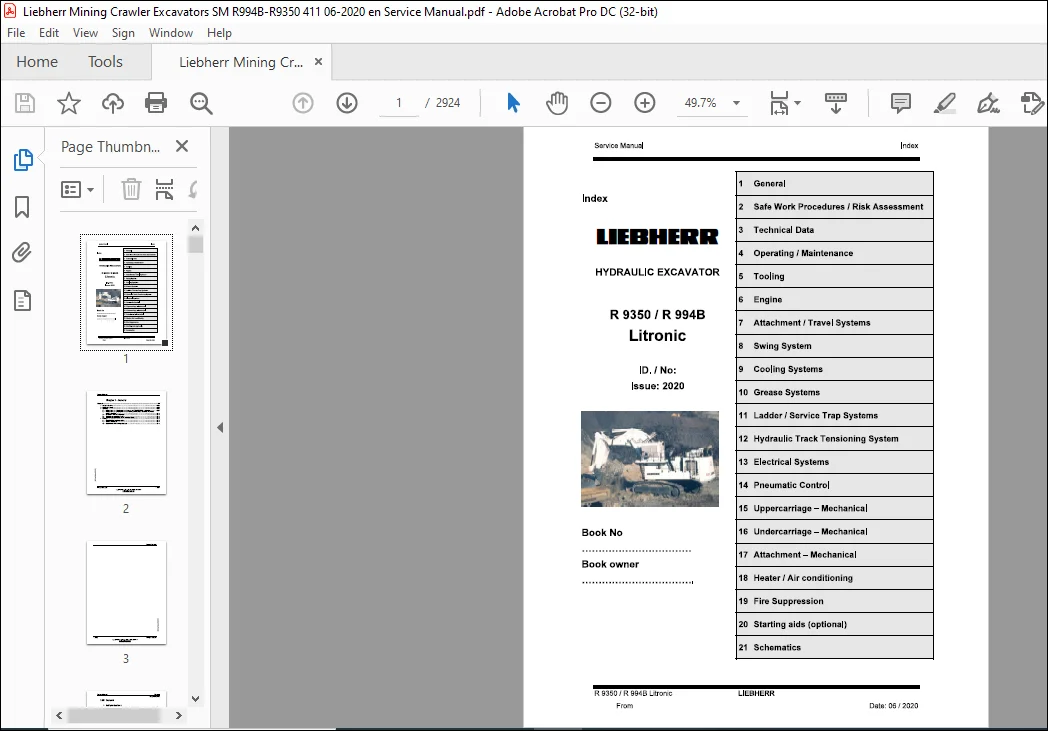

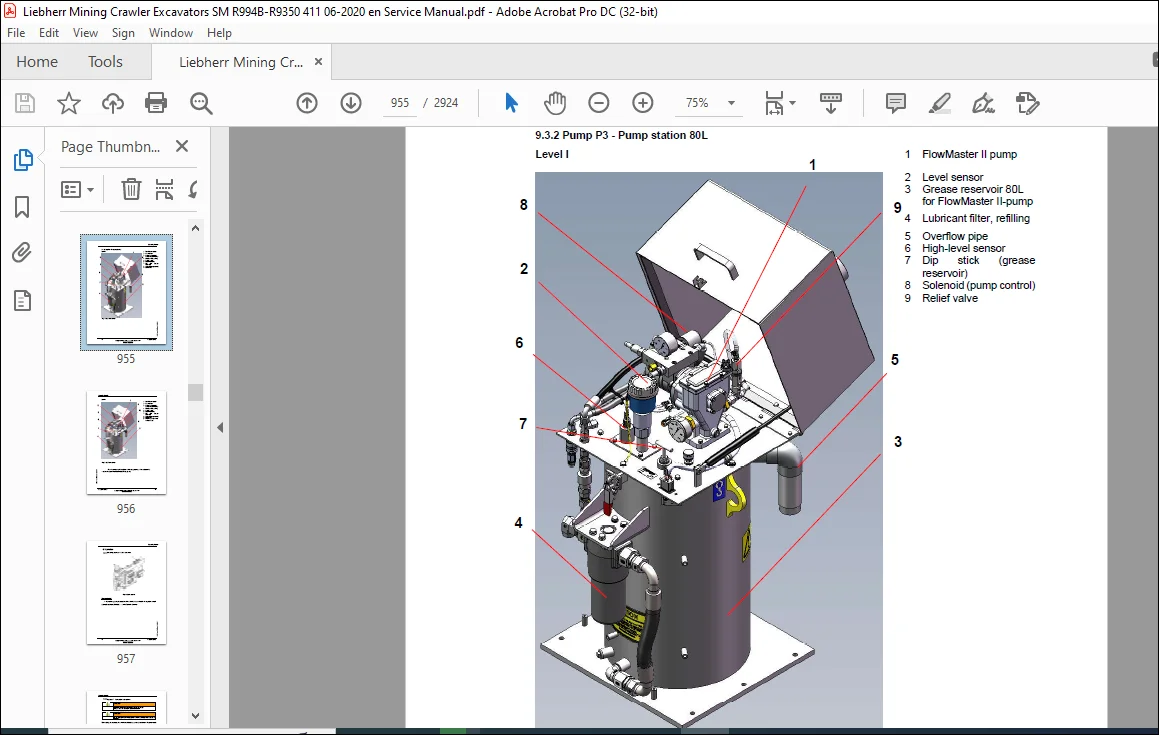

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Liebherr R 9350 R 994B Litronic Hydraulic Excavator Service Manual – PDF DOWNLOAD

1 General
2 Safe Work Procedures / Risk Assessment
3 Technical Data
4 Operating I Maintenance
5 Tooling
6 Engine
7 Attachment / Travel Systems
8 Swing System
9 Cooling Systems
10 Grease Systems
11 Ladder / Service Trap Systems
12 Hydraulic Track Tensioning System
13 Electrical Systems
14 Pneumatic Control
15 Uppercarriage – Mechanical
16 Undercarriage – Mechanical
17 Attachment – Mechanical
18 Heater I Air conditioning
19 Fire Suppression
20 Starting aids (optional)
21 Schematics

Customer Support: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
